| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B71111101 | POWER PLANT-AIR INTAKE COWL, PRE SBN70-0328 | aa | |
| - | SBN0328-01 | POWER PLANT-AIR INTAKE COWL, PRE SBN71-0184 | ab | |
| - | SBN0184-01 | POWER PLANT-AIR INTAKE COWL, PRE SBN71-0259 | ac | |
| - | SBN0259-01 | POWER PLANT-AIR INTAKE COWL, PRE SBN71-0266 | ad | |
| - | SBN0266-01 | POWER PLANT-AIR INTAKE COWL, PRE SBN71-0277 | ae | |
| - | SBN0277-01 | POWER PLANT-AIR INTAKE COWL, PRE SBN70-0272 | af | |
| - | SBN0272-01 | POWER PLANT-AIR INTAKE COWL, PRE SBN70-0749 | ag | |
| - | SBN0749-01 | POWER PLANT-AIR INTAKE COWL, PRE SBN70-0908 | ah | |
| - | SBN0908-01 | POWER PLANT-AIR INTAKE COWL, PRE SBN70-0909 | ai | |
| - | SBN0909-01 | POWER PLANT-AIR INTAKE COWL | aj | |
| 005 | 745-3000-501 | • COWL - AIR INTAKE 51563 | aa-aj | 1 |
| 005A | 745-3000-503 | • COWL - AIR INTAKE 51563 | aa-aj | 1 |
| 005B | 745-3000-503 | • COWL - AIR INTAKE 51563 | aa-aj | 1 |
| 005C | 745-3000-507 | • COWL - AIR INTAKE 51563 (PAINTED), (VRS2996) | ***** | 1 |
| 005D | 745-3000-507 | • COWL - AIR INTAKE 51563 (PAINTED), *NOT FOR POST SCN17*, (VRS2996) | ***** | 1 |
| 005E | 745-3000-511 | • COWL - AIR INTAKE 51563 (PAINTED), (VRS2996) | ***** | 1 |
| 005F | 745-3000-9503 | • COWL - AIR INTAKE 51563 (PAINTED), (VRS2996) | ***** | 1 |
| 005G | 745-3000-9511 | • COWL - AIR INTAKE 51563 (PAINTED), (VRS2996) | ***** | 1 |
| 005H | 745-3000-515 | • COWL - AIR INTAKE 51563 (PAINTED) POST SBN71–0259 PRE SBN70–0908 | ad-ah | 1 |
| 005J | 745-3000-503 | • COWL - AIR INTAKE 51563 POST SBN70–0908 PRE SBN70–0909 | ad-aj | 1 |
| 005K | 745-3000-507 | • COWL - AIR INTAKE 51563 POST SBN70–0909 | ad-aj | 1 |
| 005L | 745-3400-503 | • COWL - NOSE, FULLY EQUIPPED 51563 POST SBN70-0908 PRE SBN70-0909 | ai | 1 |
| 005M | 745-3400-507 | • COWL - NOSE, FULLY EQUIPPED 51563 POST SBN70-0909 | aj | 1 |
| 008 | AS22618 | • BOLT, .3125 DIA X 1.125 U1653 | aa-aj | 36 |
| -100 | 740-3181-505 | • PLATE - HALF LOCATING 51563 PRE SBN70-0908 | aa-ah | 1 |
| -100A | 745-3468-501 | • PLATE - HALF LOCATING 51563 POST SBN70-0908 | ai-aj | 1 |
| -120 | 740-3181-507 | • PLATE - HALF LOCATING 51563 PRE SBN70-0908 | aa-ah | 1 |
| -120A | 745-3469-501 | • PLATE - HALF LOCATING 51563 POST SBN70-0908 | ai-aj | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

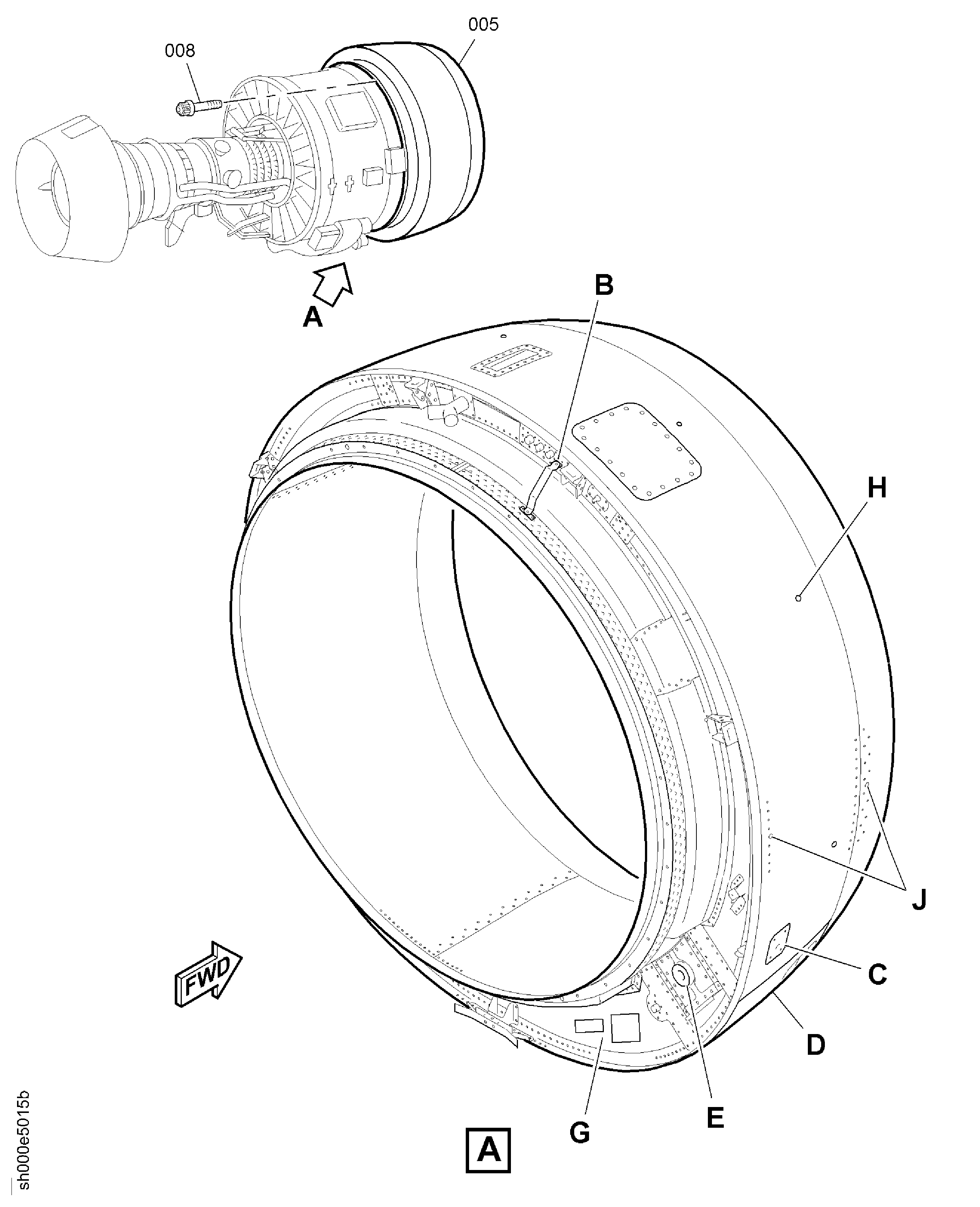

Figure: Air Intake Cowl
Air Intake Cowl
