DMC:V2500-A5-71-51-41-04A-941A-DIssue No:002.00Issue Date:2020-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||

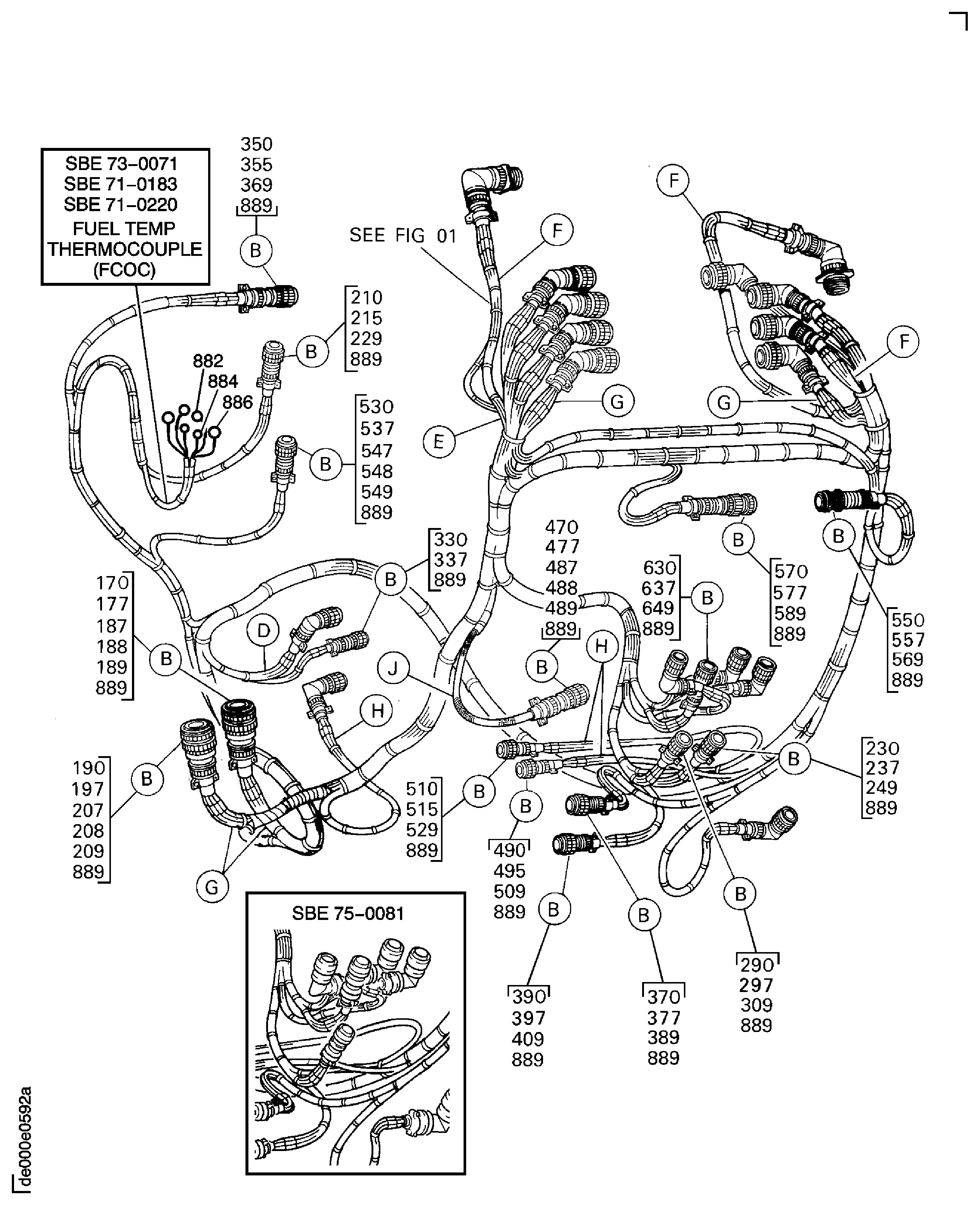

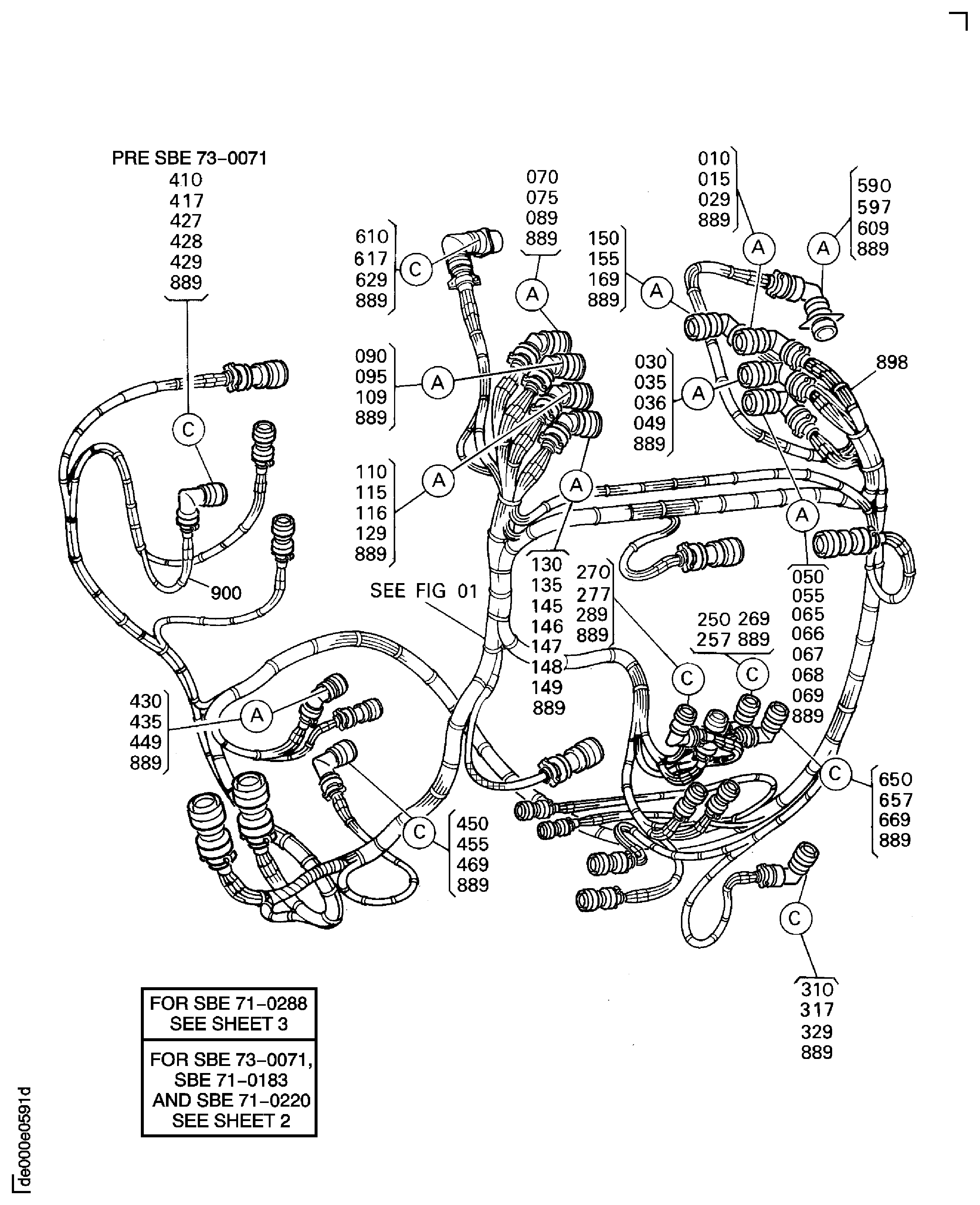

| - | B71514104 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0111 | aa | |
| - | SBE0111-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0288 POST SBE70-0288 PRE SBE70-1000 | ab | |
| - | SBE0288-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0324 POST SBE70-0288 PRE SBE70-1000 | ac | |
| - | SBE0324-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0367 POST SBE70-1000 | ad | |
| - | SBE0367-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0160 POST SBE70-1000 | ae | |
| - | SBE0160-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE73-0071 POST SBE70-1000 | af | |
| - | SBE0071-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0183 AND PRE SBE70-0638 POST SBE70-1000 | ag | |
| - | SBE0183-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0638 | ah | |
| - | SBE0638-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0642 | ai | |
| - | SBE0642-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0219 | aj | |
| - | SBE0219-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE71-0220 | ak | |
| - | SBE0220-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE75-0081 | al | |
| - | SBE0081-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-1000 AND PRE SBE71-0288 | am | |
| - | SBE0288-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE70-0324 | an | |
| - | SBE1000-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN, PRE SBE73-0250 | ao | |
| - | SBE0250-01 | POWER PLANT - ELECTRICAL HARNESS-EEC HARNESS-FAN | ap | |

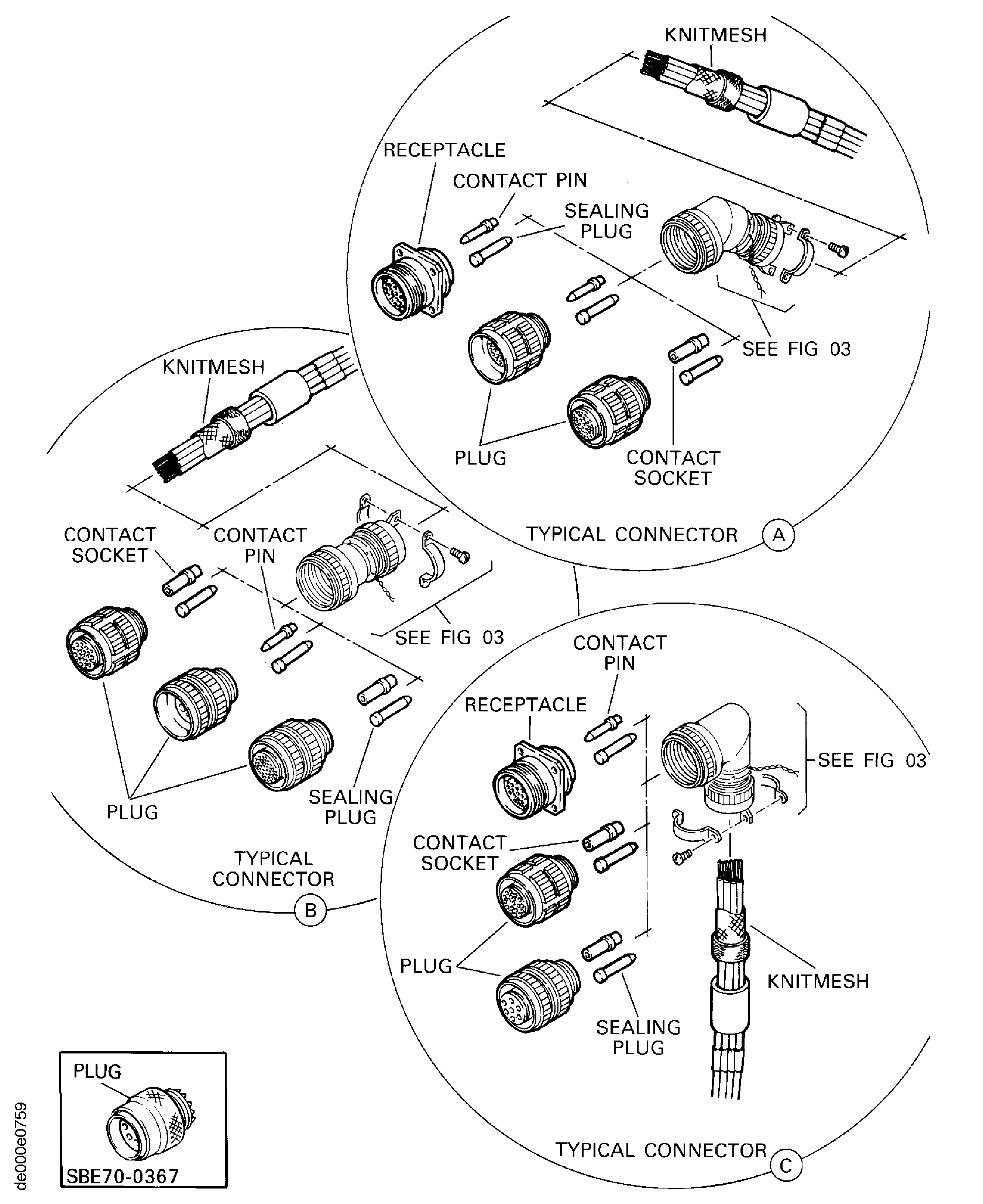

| 010 | 5A9282 | • • PLUG ALT MT938T21K41PA (FIN 4000KS-J2) PRE SBE70-0288 | aa-ab/01 | 1 |
| -010A | MT938T21K41PA | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K1221-41PA PRE SBE70-0288 | aa-ab/01 | REF |
| 010B | T3K1221-41PA | • • PLUG - ASSY (FIN 4000KS-J2) 49367 ALT MT938T21K41PA (FIN 4000KS-J2) POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | 1 |
| -010C | MT938T21K41PA | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K1221-41PA POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| 010D | T3K1221-41PA | • • PLUG - ASSY (FIN 4000KS-J2) 49367 ALT MT938T21K41PA POST SBE70-1000 | ao/02 | 1 |
| -010E | MT938T21K41PA | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 8D521K41PA POST SBE70-1000 | ao/03 | REF |
| -010F | 8D521K41PA | • • CONNECTOR - ELECTRICAL F0225 ALT D38999-26KG41PA POST SBE70-1000 | ao/03 | REF |
| -010G | D38999-26KG41PA | • • CONNECTOR - ELECTRICAL F0225 ALT 5A9282 POST SBE70-1000 | ao/03 | REF |
| 015 | 5A9288 | • • • CONTACT | aa-ao/01 | 41 |
| 029 | MS27488-20 | • • PLUG - SEALING 96906 PRE SBE75-0081 | aa-al/01 | 11 |
| 029A | MS27488-20 | • • PLUG - SEALING 96906 POST SBE75-0081 | am-ao/02 | 9 |
| -030 | MT938T21K39SD | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K1221-39SD PRE SBE70-0288 | aa-ab/01 | REF |
| 030A | T3K1221-39SD | • • PLUG - ASSY CONNECTOR (FIN 400KS-J3) 49367 ALT MT938T21K39SD POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | 1 |
| -030B | MT938T21K39SD | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 5A9280 POST SBE70-0288 PRE SBE70-1000 | aa-ao/01 | REF |
| 030C | T3K1221-39SD | • • PLUG - ASSY CONNECTOR (FIN 400KS-J3) 49367 ALT MT938T21K39SD POST SBE70-1000 | ao/02 | 1 |
| -030D | MT938T21K39SD | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 8D521K39SD POST SBE70-1000 | ao/03 | REF |
| -030E | 8D521K39SD | • • CONNECTOR - ELECTRICAL F0225 ALT D38999-26KG39SD POST SBE70-1000 | ao/03 | REF |
| -030F | D38999-26KG39SD | • • CONNECTOR - ELECTRICAL F0225 ALT T3K1221-39SD POST SBE70-1000 | ao/03 | REF |
| 035 | 5A9290 | • • • CONTACT - SOCKET ALT 5100-101-0120 PRE SBE70-0288 | aa-ab/01 | 37 |
| -035A | 5100-101-0120 | • • • CONTACT - SOCKET 14283 ALT 5A9290 PRE SBE70-0288 | aa-ab/01 | REF |
| 035B | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT 5100-101-0120 POST SBE70-0288 | ac-ao/03 | 37 |
| -035C | 5100-101-0120 | • • • CONTACT - SOCKET 14283 ALT T3-4120-36LD POST SBE70-0288 | ac-ao/03 | REF |
| 035D | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT 5100-101-0120 POST SBE70-0288 PRE SBE73-0250 | ac-ao/01 | 37 |
| -035E | 5100-101-0120 | • • • CONTACT - SOCKET 14283 ALT M39029-56-351 POST SBE70-0288 PRE SBE73-0250 | ac-ao/01 | REF |
| -035F | M39029-56-351 | • • • CONTACT - SOCKET 81349 ALT T3-4120-36LD POST SBE73-0250 | ap/03 | REF |
| -036 | 5100-101-0116 | • • • CONTACT - SOCKET 14283 ALT T3-4116-36LD PRE SBE70-0288 | aa-ao/01 | REF |
| 036A | T3-4116-36LD | • • • CONTACT - SOCKET 49367 ALT 5100-101-0116 POST SBE70-0288 | ac-ao/01 | 2 |
| -036B | 5100-101-0116 | • • • CONTACT - SOCKET 14283 ALT 5A9291 POST SBE70-0288 | ac-ao/01 | REF |
| -036C | 5100-101-0116 | • • • CONTACT - SOCKET 14283 POST SBE70-0288 | ac-ao/02 | REF |
| 049 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ao/03 | 11 |
| 050 | 5A9286 | • • PLUG ALT MT938T21K41S (FIN 4000KS-J4) PRE SBE70-0288 | aa-ab/01 | 1 |
| -050A | MT938T21K41S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K1221-41SN PRE SBE70-0288 | aa-ab/01 | REF |
| 050B | T3K1221-41SN | • • PLUG - ASSY (FIN 4000KS-J4) 49367 ALT MT938T21K41S POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | 1 |
| -050C | MT938T21K41S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| -050D | MT938T21K41S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 5A9286 POST SBE70-0288 PRE SBE70-1000 | ac-an/02 | REF |
| 050E | T3K1221-41SN | • • PLUG - ASSY (FIN 4000KS-J4) 49367 ALT MT938T21K41S POST SBE70-1000 | ao/03 | 1 |
| -050F | MT938T21K41S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 8D521K41SN POST SBE70-1000 | ao/03 | REF |
| -050G | 8D521K41SN | • • CONNECTOR - ELECTRICAL F0225 ALT D38999-26KG41SN POST SBE70-1000 | ao/03 | REF |
| -050H | D38999-26KG41SN | • • CONNECTOR - ELECTRICAL F0225 ALT T3K1221-41SN POST SBE70-1000 | ao/03 | REF |
| 055 | 5A9290 | • • • CONTACT - SOCKET PRE SBE70-0288 | aa-ao/01 | 29 |
| 055A | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT M39029-56-351 POST SBE70-0288 PRE SBE73-0250 | ac-ao/01 | 41 |
| -055B | M39029-56-351 | • • • CONTACT - SOCKET 81349 ALT T3-4120-36LD POST SBE73-0250 | ap/03 | REF |
| 065 | T3-4120-10R | • • CONTACT 49367 POST SBE73-0071 PRE SBE70-0642 | ag-ai/01 | 1 |
| -065A | 5100-299-0120 | • • CONTACT 14283 POST SBE73-0071 PRE SBE70-0642 | ag-ai/01 | REF |
| 065B | T3-4120-10R | • • CONTACT 49367 ALT M39029-88-487 POST SBE70-0642 | aj-ao/01 | 1 |
| 065C | 5100-299-0120 | • • CONTACT 14283 ALT T3-4120-10R POST SBE70-0642 | aj-ao/02 | 1 |
| 065D | M39029-88-487 | • • SOCKET - CONTACT 81349 ALT 5100-299-0120 POST SBE70-0642 | aj-ao/03 | 1 |
| 066 | T3-4120-10P | • • CONTACT 49367 POST SBE73-0071 PRE SBE70-0642 | ag-ai/01 | 1 |
| -066A | 5100-299-0220 | • • CONTACT 14283 POST SBE73-0071 PRE SBE70-0642 | ag-ai/01 | REF |
| 066B | T3-4120-10P | • • CONTACT 49367 ALT M39029-88-488 POST SBE70-0642 | aj-ao/02 | 1 |
| 066C | 5100-299-0220 | • • CONTACT 14283 ALT T3-4120-10P POST SBE70-0642 | aj-ao/03 | 1 |
| 066D | M39029-88-488 | • • SOCKET - CONTACT 81349 ALT 5100-299-0220 POST SBE70-0642 | aj-ao/03 | 1 |
| 067 | 5A9292 | • • CONTACT - SOCKET ALT 5100-299-0220 PRE SBE70-0288 | aa-ab/01 | 6 |
| -067A | 5100-299-0220 | • • CONTACT 14283 ALT T3-4120-10P PRE SBE70-0288 | aa-ab/01 | REF |
| 067B | T3-4120-10P | • • CONTACT 49367 ALT 5100-299-0220 POST SBE70-0288 PRE SBE73-0071 | ac-af/01 | 6 |
| -067C | 5100-299-0220 | • • CONTACT 14283 POST SBE70-0288 | ac-ao/01 | REF |
| -067D | 5100-299-0220 | • • CONTACT 14283 ALT 5A9292 POST SBE70-0288 PRE SBE70-0288 | ac-ab/01 | REF |
| 067E | T3-4120-10P | • • CONTACT 49367 POST SBE73-0071 PRE SBE70-0642 | ag-ai/02 | 5 |
| -067F | 5100-299-0220 | • • CONTACT 14283 POST SBE73-0071 PRE SBE70-0642 | ag-ai/03 | REF |
| 067G | M39029-88-488 | • • SOCKET - CONTACT 81349 ALT 5100-299-0220 POST SBE70-0642 | aj-ao/03 | 5 |
| 067H | 5100-299-0220 | • • CONTACT 14283 ALT T3-4120-10R POST SBE70-0642 | aj-ao/03 | 5 |
| 067I | T3-4120-10P | • • CONTACT 49367 ALT M39029-88-488 POST SBE70-0642 | aj-ao/03 | 5 |
| 068 | 5A9293 | • • CONTACT - SOCKET ALT 5100-299-0120 PRE SBE70-0288 | aa-ab/01 | 6 |
| -068A | 5100-299-0120 | • • CONTACT 14283 ALT T3-4120-10R PRE SBE70-0288 | aa-ab/01 | REF |
| 068B | T3-4120-10R | • • CONTACT 49367 ALT 5100-299-0120 POST SBE70-0288 PRE SBE73-0071 | ac-af/01 | 6 |
| -068C | 5100-299-0120 | • • CONTACT 14283 ALT 5A9293 POST SBE70-0288 PRE SBE73-0071 | ac-ab/01 | REF |
| -068D | 5100-299-0120 | • • CONTACT 14283 POST SBE70-0288 | ac-ao/01 | REF |
| 068E | T3-4120-10R | • • CONTACT 49367 POST SBE73-0071 PRE SBE70-0642 | ag-ai/02 | 5 |
| -068F | 5100-299-0120 | • • CONTACT 14283 POST SBE73-0071 PRE SBE70-0642 | ag-ai/03 | REF |
| 068G | M39029-88-487 | • • SOCKET - CONTACT 81349 ALT 5100-299-0120 POST SBE70-0642 | aj-ao/03 | 5 |
| 068H | 5100-299-0120 | • • CONTACT 14283 ALT T3-4120-10R POST SBE70-0642 | aj-ao/03 | 5 |
| 068J | T3-4120-10R | • • CONTACT 49367 ALT M39029-88-487 POST SBE70-0642 | aj-ao/03 | 5 |
| 069 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ao/03 | 12 |
| 070 | 5A9287 | • • PLUG ALT MT938T21K41SB (FIN 400KS-J4) PRE SBE70-0288 | aa-ab/01 | 1 |
| -070A | MT938T21K41SB | • • PLUG - ASSEMBLY OF 14283 ALT T3K1221-41SB PRE SBE70-0288 | aa-ab/01 | REF |
| 070B | T3K1221-41SB | • • PLUG - ASSY CONNECTOR (FIN 4000KS-J5) 49367 ALT MT938T21K41SB POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | 1 |
| -070C | MT938T21K41SB | • • PLUG - ASSEMBLY OF 14283 ALT 5A9287 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| -070D | MT938T21K41SB | • • PLUG - ASSEMBLY OF 14283 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| 070E | T3K1221-41SB | • • PLUG - ASSY CONNECTOR (FIN 4000KS-J5) 49367 ALT MT938T21K41SB POST SBE70-1000 | ao/02 | 1 |
| -070F | MT938T21K41SB | • • PLUG - ASSEMBLY OF 14283 ALT 8D521K41SB POST SBE70-1000 | ao/03 | REF |
| -070G | 8D521K41SB | • • CONNECTOR - ELECTRICAL F0225 ALT D38999-26KG41SB POST SBE70-1000 | ao/03 | REF |
| -070H | D38999-26KG41SB | • • CONNECTOR - ELECTRICAL F0225 ALT T3K1221-41SB POST SBE70-1000 | ao/03 | REF |
| 075 | 5A9290 | • • • CONTACT - SOCKET PRE SBE70-0288 | aa-ao/01 | 41 |
| 075A | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT M39029-56-351 POST SBE70-0288 PRE SBE73-0250 | ac-ao/01 | 41 |
| -075B | M39029-56-351 | • • • CONTACT - SOCKET 81349 ALT T3-4120-36LD POST SBE73-0250 | ap/03 | REF |
| 089 | MS27488-20 | • • PLUG - SEALING 96906 PRE SBE75-0081 | aa-al/03 | 19 |
| 089A | MS27488-20 | • • PLUG - SEALING 96906 POST SBE75-0081 | am-ao/03 | 21 |
| 090 | 5A9283 | • • PLUG ALT MT938T21K41PE (FIN 4000KS-J8) PRE SBE70-0288 | aa-ab/01 | 1 |
| -090A | MT938T21K41PE | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K1221-41PE PRE SBE70-0288 | aa-ab/01 | REF |
| 090B | T3K1221-41PE | • • PLUG - ASSY (FIN 4000KS-J8) 49367 ALT MT938T21K41PE POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | 1 |
| -090C | MT938T21K41PE | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 5A9283 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| -090D | MT938T21K41PE | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| 090E | T3K1221-41PE | • • PLUG - ASSY (FIN 4000KS-J8) 49367 ALT MT938T21K41PE POST SBE70-1000 | ao/02 | 1 |
| -090F | MT938T21K41PE | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 8D521K41PE POST SBE70-1000 | ao/03 | REF |
| -090G | 8D521K41PE | • • CONNECTOR - ELECTRICAL F0225 ALT D38999-26KG41PE POST SBE70-1000 | ao/03 | REF |
| -090H | D38999-26KG41PE | • • CONNECTOR - ELECTRICAL F0225 ALT T3K1221-41PE POST SBE70-1000 | ao/03 | REF |
| 095 | 5A9288 | • • • CONTACT PRE SBE70-0288 | aa-ao/01 | 41 |
| 095A | T3-4020-36LD | • • • CONTACT - PIN 49367 POST SBE70-0288 | ac-ao/03 | 41 |
| 109 | MS27488-20 | • • PLUG - SEALING 96906 PRE SBE75-0081 | aa-al/03 | 14 |
| 109A | MS27488-20 | • • PLUG - SEALING 96906 POST SBE75-0081 | am-ao/03 | 14 |
| 110 | 5A9281 | • • PLUG ALT MT938T21K39SE (FIN 4000KS-J9) PRE SBE70-0288 | aa-ab/01 | 1 |
| -110A | MT938T21K39SE | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K1221-39SE PRE SBE70-0288 | aa-ab/01 | REF |
| 110B | T3K1221-39SE | • • PLUG - ASSY (FIN 4000KS-J9) 49367 ALT MT938T21K39SE POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | 1 |
| -110C | MT938T21K39SE | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 5A9281 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| -110D | MT938T21K39SE | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| 110E | T3K1221-39SE | • • PLUG - ASSY (FIN 4000KS-J9) 49367 ALT MT938T21K39SE POST SBE70-1000 | ao/02 | 1 |
| -110F | MT938T21K39SE | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 8D521K39SE POST SBE70-1000 | ao/03 | REF |
| -110G | 8D521K39SE | • • CONNECTOR - ELECTRICAL F0225 ALT D38999-26KG39SE POST SBE70-1000 | ao/03 | REF |
| -110H | D38999-26KG39SE | • • CONNECTOR - ELECTRICAL F0225 ALT T3K1221-39SE POST SBE70-1000 | ao/03 | REF |
| 115 | 5A9290 | • • • CONTACT - SOCKET PRE SBE70-0288 | aa-ao/01 | 37 |
| 115A | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT M39029-56-351 POST SBE70-0288 PRE SBE73-0250 | ac-ao/01 | 37 |
| -115B | M39029-56-351 | • • • CONTACT - SOCKET 81349 ALT T3-4120-36LD POST SBE73-0250 | ap/03 | REF |
| 116 | T3-4116-36LD | • • • CONTACT - SOCKET 49367 POST SBE70-0288 | ac-ao/03 | 2 |
| 129 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ao/03 | 11 |
| 130 | 5A9284 | • • PLUG ALT MT938T21K41SA (FIN 4000KS-J10) PRE SBE70-0288 | aa-ab/01 | 1 |
| -130A | MT938T21K41SA | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K1221-41SA PRE SBE70-0288 | aa-ab/01 | REF |
| 130B | T3K1221-41SA | • • PLUG - ASSY (FIN 4000KS-J10) 49367 ALT MT938T21K41SA POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | 1 |
| -130C | MT938T21K41SA | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 5A9284 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| -130D | MT938T21K41SA | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| 130E | T3K1221-41SA | • • PLUG - ASSY (FIN 4000KS-J10) 49367 ALT MT938T21K41SA POST SBE70-1000 | ao/02 | 1 |
| -130F | MT938T21K41SA | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 8D521K41SA POST SBE70-1000 | ao/03 | REF |
| -130G | 8D521K41SA | • • CONNECTOR - ELECTRICAL F0225 ALT D38999-26KG41SA POST SBE70-1000 | ao/03 | REF |
| -130H | D38999-26KG41SA | • • CONNECTOR - ELECTRICAL F0225 ALT T3K1221-41SA POST SBE70-1000 | ao/03 | REF |
| 135 | 5A9290 | • • • CONTACT - SOCKET PRE SBE70-0288 | aa-ao/01 | 29 |
| 135A | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT M39029-56-351 POST SBE70-0288 PRE SBE73-0250 | ac-ao/01 | 41 |
| -135B | M39029-56-351 | • • • CONTACT - SOCKET 81349 ALT T3-4120-36LD POST SBE73-0250 | ap/03 | REF |
| 145 | T3-4120-10R | • • CONTACT 49367 POST SBE73-0071 PRE SBE70-0642 | ag-ai/01 | 1 |
| -145A | 5100-299-0120 | • • CONTACT 14283 POST SBE73-0071 PRE SBE70-0642 | ag-ai/01 | REF |
| 145B | T3-4120-10R | • • CONTACT 49367 ALT M39029-88-487 POST SBE70-0642 | aj-ao/01 | 1 |
| 145C | 5100-299-0120 | • • CONTACT 14283 ALT T3-4120-10R POST SBE70-0642 | aj-ao/02 | 1 |
| 145D | M39029-88-487 | • • SOCKET - CONTACT 81349 ALT 5100-299-0120 POST SBE70-0642 | aj-ao/03 | 1 |
| -146 | 5100-299-0220 | • • CONTACT 14283 POST SBE73-0071 PRE SBE70-0642 | ag-ai/01 | REF |
| 146A | T3-4120-10P | • • CONTACT 49367 POST SBE73-0071 PRE SBE70-0642 | ag-ai/01 | 1 |
| 146B | 5100-299-0220 | • • CONTACT 14283 ALT T3-4120-10P POST SBE70-0642 | aj-ao/01 | 1 |
| 146C | T3-4120-10P | • • CONTACT 49367 ALT M39029-88-488 POST SBE70-0642 | aj-ao/02 | 1 |
| 146D | M39029-88-488 | • • SOCKET - CONTACT 81349 ALT 5100-299-0220 POST SBE70-0642 | aj-ao/03 | 1 |
| 147 | 5A9292 | • • CONTACT - SOCKET ALT 5100-299-0220 PRE SBE70-0288 | aa-ab/01 | 6 |
| -147A | 5100-299-0220 | • • CONTACT 14283 ALT T3-4120-10P PRE SBE70-0288 | aa-ab/01 | REF |
| 147B | T3-4120-10P | • • CONTACT 49367 ALT 5100-299-0220 POST SBE70-0288 PRE SBE73-0071 | ac-af/01 | 6 |
| -147C | 5100-299-0220 | • • CONTACT 14283 POST SBE70-0288 | ac-ao/01 | REF |
| -147D | 5100-299-0220 | • • CONTACT 14283 ALT 5A9292 POST SBE70-0288 PRE SBE70-0288 | ac-ab/01 | REF |
| 147E | T3-4120-10P | • • CONTACT 49367 POST SBE73-0071 PRE SBE70-0642 | ag-ai/02 | 5 |
| -147F | 5100-299-0220 | • • CONTACT 14283 POST SBE73-0071 PRE SBE70-0642 | ag-ai/03 | REF |
| 147G | M39029-88-488 | • • SOCKET - CONTACT 81349 ALT 5100-299-0220 POST SBE70-0642 | aj-ao/03 | 5 |
| 147H | 5100-299-0220 | • • CONTACT 14283 ALT T3-4120-10P POST SBE70-0642 | aj-ao/03 | 5 |
| 147I | T3-4120-10P | • • CONTACT 49367 ALT M39029-88-488 POST SBE70-0642 | aj-ao/03 | 5 |
| 148 | 5A9293 | • • CONTACT - SOCKET ALT 5100-299-0120 PRE SBE70-0288 | aa-ab/01 | 6 |
| -148A | 5100-299-0120 | • • CONTACT 14283 ALT T3-4120-10R PRE SBE70-0288 | aa-ab/01 | REF |
| 148B | T3-4120-10R | • • CONTACT 49367 ALT 5100-299-0120 POST SBE70-0288 PRE SBE73-0071 | ac-af/01 | 6 |
| -148C | 5100-299-0120 | • • CONTACT 14283 ALT 5A9293 POST SBE70-0288 PRE SBE70-0288 | ac-ab/01 | REF |
| -148D | 5100-299-0120 | • • CONTACT 14283 POST SBE70-0288 | ac-ao/01 | REF |
| 148E | T3-4120-10R | • • CONTACT 49367 POST SBE73-0071 PRE SBE70-0642 | ag-ai/02 | 5 |
| -148F | 5100-299-0120 | • • CONTACT 14283 POST SBE73-0071 PRE SBE70-0642 | ag-ai/03 | REF |
| 148G | M39029-88-487 | • • SOCKET - CONTACT 81349 POST SBE70-0642 | aj-ao/03 | 5 |
| 148H | 5100-299-0120 | • • CONTACT 14283 POST SBE70-0642 | aj-ao/03 | 5 |
| 148I | T3-4120-10R | • • CONTACT 49367 POST SBE70-0642 | aj-ao/03 | 5 |
| 149 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ao/03 | 10 |
| 150 | 5A9285 | • • PLUG ALT MT938T21K41SC (FIN 4000KS-J11) PRE SBE70-0288 | aa-ab/01 | 1 |
| -150A | MT938T21K41SC | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K1221-41SC PRE SBE70-0288 | aa-ab/01 | REF |
| 150B | T3K1221-41SC | • • PLUG - ASSY (FIN 4000KS-J11) 49367 ALT MT938T21K41SC POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | 1 |
| -150C | MT938T21K41SC | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 5A9285 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| -150D | MT938T21K41SC | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| 150E | T3K1221-41SC | • • PLUG - ASSY (FIN 4000KS-J11) 49367 ALT MT938T21K41SC POST SBE70-1000 | ao/02 | 1 |
| -150F | MT938T21K41SC | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 8D521K41SC POST SBE70-1000 | ao/03 | REF |
| -150G | 8D521K41SC | • • CONNECTOR - ELECTRICAL F0225 ALT D38999-26KG41SC POST SBE70-1000 | ao/03 | REF |
| -150H | D38999-26KG41SC | • • CONNECTOR - ELECTRICAL F0225 ALT T3K1221-41SC POST SBE70-1000 | ao/03 | REF |
| 155 | 5A9290 | • • • CONTACT - SOCKET PRE SBE70-0288 | aa-ao/01 | 41 |
| 155A | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT M39029-56-351 POST SBE70-0288 PRE SBE73-0250 | ac-ao/01 | 41 |
| -155B | M39029-56-351 | • • • CONTACT - SOCKET 81349 ALT T3-4120-36LD POST SBE73-0250 | ap/03 | REF |
| 169 | MS27488-20 | • • PLUG - SEALING 96906 PRE SBE75-0081 | aa-al/03 | 17 |
| 169A | MS27488-20 | • • PLUG - SEALING 96906 POST SBE75-0081 | am-ao/03 | 19 |
| 170 | ESC10SE62842SN0 | • • CONNECTOR - PLUG, ASSEMBLY OF U1653 | aa-ao/03 | 1 |
| 177 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 38 |
| 187 | ESC30S16NC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 2 |
| 188 | ESC30S16NA | • • CONTACT - SOCKET U1653 | aa-ao/03 | 2 |
| 189 | MS3187-16-2 | • • PLUG - SEALING 96906 PRE SBE75-0081 | aa-al/03 | 16 |
| 189A | MS3187-16-2 | • • PLUG - SEALING 96906 POST SBE75-0081 | am-ao/03 | 18 |
| 190 | ESC10SE62842S60 | • • CONNECTOR - PLUG, ASSEMBLY OF U1653 | aa-ao/03 | 1 |
| 197 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 36 |
| 207 | ESC30S16NC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 3 |
| 208 | ESC30S16NA | • • CONTACT - SOCKET U1653 | aa-ao/03 | 3 |
| 209 | MS3187-16-2 | • • PLUG - SEALING 96906 PRE SBE75-0081 | aa-al/03 | 12 |
| 209A | MS3187-16-2 | • • PLUG - SEALING 96906 POST SBE75-0081 | am-ao/03 | 14 |
| 210 | 5A9278 | • • PLUG ALT MT938T15K19S (FIN 4018KS-A) PRE SBE70-0288 | aa-ab/01 | 1 |
| -210A | MT938T15K19S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K1215-19SN (FIN 4018KS-A) PRE SBE70-0288 | aa-ab/01 | REF |
| 210B | T3K1215-19SN | • • PLUG - ASSY (FIN 4000KC-B) 49367 ALT MT938T15K19S (FIN 4018KS-A) POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | 1 |
| -210C | MT938T15K19S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 5A9278 (FIN 4018KS-A) POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| -210D | MT938T15K19S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 (FIN 4018KS-A) POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| 210E | T3K1215-19SN | • • PLUG - ASSY (FIN 4000KC-B) 49367 ALT MT938T15K19S POST SBE70-1000 | ao/02 | 1 |
| -210F | MT938T15K19S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 8D515K19SN POST SBE70-1000 | ao/03 | REF |
| -210G | 8D515K19SN | • • CONNECTOR - ELECTRICAL F0225 ALT D38999-26KD19SN POST SBE70-1000 | ao/03 | REF |
| -210H | D38999-26KD19SN | • • SOCKET - CONTACT F0225 ALT T3K1215-19SN POST SBE70-1000 | ao/03 | REF |
| 215 | 5A9290 | • • • CONTACT - SOCKET PRE SBE70-0288 | aa-ao/01 | 19 |
| 215A | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT M39029-56-351 POST SBE70-0288 PRE SBE73-0250 | ac-ao/01 | 19 |
| -215B | M39029-56-351 | • • • CONTACT - SOCKET 81349 ALT T3-4120-36LD POST SBE73-0250 | ap/03 | REF |
| 229 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ao/03 | 11 |
| 230 | ESC10SE61407S80 | • • CONNECTOR (FIN 4028KS-A) PRE SBE75-0081 | aa-al/03 | 1 |
| 237 | ESC30S16BC | • • CONTACT - SOCKET U1653 PRE SBE75-0081 | aa-al/03 | 7 |
| 249 | MS3187-16-2 | • • PLUG - SEALING 96906 PRE SBE75-0081 | aa-al/03 | 3 |
| 250 | ESC10SE61407SN0 | • • CONNECTOR U1653 (FIN 4020KS3-A) | aa-ao/03 | 1 |
| 257 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 7 |
| 269 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/03 | 3 |
| 270 | ESC10SE61407SN0 | • • CONNECTOR U1653 (FIN 4029KS-A) | aa-ao/03 | 1 |
| 277 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 7 |
| 289 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/03 | 3 |
| 290 | ESC10SE61407SN0 | • • CONNECTOR U1653 (FIN 4023KS-A) | aa-ao/03 | 1 |
| 297 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 7 |
| 309 | MS3187-16-2 | • • PLUG - SEALING 96906 (FIN 4005KS-A) | aa-ao/03 | 3 |
| 310 | ESC10SE61610S90 | • • CONNECTOR - PLUG, ASSEMBLY OF U1653 | aa-ao/03 | 1 |
| 317 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 10 |
| 329 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/03 | 2 |
| 330 | ESC10SE61203PN0 | • • CONNECTOR - PLUG, ASSEMBLY OF U1653 (FIN 4010KS-A) | aa-ao/03 | 1 |
| 337 | ESC30P16BC | • • CONTACT - PLUG U1653 | aa-ao/03 | 3 |
| 350 | 5A9279 | • • PLUG ALT MT938T17K26S (FIN 4018KS-B) PRE SBE70-0288 | aa-ab/01 | 1 |
| -350A | MT938T17K26S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K1217-26SN PRE SBE70-0288 | aa-ab/01 | REF |
| 350B | T3K1217-26SN279 | • • PLUG, ASSY CONNECTOR 49367 ALT MT938T17K26S (FIN 4018KS-B) POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | 1 |
| -350C | MT938T17K26S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 5A9279 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| -350D | MT938T17K26S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| 350E | T3K1217-26SN | • • PLUG - ASSY CONNECTOR (FIN 4018KS-B) 49367 ALT MT938T17K26S POST SBE70-1000 | ao/02 | 1 |
| -350F | MT938T17K26S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 8D517K26SN POST SBE70-1000 | ao/03 | REF |
| -350G | 8D517K26SN | • • CONNECTOR - ELECTRICAL F0225 ALT D38999-26KE26SN POST SBE70-1000 | ao/03 | REF |
| -350H | D38999-26KE26SN | • • CONNECTOR - ELECTRICAL F0225 ALT T3K1217-26SN POST SBE70-1000 | ao/03 | REF |
| 355 | 5A9290 | • • • CONTACT - SOCKET PRE SBE70-0288 | aa-ao/01 | 26 |
| 355A | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT M39029-56-351 POST SBE70-0288 PRE SBE73-0250 | ac-ao/01 | 26 |
| -355B | M39029-56-351 | • • • CONTACT - SOCKET 81349 ALT T3-4120-36LD POST SBE73-0250 | ap/03 | REF |
| 369 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ao/03 | 14 |
| 370 | ESC10SE61407SN0 | • • CONNECTOR U1653 (FIN 4019KS-A) | aa-ao/03 | 1 |
| 377 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 7 |
| 389 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/03 | 1 |
| 390 | ESC10SE61407S60 | • • CONNECTOR U1653 (FIN 4019KS-B) | aa-ao/03 | 1 |
| 397 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 7 |
| 409 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/03 | 1 |
| 410 | ESC10SE61407SN0 | • • CONNECTOR U1653 (FIN 4017KS-A) PRE SBE73-0071 | aa-af/01 | 1 |
| 417 | ESC30S16BC | • • CONTACT - SOCKET U1653 PRE SBE71-0183 | aa-ag/01 | 3 |
| 417A | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/01 | 3 |
| 427 | ESC30S16NC | • • CONTACT - SOCKET U1653 PRE SBE71-0160 | aa-ae/01 | 2 |
| 427A | BT4116-10PY165 | • • SOCKET, CONTACT 49367 ALT BT4116-10P POST SBE71-0160 PRE SBE71-0183 | af-ag/01 | 2 |
| 427B | BT4116-10P | • • SOCKET - CONTACT 49367 ALT BT4116-10PY165 POST SBE71-0160 PRE SBE71-0183 | af-ag/01 | 2 |
| 427C | BT4116-10PY165 | • • SOCKET, CONTACT 49367 ALT BT4116-10P POST SBE71-0160 | af-ao/01 | 2 |
| 427D | BT4116-10P | • • SOCKET - CONTACT 49367 ALT BT4116-10PY165 POST SBE71-0160 | af-ao/01 | 2 |
| 428 | ESC30S16NA | • • CONTACT - SOCKET U1653 PRE SBE71-0160 | aa-ae/01 | 2 |
| 428A | BT4116-10RY165 | • • SOCKET, CONTACT 49367 ALT BT4116-10R POST SBE71-0160 PRE SBE71-0183 | af-ag/01 | 2 |
| 428B | BT4116-10R | • • SOCKET, CONTACT 49367 ALT BT4116-10RY165 POST SBE71-0160 PRE SBE71-0183 | af-ag/01 | 2 |
| 428C | BT4116-10RY165 | • • SOCKET, CONTACT 49367 ALT BT4116-10R POST SBE71-0160 | af-ao/01 | 2 |
| 428D | BT4116-10R | • • SOCKET, CONTACT 49367 ALT BT4116-10RY165 POST SBE71-0160 | af-ao/01 | 2 |
| 429 | MS3187-16-2 | • • PLUG - SEALING 96906 PRE SBE71-0183 | aa-ag/01 | 3 |
| 429A | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/01 | 3 |
| 430 | 5A9278 | • • PLUG ALT MT938T15K19S (FIN 4000KC-B) PRE SBE70-0288 | aa-ab/01 | 1 |
| -430A | MT938T15K19S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K1215-19SN PRE SBE70-0288 | aa-ab/01 | REF |
| 430B | T3K1215-19SN | • • PLUG - ASSY (FIN 4000KC-B) 49367 ALT MT938T15K19S POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | 1 |
| -430C | MT938T15K19S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 5A9278 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| -430D | MT938T15K19S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| 430E | T3K1215-19SN | • • PLUG - ASSY (FIN 4000KC-B) 49367 ALT MT938T15K19S POST SBE70-1000 | ao/02 | 1 |
| -430F | MT938T15K19S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 8D515K19SN POST SBE70-1000 | ao/03 | REF |
| -430G | 8D515K19SN | • • CONNECTOR - ELECTRICAL F0225 ALT D38999-26KD19SN POST SBE70-1000 | ao/03 | REF |
| -430H | D38999-26KD19SN | • • SOCKET - CONTACT F0225 ALT T3K1215-19SN POST SBE70-1000 | ao/03 | REF |
| 435 | 5A9290 | • • • CONTACT - SOCKET PRE SBE70-0288 | aa-ao/01 | 19 |
| 435A | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT M39029-56-351 POST SBE70-0288 PRE SBE73-0250 | ac-ao/01 | 19 |
| -435B | M39029-56-351 | • • • CONTACT - SOCKET 81349 ALT T3-4120-36LD POST SBE73-0250 | ap/03 | REF |
| 449 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ao/03 | 4 |
| 450 | 5A9277 | • • PLUG ALT MT938T15K19SA (FIN 4000KC-C) PRE SBE70-0288 | aa-ab/01 | 1 |
| -450A | MT938T15K19SA | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K1215-19SA PRE SBE70-0288 | aa-ab/01 | REF |
| 450B | T3K1215-19SA | • • PLUG - ASSY CONNECTOR (FIN 4000KC-C) 49367 ALT MT938T15K19SA POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | 1 |
| -450C | MT938T15K19SA | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 5A9277 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| -450D | MT938T15K19SA | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 POST SBE70-0288 PRE SBE70-1000 | ac-an/01 | REF |
| 450E | T3K1215-19SA | • • PLUG - ASSY CONNECTOR (FIN 4000KC-C) 49367 ALT MT938T15K19SA POST SBE70-1000 | ao/02 | 1 |
| -450F | MT938T15K19SA | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT 8D515K19SA POST SBE70-1000 | ao/03 | REF |
| -450G | 8D515K19SA | • • CONNECTOR - ELECTRICAL F0225 ALT D38999-26KD19SA POST SBE70-1000 | ao/03 | REF |
| -450H | D38999-26KD19SA | • • SOCKET - CONTACT 49367 ALT T3K1215-19SA POST SBE70-1000 | ao/03 | REF |
| 455 | 5A9290 | • • • CONTACT - SOCKET PRE SBE70-0288 | aa-ao/01 | 19 |
| 455A | T3-4120-36LD | • • • CONTACT - SOCKET 49367 ALT M39029-56-351 POST SBE70-0288 PRE SBE73-0250 | ac-ao/01 | 19 |
| -455B | M39029-56-351 | • • • CONTACT - SOCKET 81349 ALT T3-4120-36LD POST SBE73-0250 | ap/03 | REF |
| 469 | MS27488-20 | • • PLUG - SEALING 96906 | aa-ao/03 | 4 |
| 470 | ESC10SE61407SN0 | • • CONNECTOR U1653 (FIN 4016KS-A) | aa-ao/03 | 1 |
| 477 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 3 |
| 487 | ESC30S16NC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 2 |
| 488 | ESC30S16NA | • • CONTACT - SOCKET U1653 | aa-ao/03 | 2 |
| 489 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/03 | 3 |
| 490 | 5A9276 | • • PLUG ALT MT938T13K98S PRE SBE71-0111 | aa/01 | 1 |
| -490A | MT938T13K98S | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K121398SN1259 PRE SBE71-0111 | aa/01 | REF |
| 490B | T3K121398SN1259 | • CONNECTR - ASSY (FIN 4005EV-A) 49367 ALT MT938T13K98S901 POST SBE71-0111 PRE SBE71-0220 | ab-ak/01 | 1 |
| -490C | MT938T13K98S901 | • • CONNECTOR - ASSEMBLY OF 14283 ALT 5A9276 POST SBE71-0111 PRE SBE71-0220 | ab-ak/02 | 1 |
| 490D | ESC10SE61212SN0 | • • CONNECTOR U1653 POST SBE71-0219 | ak-ao/03 | 1 |
| 490E | ESC10SE61212SN0 | • • CONNECTOR U1653 POST SBE71-0220 | al-ao/03 | 1 |
| 495 | 5A9290 | • • • CONTACT - SOCKET PRE SBE71-0220 | aa-ak/03 | 10 |
| 495A | ESC30S20BC | • • CONTACT - SOCKET U1653 POST SBE71-0219 | ak-ao/03 | 12 |
| 495B | ESC30S20BC | • • CONTACT - SOCKET U1653 POST SBE71-0220 | al-ao/03 | 12 |
| 509 | MS27488-20 | • • PLUG - SEALING 96906 PRE SBE70-0367 | aa-ad/01 | 4 |
| 509A | MS27488-20 | • • PLUG - SEALING 96906 POST SBE70-0367 PRE SBE71-0220 | ae-ak/03 | 2 |
| 509B | ESC36-20 | • • PLUG - SEALING U1653 POST SBE71-0219 | ak-ao/03 | 4 |
| 509C | ESC36-20 | • • PLUG - SEALING U1653 POST SBE71-0220 | al-ao/03 | 4 |
| 510 | 5A9300 | • • PLUG ALT MT938T13K98SA PRE SBE71-0111 | aa/01 | 1 |
| -510A | MT938T13K98SA | • • PLUG - CONNECTOR, ASSEMBLY OF 14283 ALT T3K121398SA1259 PRE SBE71-0111 | aa/01 | REF |
| 510B | T3K121398SA1259 | • • CONNECTR - ASSY (FIN 4005EV-B) 49367 ALT 1017689 POST SBE71-0111 PRE SBE71-0220 | ab-ak/01 | 1 |
| -510C | 1017689 | • CONNECTOR, ASSEMBLY ALT 5A9300 (FIN 4005EV-B), MT938T13K98SA901 POST SBE71-0111 PRE SBE71-0220 | ab-ak/02 | REF |
| 510D | ESC10SE61212S60 | • • CONNECTOR U1653 POST SBE71-0219 | ak-ao/03 | 1 |
| 510E | ESC10SE61212S60 | • • CONNECTOR U1653 POST SBE71-0220 | al-ao/03 | 1 |
| 515 | 5A9290 | • • • CONTACT - SOCKET PRE SBE71-0220 | aa-ak/03 | 10 |
| 515A | ESC30S20BC | • • CONTACT - SOCKET U1653 POST SBE71-0219 | ak-ao/03 | 12 |
| 515B | ESC30S20BC | • • CONTACT - SOCKET U1653 POST SBE71-0220 | al-ao/03 | 12 |
| 529 | MS27488-20 | • • PLUG - SEALING 96906 PRE SBE71-0220 | aa-ak/03 | 2 |
| 529A | ESC36-20 | • • PLUG - SEALING U1653 POST SBE71-0219 | ak-ao/03 | 4 |
| 529B | ESC36-20 | • • PLUG - SEALING U1653 POST SBE71-0220 | al-ao/03 | 4 |
| 530 | ESC10SE61407SN0 | • • CONNECTOR U1653 (FIN 4015KS-A) | aa-ao/03 | 1 |
| 537 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 3 |
| 547 | ESC30S16NC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 2 |
| 548 | ESC30S16NA | • • CONTACT - SOCKET U1653 | aa-ao/03 | 2 |
| 549 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/03 | 3 |
| 550 | ESC10SE61610SN0 | • • CONNECTOR U1653 (FIN 4100KS-A) | aa-ao/03 | 1 |
| 557 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 10 |
| 569 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/03 | 2 |
| 570 | ESC10SE61610S60 | • • CONNECTOR - PLUG, ASSEMBLY OF U1653 (FIN 4100KS-E) | aa-ao/03 | 1 |
| 577 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 10 |
| 589 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/03 | 2 |
| 590 | ESC10KE02430PN0 | • • CONNECTOR - RECEPTACLE U1653 (FIN 4000VC) | aa-ao/03 | 1 |
| 597 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 30 |
| 609 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/03 | 17 |
| 610 | ESC10KE02430P60 | • • CONNECTOR - RECEPTACLE U1653 (FIN 4001VC) | aa-ao/03 | 1 |
| 617 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 30 |
| 629 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/03 | 13 |
| 630 | ESC10SE61407SN0 | • • CONNECTOR U1653 (FIN 4020KS1-A) | aa-ao/03 | 1 |
| 637 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 7 |
| 649 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/03 | 3 |
| 650 | ESC10SE61407SN0 | • • CONNECTOR U1653 (FIN 4020KS2-A) | aa-ao/03 | 1 |
| 657 | ESC30S16BC | • • CONTACT - SOCKET U1653 | aa-ao/03 | 7 |
| 669 | MS3187-16-2 | • • PLUG - SEALING 96906 | aa-ao/03 | 3 |
| 670 | ESC10KE01203PN0 | • • CONNECTOR U1653 POST SBE71-0288 | ac-ao/03 | 1 |
| 675 | ESC30P16BC | • • CONTACT - PLUG U1653 POST SBE71-0288 | ac-ao/03 | 3 |
| 689 | MS3187-16-2 | • • PLUG - SEALING 96906 POST SBE71-0288 | ac-ao/03 | 1 |
| 690 | ESC10KE01203PN0 | • • CONNECTOR U1653 POST SBE71-0288 | ac-ao/03 | 1 |
| 695 | ESC30P16BC | • • CONTACT - PLUG U1653 POST SBE71-0288 | ac-ao/03 | 3 |
| 709 | MS3187-16-2 | • • PLUG - SEALING 96906 POST SBE71-0288 | ac-ao/03 | 1 |
| 710 | ESC10SE61407SN0 | • • CONNECTOR U1653 POST SBE71-0288 | ac-ao/03 | 1 |
| 715 | ESC30S16BC | • • CONTACT - SOCKET U1653 POST SBE71-0288 | ac-ao/03 | 7 |
| 729 | MS3187-16-2 | • • PLUG - SEALING 96906 POST SBE71-0288 | ac-ao/03 | 3 |
| 730 | ESC10SE61407S60 | • • CONNECTOR U1653 POST SBE71-0288 | ac-ao/03 | 1 |
| 735 | ESC30S16BC | • • CONTACT - SOCKET U1653 POST SBE71-0288 | ac-ao/03 | 7 |
| 749 | MS3187-16-2 | • • PLUG - SEALING 96906 POST SBE71-0288 | ac-ao/03 | 3 |
| 750 | ESC10SE61203SN0 | • • CONNECTOR U1653 POST SBE71-0288 | ac-ao/03 | 1 |
| 755 | ESC30S16BC | • • CONTACT - SOCKET U1653 POST SBE71-0288 | ac-ao/03 | 3 |
| 769 | MS3187-16-2 | • • PLUG - SEALING 96906 POST SBE71-0288 | ac-ao/03 | 1 |
| 770 | ESC10SE61203SN0 | • • CONNECTOR U1653 POST SBE71-0288 | ac-ao/03 | 1 |
| 775 | ESC30S16BC | • • CONTACT - SOCKET U1653 POST SBE71-0288 | ac-ao/03 | 3 |
| 789 | MS3187-16-2 | • • PLUG - SEALING 96906 POST SBE71-0288 | ac-ao/03 | 1 |
| 882 | UP12110 | • • TERMINAL POST SBE71-0220 | al-ao/03 | 2 |
| 884 | UP12111 | • • TERMINAL POST SBE71-0220 | al-ao/03 | 2 |
| 886 | 322320 | • • TERMINAL - 0.250 K1636 POST SBE71-0220 | al-ao/03 | 2 |
| 889 | 5A9189 | • • KNIT MESH PRE SBE70-0367 | aa-ad/01 | 1 |
| 890 | 5A9190 | • • CABLE - F/R 20 AWG (2C) PRE SBE70-0367 | aa-ad/01 | 1 |
| -890A | ESW1202-022-006 | • • CABLE - ELECTRICAL U1653 (SPARE IS U440176) POST SBE70-0367 PRE SBE70-0638 | aa-ao/01 | REF |
| -890B | ESW1202-022-006 | • • CABLE - ELECTRICAL U1653 ALT U440176 (SPARE IS U440176) POST SBE70-0638 | ai-ao/02 | REF |
| 890C | U440176 | • • CABLE ALT ESW1202-022-006 (BLK ESW1202-022-006) POST SBE70-0638 | ai-ao/03 | 1 |
| 891 | 5A9191 | • • CABLE - F/R 20 AWG (3C) PRE SBE70-0367 | aa-ad/01 | 1 |
| 892 | 5A9192 | • • CABLE - 20 AWG (2C) PRE SBE70-0324 | aa-ao/01 | 1 |
| -892A | ESW1202-022-006 | • • CABLE - ELECTRICAL U1653 ALT 5A9192 (SPARE IS U440176) POST SBE70-0324 PRE SBE70-0367 | aa-ao/01 | REF |
| -892B | 5A9192 | • • CABLE - 20 AWG (2C) ALT ESW1202-032-006 POST SBE70-0324 PRE SBE70-0367 | aa-ao/01 | REF |
| -892C | ESW1202-032-006 | • • CABLE U1653 (SPARE IS U440177) POST SBE70-0367 | ae-ao/02 | REF |
| 892D | U440176 | • • CABLE ALT ESW1202-022-006 (BLK ESW1202-022-006) POST SBE70-0638 | ai-ao/03 | 1 |
| -892E | ESW1202-022-006 | • • CABLE - ELECTRICAL U1653 ALT U440176 (SPARE IS U440176) POST SBE70-0638 | ai-ao/03 | REF |
| 893 | 5A9193 | • • CABLE - 20 AWG (3C) PRE SBE70-0324 | aa-ac/01 | 1 |
| -893A | ESW1202-032-006 | • • CABLE U1653 ALT 5A9193 (SPARE IS U440177) POST SBE70-0324 PRE SBE70-0367 | ad/01 | REF |
| -893B | 5A9193 | • • CABLE - 20 AWG (3C) ALT ESW1202-032-006 POST SBE70-0324 PRE SBE70-0367 | ad/01 | REF |
| -893C | ESW1202-032-006 | • • CABLE U1653 (SPARE IS U440177) POST SBE70-0324 PRE SBE70-0367 | ae-ah/02 | REF |
| 893D | U440177 | • • CABLE - 30 ME, 100 FT REEL ALT ESW1202-032-006 (BLK ESW1202-032-006) POST SBE70-0638 | ai-ao/03 | 1 |
| -893E | ESW1202-032-006 | • • CABLE U1653 ALT U440177 (SPARE IS U440177) POST SBE70-0638 | ai-ao/03 | REF |
| 894 | 5A9194 | • • CABLE PRE SBE70-0324 | aa-ac/01 | 1 |
| 894A | ESW1202-022-012 | • • CABLE - ELECTRICAL U1653 ALT 5A9194 (SPARE IS U440179) POST SBE70-0324 PRE SBE70-0367 | ad/01 | 1 |
| -894B | 5A9194 | • • CABLE ALT ESW1202-022-012 POST SBE70-0324 PRE SBE70-0367 | ad/01 | REF |
| 894C | ESW1202-022-012 | • • CABLE - ELECTRICAL U1653 (SPARE IS U440179) POST SBE70-0367 PRE SBE70-0368 | ae-ah/02 | 1 |
| 894D | U440179 | • • CABLE - 30 ME, 100 FT REEL ALT ESW1202-022-012 (BLK ESW1202-022-012) POST SBE70-0367 PRE SBE70-0638 | ai-ao/03 | 1 |
| -894E | ESW1202-022-012 | • • CABLE - ELECTRICAL U1653 ALT U440179 (SPARE IS U440179) POST SBE70-0638 | ai-ao/03 | REF |
| 896 | 5A9196 | • • CABLE - THERMOCOUPLE 20 AWG PRE SBE70-0367 | aa-ad/01 | 1 |
| 896A | ESW1602-022-006 | • • CABLE U1653 (SPARE IS U440180) POST SBE70-0367 PRE SBE70-0638 | ae-ah/03 | 1 |
| 896B | U440180 | • • CABLE - 30 ME, 100 FT REEL ALT ESW1602-022-006 (BLK ESW1602-022-006) POST SBE70-0638 | ai-ao/03 | 1 |
| -896C | ESW1602-022-006 | • • CABLE U1653 ALT U440180 (SPARE IS U440180) POST SBE70-0638 | ai-ao/03 | REF |
| 898 | U324020 | • • CABLE - ELECTRICAL (SPARE IS U440181), CD7969 PRE SBE70-0638 | aa-ah/03 | 1 |
| 898A | U440181 | • • CABLE - 30ME, 100 FT REEL ALT U324020 (BULK STOCK U324020), CD7969 POST SBE70-0638 | ai-ao/03 | 1 |
| -898B | U324020 | • • CABLE - ELECTRICAL ALT U440181 (SPARE IS U440181), CD7969 POST SBE70-0638 | ai-ao/03 | REF |
| 900 | HAB22416 | • • LEAD - ASSEMBLY, THERMOCOUPLE 00060 POST SBE73-0071 PRE SBE71-0183 | ag/01 | 2 |
| 900A | HAB22416 | • • LEAD - ASSEMBLY, THERMOCOUPLE 00060 POST SBE73-0071 PRE SBE71-220 | ag-ak/01 | 2 |
| 900B | HAB22416 | • • LEAD - ASSEMBLY, THERMOCOUPLE 00060 POST SBE71-0183 PRE SBE71-220 | ah-ak/02 | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

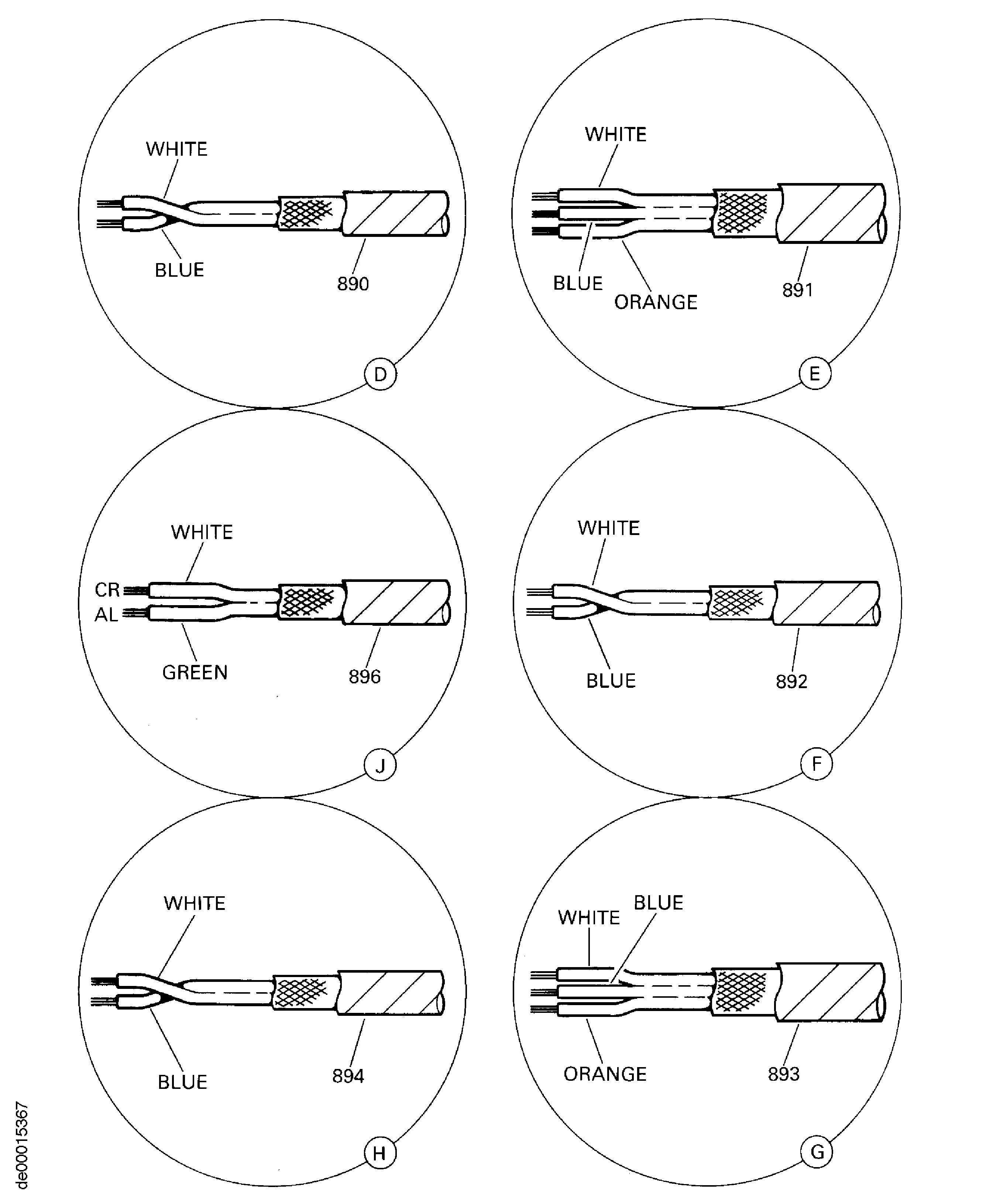

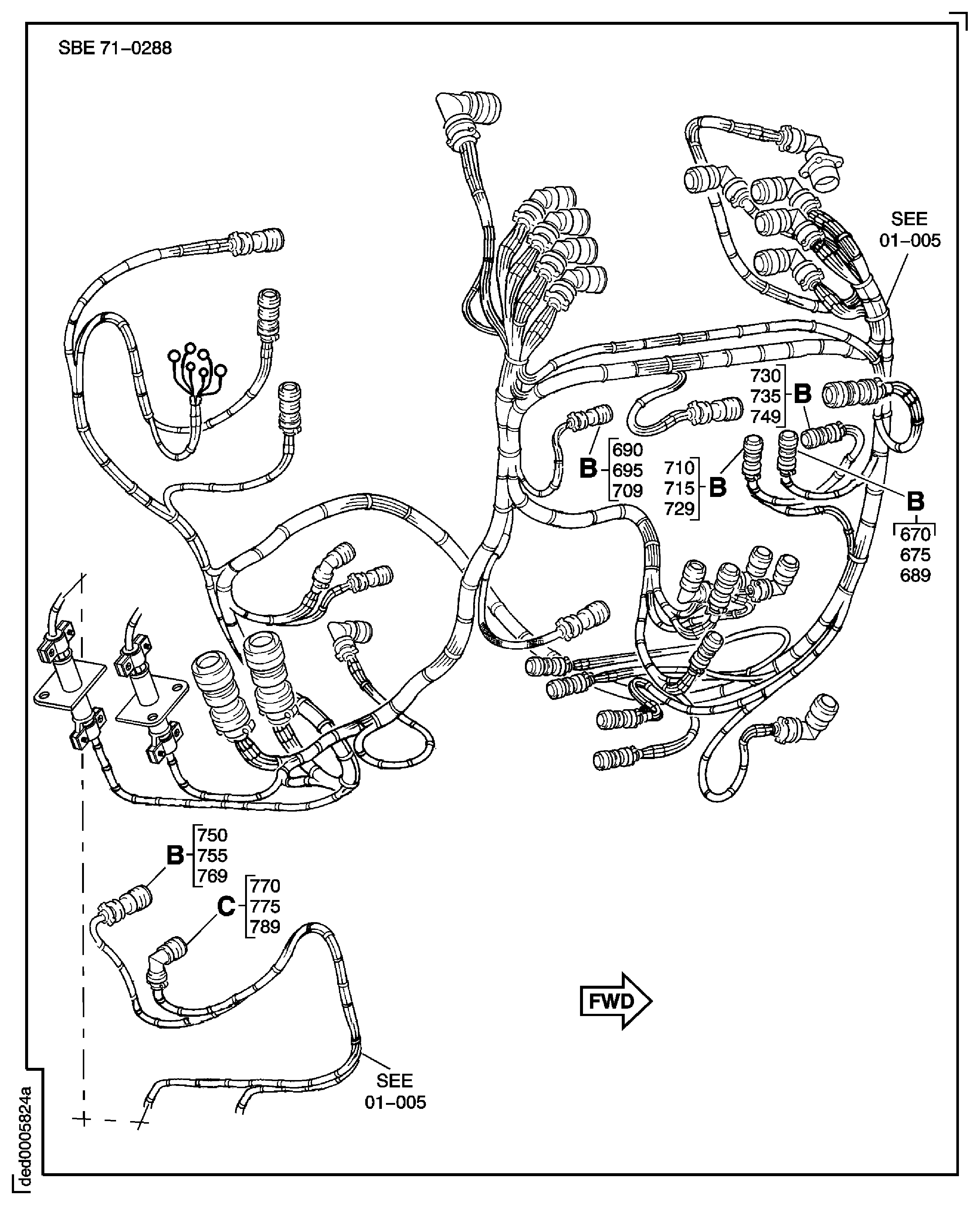

Figure: EEC Fan Harness
EEC Fan Harness
EEC Fan Harness
EEC Fan Harness
EEC Fan Harness
EEC Fan Harness
