| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B71714201 | POWER PLANT-DRAIN TUBE MAST, PRE SBN71-0169 | aa | ||
| SBN0169-01 | POWER PLANT-DRAIN TUBE MAST, PRE SBN70-0669 | ab | ||
| SBN0669-01 | POWER PLANT-DRAIN TUBE MAST, PRE SBN71-0312 | ac | ||
| SBN0312-01 | POWER PLANT-DRAIN TUBE MAST | ad | ||
| 010 | 740-5284-501 | • MAST - DRAINS 51563 | aa-ad | 1 |
| 020 | NAS7204A5 | • SCREW 80205 | aa-ad | 4 |
| -030 | 740-5709-511 | • BRACKET 51563 | aa-ad | REF |
| -040 | 740-5716-507 | • BRACKET 51563 | aa-ad | REF |
| 050 | 740-5682-505 | • PLATE - ASSY,COLLECTOR 51563 | aa-ad | 1 |
| 050A | 745-5682-501 | • PLATE - ASSY,COLLECTOR 51563 POST SBN71-0169 PRE SBN70-0669 | ab-ac | 1 |
| 050B | 745-5682-503 | • PLATE - ASSY,COLLECTOR 51563 POST SBN70-0669 PRE SBN71-0312 | ab-ac | 1 |
| 050C | 745-5682-505 | • PLATE - ASSY,COLLECTOR 51563 POST SBN71-0312 | ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

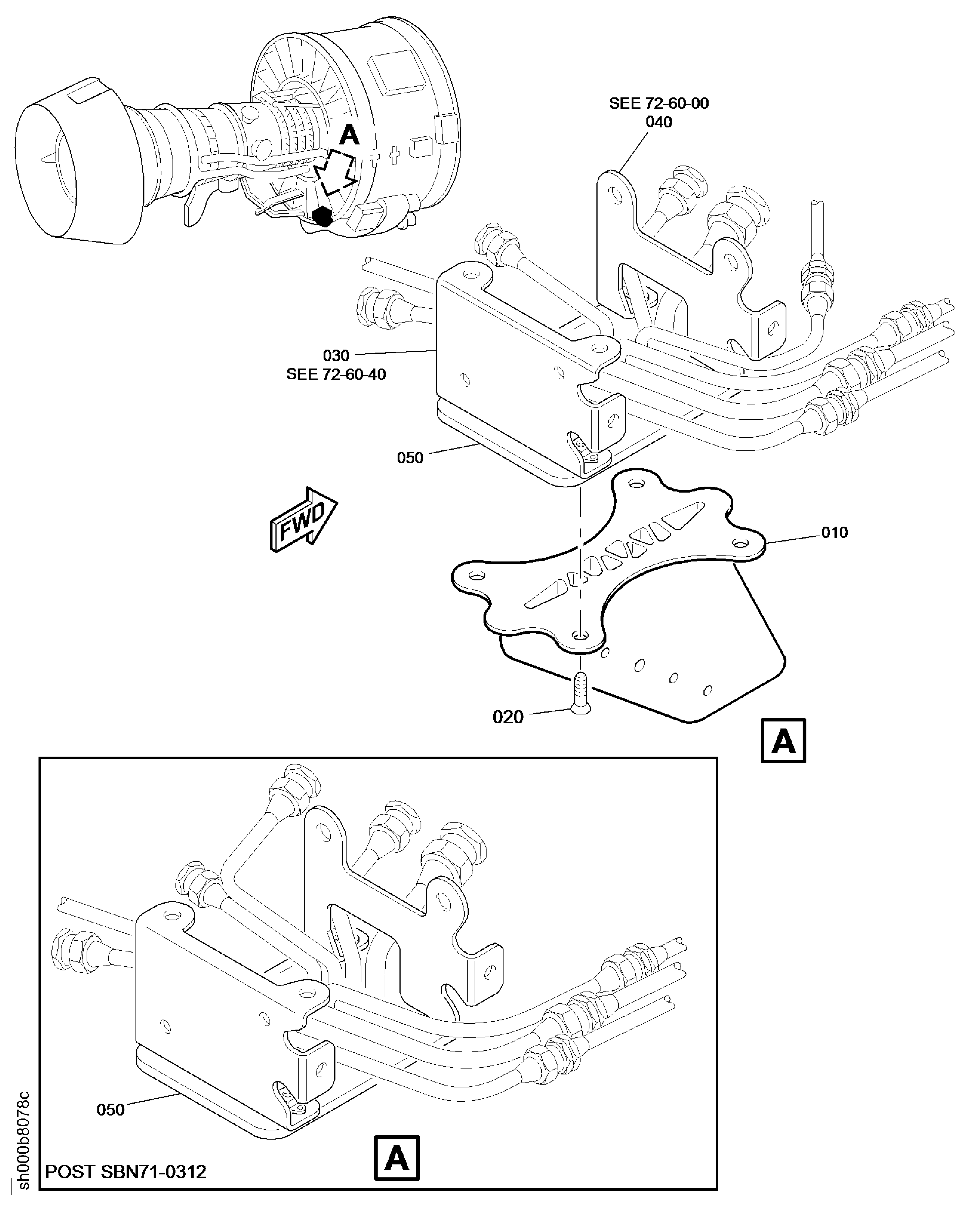

Figure: POWER PLANT-DRAIN TUBE MAST
MAST DRAINS
