POWER PLANT-FUEL DRAIN TUBES-POWER PLANT

DMC:V2500-A5-71-71-48-03A-941A-D|Issue No:004|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
03
000	B71714803	POWER PLANT - FUEL DRAIN TUBES - POWER PLANT, PRE SBN71-0169	aa
000	SBN0169-01	POWER PLANT - FUEL DRAIN TUBES - POWER PLANT, PRE SBE79-0088	ab
000	SBE0088-02	POWER PLANT - FUEL DRAIN TUBES - POWER PLANT, PRE SBN71-0273	ac
000	SBN0273-01	POWER PLANT - FUEL DRAIN TUBES - POWER PLANT, PRE SBN71-0312	ad
000	SBN0312-01	POWER PLANT - FUEL DRAIN TUBES - POWER PLANT, PRE SBE70-0960	ae
000	SBE0960-01	POWER PLANT - FUEL DRAIN TUBES - POWER PLANT	af
100100	740-5702-509	• TUBE - ASSY, DRAIN,FUEL PUMP 51563	aa-af	1

102102	740-5705-501	• UNION 51563	aa-af	1
105105	MS28778-06	• PACKING - PREFORMED 96906	aa-af	1
105105A	MS28778-6	• RING - SEAL, 11,89 MM I/D X 1,98 MM 96906	aa-af	1
125125	AS21411	• BOLT, .190 DIA X .688 U1653 PRE SBN71-0312	aa-ad	1
125125A	AS21415	• BOLT - BIHEX HD,.190 DIA X .938 U1653 POST SBN71-0312	ae-af	1
125125B	AS21415	• BOLT - BIHEX HD,.190 DIA X .938 U1653 ALT MS9556-13	ae-af	1
-125125C	MS9556-13	• BOLT - MACHINE DOUBLE HEXAGON 96906 ALT AS21415	af	REF
127127	ST1698D47	• SPACER (5MM) K4585	aa-af	1
129129	400WSS4	• CLIP 83930	aa-af	1
130130	ST1698D47	• SPACER (5MM) K4585 POST SBN71-0312	ae-af	1
131131	AS41104	• NUT - 0.19 DIA U1653	aa-af	1
141141	AS21408	• BOLT - .190 DIA X .500 U1653 POST SBN71-0312	ae-af	1
141141A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	ae-af	1
-141141B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	af	REF
142142	SP154D	• WASHER - 0.190 DIA K7766 POST SBN71-0312	ae-af	1
144144	400WSS4	• CLIP 83930 POST SBN71-0312	ae-af	1
148148	AS20624	• NUT, SELF LOCKING DBL HEX - .190 DIA U1653 POST SBN71-0312	ae-af	1
400400	740-5688-511	• TUBE 51563	aa-af	1
400400A	745-5688-501	• TUBE 51563 POST SBN71-0169	ab-af	1
400400B	740-5688-513	• TUBE ASSY,DRAIN 51563 POST SBE79-0088	ac-af	1
410410	AS21508	• BOLT - 0.25 DIA X 0.500 U1653	aa-ae	2
410410A	AS21509	• BOLT, MACHINE DOUBLE HEX - 0.250 DIA X 0.562 U1653 ALT MS9557-07	af	2
-410410B	MS9557-07	• BOLT - MACHINE, DOUBLE HEX 96906 ALT AS21509	af	REF
415415	AS20625	• NUT, SELF LOCKING, BIHEX, .250 DIA U1653	aa-af	2
425425	4W0103	• BOLT - .190 DIA X .500 PRE SBN71-0169	aa	1
427427	5W1086	• WASHER PRE SBN71-0169	aa	2

429429	400WSS12	• CLIP 83930 PRE SBN71-0169	aa	1
431431	400WSS4	• CLIP 83930 PRE SBN71-0169	aa	1
433433	4W0001	• NUT, OPTION - .190 DIA Optional Part AS20624 PRE SBN71-0169	aa	1

435435	4W0103	• BOLT - .190 DIA X .500 PRE SBN71-0273	aa-ac	1

438438	400WSS4	• CLIP 83930 PRE SBN71-0169	aa	1
443443	400WSS4	• CLIP 83930 PRE SBN71-0273	aa-ac	1

446446	SP154D	• WASHER - 0.190 DIA K7766 PRE SBN71-0273	aa-ac	1

449449	4W0001	• NUT, OPTION - .190 DIA Optional Part AS20624 PRE SBN71-0273	aa-ac	1

455455	4W0001	• NUT, OPTION - .190 DIA POST SBN71-0169 PRE SBN71-0273	ab-ac	1
458458	SP154D	WASHER - 0.190 DIA K7766 POST SBN71-0169 PRE SBN71-0273	ab-ac	1
461461	400WSS12	• CLIP 83930 POST SBN71-0169 PRE SBN71-0273	ab-ac	1
464464	ST1698D47	• SPACER (5MM) K4585 POST SBN71-0169 PRE SBN71-0273	ab-ac	1
467467	400WSS4	• CLIP 83930 POST SBN71-0169 PRE SBN71-0273	ab-ac	1
470470	4W0106	• BOLT - .190 DIA X .688 POST SBN71-0169 PRE SBN71-0273	ab-ac	1
480480	AS21408	• BOLT - .190 DIA X .500 U1653 POST SBN71-0273	ad-af	1
480480A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	ad-af	1
-480480B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	af	REF

481481	SP154D	• WASHER - 0.190 DIA K7766 POST SBN71-0273	ad-af	1
483483	400WSS4	• CLIP 83930 POST SBN71-0273	ad-af	1
487487	4W0001	• NUT, OPTION - .190 DIA Optional Part AS20624 POST SBN71-0273	ad-af	1

490490	AS21408	• BOLT - .190 DIA X .500 U1653 POST SBN71-0273	ad-af	1
490490A	AS21408	• BOLT - .190 DIA X .500 U1653 ALT MS9556-06	ad-af	1
-490490B	MS9556-06	• BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500 96906 ALT AS21408	af	REF

491491	SP154D	• WASHER - 0.190 DIA K7766 POST SBN71-0273	ad-af	1
493493	400WSS4	• CLIP 83930 POST SBN71-0273	ad-af	1
497497	4W0001	• NUT, OPTION - .190 DIA Optional Part AS20624 POST SBN71-0273	ad-af	1
700700	740-5692-507	• TUBE - ASSY, DRAIN, FUEL DIFF PANEL 51563	aa-af	1
705705	AS21418	• BOLT - MACHINE, DOUBLE HEXAGON - 0.190 DIA X 1.125 U1653 PRE SBN71-0169	aa	1
705705A	AS21415	• BOLT - BIHEX HD,.190 DIA X .938 U1653 POST SBN71-0169	aa-af	1
705705B	AS21415	• BOLT - BIHEX HD,.190 DIA X .938 U1653 ALT MS9556-13	aa-af	1
-705705C	MS9556-13	• BOLT - MACHINE DOUBLE HEXAGON 96906 ALT AS21415	af	REF
710710	ST1698D49	• SPACER - 15 MM K4585 PRE SBN71-0169	aa	1
710710A	ST1698D48	• SPACER (10MM) K4585 POST SBN71-0169	aa-af	1
715715	400WSS4	• CLIP 83930	aa-af	1
720720	SP154D	• WASHER - 0.190 DIA K7766	aa-af	1
725725	4W0001	• NUT, OPTION - .190 DIA Optional Part AS20624	aa-af	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	K4585
Enterprise Name:	SHORT BROS PLC
BU Name:	NULL
Street:	AIRPORT ROAD
P.O. Box:	PO BOX 241 BT3
City:	QUEENS ISLAND
State:	BELFAST
Zip Code:	9DZ
Country:	UNITED KINGDOM

POWER PLANT-FUEL DRAIN TUBES-POWER PLANT

Export Control

Copyright

Applicability

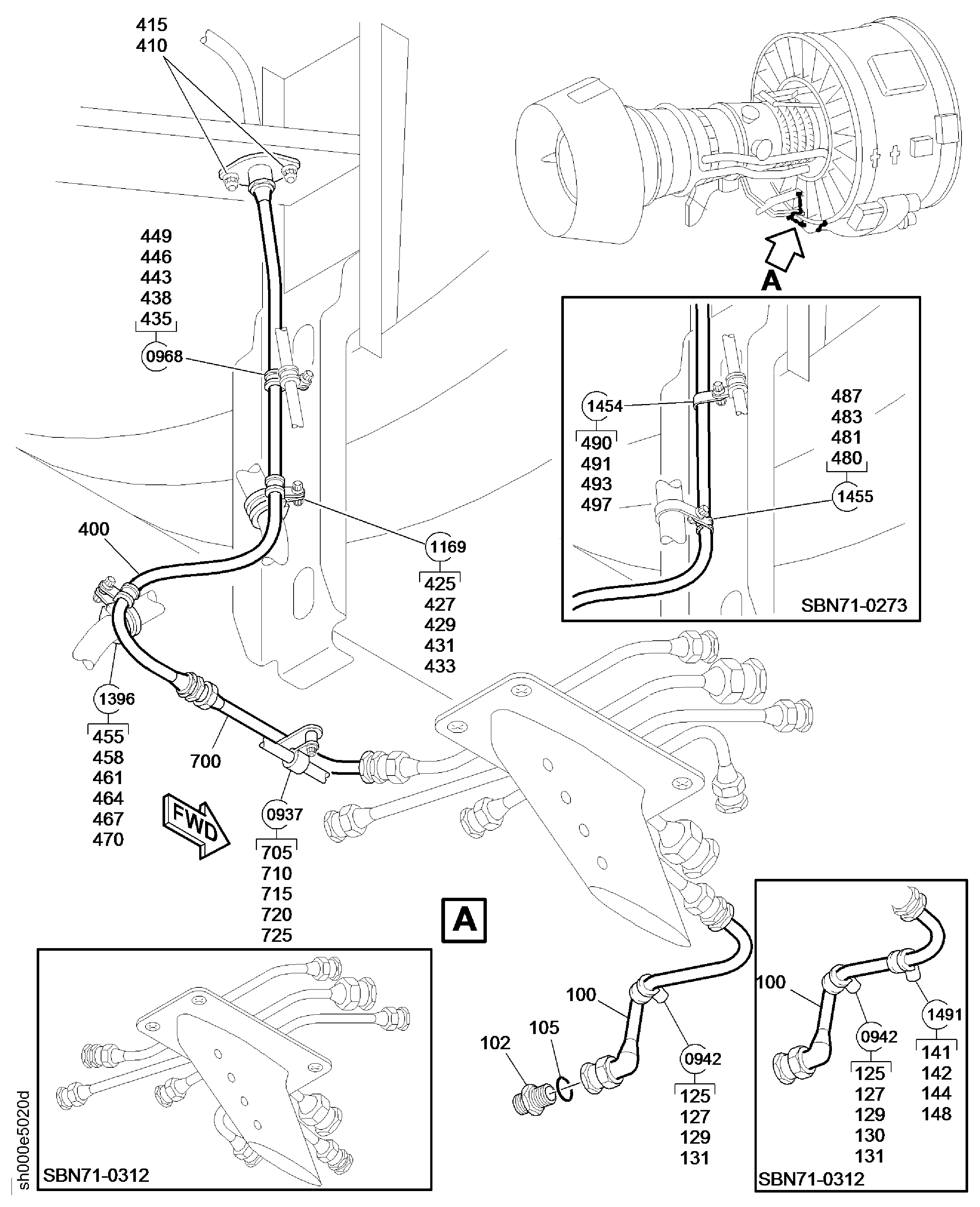

Figure: POWER PLANT-FUEL DRAIN TUBES-POWER PLANT

TUBES FUEL DRAIN
