TASK 72-32-00-030-002-B00 LPC/Intermediate Case Module - Remove The Splitter Fairings, No. 1 And No. 6 Strut Fairing Panels, Fan Exit Pressure Boss, Block, Fan Exit Guide Vanes, Front Liner Panels, And Rear Fairing, Disassembly-002

DMC:V2500-A5-72-32-0000-02A-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-32-00-030-002-B00 LPC/Intermediate Case Module - Remove The Splitter Fairings, No. 1 And No. 6 Strut Fairing Panels, Fan Exit Pressure Boss, Block, Fan Exit Guide Vanes, Front Liner Panels, And Rear Fairing, Disassembly-002

General

This TASK gives the procedure to remove the splitter fairings, the No. 1 and No. 6 strut fairing panels, the fan exit pressure boss, the block, the fan exit guide vanes, front liner panels and rear fairing.

Fig./item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary numbers are used. For the service bulletin alpha variants refer to the IPC.

Apply the approved penetrating oil before the removal of the threaded parts. Let the parts soak before removal. For the oils and procedures, refer to the SPM TASK 70-64-00-640-501.

Remove and discard the lockwire before parts are disconnected or removed.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

The No. 1 strut, which is the top position strut of the fan frame assembly, is identified by the five pressure tubes on the No. 1 strut leading edge.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1J12028 TBD0AM53IAE 1J120281

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-030-216 Remove the Bolts from the Fan Case

    1. Refer to Figure.

    2. Make sure that the LP compressor/intermediate case module is installed, vertically with the rear end up, on the turnover stand. Refer to TASK 72-32-00-030-001 (DISASSEMBLY-001).

    3. Remove the six bolts (01-540) from the threaded holes in the No. 5 and No. 7 struts.

    2. SUBTASK 72-32-00-030-217 Turn the Fan Frame and Fan Case Assembly Horizontal with the No. 1 Strut Up

    1. Refer to Figure.

    2. Release the lock pin from the holes in the handle and the support C (part of the turnover stand).

    3. Turn the handle to set the fan frame and fan case assembly horizontal with the No. 1 strut up.

    4. NOTE

      Make sure that the hole in the support C and one of the eight holes in the handle are aligned. If necessary, turn the handle to align the two holes.

      Install the lock pin into position to lock the handle.

      5. Install the stopper base and stopper assembly (part of the turnover stand) to hold the fan case front flange.

      1. Put the stopper base and stopper assembly on to the turnover stand.

      2. Turn the adjuster (part of the turnover stand) clockwise to lift the stopper until it fully engages with the fan case front flange.

      3. Tighten the set screw (part of the turnover stand) to lock the adjuster in position.

      4. Tighten the two knobs (part of the turnover stand) to hold the fan case front flange to the stopper.

    3. SUBTASK 72-32-00-030-218 Remove the Panel Corner Fillers and the Corner Strut Fillers from the Fan Frame Assembly

    1. Refer to Figure and Figure.

      2. Remove the LH and RH panel corner fillers from the No. 1 and No. 6 strut fairing panels and the fan frame assembly.

      1. Remove the two bolts and washers which attach each panel corner filler to the strut fairing panel and the fan frame assembly.

      2. Remove the panel corner fillers.

      3. CAUTION

        CAREFULLY USE A SCRAPER TO PREVENT DAMAGE TO THE SURFACES OF THE CORNER STRUT FILLERS.

        Remove sealant filled in each recess in the four LH and RH corner strut fillers before the removal of the screws in the recesses.

      1. Remove the sealant around the screw in each recess with a scraper or an equivalent hand tool.

      4. Remove the four LH and RH corner strut fillers from the fan frame assembly struts.

      1. Remove the nut, the washer and the screw which attach each corner strut filler to the fan frame assembly.

      2. Remove the corner strut fillers.

    4. SUBTASK 72-32-00-030-219 Remove the Mount Tube Stopper from the Fan Frame Assembly

    1. Refer to Figure.

    2. Remove the nuts and the screws which attach the stopper to the fan frame assembly.

    3. Remove the stopper.

    5. SUBTASK 72-32-00-030-220 Remove the No.6 Strut Fairing Panel and the Panel Supporting Bracket from the Fan Frame and the Fan Case (Pre SBE 72-0435 and SBE 72-0435)

      SBE 72-0435: Introduction of fan case, panel and bracket scalloped for No. 4 scavenge tube reroute

    1. Refer to Figure and Figure.

      2. Remove the No. 6 strut fairing panel from the supporting bracket and the fan frame assembly.

      1. Remove the nuts, the bolts and the washers which attach each strut fairing panel to the panel supporting bracket.

      2. Cut and discard the lockwire.

      3. Remove the bolts and the washers which attach the strut fairing panel to the fan frame assembly.

      4. Remove the drain pipe which is attached to the fan case through the strut fairing panel.

      5. Remove the strut fairing panel.

      3. Remove the panel supporting bracket from the fan case.

      1. Remove the bolts, the washers and the nuts which attach the panel supporting bracket to the fan case.

      2. Remove the panel supporting bracket.

    6. SUBTASK 72-32-00-030-221 Remove the No. 1 Strut Fairing Panel and the Panel Supporting Bracket from the Fan Frame Assembly and the Fan Case

    1. Refer to Figure.

      2. Remove the No. 1 strut fairing panel from the panel supporting bracket and the fan frame assembly.

      1. Remove the nuts, the bolts and the washers which attach strut fairing panel to the panel supporting bracket.

      2. Cut and discard the lockwire.

      3. Remove the bolts and the washers which attach the strut fairing panel to the fan frame assembly.

      4. Remove the strut fairing panels.

      3. Remove the panel supporting brackets from the fan case.

      1. Remove the nuts, the bolts and the washers which attach the panel supporting bracket to the fan case.

      2. Remove the panel supporting bracket.

    7. SUBTASK 72-32-00-030-222-A00 Remove the Fire Shields from the No.1 Strut Fairing Panel (Pre SBE 72-0216)

    1. Refer to Figure.

      2. Remove the shields from the No. 1 strut fairing panel.

      1. Remove the nuts, the washers and the screws which attach the shields to the No. 1 strut fairing panel.

      2. Remove the shields.

    8. SUBTASK 72-32-00-030-222-B00 Remove the Fire Shields from the No.1 Strut Fairing Panel (SBE 72-0216 and Pre SBE 72-0230)

      SBE 72-0216: Additional plate nut on the No. 1 strut fairing panel.

    1. Refer to Figure.

      2. Remove the shields from the No. 1 strut fairing panel.

      1. Remove the screws which attach the shields to the No. 1 strut fairing panel.

      2. Remove the shields.

    9. SUBTASK 72-32-00-030-223 Remove the Pressure Boss and the Block from the Fan Case

    1. Refer to Figure.

    2. Remove the bolts which attach the fan exit pressure boss to the fan case. Remove the fan exit pressure boss.

    3. Remove the stopper and the pin which attach the block to the fan case flanges. Remove the block.

    10. SUBTASK 72-32-00-030-232 Remove the Front Liner Panels from the Fan Case

    1. Refer to Figure and Figure.

    2. Remove the 40 bolts (01-370) which attach the front liner panels to the FEGVs and the fan case.

    3. Remove the 30 screws (02-805) which attach the front liner panels to the fan case.

    4. Remove the front liner panels.

    11. SUBTASK 72-32-00-030-233-A00 Move the Rear Fairing Rearward (Pre SBE 72-0155)

    1. Refer to Figure.

    2. Remove the 18 screws which attach the rear fairing to the LP compressor bleed duct.

    3. NOTE

      The rear fairing is removed in Step (step 18).

      Move the rear fairing rearward enough to make space for FEGVs removal.

    12. SUBTASK 72-32-00-030-233-B00 Move the Rear Fairing Rearward (SBE 72-0155)

      SBE 72-0155: A new bleed duct assembly with improved durability features.

    1. Refer to Figure.

    2. Remove the 20 screws which attach the rear fairing to the LP compressor bleed duct.

    3. NOTE

      The rear fairing is removed in Step (step 18).

      Move the rear fairing rearward enough to make space for FEGVs removal.

    13. SUBTASK 72-32-00-030-234-A00 Remove the FEGVs from the Fan Case (Pre SBE 70-0377)

    1. Refer to Figure.

    2. NOTE

      Make sure that the work mat has sufficient dimensions to give full protection to the lower half of the fan case.

      Put a work mat in position in the fan case.

      3. Remove the 20 FEGVs.

      1. Remove the two bolts and washers which attach each FEGV inner platform to the LP compressor booster stage assembly.

      2. Remove the bolt and washer which attach each FEGV outer platform to the fan case.

      3. Remove each FEGV.

    14. SUBTASK 72-32-00-030-234-B00 Remove the FEGVs from the Fan Case (SBE 70-0377)

      SBE 70-0377: New fan exit guide vanes with outer platforms of reduced weight material.

    1. Refer to Figure.

    2. NOTE

      Make sure that the work mat has sufficient dimensions to give full protection to the lower half of the fan case.

      Put a work mat in position in the fan case.

      3. Remove the 20 FEGVs.

      1. Remove the two bolts and washers which attach each FEGV inner platform to the LP compressor booster stage assembly.

      2. Remove the bolt which attaches each FEGV outer platform to the fan case.

      3. Remove each FEGV.

    15. SUBTASK 72-32-00-030-224 Remove the Splitter Fairing from the LP Compressor Booster Stage Assembly

    1. Refer to Figure and Figure.

    2. Remove the screws which attach the splitter fairing to the brackets on the LP compressor booster stage assembly.

      3. Use IAE 1J12028 TBD 1 off to release the splitter fairing.

      1. Engage the jaw (part of the sliding hammer) with the rear flange of the splitter fairing.

      2. Move the hammer (part of the sliding hammer) forwards quickly to hit the handle (part of the sliding hammer).

      3. Repeat Step and Step at three equally spaced positions of the splitter fairing.

      4. Repeat Step thru Step until the splitter fairing is free from the LP compressor booster stage assembly.

      5. Remove the sliding hammer from the splitter fairing.

    4. Remove the splitter fairing.

    16. SUBTASK 72-32-00-030-235 Remove the Rear Fairing from the LP Compressor Bleed Duct

    1. Refer to Figure and Figure.

    2. Make sure that the screws, which attach the rear fairing to the LP Compressor Bleed Duct are removed.

    3. Remove the rear fairing.

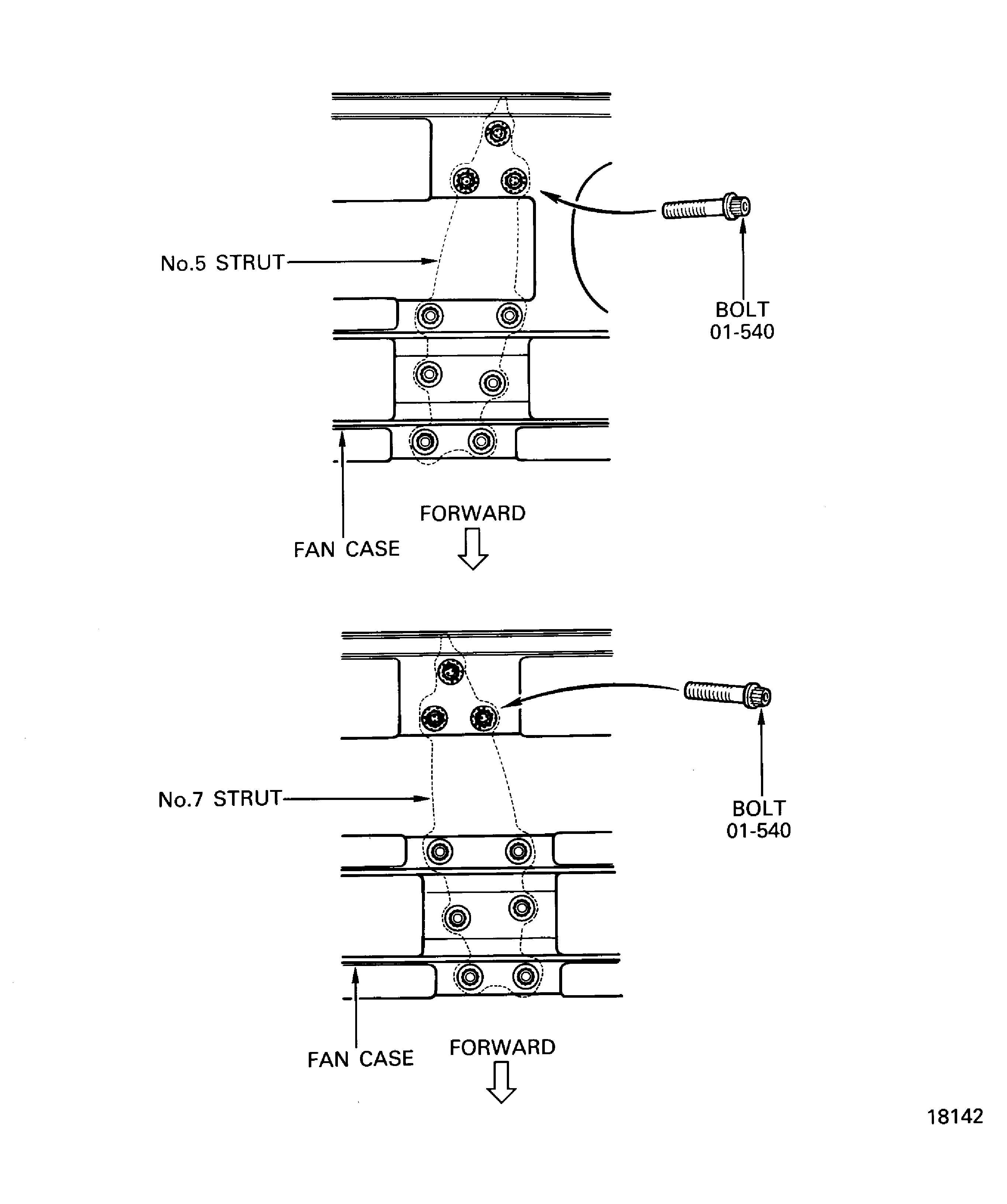

    17. Figure: Remove the six bolts from the threaded holes in the No. 5 and No. 7 struts

    Remove the six bolts from the threaded holes in the No. 5 and No. 7 struts

    Figure: Install the lock pin into position to lock the handle and hold the fan case front flange with the stopper

    Install the lock pin into position to lock the handle and hold the fan case front flange with the stopper

    Figure: Remove the panel corner fillers and the corner strut fillers from the fan frame assembly

    Sheet 1

    Legend
    Remove the panel corner fillers and the corner strut fillers from the fan frame assembly

    Sheet 1

    Close

    Figure: Remove the panel corner fillers and the corner strut fillers from the fan frame assembly

    Sheet 2

    Legend
    Remove the panel corner fillers and the corner strut fillers from the fan frame assembly

    Sheet 2

    Close

    Figure: Remove the mount tube stopper from the fan frame assembly

    Remove the mount tube stopper from the fan frame assembly

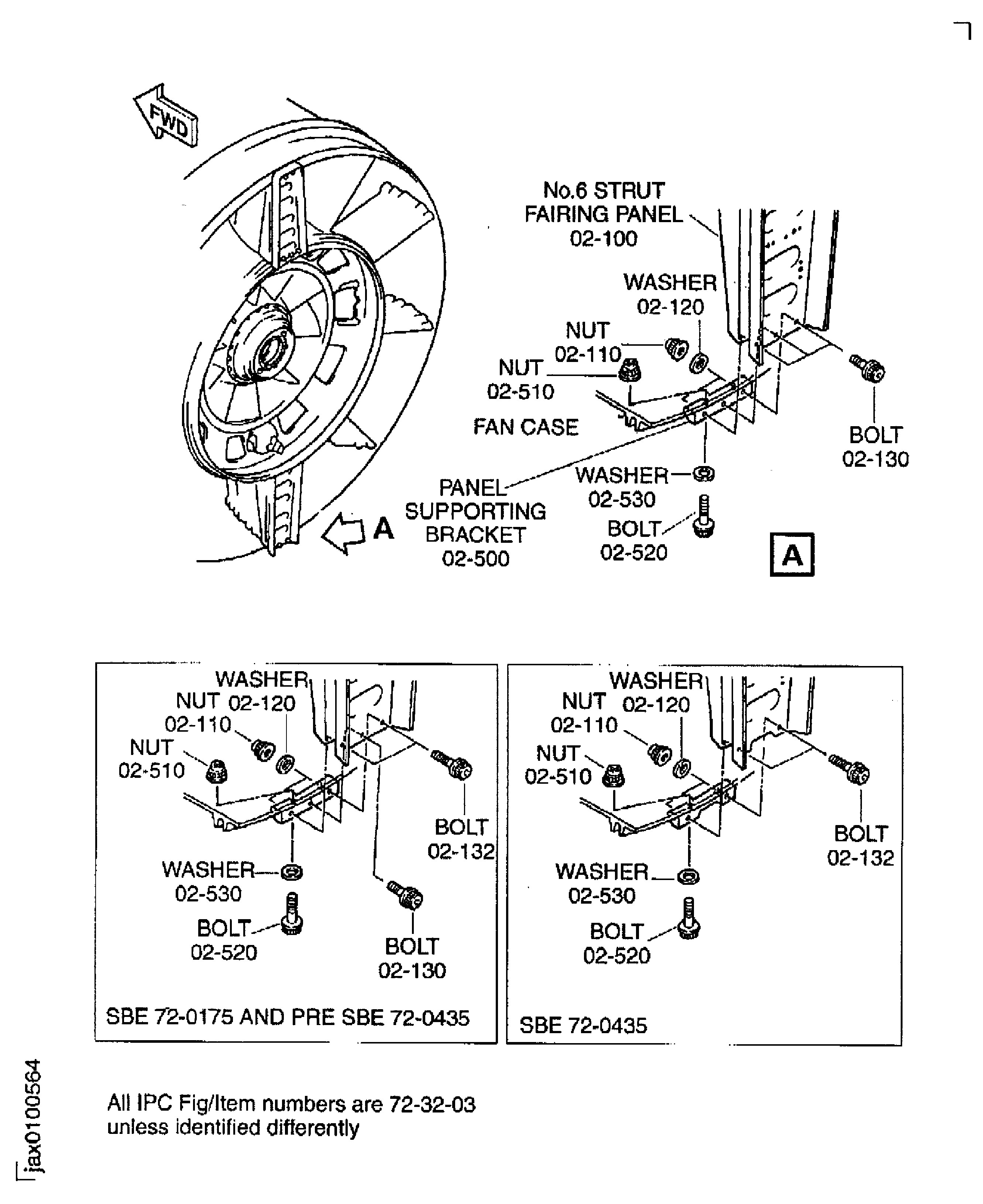

    Figure: Remove the No. 6 strut fairing panel from the fan case

    Remove the No. 6 strut fairing panel from the fan case

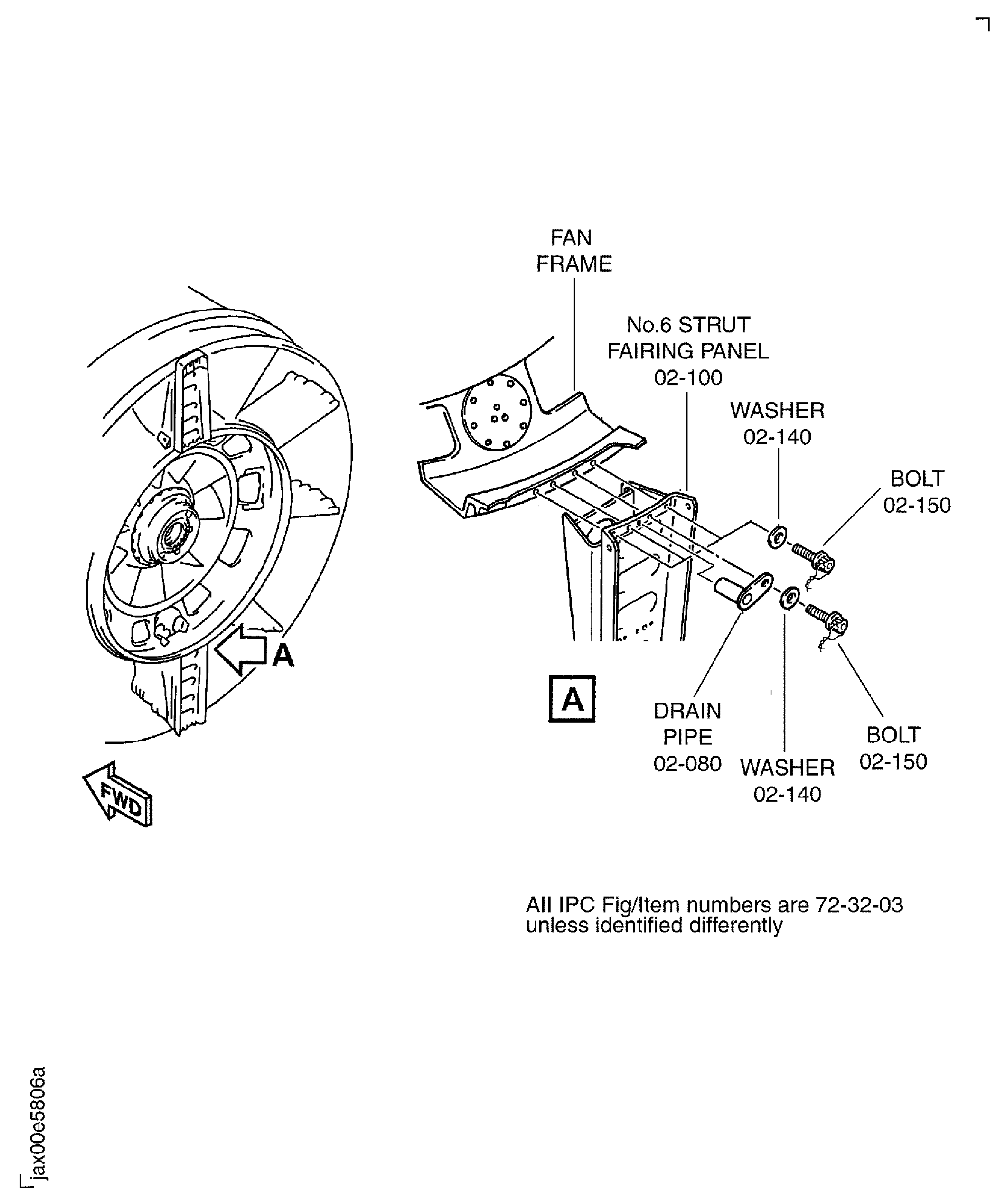

    Figure: Remove the No. 6 strut fairing panel from the fan frame assembly

    Remove the No. 6 strut fairing panel from the fan frame assembly

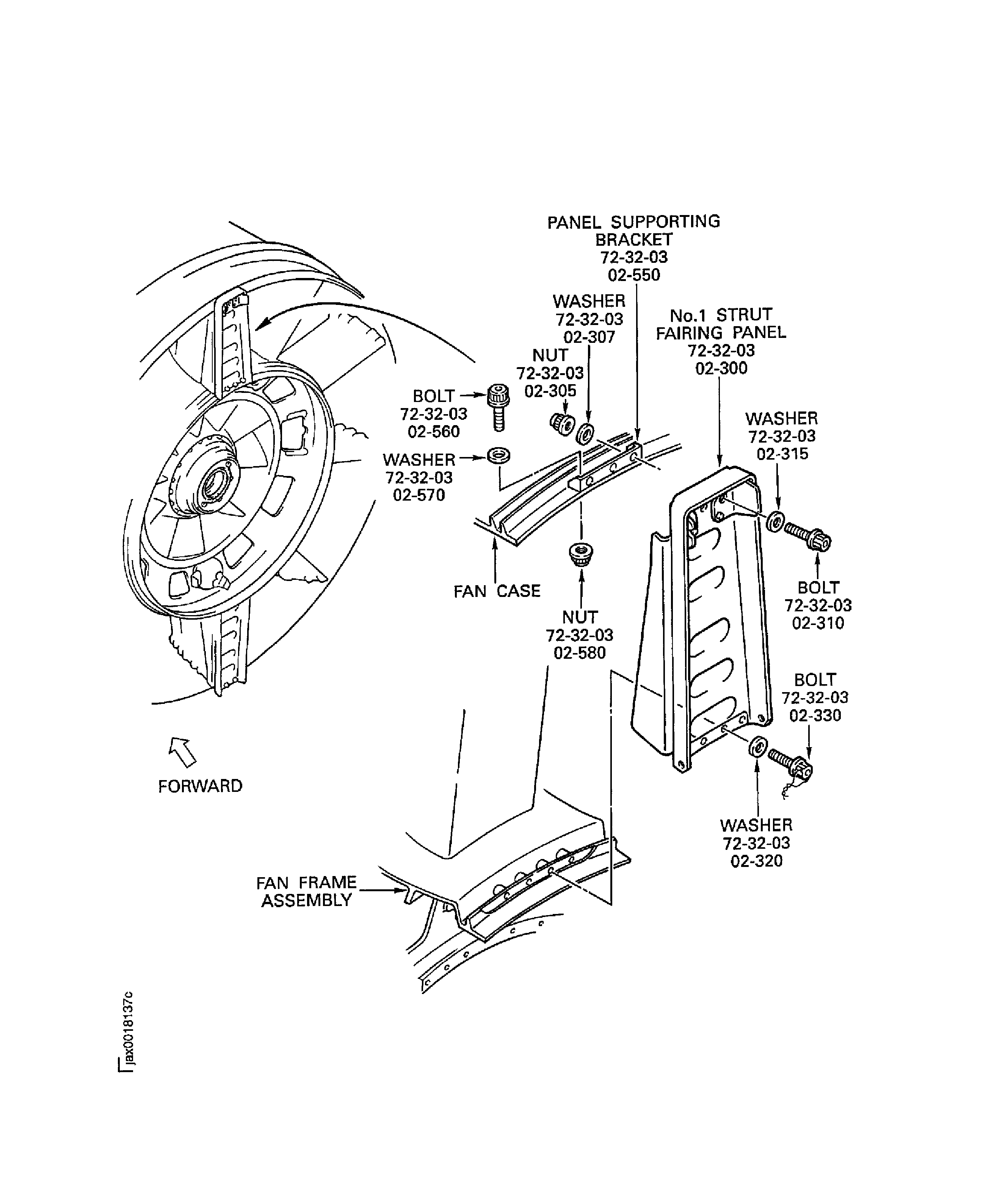

    Figure: Remove the No. 1 strut fairing panel from the fan frame assembly and the fan case

    Remove the No. 1 strut fairing panel from the fan frame assembly and the fan case

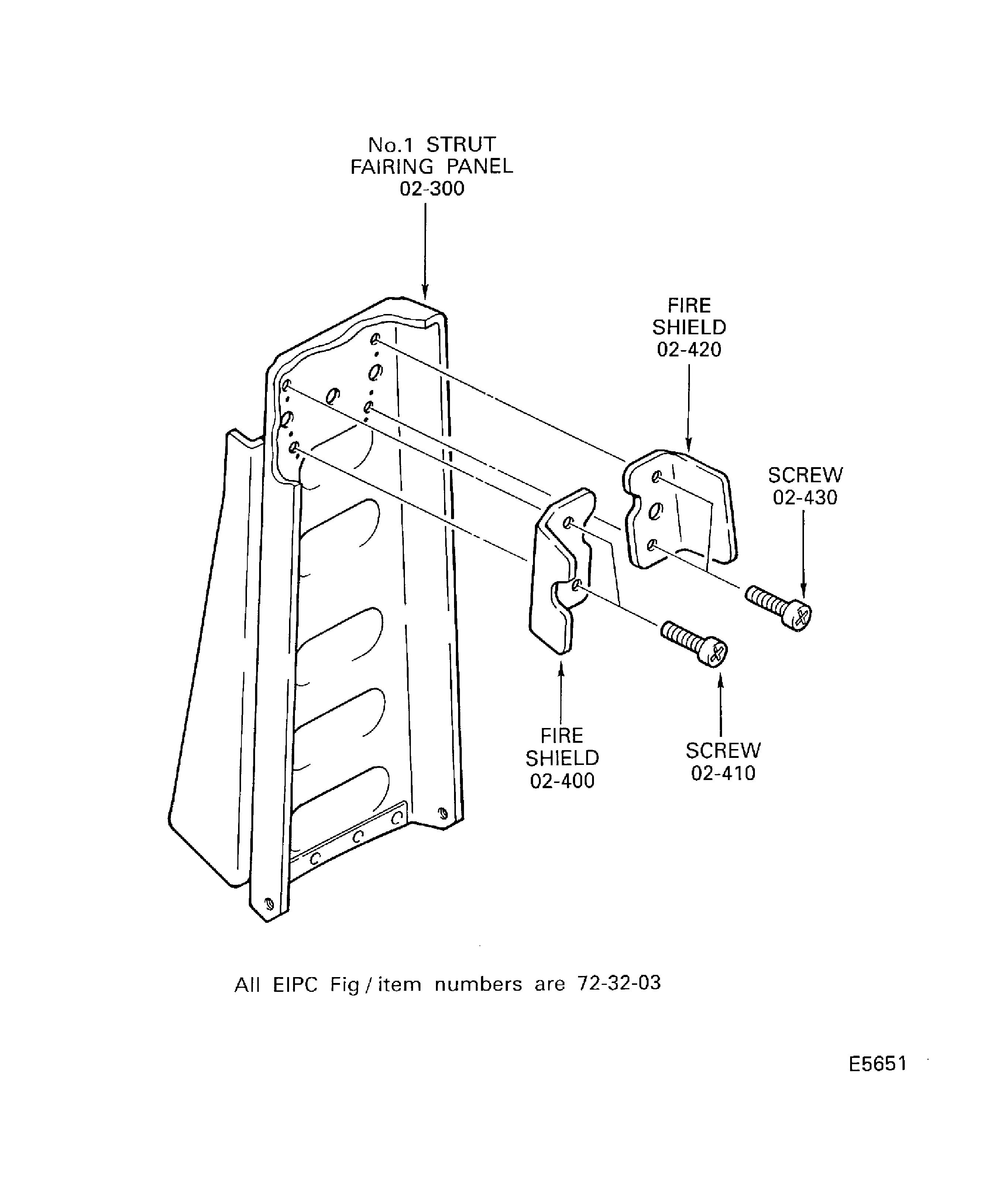

    Figure: Pre SBE 72-0216: Remove the shields from the No. 1 strut fairing panel

    Sheet 1

    Legend
    Pre SBE 72-0216: Remove the shields from the No. 1 strut fairing panel

    Sheet 1

    Close

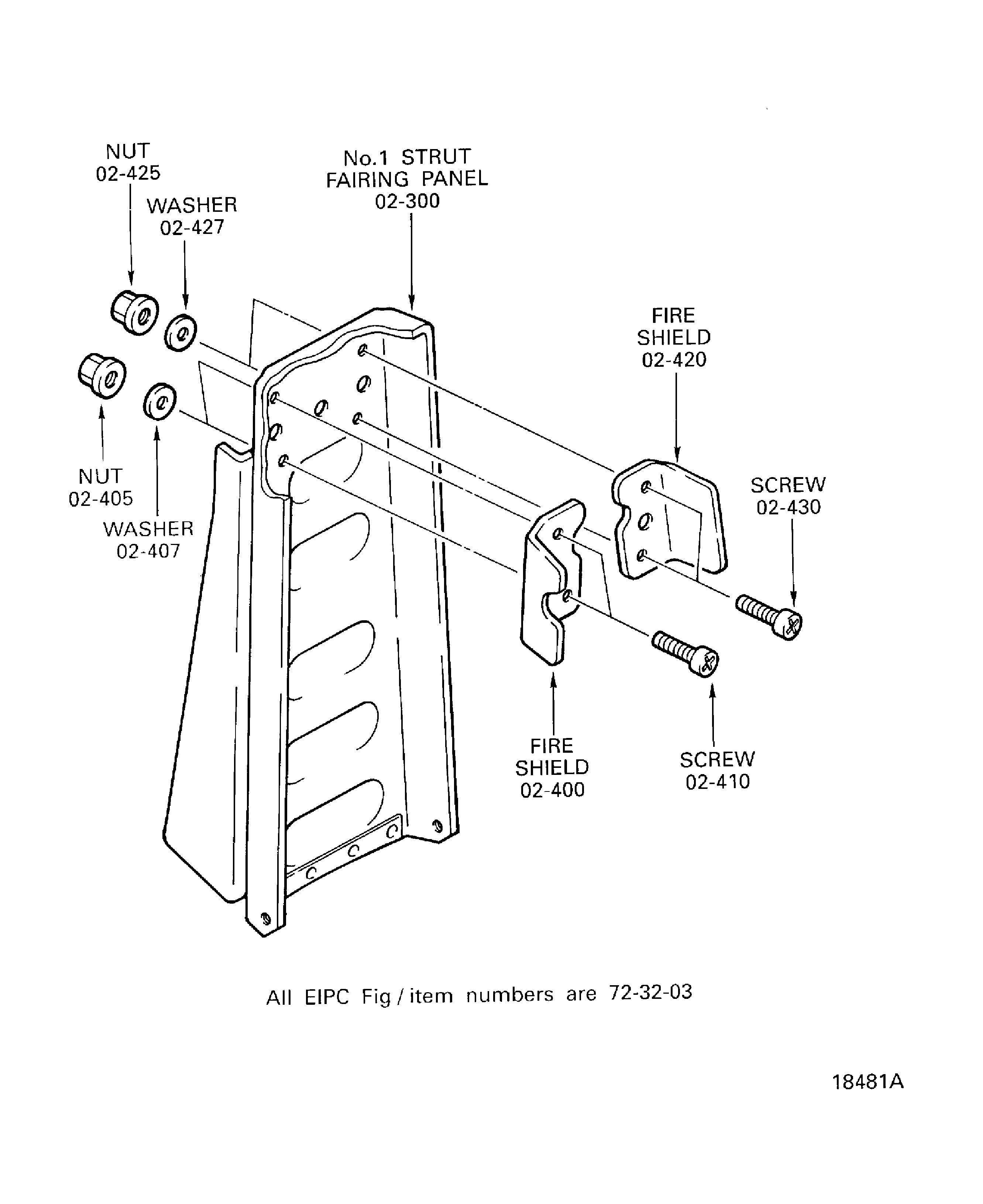

    Figure: SBE 72-0216 and Pre SBE 72-0230: Remove the shields from the No.1 strut fairing panel

    Sheet 2

    Legend
    SBE 72-0216 and Pre SBE 72-0230: Remove the shields from the No. 1 strut fairing panel

    Sheet 2

    Close

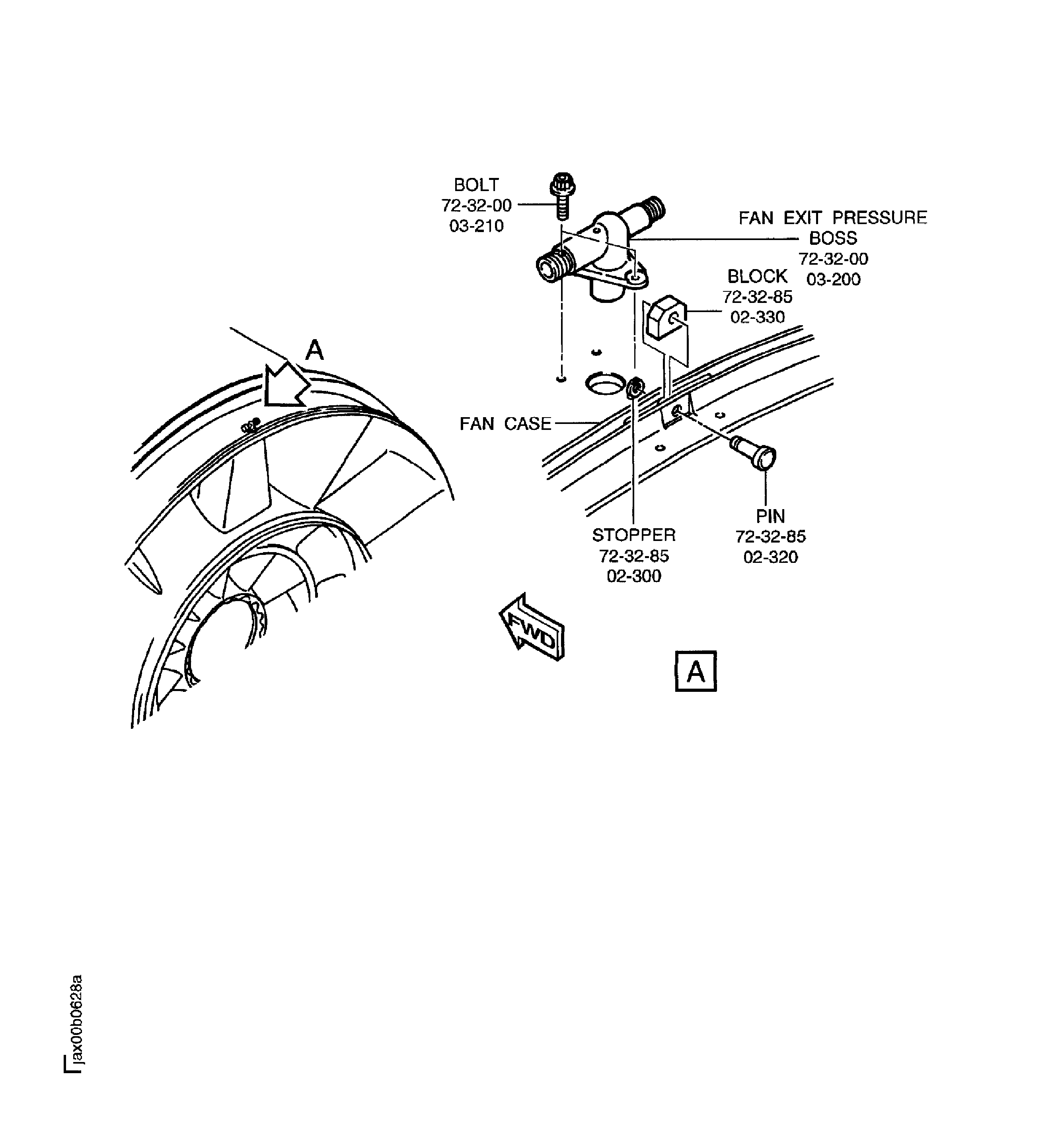

    Figure: Remove the fan exit pressure boss and the block from the fan case

    Remove the fan exit pressure boss and the block from the fan case

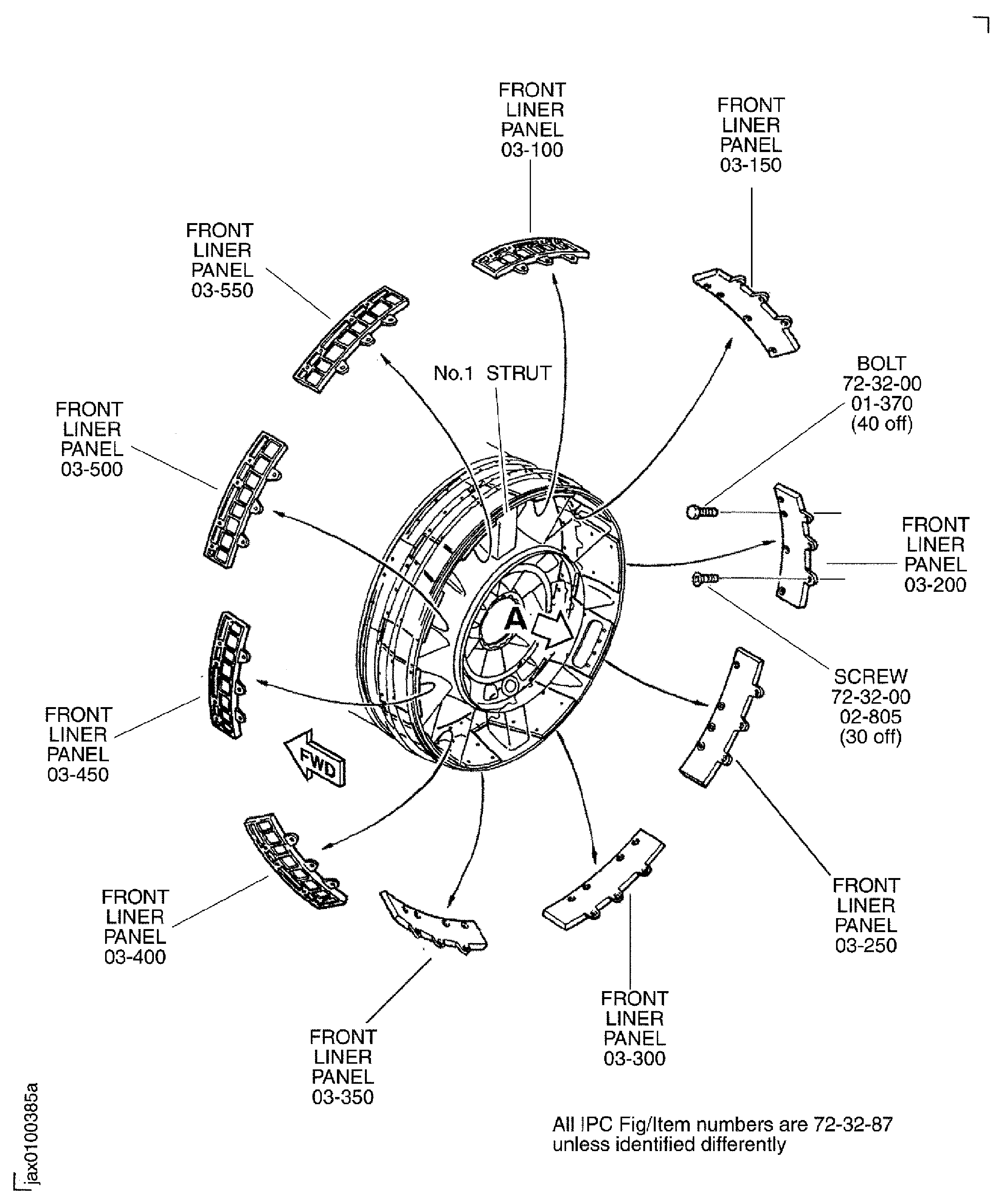

    Figure: Remove the front liner panels from the fan case

    Sheet 1

    Legend
    Remove the front liner panels from the fan case

    Sheet 1

    Close

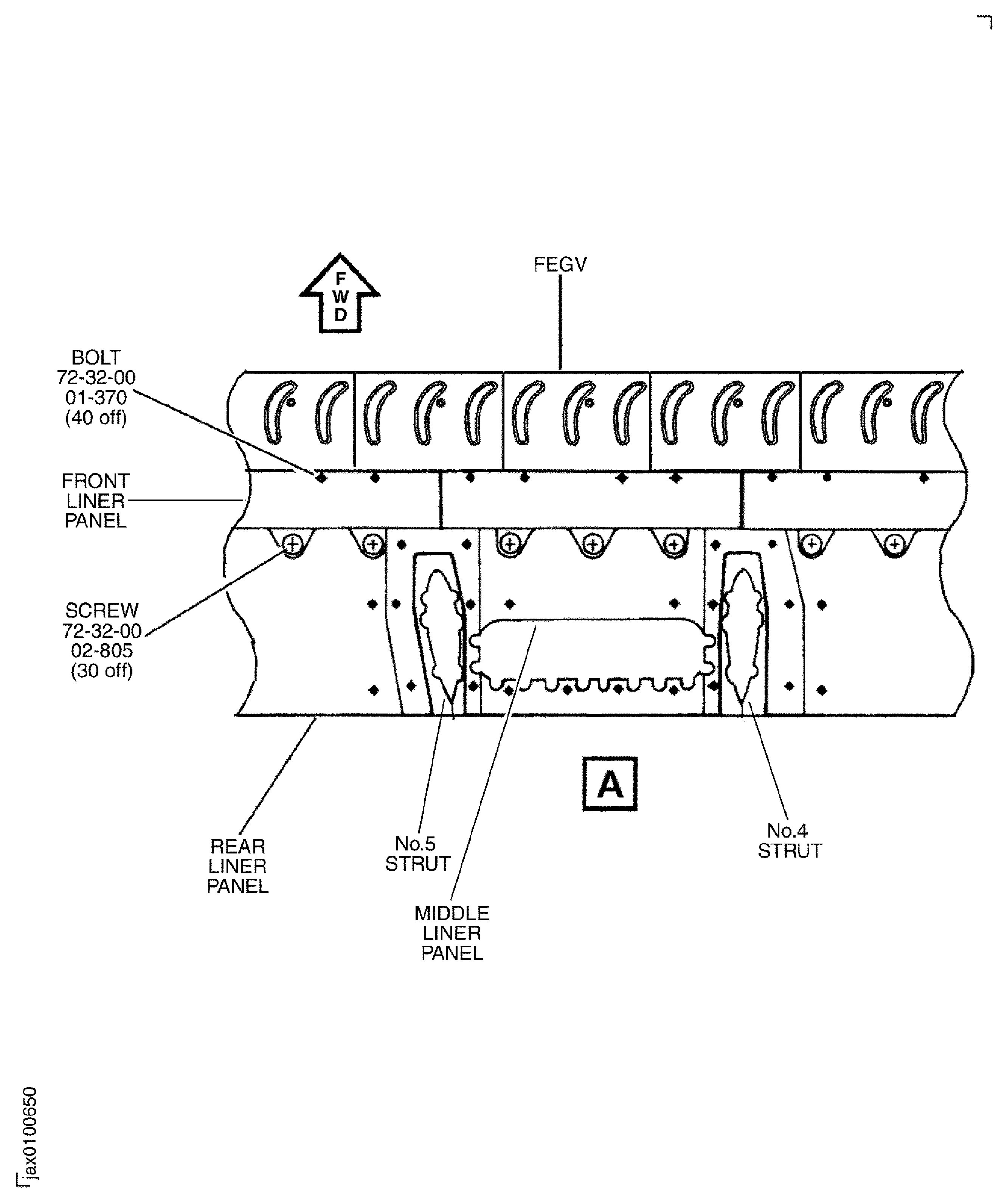

    Figure: Remove the front liner panels from the fan case

    Sheet 2

    Legend
    Remove the front liner panels from the fan case

    Sheet 2

    Close

    Figure: Remove the FEGVs from the fan case

    Remove the FEGVs from the fan case

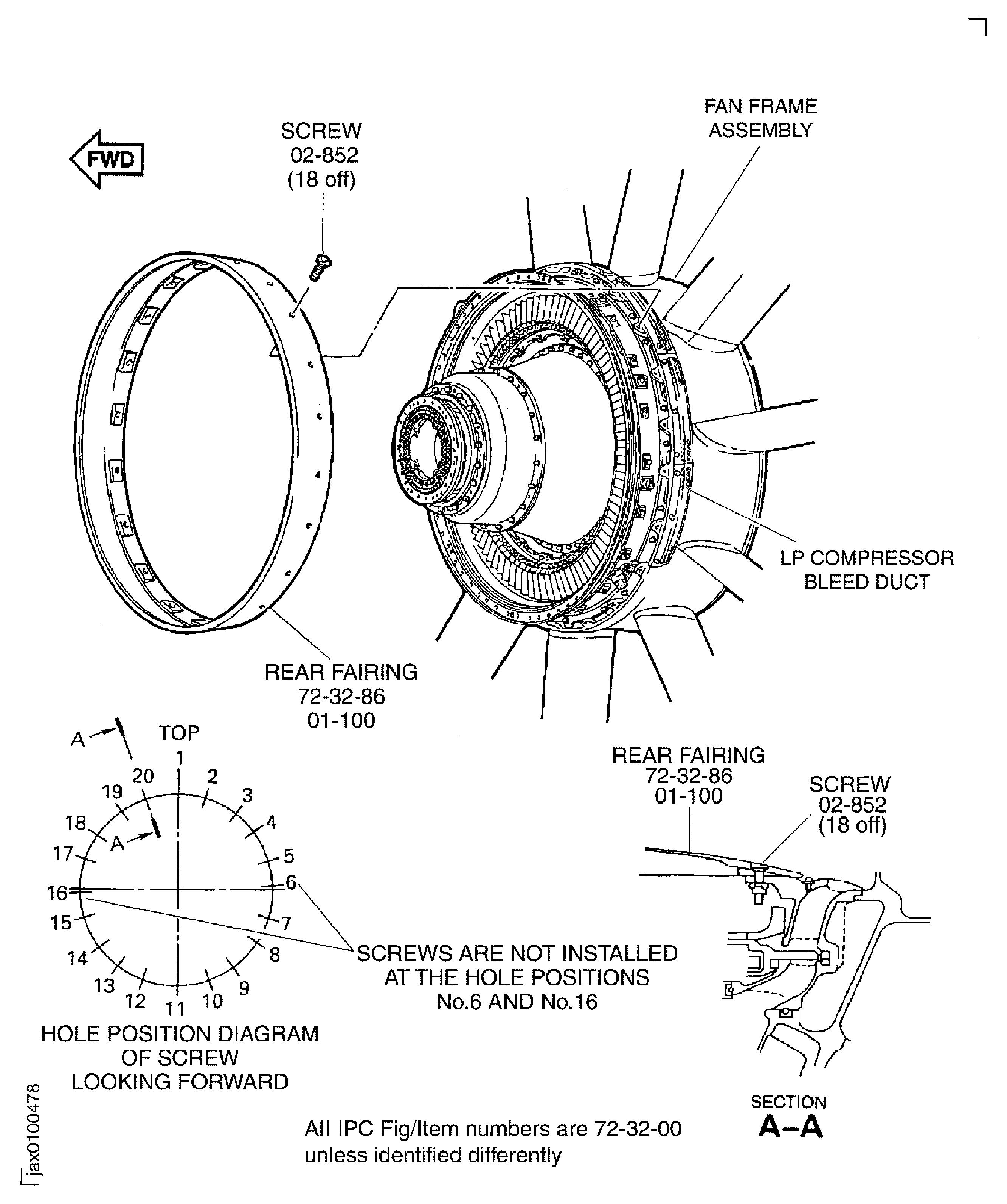

    Figure: Pre SBE 72-0155: Remove the rear fairing from the LP compressor bleed duct

    Pre SBE 72-0155: Remove the rear fairing from the LP compressor bleed duct

    Figure: SBE 72-0155: Remove the rear fairing from the LP compressor bleed duct

    SBE 72-0155: Remove the rear fairing from the LP compressor bleed duct

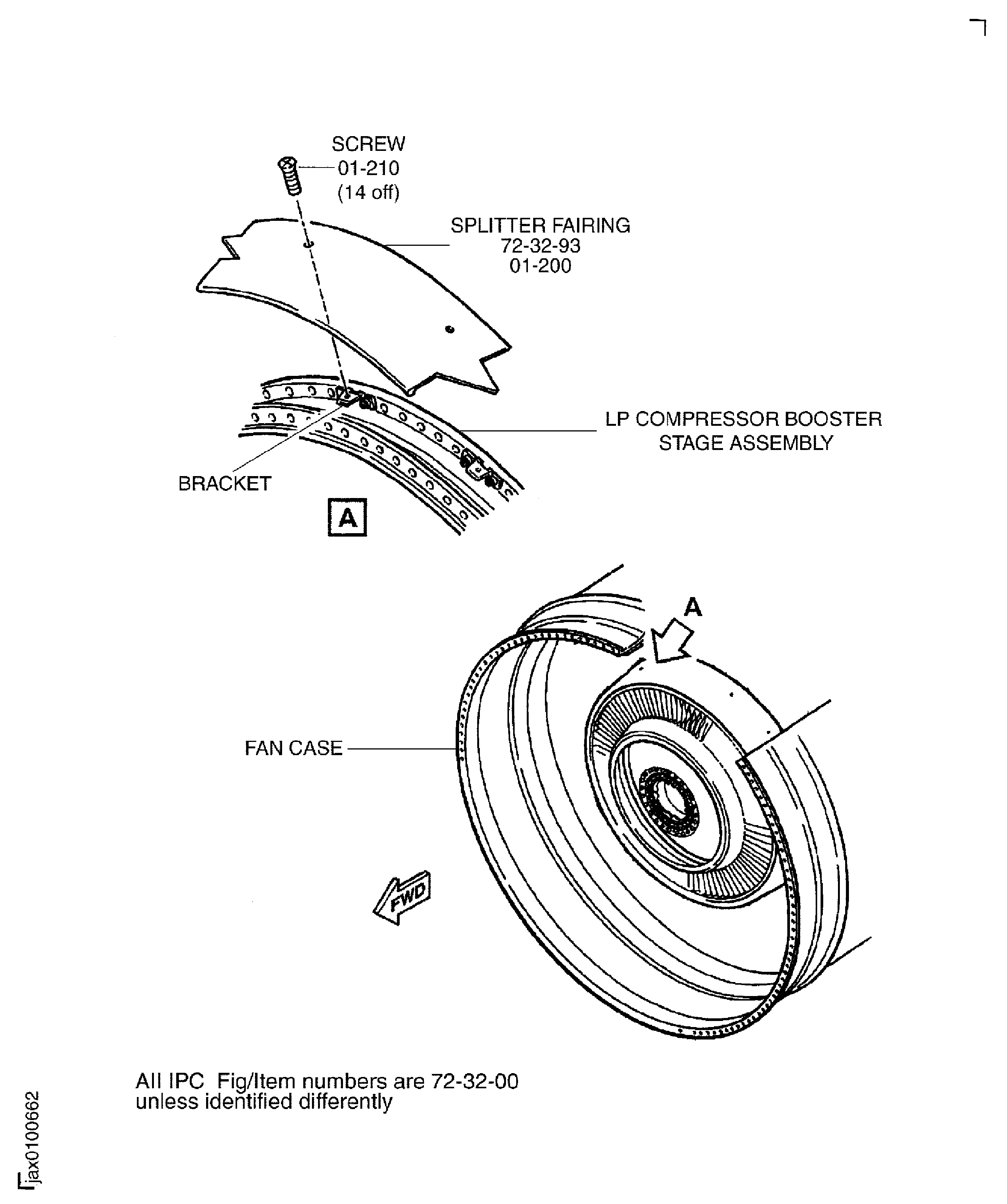

    Figure: Remove the splitter fairings from the brackets

    Remove the splitter fairings from the brackets

    Figure: Use the sliding hammer to release the splitter fairing

    Use the sliding hammer to release the splitter fairing

Requirements After Job Completion

Follow-On Conditions

NONE
