TASK 72-32-00-430-002-B00 LPC/Intermediate Case Module - Install The Dowel Pins, Bush, Oil Feed Adapter, Main Oil Distributor, Oil Feed Tube, And Rear Seal Drain Tube, Assembly-002

DMC:V2500-A5-72-32-0000-02A-710A-B|Issue No:002.00|Issue Date:2017-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-32-00-430-002-B00 LPC/Intermediate Case Module - Install The Dowel Pins, Bush, Oil Feed Adapter, Main Oil Distributor, Oil Feed Tube, And Rear Seal Drain Tube, Assembly-002

General

This TASK gives the procedure to install the dowel pins, the bush, the oil feed adapter, the main oil distributor, the oil feed tube and the rear seal drain tube.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501 and SPM TASK 70-41-02-400-501.

To identify, lubricate and install seal rings, refer to the SPM TASK 70-64-02-640-501.

Special torque data and assembly tolerances are included in the procedure.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

The abbreviation Intf shows an interference or tight fit. This causes REJECT IF MORE THAN to become REJECT IF LESS THAN. The abbreviation Clear shows a clearance fit.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

The No. 1 Strut, which is the top position Strut of the Fan Frame Assembly, is identified by the five pressure tubes on the No. 1 Strut leading edge.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1J12446 Pusher0AM53IAE 1J124461

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-149 DRY ICELOCALCoMat 02-149
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077
CoMat 12-004 P.V.C. SHEETLOCALCoMat 12-004

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Sealing ring1
Packing2
Sealing ring1
Sealing ring2
Sealing ring1

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-220-138 Reference Fits and Clearances of the Fan Frame and the Front Mount Tube Bush at Location 0408

    1. Refer to Figure.

    2. Reference dimensions at location 0408. If required, use the data written as a NOTE in TASK 72-32-03-200-000 (INSPECTION-000).

      Table 1. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 0408

      Fan Frame Fan Frame Assembly And Related Parts (72-32-03, 03-100), Inside Diameter

      Front Mount Tube Bush Fan Frame Assembly And Related Parts (72-32-03, 03-075), Outside Diameter

      Fan Frame Inside Diameter

      1.7332

      1.7323

      Intf

      0.0007

      Front Mount Tube Bush Outside Diameter

      1.7334

      1.7339

      0.0011

      Intf

      Table 2. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF

      MORE THAN

      LOCATION 0408

      Fan Frame Fan Frame Assembly And Related Parts (72-32-03, 03-100), Inside Diameter

      Front Mount Tube Bush Fan Frame Assembly And Related Parts (72-32-03, 03-075), Outside Diameter

      Fan Frame Inside Diameter

      44.025

      44.000

      Intf

      0.017

      Front Mount Tube Bush Outside Diameter

      44.026

      44.042

      0.026

      Intf

    2. SUBTASK 72-32-00-430-291 Install the Four Dowel Pins to the Fan Frame

    1. Refer to Figure and Figure.

    2. Lubricate the dowel pin Fan Frame Assembly And Related Parts (72-32-03, 03-020) with CoMat 10-077 APPROVED ENGINE OILS.

    3. Increase the temperature of the dowel pin hole in the Fan Frame to 194 deg F (90 deg C) by a hot air gun.

    4. Measure the temperature of the dowel pin hole surface by a digital readout meter.

    5. Put the dowel pin into the dowel pin hole.

    6. Safety the dowel pin with the nut Fan Frame Assembly And Related Parts (72-32-03, 03-025) and the washer Fan Frame Assembly And Related Parts (72-32-03, 03-030). Torque the nut to 180 lbfin to 220 lbfin (20.00 Nm to 25.00 Nm).

      NOTE

      Hold the wrench flat to the dowel pin when you torque the nut with the wrench.

    7. Do Step through Step again for the remaining three dowel pins.

    3. SUBTASK 72-32-00-430-292 Install the Bush to the Fan Frame

    1. Refer to Figure.

    2. Lubricate the bush Fan Frame Assembly And Related Parts (72-32-03, 03-075) with the CoMat 10-077 APPROVED ENGINE OILS and put it into a bag made of CoMat 12-004 P.V.C. SHEET.

    3. Let the bush cool for 10 to 15 minutes by CoMat 02-149 DRY ICE.

    4. At the same time, increase the temperature of the hole surface of the Fan Frame to 212 deg F (100 deg C) by a hot air gun.

    5. Measure the temperature of the hole surface of the Fan Frame.

    6. Put the bush into the hole in the Fan Frame.

    7. Install the IAE 1J12446 Pusher 1 off into the Fan Frame.

    8. Turn the pusher nut A (part of the IAE 1J12446 Pusher) until the bush touches tightly the abutment face C on the Fan Frame.

    9. Make sure that there is no clearance between bush and the abutment face C.

    10. Remove the dirt, the oil and the drop of water around the front bush and apply a thin layer of lubricant (engine oil).

    4. SUBTASK 72-32-00-430-242 Install the Rear Seal Drain Tube to the Fan Frame (Pre SBE 72-0211)

    1. Refer to Figure.

    2. Lubricate (02-220) sealing ring 1 off with CoMat 10-077 APPROVED ENGINE OILS. Install the sealing ring in to the groove in the rear seal drain tube (72-32-38, 01-200).

    3. Install the rear seal drain tube in to the connection of the Fan Frame. Safety with the bolt (02-215) and torque it to 36 lbfin to 45 lbfin (4,00 Nm to 5.00 Nm).

    5. SUBTASK 72-32-00-430-243 Install the Oil Feed Adapter, the Main Oil Distributor and the Oil Feed Tube

    1. Refer to Figure.

      2. Install the oil feed adapter ENGINE-OIL FEED DISTRIBUTION LINE (72-32-07, 01-100) in to the Fan Frame Assembly.

      1. Align the two holes in the oil feed adapter with the two locating pins on the boss on the Fan Frame Assembly.

      2. Attach the oil feed adapter to the boss on the Fan Frame Assembly and safety with the three bolts (02-510) and washers (02-520).

      3. Torque the bolts to 85 lbfin to 105 lbfin (10.00 Nm to 12.00 Nm).

    3. Lubricate (02-340) sealing ring 1 off with CoMat 10-077 APPROVED ENGINE OILS and install it in to the groove in the distributor No. 2 And No. 3 Bearing Oil Distributor And Tubes (72-32-36, 01-550).

      4. Install the main oil distributor to the boss on the Fan Frame Assembly.

      1. Align the locating hole in the distributor with the locating pin on the boss.

      2. Install the distributor to the boss and attach with the three bolts (02-320) and washers (02-330).

      3. Torque the bolts to 85 lbfin to 105 lbfin (10.00 to 12.00 Nm).

    5. Lubricate (02-310) packings 2 off, No. 2 And No. 3 Bearing Oil Distributor And Tubes (72-32-36, 01-240) sealing rings 2 off and No. 2 And No. 3 Bearing Oil Distributor And Tubes (72-32-36, 01-245) sealing ring 1 off with CoMat 10-077 APPROVED ENGINE OILS. Install them in to the grooves in the oil feed tube No. 2 And No. 3 Bearing Oil Distributor And Tubes (72-32-36, 01-235).

      6. Install the oil feed tube in to the No. 4 Strut of the Fan Frame Assembly through the main oil distributor.

      1. Align the two bolts holes in the adapter of the oil feed tube with the two threaded holes in the main oil distributor.

      2. Push the oil feed tube until its adapter touches the main oil distributor.

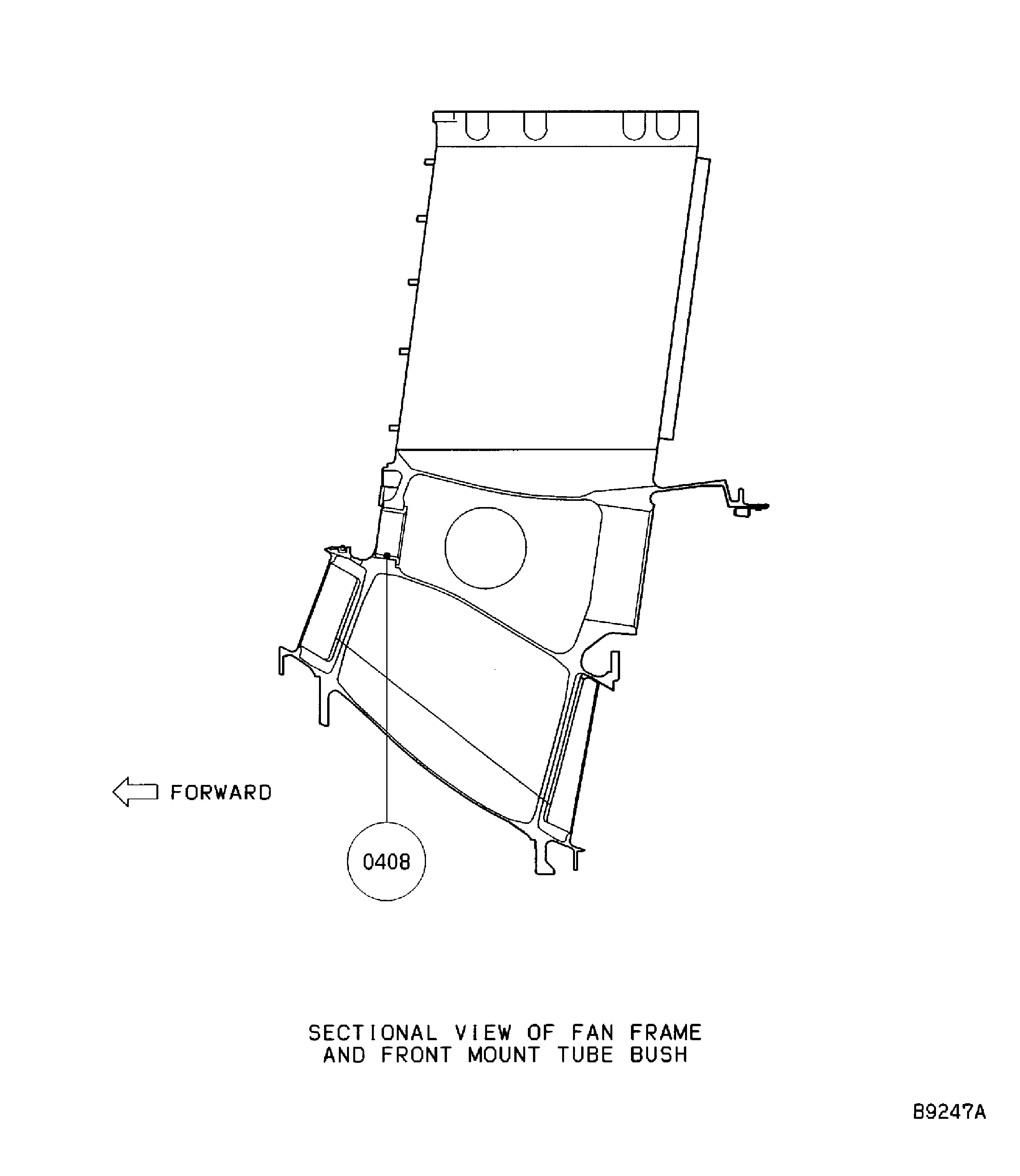

    6. Figure: The Fan Frame and the Front Mount Tube Bush Fits and Clearances

    The Fan Frame and the Front Mount Tube Bush Fits and Clearances

    Figure: Install the Dowel Pins to the Fan Frame

    Sheet 1

    Legend
    Install the Dowel Pins to the Fan Frame

    Sheet 1

    Close

    Figure: Install the Dowel Pins to the Fan Frame

    Sheet 2

    Legend
    Install the Dowel Pins to the Fan Frame

    Sheet 2

    Close

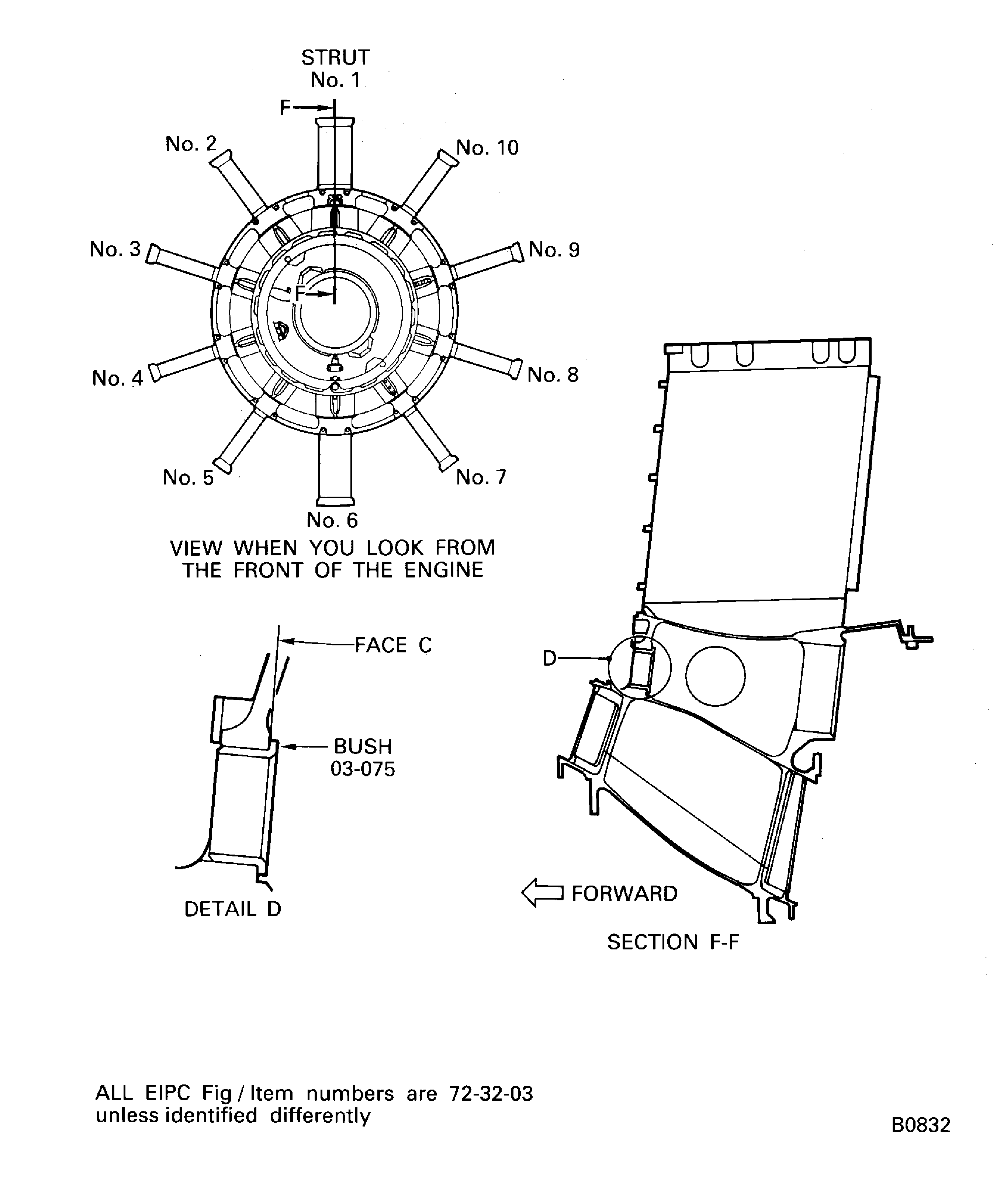

    Figure: Install the Bush into the Fan Frame

    Sheet 1

    Legend
    Install the Bush into the Fan Frame

    Sheet 1

    Close

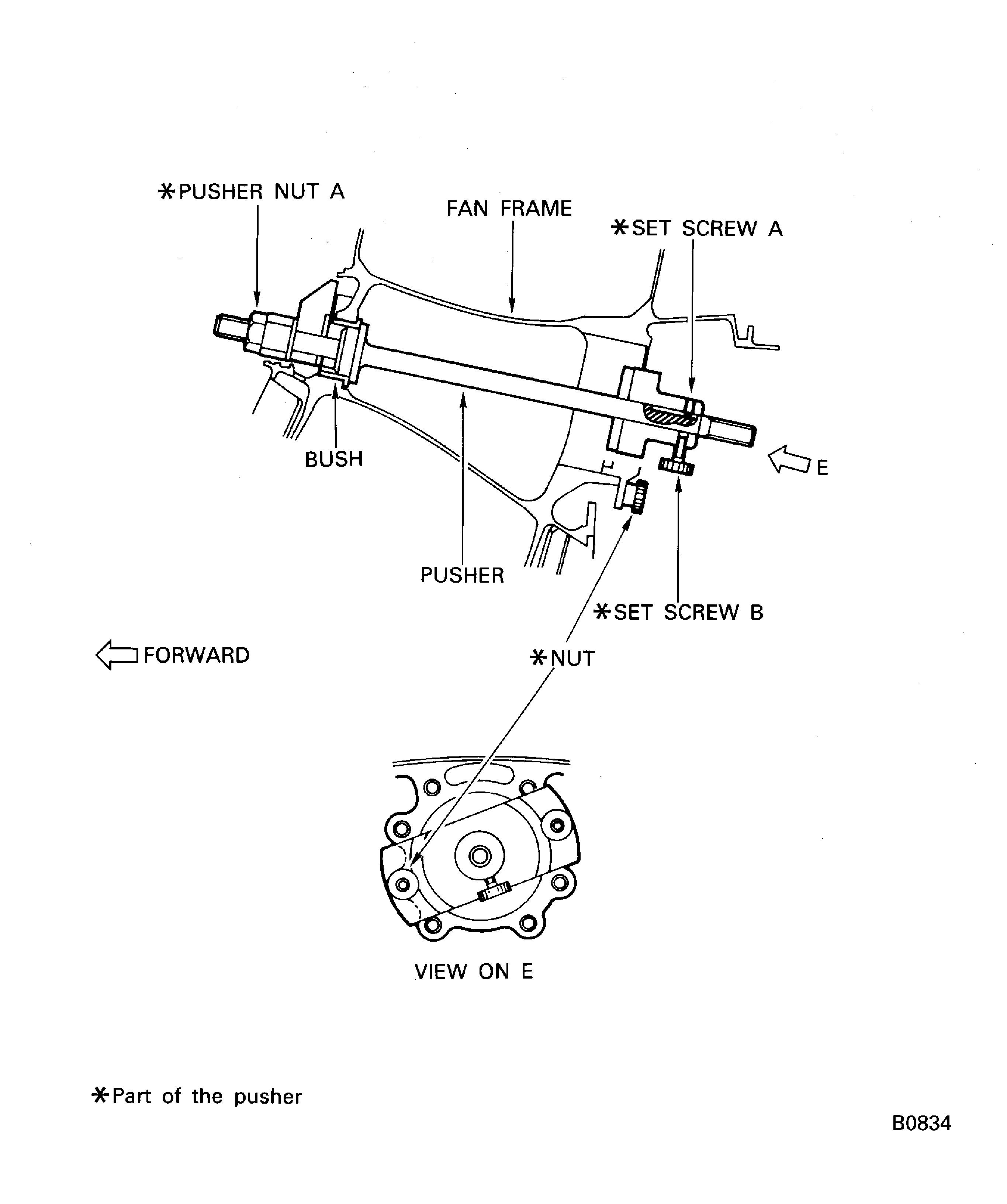

    Figure: Install the Bush into the Fan Frame

    Sheet 2

    Legend
    Install the Bush into the Fan Frame

    Sheet 2

    Close

    Figure: Pre SBE 72-0211: Install the Rear Seal Drain Tube to the Fan Frame

    Pre SBE 72-0211: Install the Rear Seal Drain Tube to the Fan Frame

    Figure: Install the Oil Feed Adapter, the Main Oil Distributor and the Oil Feed Tube

    Sheet 1

    Legend
    Install the Oil Feed Adapter, the Main Oil Distributor and the Oil Feed Tube

    Sheet 1

    Close

    Figure: Install the Oil Feed Adapter, the Main Oil Distributor and the Oil Feed Tube

    Sheet 2

    Legend
    Install the Oil Feed Adapter, the Main Oil Distributor and the Oil Feed Tube

    Sheet 2

    Close

    Figure: Install the Oil Feed Adapter, the Main Oil Distributor and the Oil Feed Tube

    Sheet 3

    Legend
    Install the Oil Feed Adapter, the Main Oil Distributor and the Oil Feed Tube

    Sheet 3

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
