DMC:V2500-A5-72-32-25-02A-941A-DIssue No:002.00Issue Date:2015-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| - | B72322502 | ENGINE-NO.3 BEARING REAR OIL SEAL, PRE SBE70-0857 (ALL) | aa | |
| - | SBE0857-01 | ENGINE-NO.3 BEARING REAR OIL SEAL, PRE SBE72-0478 (ALL) | ab | |
| - | SBE0478-01 | ENGINE-NO.3 BEARING REAR OIL SEAL, PRE SBE72-0568 (ALL) | ac | |
| - | SBE0568-01 | ENGINE-NO.3 BEARING REAR OIL SEAL, PRE SBE72-0622 (ALL) | ad | |
| - | SBE0622-01 | ENGINE-NO.3 BEARING REAR OIL SEAL (ALL) | ae | |
| 100 | 2A2370 | • SEAL, NO. 3 BEARING, ASSEMBLY PRE SBE72-0478 | aa-ab/01 | 1 |
| 100A | 2A2370 | • SEAL, NO. 3 BEARING, ASSEMBLY POST SBE72-0568 PRE SBE72-0622 | ad/02 | 1 |
| 100B | 2A3891 | • SEAL, NO. 3 BEARING, ASSEMBLY POST SBE72-0478 PRE SBE72-0568 | ac/03 | 1 |
| 100C | 2A4287 | • SEAL, NO. 3 BEARING, ASSEMBLY POST SBE72-0622 | ae/03 | 1 |
| 150 | 2A1786 | • • SEAL, FACE, ASSEMBLY OF PRE SBE72-0478 | aa-ab/01 | 1 |
| 150A | 2A1786 | • • SEAL, FACE, ASSEMBLY OF POST SBE72-0568 PRE SBE72-0622 | ad/02 | 1 |
| 150B | 2A3854 | • • SEAL, FACE, ASSEMBLY OF POST SBE72-0478 PRE SBE72-0568 | ac/03 | 1 |
| 150C | 2A4286 | • • SEAL, FACE, ASSEMBLY OF POST SBE72-0622 | ae/03 | 1 |
| 170 | 2A1783 | • • • GUIDE, SEAL SPRING | aa-ae/03 | 12 |
| 200 | 2A2060 | • • PIN, NO. 3 BEARING SEAL | aa-ae/03 | 4 |
| 210 | 2A2059 | • • SPACER, SLEEVE | aa-ae/03 | 2 |
| 220 | 2A1789 | • • COLLAR, RETAINING | aa-ae/03 | 4 |
| 230 | 2A1916 | • • SEAL, NO. 3 RING HOLDER | aa-ae/03 | 1 |
| 240 | 2A1792 | • • SPRING, HELICAL | aa-ae/03 | 12 |
| 250 | 2A1962 | • SEAL, PLAIN | aa-ae/03 | 1 |
| 252 | 2A1793P5 | • • SEAL, RING, 6.991 X .158 | aa-ae/04 | 1 |
| 254 | 2A1793P10 | • • SEAL, RING, 6.991 X .163 | aa-ae/04 | 1 |
| 256 | 2A1793P15 | • • SEAL, RING, 6.991 X .168 | aa-ae/04 | 1 |
| 258 | 2A1793P20 | • • SEAL, RING, 6.991 X .173 | aa-ae/04 | 1 |
| 260 | 616195 | • • RIVET, SPLIT, 0.097 X 0.460, FLAT 77445 | aa-ae/03 | 4 |
| 270 | MS21209F4-15 | • • INSERT, SCREW THREAD 96906 | aa-ae/03 | 4 |
| 350 | AS3209-265 | • PACKING, PREFORMED U1653 PRE SBE70-0857 | aa-ae/03 | 1 |
| 350A | ST1946-265 | • PACKING, PREFORMED 77445 POST SBE70-0857 | ab-ae/03 | 1 |
| 400 | 2A1798 | • SEAT, #3 BRG SEAL | aa-ae/03 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

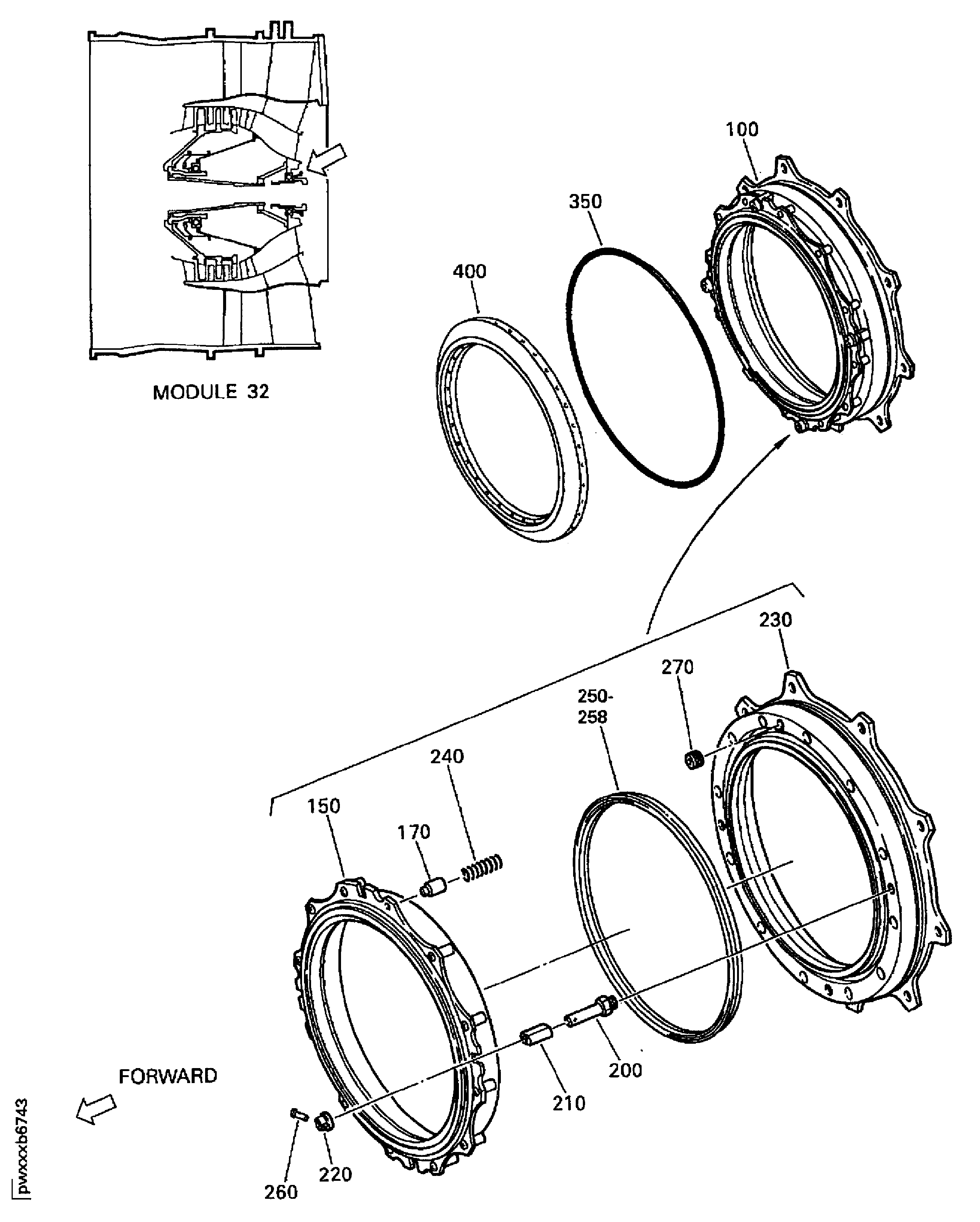

Figure: No. 3 Bearing Rear Seal Assembly
No. 3 Bearing Rear Seal Assembly
