TASK 72-32-86-300-010 Intermediate Structure Rear Fairing - Repair The Damage On The Inner Surface, Repair-010 (VRS1996)

DMC:V2500-A5-72-32-8600-01A-610A-C|Issue No:001.00|Issue Date:2020-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-86-300-010 Intermediate Structure Rear Fairing - Repair The Damage On The Inner Surface, Repair-010 (VRS1996)

Effectivity

FIG/ITEM

PART NO.

01-100

5A1688

01-100

5A1755

Material of component

PART IDENT

SYMBOL

MATERIAL

Rear fairing assembly

Resin impregnated carbon fiber fabric

General

Price and availability - none

The practices and processes referred to in this procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Standard workshop equipmentLOCALStandard workshop equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-079 WATERPROOF SILICON CARBIDE1E1X8CoMat 05-079
CoMat 05-080 WATERPROOF SILICON CARBIDE1E1X8CoMat 05-080
CoMat 05-083 WATERPROOF SILICON CARBIDE1E1X8CoMat 05-083
CoMat 08-015 RESINLOCALCoMat 08-015
CoMat 08-016 HARDENERLOCALCoMat 08-016

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-86-220-102 Examine the Rear Fairing Assembly for Damaged Area

    1. Refer to Figure.

      2. Examine the damaged area dimensionally.

      1. Make sure that the damaged area is within the repairable limits given in Figure.

    2. SUBTASK 72-32-86-350-071 Remove the Pad of the Rear Fairing Assembly, if Necessary

      1. Remove the pad(s) adjacent to the damaged area(s), if necessary.

      1. Refer to Repair, VRS1983 TASK 72-32-86-300-009 (REPAIR-009).

    3. SUBTASK 72-32-86-380-056 Prepare the Rear Fairing Assembly for the Repair

      1. Clean the area that is to be repaired.

      1. Refer to the SPM TASK 70-11-03-300-503.

      2. Use wipe method.

      2. Remove any loose fibers and the raised materials from the damaged area.

    3. Do Step again.

    4. SUBTASK 72-32-86-360-060 Make Up and Apply the Two-Part Low Temperature Curing Adhesive

      1. WARNING

        DURING THE OPERATION, WEAR PROTECTIVE GLOVES AND GOGGLES.

        WARNING

        MAKE SURE THERE IS SUFFICIENT VENTILATION DURING THE OPERATION.

        Make up the adhesive.

      2. Refer to the SPM TASK 70-36-02-360-501.

      2. Apply the adhesive to the damaged area(s).

      1. Use a spatula or a small trowel.

    3. Remove the excess adhesive.

    5. SUBTASK 72-32-86-360-061 Cure the Two-Part Low Temperature Curing Adhesive

      1. CAUTION

        BEFORE CURING, LET THE AIR OUT OF THE ADHESIVE BY ROLLER OR EQUIVALENT.

        CAUTION

        BE CAREFUL THAT THE ADHESIVE IS NOT DEFORMED DURING CURING PROCESS.

        Cure the adhesive.

      1. Use an oven.

      2. Refer to the SPM TASK 70-36-02-360-501.

      2. Remove excess adhesive and make smooth the repaired area.

      1. Repair material must be flush to the adjacent surface profile.

      3. Surface finish on the repaired area should be same as that of the adjacent area.

      4. Refer to the SPM TASK 70-35-03-300-501.

    6. SUBTASK 72-32-86-110-057 Clean the Repaired Area of the Rear Fairing Assembly

      1. Clean the repaired area.

      1. Refer to the SPM TASK 70-11-03-300-503.

      2. Use wipe method.

    7. SUBTASK 72-32-86-220-103 Examine the Repaired Area of the Rear Fairing Assembly

      1. Visually examine the repaired area.

      1. Nicks, dents, scratches, delamination or other damages are not permitted.

    8. SUBTASK 72-32-86-350-072 Install the Pad to the Rear Fairing Assembly, if Removed

      1. Install the pad(s) to the repaired area(s), if they are removed by Step.

      1. Refer to Repair, VRS1983 TASK 72-32-86-300-009 (REPAIR-009).

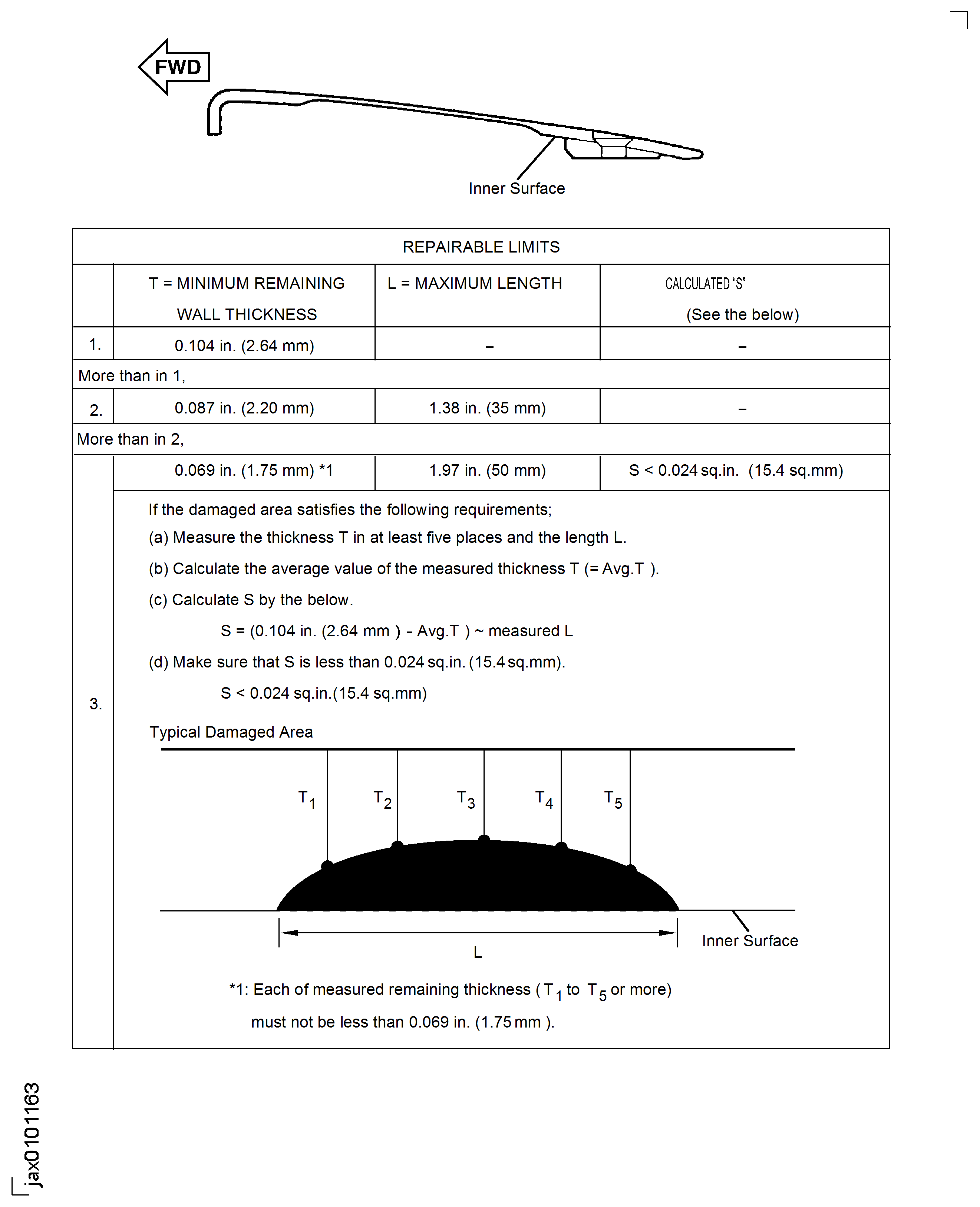

    9. Figure: Repairable Limit For Inner Surface Damage

    Repairable Limit For Inner Surface Damage

Requirements After Job Completion

Follow-On Conditions

NONE
