DMC:V2500-A5-72-50-23-01A-941A-DIssue No:002.00Issue Date:2018-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72502301 | ENGINE - LP TURBINE OUTER STATIC SEALS, PRE SBE70-0184 AND PRE SBE70-0817 | aa | |
| - | SBE0184-01 | ENGINE - LP TURBINE OUTER STATIC SEALS, PRE SBE72-0588 | ab | |
| - | SBE0817-01 | ENGINE - LP TURBINE OUTER STATIC SEALS, PRE SBE72-0588 | ac | |
| - | SBE0588-01 | ENGINE - LP TURBINE OUTER STATIC SEALS | ad | |
| 008 | 3A0710 | • WIRE - LOCKING | aa-ad/01 | 16 |
| 010 | 3A0666 | • SEAL - SHROUD SEGMENT, 7TH STAGE, ASSEMBLY OF PRE SBE72-0588 | aa-ac/01 | 16 |
| 010A | 3A2956 | • SEAL - SHROUD SEGMENT, ASSEMBLY OF POST SBE72-0588 | ad/01 | 16 |
| 026 | 3A1578 | • • SEAL SEGMENT - HONEYCOMB (VRS4080) POST SBE70-0032 PRE SBE72-0588 | *****/01 | 1 |
| 026A | 3A3107 | • • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | ad/01 | 1 |
| 030 | 3A0669 | • • KEY - MACHINE | aa-ad/01 | 1 |
| 035 | 3A0670 | • • SEAL - STRIP | aa-ad/01 | 1 |
| 150 | 3A1920 | • SEAL - SHROUD SEGMENT, 5TH STAGE, ASSEMBLY OF PRE SBE72-0588 | aa-ac/01 | 33 |
| 150A | 3A2953 | • SEAL - SHROUD SEGMENT, 5TH STAGE, ASSEMBLY OF POST SBE72-0588 | ad/01 | 33 |
| 171 | 3A1579 | • • SEAL SEGMENT - HONEYCOMB (VRS4276) POST SBE70-0032 PRE SBE72-0588 | *****/01 | 1 |
| 171A | 3A3094 | • • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | ad/01 | 1 |
| 181 | 3A1580 | • • SEAL SEGMENT - HONEYCOMB (VRS4276) POST SBE70-0032 PRE SBE72-0588 | *****/01 | 1 |
| 181A | 3A3095 | • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | ad/01 | 1 |
| 250 | 3A1918 | • SEAL - SHROUD SEGMENT, 4TH STAGE, ASSEMBLY OF PRE SBE72-0588 | aa-ac/01 | 31 |
| 250A | 3A2950 | • SEAL - SHROUD SEGMENT, 4TH STAGE, ASSEMBLY OF POST SBE72-0588 | ad/01 | 31 |
| 271 | 3A1581 | • • SEAL SEGMENT - HONEYCOMB (VRS4487) POST SBE70-0032 PRE SBE72-0588 | *****/01 | 1 |
| 271A | 3A3091 | • • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | ad/01 | 1 |
| 281 | 3A1582 | • • SEAL SEGMENT - HONEYCOMB (VRS4487) POST SBE70-0032 PRE SBE72-0588 | *****/01 | 1 |
| 281A | 3A3092 | • • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | ad/01 | 1 |
| 350 | 3A1916 | • SEAL - SHROUD SEGMENT, 3RD STAGE, ASSEMBLY OF PRE SBE70-0184 PRE SBE72-0588 | aa/02 | 15 |
| 350A | 3A2234 | • SEAL - SHROUD SEGMENT, 3RD STAGE, ASSEMBLY OF PRE SBE72-0588 | aa-ac/02 | 15 |
| 350B | 3A2234 | • SEAL - SHROUD SEGMENT, 3RD STAGE, ASSEMBLY OF POST SBE70-0184 PRE SBE72-0588 | ab-ac/03 | 15 |
| 350C | 3A1916 | • SEAL - SHROUD SEGMENT, 3RD STAGE, ASSEMBLY OF POST SBE70-0817 PRE SBE72-0588 | ac/03 | 15 |
| 350D | 3A2947 | • SEAL - SHROUD SEGMENT, 3RD STAGE, ASSEMBLY OF POST SBE72-0588 | ad/01 | 15 |
| 350E | 3A3104 | • SEAL - SHROUD SEGMENT, 3RD STAGE, ASSEMBLY OF POST SBE72-0588 | ad/01 | 15 |
| 371 | 3A2914 | • • SEAL - SEGMENT, HONEYCOMB (VRS4279) POST SBE70-0032 PRE SBE72-0588 | *****/01 | 1 |
| 371A | 3A3088 | • • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | ad/01 | 1 |
| 381 | 3A1584 | • • SEAL SEGMENT - HONEYCOMB (VRS4279) POST SBE70-0032 PRE SBE72-0588 | *****/01 | 1 |
| 381A | 3A3089 | • • SEAL SEGMENT - HONEYCOMB POST SBE72-0588 | ad/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

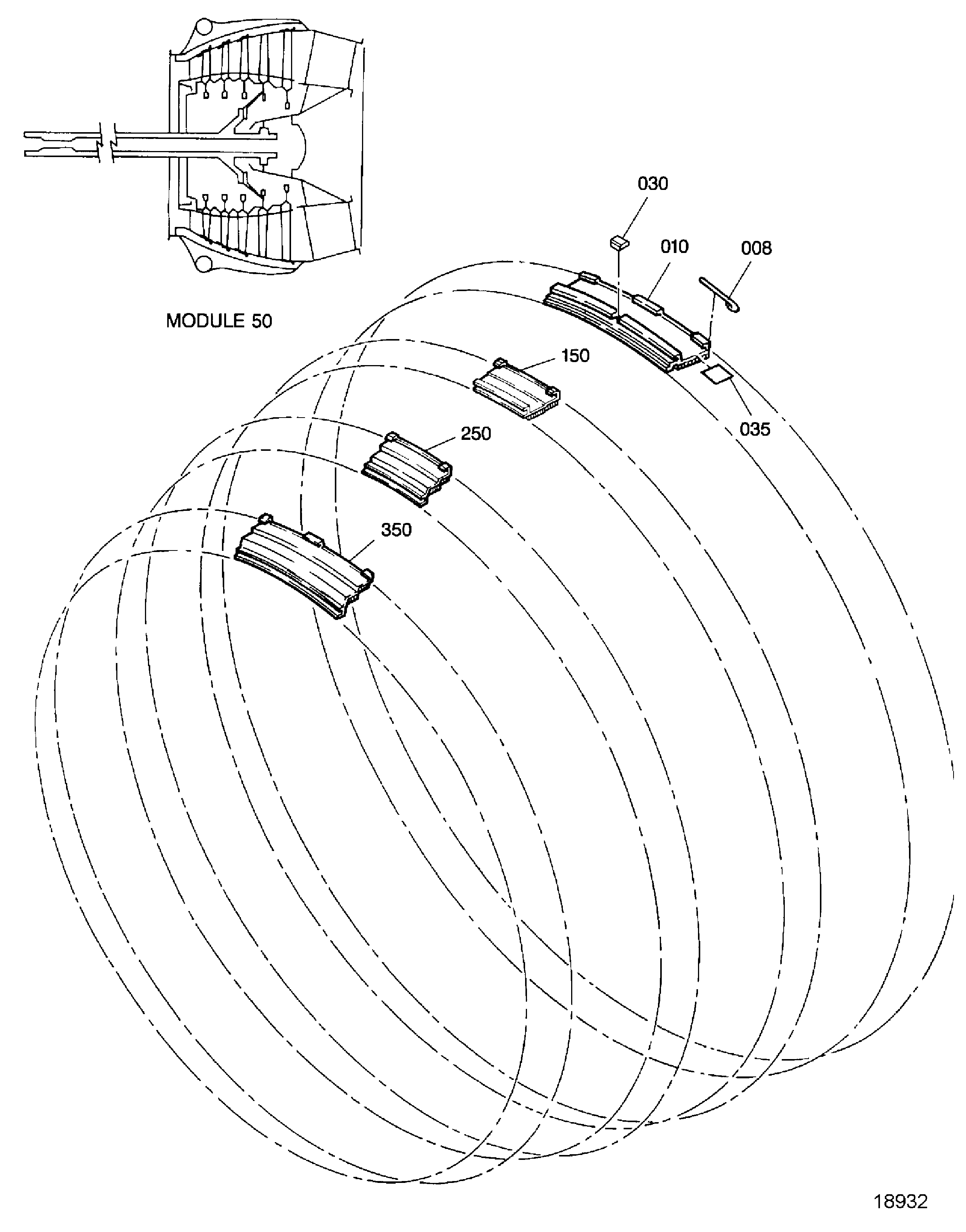

Figure: LPT Stage 3, 4, 5, 7 Outer Shroud Seal Segments
LPT Stage 3, 4, 5, 7 Outer Shroud Seal Segments
