TASK 24-21-49-300-001 IDG Cooling Oil Tubes - Repair a Dent in the Tube Wall, Repair-001 (VRS2800)

DMC:V2500-A0-24-21-4901-00A-271A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 24-21-49-300-001 IDG Cooling Oil Tubes - Repair a Dent in the Tube Wall, Repair-001 (VRS2800)

Effectivity

FIG/ITEM

PART NO.

01-100

740-5727-509

01-100

740-5727-511

01-100

740-5727-513

01-500

740-5269-501

02-100

740-5271-503

02-100

740-5271-505

02-500

740-5273-503

02-500

740-5273-505

03-100

740-5275-503

03-500

740-5737-509

03-500

740-5737-511

Material of Component

DESCRIPTION

RR SYMBOL

MATERIAL

Oil cooling tube

Stainless steel

General

This repair can be done on the oil cooling tube during overhaul.

Make a jig that is the same shape as the oil cooling tube. Use a new or serviceable oil cooling tube as an aid.

The practices and processes referred to in the procedure by the TASK numbers are in the (SPM).

NOTE

To identify the consumable materials refer to the (PCI).

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Nylon HammerLOCALNylon Hammer
IAE 1N20446 Ball Mandrel (stainless steel)0AM53IAE 1N20446

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-076 METHYL ETHYL KETONELOCALCoMat 01-076
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 24-21-49-350-052 Prepare the Tube Wall

      CAUTION

      DO NOT PULL THE MANDREL WITH TOO MUCH FORCE. THIS CAN CAUSE DAMAGE TO THE TUBE AND CAN CAUSE THE MANDREL TO BE CAUGHT IN THE TUBE.

      1. Put the lanolin lubricant in the oil cooling tube.

      1. If there is an access, apply the lanolin lubricant directly on the damaged area.

    2. Put the oil cooling tube in the jig.

      3. Put the mandrel into the oil cooling tube.

      1. Refer to Figure. Make sure that there is a bead of lanolin lubricant in front of the mandrel during the repair. Feed the cable of the mandrel through the oil cooling tube.

      4. Repair the tube wall.

      1. Pull the mandrel through the oil cooling tube until it touches the damaged area. Pull the mandrel through the damaged area without too much force. If necessary, hit the damaged area lightly with the nylon hammer as the mandrel goes through the damaged area. This will help to move the mandrel.

    5. Remove the mandrel from the oil cooling tube.

    2. SUBTASK 24-21-49-110-055 Clean the Oil Cooling Tube

      WARNING

      DO NOT GET THE CLEANING FLUID ON YOUR SKIN OR IN YOUR EYES. PUT ON PROTECTIVE CLOTHING, GLOVES, GOGGLES AND A MASK. USE THE FLUID IN A CORRECTLY VENTILATED AREA. DO NOT BREATHE THE GAS. IF YOU GET THE FLUID ON YOUR SKIN OR IN YOUR EYES, FLUSH IT AWAY WITH WATER. GET MEDICAL AID IF YOUR SKIN OR EYES BECOME IRRITATED.

      1. Clean the tube.

      1. Use the CoMat 01-076 METHYL ETHYL KETONE and the CoMat 02-099 LINT-FREE CLOTH. Remove the lanolin lubricant with the fluid. Make the tube clean with a clean piece of lint-free cloth before the fluid dries.

    3. SUBTASK 24-21-49-220-001 Examine the Oil Cooling Tube

      1. Examine the oil cooling tube.

      1. Make sure that the repairs are satisfactory. Cracks and distortion are not permitted. The shape of the tube must be parallel in the internal diameter and the external diameter.

    4. SUBTASK 24-21-49-230-058 Examine the Oil Cooling Tube

      1. Do a dye-penetrant test on the oil cooling tube.

      1. Refer to SPM TASK 70-23-00-230-501.

    5. SUBTASK 24-21-49-780-001 Pressure Test the Oil Cooling Tube

      1. Do a pressure test on the oil cooling tube.

      1. Refer to Testing-001 TASK 24-21-49-700-101.

    6. SUBTASK 24-21-49-850-052 Put the Repair Scheme Number on the Oil Cooling Tube

      1. Mark the repair scheme number VRS2800 on the oil cooling tube adjacent to the part number, with an electro-etch method.

      1. Refer to SPM TASK 70-09-00-400-501.

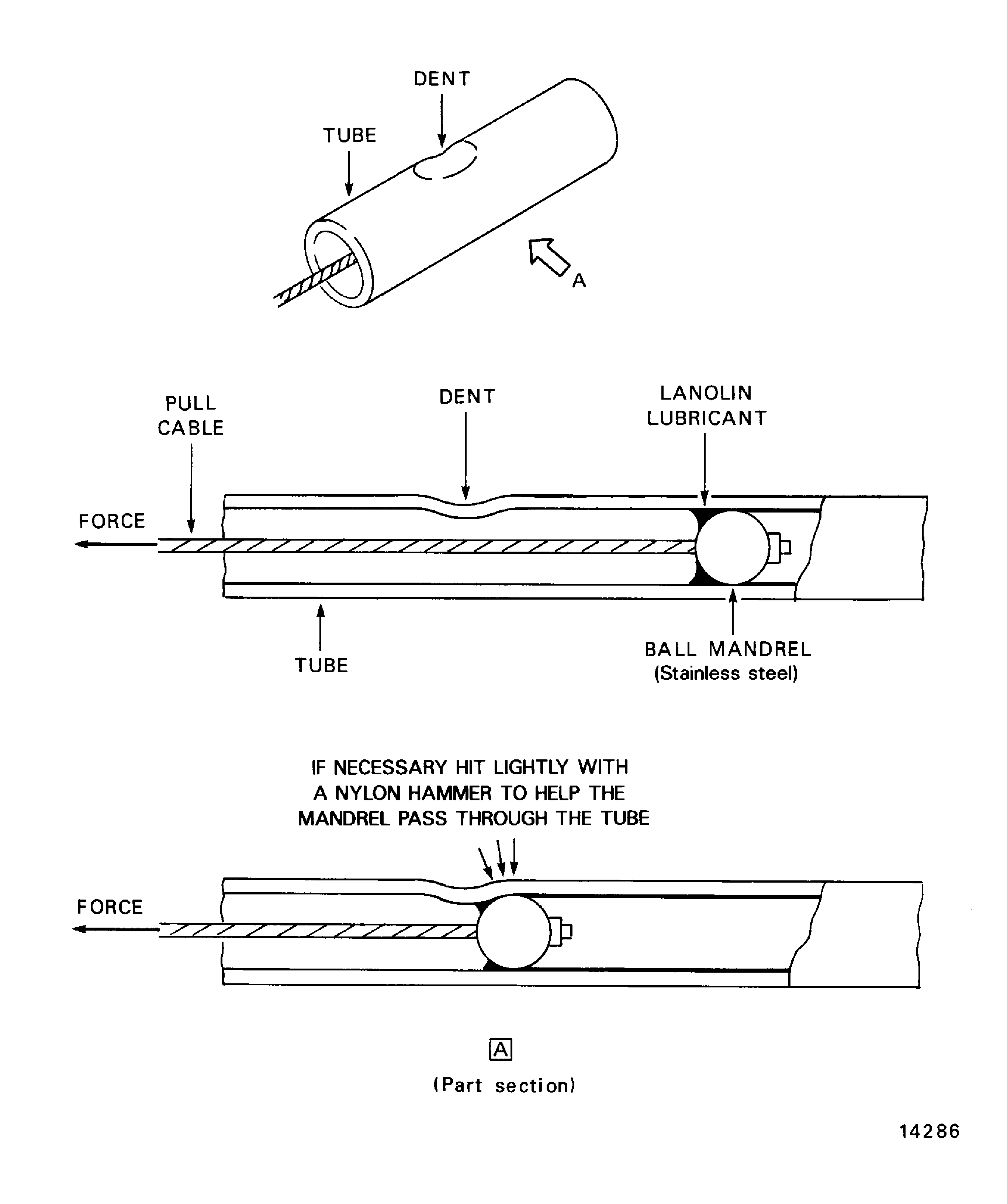

    7. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
