TASK 30-21-49-200-401 Anti-Ice Ducts - Related Parts - Examine The Anti Ice Ducts Bracket, Inspection-001

DMC:V2500-A0-30-21-4900-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 30-21-49-200-401 Anti-Ice Ducts - Related Parts - Examine The Anti Ice Ducts Bracket, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-045

5W8364

General

For the other anti-ice duct parts, refer to Inspection/Check 000 TASK 30-21-49-200-400 and Inspection-000 TASK 30-21-49-200-100 in the Component Maintenance Manual (CMM-THDV2500- 1IA).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

All the parts must be cleaned before the part is examined. Refer to Cleaning-000 TASK 30-21-49-100-400.

All parts must be visually examined for damage, corrosion and wear. Defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 30-21-49-220-069 Examine the Bracket (01-045) Surface

    1. Refer to Figure.

      2. Examine all the surface.

        1. Cracked

        1. Reject

        2. Nicked

        1. Repair, VRS1109 (Repair-004) TASK 30-21-49-300-004.

        3. Dented

        1. Repair, VRS1109 (Repair-004) TASK 30-21-49-300-004.

        4. Scratched

        1. Repair, VRS1109 (Repair-004) TASK 30-21-49-300-004.

    2. SUBTASK 30-21-49-220-070 Examine the Bracket (01-045) Bolt Holes

    1. Refer to Figure.

      2. Examine the bolt holes at locations 1 and 2.

        1. Worn

          1. The worn hole is less than one point two times of the nominal diameter and the distance between the worn hole and the edge of the bracket is not less than 0.066 in. (1.68 mm).

          1. Accept

          2. Other than in Step.

          1. Reject

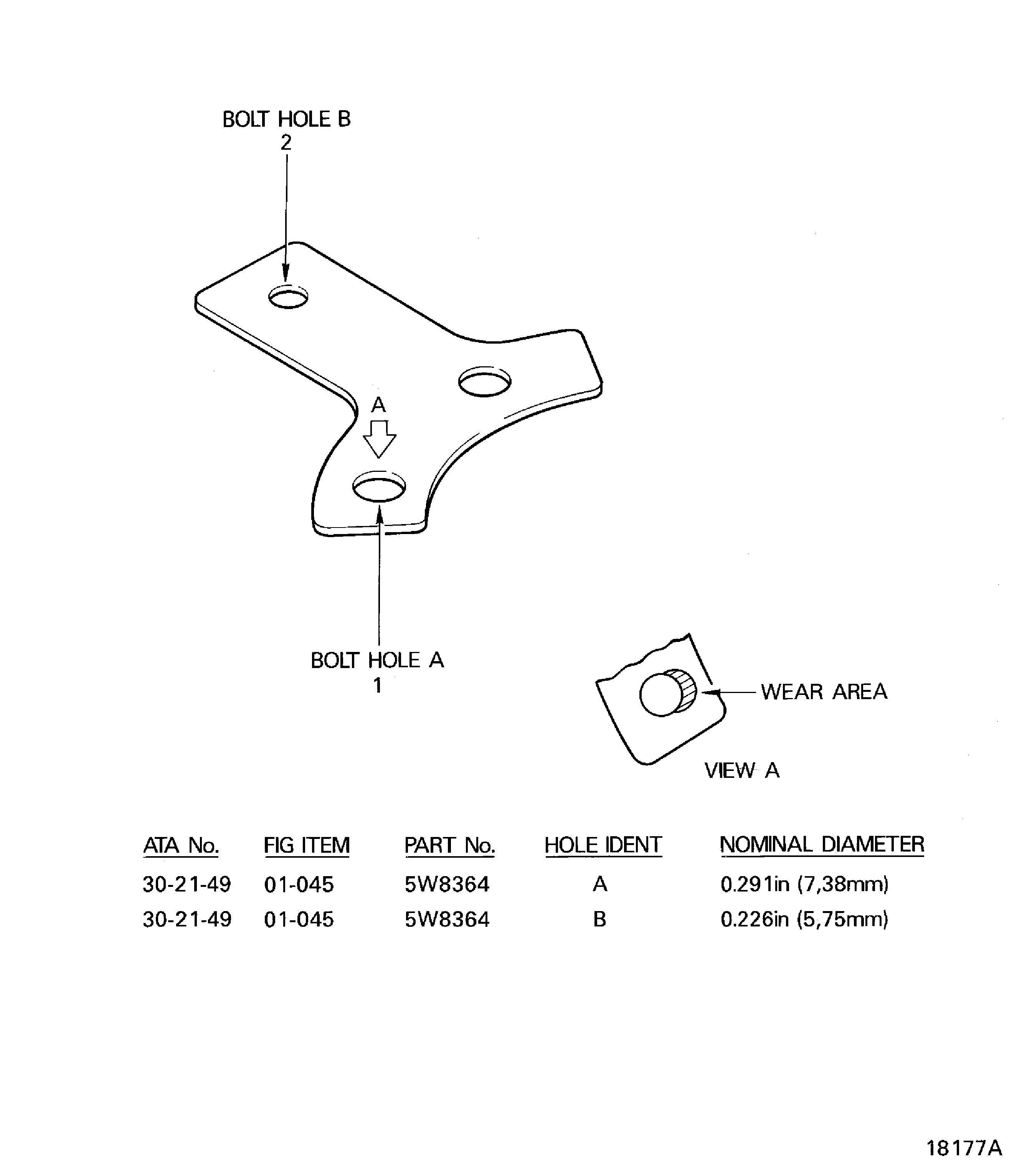

    3. Figure: Inspection of the bracket

    Inspection of the bracket

Requirements After Job Completion

Follow-On Conditions

NONE
