TASK 71-51-41-200-301 EEC Fan Harness - Examine The EEC Fan Harness - Pre SBE 71-0288 - Or EEC Fan And Ignition Supply Harness Assembly, Inspection-001 - SBE 71-0288

DMC:V2500-A0-71-51-4100-00A-310A-C|Issue No:002.00|Issue Date:2020-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-51-41-200-301 EEC Fan Harness - Examine The EEC Fan Harness - Pre SBE 71-0288 - Or EEC Fan And Ignition Supply Harness Assembly, Inspection-001 - SBE 71-0288

Effectivity

FIG/ITEM

PART NO.

01-005

5A0278

01-005

5A0356

01-005

5A0392

01-005

6A4394

01-005

6A4504

01-005

6A4715

01-005

6A5553

01-005

6A5556

01-005

6A5651

01-005

6A5652

01-005

6A5963

01-005

6A5964

01-005

6A5965

01-005

6A6429

01-005

6A6430

01-005

6A6431

01-005

6A6439

01-005

6A6441

01-005

6A7399

01-005

6A7440

01-005

6A7441

01-005

6A7442

01-005

6A7443

01-005

6A7444

01-005

6A7445

01-005

6A7446

01-005

6A7447

01-005

6A7448

01-005

6A7450

01-005

6A7451

01-005

6A7557

01-005

6A8281

01-490

5A9345

01-514

5A9342

General

This TASK gives the procedure for the inspection of the EEC fan harness (Pre SBE 71-0288) or the EEC fan and ignition supply harness assembly (SBE 71-0288). For other parts refer to Inspection -000 TASK 71-51-41-200-300 and the Component Maintenance Manual - Miscellaneous Mechanical Components (CMM-MECH-V2500-1IA), Inspection -000 TASK 71-51-41-700-300.

Fig./item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig./item numbers are used. For the Service Bulletin alpha variants refer to the IPC.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

The policy that is necessary for the inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to Cleaning -000 TASK 71-51-41-100-300.

All parts must be visually examined for damage, corrosion and wear. Defects that are not identified in the procedure must be referred to IAE.

The procedure for the those parts which must have a crack test is given in relevant SUBTASK. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items:

Definitions of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Methods of Testing for Crack Indications.

Chemical processes.

Surface protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-51-41-220-055 Examine the Receptacles at Location 3

    1. Refer to Figure and Figure.

      2. Receptacle

        1. Cracked/broken

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      3. Contacts

        1. Bent

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Worn

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

          NOTE

          Use new pin or socket. Do a check for tension of each contact by feel.

      4. Threads

        1. Stripped

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Pick up

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

    2. SUBTASK 71-51-41-220-075 Examine the Plugs at Location 3

    1. Refer to Figure and Figure.

      2. Plug

        1. Cracked/broken

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      3. Contacts

        1. Bent

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Worn

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

          NOTE

          Use new pin or socket. Do a check for tension of each contact by feel.

      4. Threads

        1. Stripped

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Pick up

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

    3. SUBTASK 71-51-41-220-056 Examine the Cables at Location 1

    1. Refer to Figure.

      2. Cables/braided harness

        1. Burned/fused

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Chafed/cut/frayed

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      3. Crimp joints

        1. Loose

        1. Reject

      4. Glass tape

        1. Not wound

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      5. Sleeve marker

        1. Split/torn

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      6. Lacing tape

        1. Missing/chafed

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

    4. SUBTASK 71-51-41-220-057 Examine the Backshells at Location 2

    1. Refer to Figure and Figure.

      2. Coupling nuts

        1. Knurled shoulders

          1. Worn

          1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Lockwire hole

          1. Broken

            1. Not more than 50 percent.

            1. Accept

            2. More than in Step.

            1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        3. Clamp arm/clamp

          1. Broken or missing

          1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        4. Screws

          1. Missing

          1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      3. Backshell

        1. Scored/nicked

          1. Not more than 0.002 in. (0.051 mm).

          1. Accept

          2. More than in Step.

          1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Lockwire hole

          1. Broken

            1. Not more than 50 percent.

            1. Accept

            2. More than in Step.

            1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      4. Lockwire (which safeties the coupling nuts to the backshell)

        1. Missing/broken

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      5. Sleeve

        1. Split/torn

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

    5. SUBTASK 71-51-41-220-058 Examine the Spiral Protection Wrapping at Location 4

    1. Refer to Figure.

      2. Spiral wrapping

        1. Burned

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Chafed/cut/frayed

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      3. Lacing tape

        1. Missing/chafed

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

    6. SUBTASK 71-51-41-220-059 Examine the Split Sleeves (01-490 and 01-514)

      1. Half shell surface

        1. Scored/nicked

          1. Not more than 0.002 in. (0.051 mm).

          1. Accept

          2. More than in Step.

          1. Replace

      2. Caution label

        1. Cannot read

        1. Replace

    7. SUBTASK 71-51-41-220-084 Examine the Terminals at Location 5

    1. Refer to Figure.

      2. Loose

      1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      3. Broken

      1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

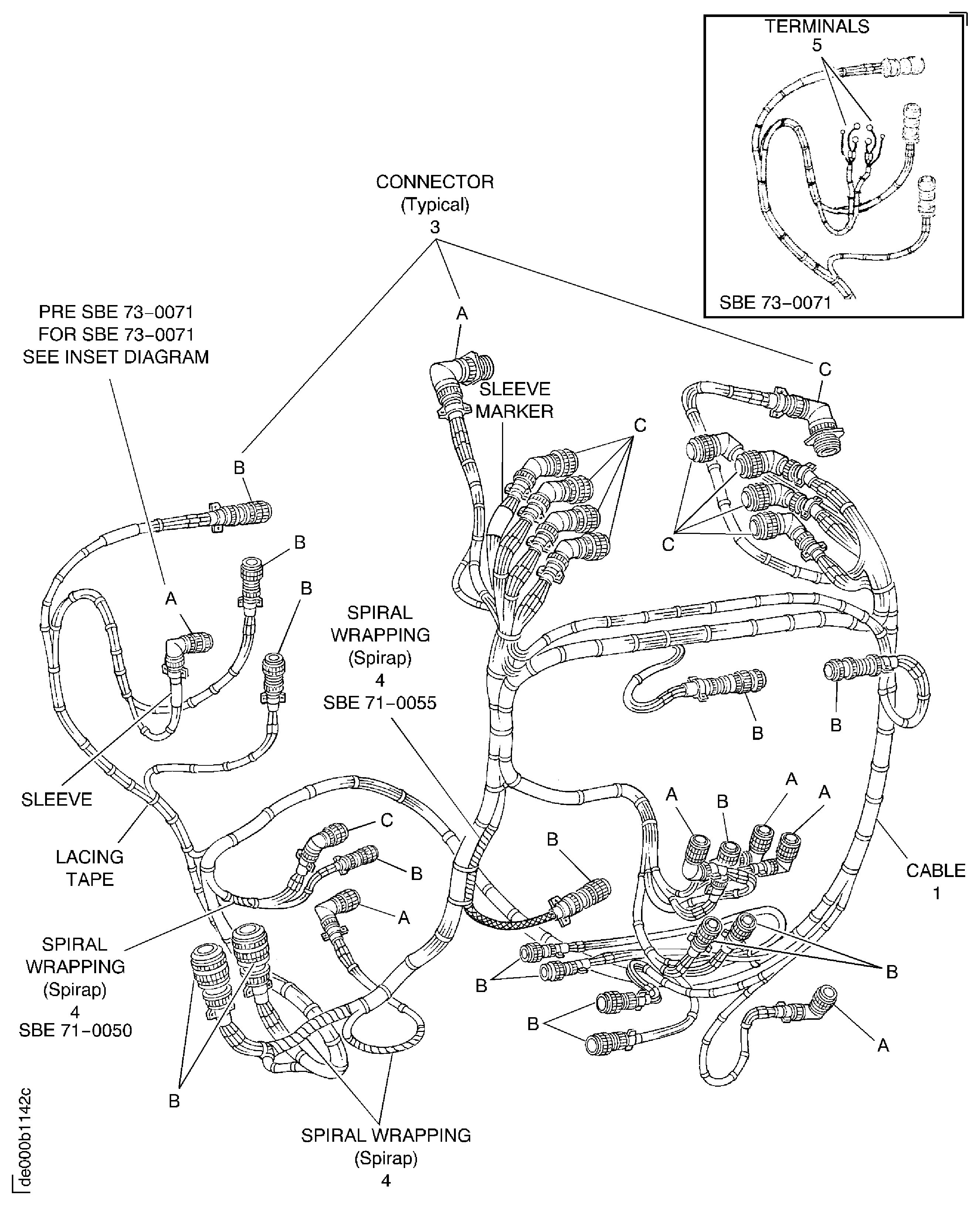

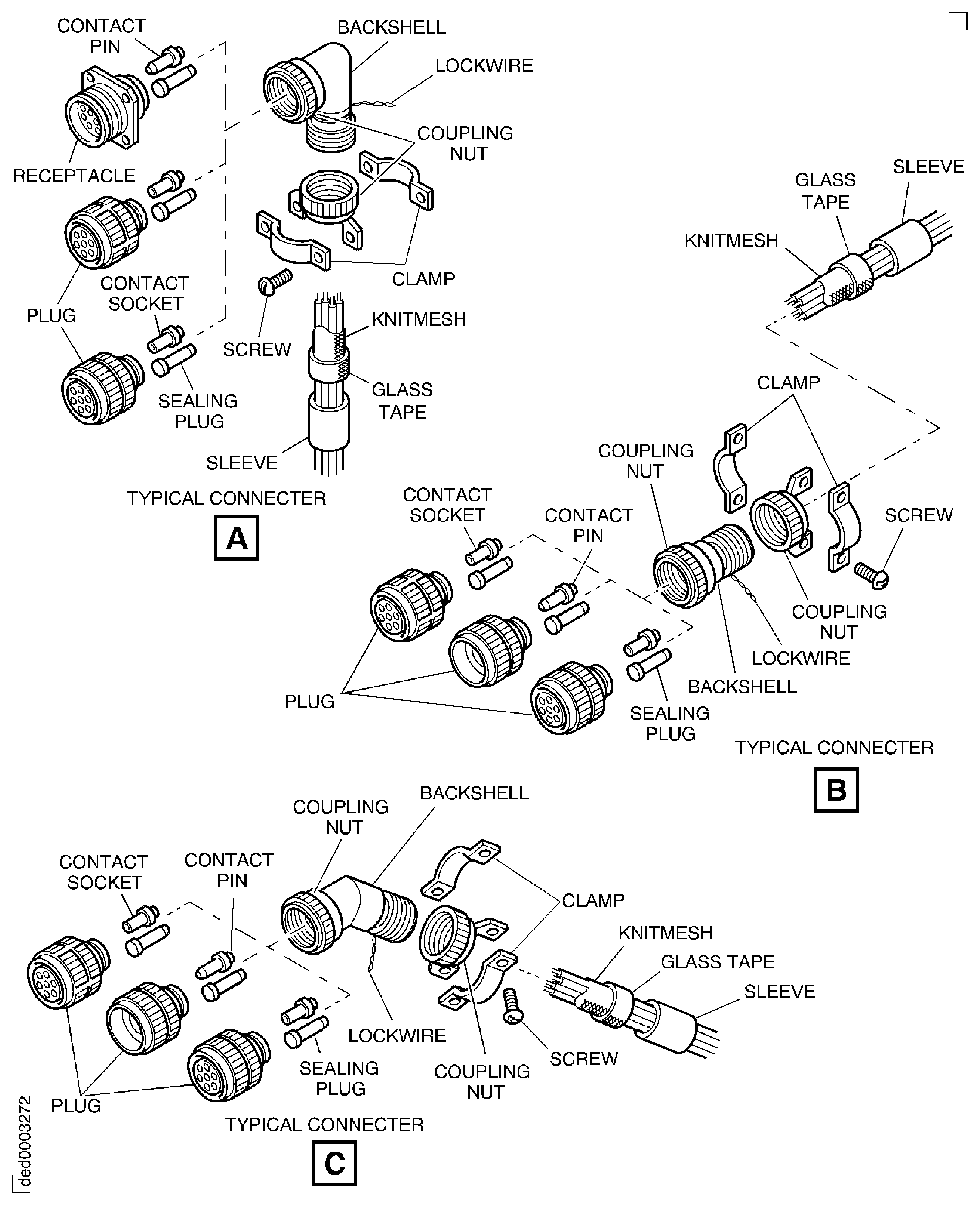

    8. Figure: EEC Fan Harness (Pre SBE 71-0288) and EEC Fan and Ignition Supply Harness Assembly (SBE 71-0288) Inspection Locations

    EEC Fan Harness (Pre SBE 71-0288) and EEC Fan and Ignition Supply Harness Assembly (SBE 71-0288) Inspection Locations

    EEC Fan Harness (Pre SBE 71-0288) and EEC Fan and Ignition Supply Harness Assembly (SBE 71-0288) Inspection Locations
