TASK 71-52-44-200-301 EEC Link Core Harness - Examine The Harness, Inspection-001

DMC:V2500-A0-71-52-4400-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-52-44-200-301 EEC Link Core Harness - Examine The Harness, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-005

2A1491

01-005

6A4719

01-005

6A5877

01-005

6A7569

General

This TASK gives the procedure for the inspection of the EEC link harnesscore. For other EEC link harness-core parts, refer to Inspection-000 TASK 71-52-44-200-300 and the Component Maintenance Manual - Miscellaneous Mechanical Components (CMM-MECHV2500- 1IA) Inspection-000 TASK 71-52-43-200-400.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK Cleaning-000 TASK 71-52-44-100-300.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in the relevant SUBTASK. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which must be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items:

Definitions of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM

Methods of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-52-44-210-052 Examine the EEC Harness-Core Cables at Location 1

    1. Refer to Figure and Figure.

      2. Cables/braided harness

        1. Chafed

        1. Reject.

        2. Frayed

        1. Reject.

        3. Cut

        1. Reject.

        4. Fused

        1. Reject.

        5. Burned

        1. Reject.

    2. SUBTASK 71-52-44-210-053 Examine the EEC Link Harness-Core Receptacle at Location 2

    1. Refer to Figure and Figure.

      2. Body

        1. Cracked

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Broken

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      3. Threads

        1. Stripped

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Crossed

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        3. Pick up

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      4. Pins

        1. Bent

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Worn

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

          NOTE

          Use a new pin or socket. Do the check for tension of each contact by feel.

        3. Loose

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

    3. SUBTASK 71-52-44-220-057 Examine the EEC Link Harness-Core Plug at Location 2

    1. Refer to Figure and Figure.

      2. Body

        1. Cracked

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Broken

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      3. Threads

        1. Stripped

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Crossed

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        3. Pick up

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      4. Contacts

        1. Bent

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Worn

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

          NOTE

          Use a new pin or socket. Do the check for tension of each contact by feel.

        3. Loose

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

    4. SUBTASK 71-52-44-220-058 Examine the EEC Link Harness-Core Backshells at Location 2

    1. Refer to Figure and Figure.

      2. Coupling nut

        1. Cracked

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Knurled shoulder

          1. Worn

          1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        3. Lockwire hole

          1. Broken

            1. Not more than 50 percent

            1. Accept

            2. More than in Step

            1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

      3. Backshell

        1. Scored

          1. Not more than 0.002 in. (0.05 mm)

          1. Accept

          2. Not more than 0.002 in. (0.05 mm)

          1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Nicked

          1. Not more than 0.002 in. (0.05 mm)

          1. Accept

          2. More than in (a)

          1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        3. Screws

          1. Missing

          1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        4. Lockwire (which safeties the coupling nuts to the backshell)

          1. Missing/broken

          1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        5. Tubing

          1. Split/torn

          1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

    5. SUBTASK 71-52-44-210-054 Examine the EEC Link Harness-Core Terminals at Location 3

    1. Refer to Figure and Figure.

      2. Terminals

        1. Cracked

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Broken

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        3. Looseness

          1. Crimp joints

          1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

    6. SUBTASK 71-52-44-210-055 Examine the EEC Link Harness-Core Sleeves and the Sleeve Markers at Locations 4 and 5

    1. Refer to Figure.

      2. Sleeves and sleeve markers

        1. Chafed

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

        2. Torn

        1. Repair, VRS7002 (Repair-001) SPM TASK 70-35-25-300-001.

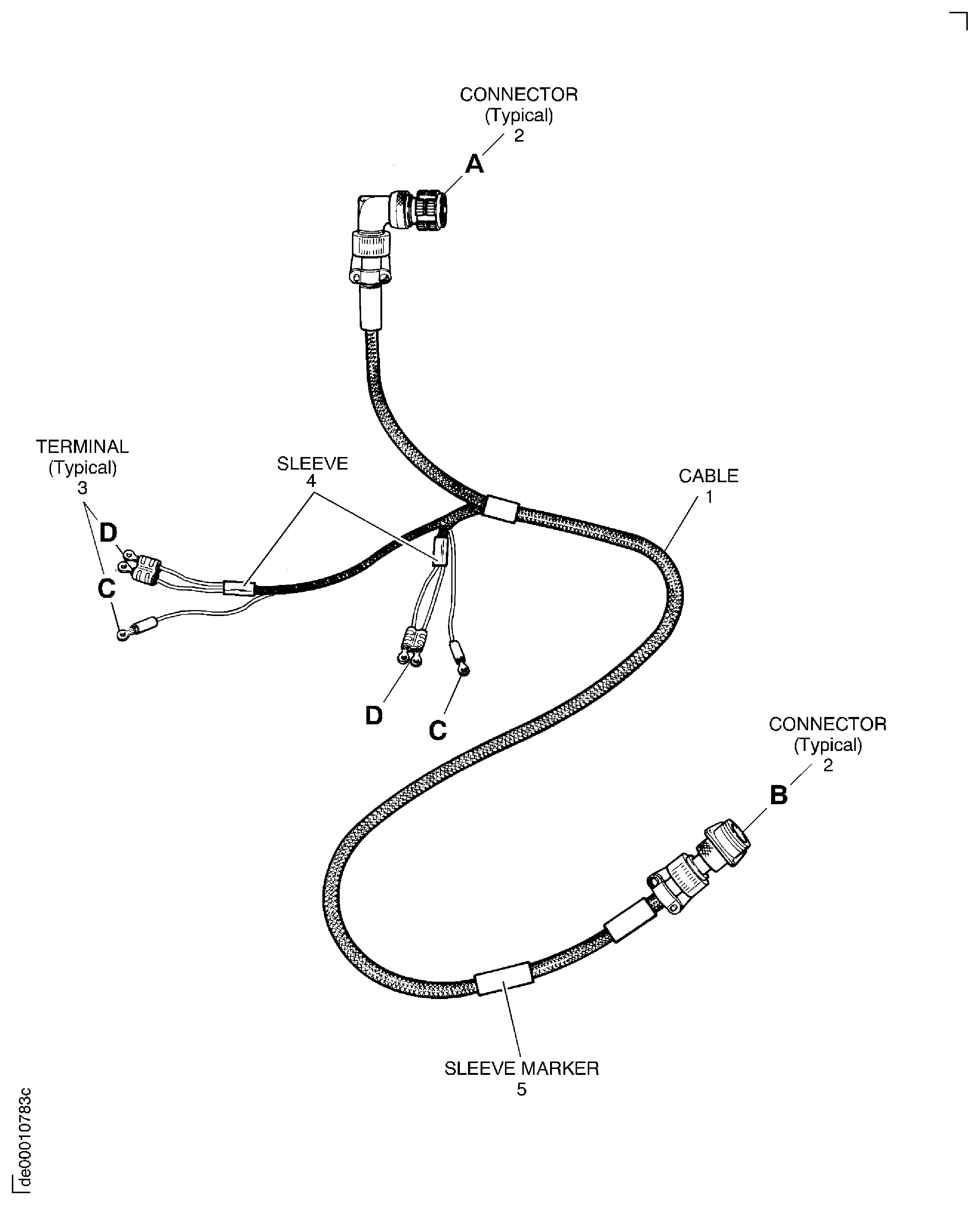

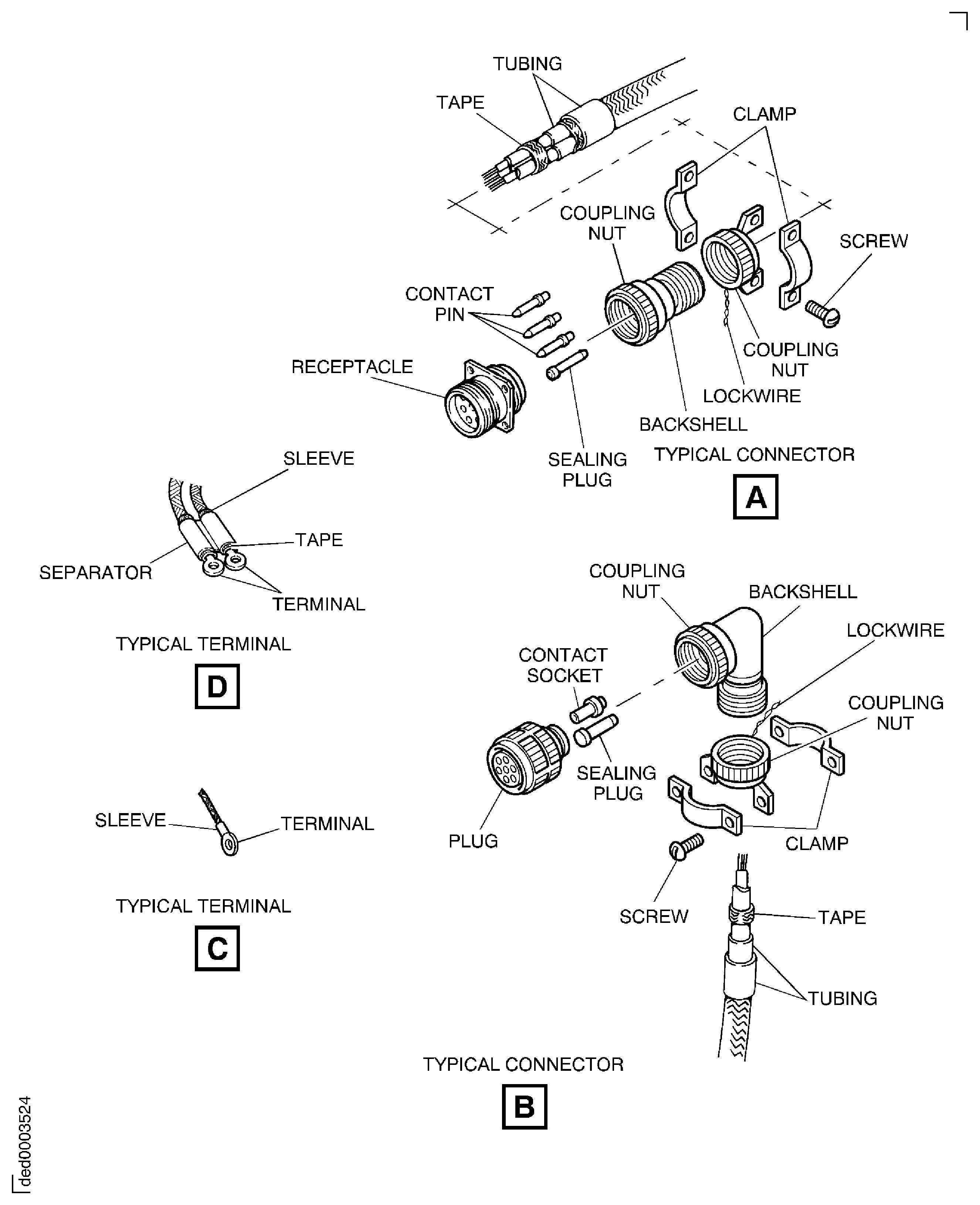

    7. Figure: EEC Link Harness-Core - Inspection Locations

    EEC Link Harness-Core - Inspection Locations

    EEC Link Harness-Core - Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
