TASK 72-00-43-420-001 No. 4 Bearing And Rear Compartment Assembly - Install The No. 4 Bearing And Rear Compartment Parts, Installation-001

DMC:V2500-A0-72-00-4300-00A-720A-B|Issue No:002.00|Issue Date:2019-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-00-43-420-001 No. 4 Bearing And Rear Compartment Assembly - Install The No. 4 Bearing And Rear Compartment Parts, Installation-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures, refer to SPM TASK 70-41-00-400-501 and SPM TASK 70-41-02-400-501.

Special torque data and assembly tolerances are included in this procedure.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

To identify, lubricate and install seal rings, refer to SPM TASK 70-44-01-400-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

Transportation covers/blanks must be removed immediately before the installation of the components.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1F10018 Hydraulic hand pump0AM53IAE 1F100181
IAE 1F10026 Hydraulic hand pump0AM53IAE 1F100261
IAE 1P16035 Hand wrench0AM53IAE 1P160351
IAE 1P16036 Pusher/puller0AM53IAE 1P160361
IAE 1P16041 Heater0AM53IAE 1P160411

(superseded by IAE 1P16469)

IAE 1P16073 Jaw set0AM53IAE 1P160731
IAE 1P16088 Leak check adapter0AM53IAE 1P160881
IAE 1P16089 Leak check cap0AM53IAE 1P160891
IAE 1P16104 Cover0AM53IAE 1P161041
IAE 1P16123 Drift0AM53IAE 1P161231

(superseded by IAE 1P16470)

IAE 1P16124 Fixture0AM53IAE 1P161241
IAE 1P16145 Crimp fixture0AM53IAE 1P161451
IAE 1P16469 Heater0AM53IAE 1P164691

(supersedes IAE 1P16041)

IAE 1P16470 Drift0AM53IAE 1P164701

(supersedes IAE 1P16123)

IAE 1P17511 cover0AM53IAE 1P175111
IAE 6F10027 Heater control unit0AM53IAE 6F100271
IAE 6F10030 Vacuum test cart0AM53IAE 6F10030

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
DELETEDLOCALDELETED
CoMat 01-573 WAX BLEND, PARAFFIN24269CoMat 01-573
CoMat 10-077 APPROVED ENGINE OILSX333XCoMat 10-077
CoMat 10-129 ANTI-SEIZE PASTE34568CoMat 10-129

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Gasket1
Keywasher1
Keywasher7
Keywasher8

Safety Requirements

NONE

Procedure

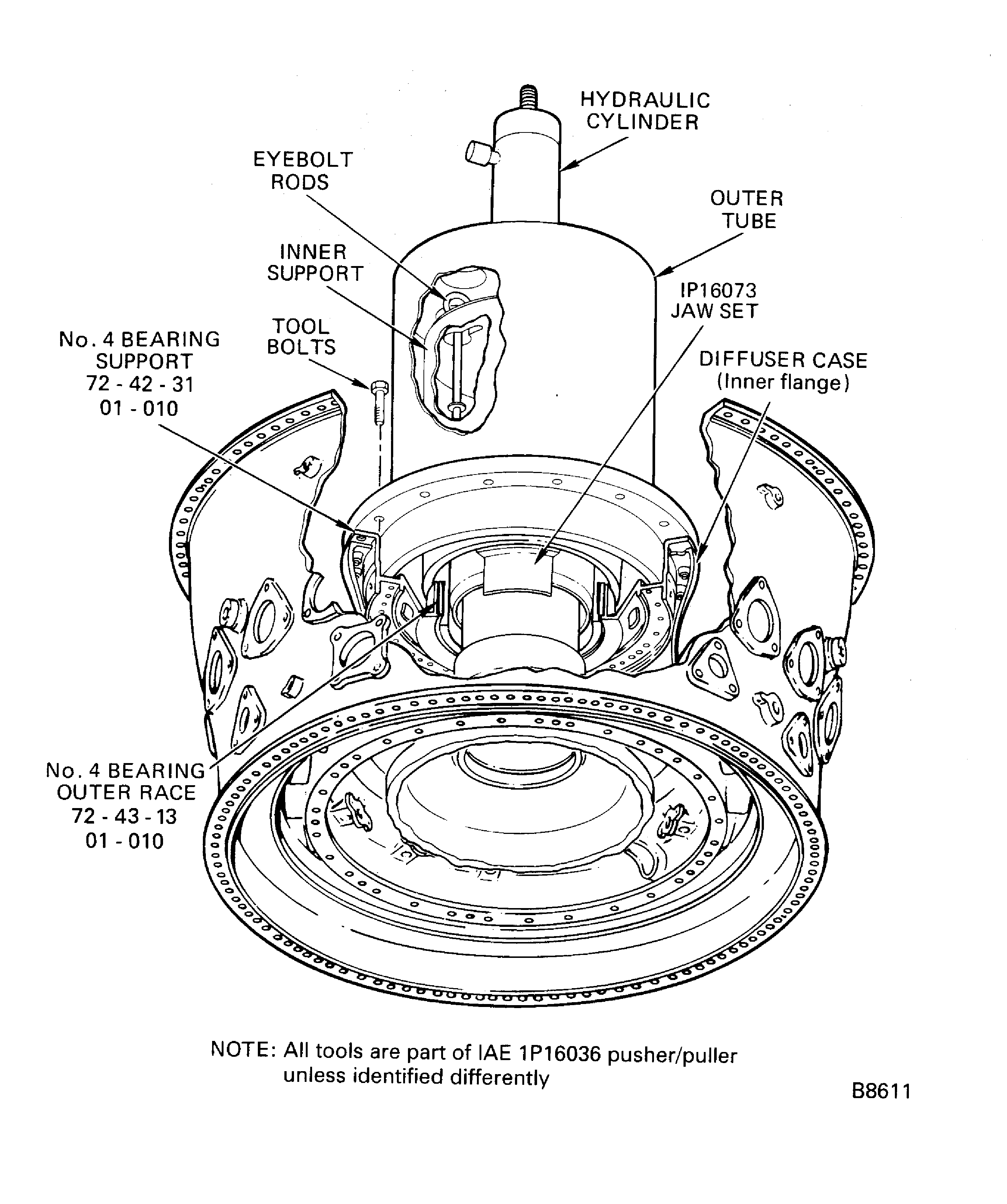

    1. SUBTASK 72-00-43-420-051 Install the No. 4 Bearing Outer Race (72-43-13,01-010)

    1. Refer to Figure and Figure.

    2. Remove the cover from the rear flange of the diffuser case.

    3. Remove the cover from the No. 4 bearing support ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010).

    4. Install the IAE 1P16469 Heater or IAE 1P16041 Heater 1 off to the No. 4 bearing support. Attach the heater to the IAE 6F10027 Heater control unit 1 off and heat the support to a maximum of 200 deg F (93 deg C).

    5. Install the IAE 1P16073 Jaw set 1 off on to the IAE 1P16036 Pusher/puller 1 off with the shoulder screws and the springs. The springs are put between the jaws and the pusher to load the jaws in.

    6. NOTE

      The No. 4 bearing inner and outer race and rollers are a serialized set that must be kept together as a set in each engine build.

      Install the No. 4 bearing outer race ENGINE-NO.4 BEARING (72-43-13, 01-010) on to the jaws on the pusher. Expand the jaws out against the bearing outer race with the aluminum ring.

    7. NOTE

      Make sure the X mark on the No. 4 bearing outer race is at the 12 o'clock position of the No. 4 bearing support. The dowel pin on the support is at the six o'clock position.

      Remove the heater and install the inner tube assembly with the jaws and the outer race on to the No. 4 bearing support.

    8. NOTE

      Align the dowel pin hole in the support with the dowel pin on the bearing support flange.

      Install the hydraulic cylinder in to the outer tube as shown. With a standard three cable sling install the outer tube over the inner support against the bearing support outer flange.

    9. Secure the tool to the inner flange of the diffuser case with tool bolts.

    10. Attach the IAE 1P16036 Pusher/puller 1 off IAE 1F10018 Hydraulic hand pump 1 off to the hydraulic cylinder. Actuate the pump to install the No. 4 bearing outer race.

    11. Retract the ring to release the jaws from the bearing outer race. Remove the tool bolts from the flange of the tool.

    12. Use a standard three cable sling to remove the pusher/puller from the engine.

    13. When the temperature of the parts has cooled sufficiently, install the IAE 1P16104 Cover 1 off to the No. 4 bearing support.

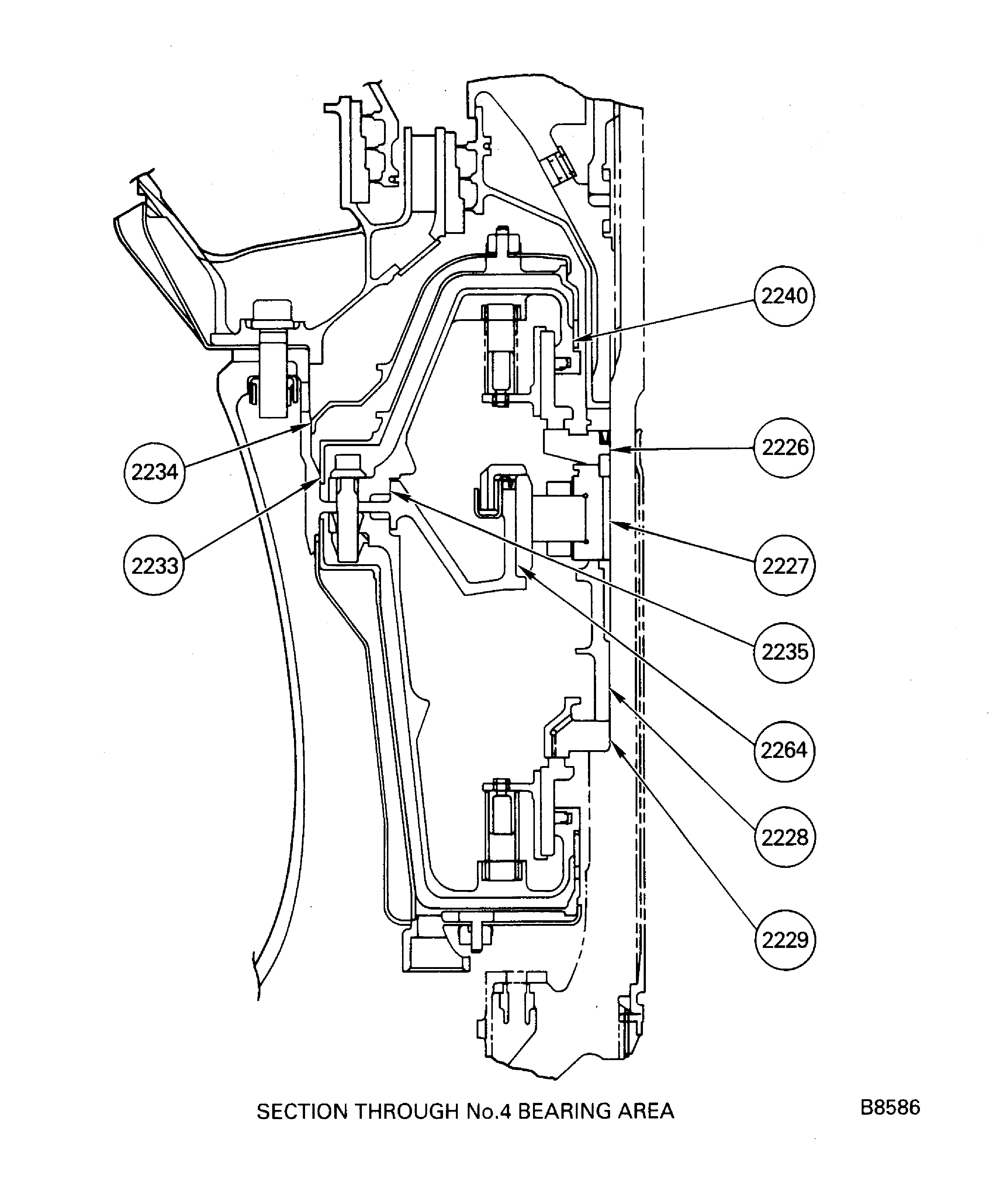

    2. SUBTASK 72-00-43-220-051-A00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2226 (Pre SBE 72-0111)

    1. Refer to Figure.

    2. Reference the clearance at location 2226. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION/CHECK-000) and TASK 72-43-14-200-000.(INSPECTION/CHECK-000).

      Table 1. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF MORE THAN

      LOCATION 2226

      HPC drive turbine shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), journal

      No. 4 bearing rear seal seat ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-020), bore

      HPC drive turbine shaft journal

      5.107

      Clear

      5.108

      0.003

      No. 4 bearing rear seal seat bore

      5.111

      0.006

      5.113

      Clear

      Table 2. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF MORE THAN

      LOCATION 2226

      HPC drive turbine shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), journal

      No. 4 bearing rear seal seat ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-020), bore

      HPC drive turbine shaft journal

      129.718

      Clear

      129.743

      0.077

      No. 4 bearing rear seal seat bore

      129.820

      0.152

      129.870

      Clear

    3. SUBTASK 72-00-43-220-051-B00 V2500-A1 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2226 (SBE 72-0111)

    1. Refer to Figure.

    2. SBE 72-0111: New stage 1 HPT air seal

    3. Reference the clearance at location 2226. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION/CHECK-000) and TASK 72-43-14-200-000.(INSPECTION/CHECK-000).

      Table 3. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF MORE THAN

      LOCATION 2226

      HPC drive turbine shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), journal

      No. 4 bearing rear seal seat ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-020), bore

      HPC drive turbine shaft journal

      5.107

      Clear

      5.108

      0.003

      No. 4 bearing rear seal seat bore

      5.111

      0.006

      5.113

      Clear

      Table 4. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF MORE THAN

      LOCATION 2226

      HPC drive turbine shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), journal

      No. 4 bearing rear seal seat ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-020), bore

      HPC drive turbine shaft journal

      129.718

      Clear

      129.743

      0.077

      No. 4 bearing rear seal seat bore

      129.820

      0.152

      129.870

      Clear

    4. SUBTASK 72-00-43-220-051-C00 V2500-A5 Reference the Fits and Clearances of the No. 4 Bearing and Rear Compartment Parts at Location 2226

    1. Refer to Figure.

    2. Reference the clearance at location 2226. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION/CHECK-000) and TASK 72-43-14-200-000.(INSPECTION-000).

      Table 5. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF MORE THAN

      LOCATION 2226

      HPC drive turbine shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), journal

      No. 4 bearing rear seal seat ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-020), bore

      HPC drive turbine shaft journal

      5.107

      Clear

      5.108

      0.003

      No. 4 bearing rear seal seat bore

      5.111

      0.006

      5.113

      Clear

      Table 6. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF MORE THAN

      LOCATION 2226

      HPC drive turbine shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), journal

      No.4 bearing rear seal seat ENGINE-NO.4 BEARING REAR SEAT SEAL (72-43-14, 01-020), bore

      HPC drive turbine shaft journal

      129.718

      Clear

      129.743

      0.077

      No.4 bearing rear seal seat

      129.820

      0.152

      bore

      129.870

      Clear

    5. SUBTASK 72-00-43-220-052-A00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2227 (Pre SBE 72-0111)

    1. Refer to Figure.

    2. Reference the clearance at location 2227. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION-000) and TASK 72-43-14-200-000.(INSPECTION-000).

      Table 7. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF MORE THAN

      LOCATION 2227

      No. 4 bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), bore

      HPC drive turbine shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), journal

      No. 4 bearing bore

      5.1181

      Intf

      5.1188

      Intf

      5.1175

      0.0003

      5.1175

      0.0003

      HPC drive turbine shaft journal

      5.1191

      0.0016

      5.1191

      0.0016

      5.1184

      Intf

      5.1184

      Intf

      Table 8. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF MORE THEN

      LOCATION 2227

      No. 4 bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), bore

      HPC drive turbine shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), journal

      No. 4 bearing bore

      129.9997

      Intf

      130.0175

      Intf

      129.9845

      0.008

      129.9845

      0.008

      HPC drive turbine shaft journal

      130.0251

      0.040

      130.0251

      0.040

      130.0074

      Intf

      130.0074

      Intf

    6. SUBTASK 72-00-43-220-052-B00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2227 (SBE 72-0111)

      SBE 72-0111: New stage 1 HPT air seal

    1. Refer to Figure.

    2. Reference the interference at location 2227. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION/CHECK-000) and TASK 72-43-14-200-000.(INSPECTION/CHECK-000).

      Table 9. Fits and Clearances (all dimensions are in inches)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF MORE THAN

      LOCATION 2227

      No. 4 bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), bore

      HPC drive turbine shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), journal

      No. 4 bearing bore

      5.1181

      Intf

      5.1188

      Intf

      5.1175

      0.0003

      5.1175

      0.0003

      HPC drive turbine shaft journal

      5.1191

      0.0016

      5.1191

      0.0016

      5.1184

      Intf

      5.1184

      Intf

      Table 10. Fits and Clearances (all dimensions are in millimeters)

      NEW PART

      WORN PART

      DIMENSIONS

      DIMENSIONS

      PART IDENT

      Size

      Clearance

      (Non-select)

      REJECT IF MORE THAN

      LOCATION 2227

      No. 4 bearing ENGINE-NO.4 BEARING (72-43-13, 01-010), bore

      HPC drive turbine shaft HPC Rear Shaft And Heatshield Assembly (72-41-13, 01-850), journal

      No. 4 bearing bore

      129.9997

      Intf

      130.0175

      Intf

      129.9845

      0,008

      129.9845

      0.008

      HPC drive turbine shaft journal

      130.0251

      0,040

      130.0251

      0.040

      130.0074

      Intf

      130.0074

      Intf

    7. SUBTASK 72-00-43-220-052-C00 V2500-A5 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2227

    1. Refer to Figure

    2. Reference the interference at location 2227. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION-000) and TASK 72-43-14-200-000.(INSPECTION-000).

      Table 11. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2227

      No.4 bearing ENGINE-NO.4 BEARING(72-43-13, 01-010),

      bore

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly(72-41-13, 01-850), journal

      No.4 bearing bore

      5.1181

      Intf

      5.1188

      Intf

      5.1175

      0.0003

      5.1175

      0.0003

      HPC drive turbine shaft

      5.1191

      0.0016

      5.1191

      0.0016

      journal

      5.1184

      Intf

      5.1184

      Intf

      Table 12. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2227

      No.4 bearing ENGINE-NO.4 BEARING(72-43-13, 01-010),

      bore

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly(72-41-13, 01-850), journal

      No.4 bearing bore

      129.9997

      Intf

      130.0175

      Intf

      129.9845

      0.008

      129.9845

      0.008

      HPC drive turbine shaft

      130.0251

      0.040

      130.0251

      0.040

      journal

      130.0074

      Intf

      130.0074

      Intf

    8. SUBTASK 72-00-43-220-053-A00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2228 (Pre SBE 72-0111)

    1. Refer to Figure

    2. Reference the clearance at location 2228. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION/CHECK-000) and TASK 72-43-14-200-000.(INSPECTION/CHECK-000).

      Table 13. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2228

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly(72-41-13,01-850), journal

      No.4 bearing seal spacer

      HPC drive turbine shaft journal

      5.127

      Clear

      5.129

      0.002

      No.4 bearing seal spacer

      5.131

      0.006

      5.133

      Clear

      Table 14. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2228

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly(72-41-13,01-850), journal

      No.4 bearing seal spacer

      HPC drive turbine shaft journal

      130.226

      Clear

      130.276

      0.051

      No.4 bearing seal spacer

      130.328

      0.152

      130.378

      Clear

    9. SUBTASK 72-00-43-220-053-B00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2228 (SBE 72-0111)

      SBE 72-0111: New stage 1 HPT air seal

    1. Refer to Figure

    2. Reference the clearance at location 2228. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION/CHECK-000) and TASK 72-43-14-200-000.(INSPECTION/CHECK-000).

      Table 15. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2228

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly(72-41-13, 01-850), journal

      No.4 bearing seal spacer

      HPC drive turbine shaft journal

      5.127

      Clear

      5.129

      0.002

      No.4 bearing seal spacer

      5.131

      0.006

      5.133

      Clear

      Table 16. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2228

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly(72-41-13, 01-850), journal

      No.4 bearing seal spacer

      HPC drive turbine shaft journal

      130.226

      Clear

      130.276

      0.051

      No.4 bearing seal spacer

      130.328

      0.152

      130.378

      Clear

    10. SUBTASK 72-00-43-220-053-C00 V2500-A5 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2228

    1. Refer to Figure

    2. Reference the clearance at location 2228. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION/CHECK-000) and TASK 72-43-14-200-000.(INSPECTION/CHECK-000).

      Table 17. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2228

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly(72-41-13, 01-850), journal

      No.4 bearing seal spacer

      HPC drive turbine shaft journal

      5.127

      Clear

      5.129

      0.002

      No.4 bearing seal spacer

      5.131

      0.006

      5.133

      Clear

      Table 18. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2228

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly(72-41-13, 01-850), journal

      No.4 bearing seal spacer

      HPC drive turbine shaft journal

      130.226

      Clear

      130.276

      0.051

      No.4 bearing seal spacer

      130.328

      0.152

      130.378

      Clear

    11. SUBTASK 72-00-43-220-054-A00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2229 (Pre SBE 72-0111)

    1. Refer to Figure

    2. Reference the clearance at location 2229. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION/CHECK-000) and TASK 72-43-14-200-000.(INSPECTION/CHECK-000).

      Table 19. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2229

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly (72-41-13,01-850), journal

      No.4 bearing front seal seat

      HPC drive turbine shaft journal

      5.127

      Clear

      5.129

      0.002

      No.4 bearing front seal seat

      5.131

      0.006

      bore

      5.133

      Clear

      Table 20. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2229

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly(72-41-13,01-850), journal

      No.4 bearing front seal seat

      HPC drive turbine shaft journal

      130.226

      Clear

      130.276

      0.051

      No.4 bearing front seal seat

      130.328

      0.152

      bore

      130.378

      Clear

    12. SUBTASK 72-00-43-220-054-B00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2229 (SBE 72-0111)

    1. Refer to Figure

    2. SBE 72-0111: New stage 1 HPT air seal

    3. Reference the clearance at location 2229. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION/CHECK-000) and TASK 72-43-14-200-000.(INSPECTION/CHECK-000).

      Table 21. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2229

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly(72-41-13, 01-850), journal

      No.4 bearing front seal seat

      ENGINE-NO.4 BEARING FRONT SEAT SEAL(72-43-11, 01-010), bore

      HPC drive turbine shaft journal

      5.127

      Clear

      5.129

      0.002

      No.4 bearing front seal seat

      5.131

      0.006

      bore

      5.133

      Clear

      Table 22. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2229

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly(72-41-13, 01-850), journal

      No.4 bearing front seal seat

      ENGINE-NO.4 BEARING FRONT SEAT SEAL(72-43-11, 01-010), bore

      HPC drive turbine shaft journal

      130.226

      Clear

      130.276

      0.051

      No.4 bearing front seal seat

      130.328

      0.152

      bore

      130.378

      Clear

    13. SUBTASK 72-00-43-220-054-C00 V2500-A5 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2229

    1. Refer to Figure

    2. Reference the clearance at location 2229. If required, use the data written as a note in TASK 72-41-13-200-000 (INSPECTION/CHECK-000) and TASK 72-43-14-200-000.(INSPECTION/CHECK-000).

      Table 23. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2229

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly(72-41-13, 01-850), journal

      No.4 bearing front seal seat

      ENGINE-NO.4 BEARING FRONT SEAT SEAL(72-43-11, 01-010), bore

      HPC drive turbine shaft journal

      5.127

      Clear

      5.129

      0.002

      No.4 bearing front seal seat

      5.131

      0.006

      bore

      5.133

      Clear

      Table 24. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2229

      HPC drive turbine shaft

      HPC Rear Shaft And Heatshield Assembly(72-41-13, 01-850), journal

      No.4 bearing front seal seat

      ENGINE-NO.4 BEARING FRONT SEAT SEAL(72-43-11, 01-010), bore

      HPC drive turbine shaft journal

      130.226

      Clear

      130.276

      0.051

      No.4 bearing front seal seat

      130.328

      0.152

      bore

      130.378

      Clear

    14. SUBTASK 72-00-43-220-055-A00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2233 (Pre SBE 72-0111)

    1. Refer to Figure

    2. Reference the interference at location 2233. If required, use the data written as a note in TASK 72-42-31-200-000(INSPECTION/CHECK-000) and TASK 72-43-30-200-000(INSPECTION/CHECK-000).

      Table 25. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2233

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31,01-010),

      location diameter

      No.4 bearing rear cooling duct

      location diameter

      No.4 bearing support assembly

      12.752

      Intf

      12.754

      Intf

      location diameter

      12.748

      0.002

      12.748

      0.000

      No.4 bearing rear cooling duct

      12.758

      0.010

      12.758

      0.010

      location diameter

      12.754

      Intf

      12.754

      Intf

      Table 26. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2233

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31,01-010),

      location diameter

      No.4 bearing rear cooling duct

      location diameter

      No.4 bearing support assembly

      323.900

      Intf

      323.952

      Intf

      location diameter

      323.00

      0.051

      323.800

      0.000

      No.4 bearing rear cooling duct

      324.053

      0.254

      324.053

      0.254

      location diameter

      323.952

      Intf

      323.952

      Intf

    15. SUBTASK 72-00-43-220-055-B00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2233 (SBE 72-0111)

      SBE 72-0111: New stage 1 HPT air seal

    1. Refer to Figure

    2. Reference the interference at location 2233. If required, use the data written as a note in TASK 72-42-31-200-000(INSPECTION/CHECK-000) and TASK 72-43-30-200-000(INSPECTION/CHECK-000).

      Table 27. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2233

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010),

      location diameter

      No.4 bearing rear cooling duct

      location diameter

      No.4 bearing support assembly

      12.752

      Intf

      12.754

      Intf

      location diameter

      12.748

      0.002

      12.748

      0.000

      No.4 bearing rear cooling duct

      12.758

      0.010

      12.758

      0.010

      location diameter

      12.754

      Intf

      12.754

      Intf

      Table 28. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2233

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010),

      location diameter

      No.4 bearing rear cooling duct

      location diameter

      No.4 bearing support assembly

      323.900

      Intf

      323.952

      Intf

      location diameter

      323.800

      0.051

      323.800

      0.000

      No.4 bearing rear cooling duct

      324.053

      0.254

      324.053

      0.254

      location diameter

      323.952

      Intf

      323.952

      Intf

    16. SUBTASK 72-00-43-220-055-C00 V2500-A5 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2233

    1. Refer to Figure

    2. Reference the interference at location 2233. If required, use the data written as a note in TASK 72-42-31-200-000(INSPECTION/CHECK-000) and TASK 72-43-30-200-000(INSPECTION/CHECK-000).

      Table 29. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2233

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010),

      location diameter

      No.4 bearing rear cooling duct

      location diameter

      No.4 bearing support assembly

      12.752

      Intf

      12.754

      Intf

      location diameter

      12.748

      0.002

      12.748

      0.000

      No.4 bearing rear cooling duct

      12.758

      0.010

      12.758

      0.010

      location diameter

      12.754

      Intf

      12.754

      Intf

      Table 30. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2233

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010),

      location diameter

      No.4 bearing rear cooling duct

      location diameter

      No.4 bearing support assembly

      323.900

      Intf

      323.952

      Intf

      location diameter

      323.800

      0.051

      323.800

      0.000

      No.4 bearing rear cooling duct

      324.053

      0.254

      324.053

      0.025

      location diameter

      323.952

      Intf

      323.952

      Intf

    17. SUBTASK 72-00-43-220-056-A00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2234 (Pre SBE 72-0111)

    1. Refer to Figure

    2. Reference the interference at location 2234. If required, use the data written as a note in TASK 72-42-31-200-000(INSPECTION/CHECK-000) and TASK 72-43-30-200-000(INSPECTION/CHECK-000).

      Table 31. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2234

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31,01-010),

      location diameter

      No.4 bearing heatshield

      location diameter

      No.4 bearing support assembly

      13.002

      Intf

      13.003

      Intf

      location diameter

      12.998

      0.002

      12.997

      0.002

      No.4 bearing heatshield

      13.008

      0.010

      13.008

      0.010

      location diameter

      13.004

      Intf

      13.004

      Intf

      Table 32. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2234

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31,01-010),

      location diameter

      No.4 bearing heatshield

      location diameter

      No.4 bearing support assembly

      330.250

      Intf

      330.276

      Intf

      location diameter

      330.150

      0.051

      330.124

      0.051

      No.4 bearing heatshield

      330.403

      0.254

      330.403

      0.254

      location diameter

      330.302

      Intf

      330.302

      Intf

    18. SUBTASK 72-00-43-220-056-B00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2234 (SBE 72-0111)

      SBE 72-0111: New stage 1 HPT air seal

    1. Refer to Figure

    2. Reference the interference at location 2234. If required, use the data written as a note in TASK 72-42-31-200-000(INSPECTION/CHECK-000) and TASK 72-43-30-200-000(INSPECTION/CHECK-000).

      Table 33. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2234

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010),

      location diameter

      No.4 bearing heatshield

      location diameter

      No.4 bearing support assembly

      13.002

      Intf

      13.003

      Intf

      location diameter

      12.998

      0.002

      12.997

      0.002

      No.4 bearing heatshield

      13.008

      0.010

      13.008

      0.010

      location diameter

      13.004

      Intf

      13.004

      Intf

      Table 34. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2234

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010),

      location diameter

      No.4 bearing heatshield

      location diameter

      No.4 bearing support assembly

      330.250

      Intf

      330.276

      Intf

      location diameter

      330.150

      0.051

      330.124

      0.051

      No.4 bearing heatshield

      330.403

      0.254

      330.403

      0.254

      location diameter

      330.302

      Intf

      330.302

      Intf

    19. SUBTASK 72-00-43-220-056-C00 V2500-A5 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2234

    1. Refer to Figure

    2. Reference the interference at location 2234. If required, use the data written as a note in TASK 72-42-31-200-000(INSPECTION/CHECK-000) and TASK 72-43-30-200-000(INSPECTION/CHECK-000).

      Table 35. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2234

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010),

      location diameter

      No.4 bearing heatshield

      location diameter

      No.4 bearing support assembly

      13.002

      Intf

      13.003

      Intf

      location diameter

      12.998

      0.002

      12.997

      0.002

      No.4 bearing support assembly

      13.008

      0.010

      13.008

      0.010

      location diameter

      13.004

      Intf

      13.004

      Intf

      Table 36. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2234

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010),

      location diameter

      No.4 bearing heatshield

      location diameter

      No.4 bearing support assembly

      330.250

      Intf

      330.276

      Intf

      location diameter

      330.150

      0.051

      330.124

      0.051

      No.4 bearing heatshield

      330.403

      0.,254

      330.403

      0.254

      location diameter

      330.302

      Intf

      330.302

      Intf

    20. SUBTASK 72-00-43-220-057-A00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2235 (Pre SBE 72-0111)

    1. Refer to Figure

    2. Reference the interference at location 2235. If required, use the data written as a note in TASK 72-42-31-200-000(INSPECTION/CHECK-000) and TASK 72-43-30-200-000(INSPECTION/CHECK-000).

      Table 37. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2235

      No.4 bearing seal ring holder

      No. 4 Bearing Rear Face Seal Assembly(72-43-20,01-060), location

      diameter

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31,01-010),

      location diameter

      No.4 bearing support seal ring

      10.892

      Intf

      10.892

      Intf

      holder location diameter

      10.888

      0.000

      10.888

      0.000

      No.4 bearing support assembly

      10.896

      0.008

      10.897

      0.009

      location diameter

      10.892

      Intf

      10.892

      Intf

      Table 38. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2235

      No.4 bearing seal ring holder

      No. 4 Bearing Rear Face Seal Assembly(72-43-20,01-060), location

      diameter

      No.4 bearing support

      assembly ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31,01-010),

      location diameter

      No.4 bearing seal ring holder

      276.657

      Intf

      276.657

      Intf

      location diameter

      276.556

      0.000

      276.556

      0.000

      No.4 bearing support assembly

      276.758

      0.203

      276.784

      0.228

      location diameter

      276.657

      Intf

      276.657

      Intf

    21. SUBTASK 72-00-43-220-057-B00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2235 (SBE 72-0111)

      SBE 72-0111: New stage 1 HPT air seal

    1. Refer to Figure

    2. Reference the interference at location 2235. If required, use the data written as a note in TASK 72-42-31-200-000(INSPECTION/CHECK-000) and TASK 72-43-30-200-000(INSPECTION/CHECK-000).

      Table 39. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2235

      No.4 bearing seal ring holder

      No. 4 Bearing Rear Face Seal Assembly(72-43-20, 01-060), location

      diameter

      No.4 bearing support assembly

      ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010), location

      diameter

      No.4 bearing seal ring holder

      10.892

      Intf

      10.892

      Intf

      location diameter

      10.888

      0.000

      10.888

      0.000

      No.4 bearing support assembly

      10.896

      0.008

      10.897

      0.009

      location diameter

      10.892

      Intf

      10.892

      Intf

      Table 40. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2235

      No.4 bearing seal ring holder

      No. 4 Bearing Rear Face Seal Assembly(72-43-20, 01-060), location

      diameter

      No.4 bearing support assembly

      ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010), location

      diameter

      No.4 bearing seal ring holder

      276.657

      Intf

      276.657

      Intf

      location diameter

      276.556

      0.000

      276.556

      0.000

      No.4 bearing support assembly

      276.758

      0.203

      276.784

      0.228

      location diameter

      276.657

      Intf

      276.657

      Intf

    22. SUBTASK 72-00-43-220-057-C00 V2500-A5 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2235

    1. Refer to Figure

    2. Reference the interference at location 2235. If required, use the data written as a note in TASK 72-42-31-200-000(INSPECTION/CHECK-000) and TASK 72-43-30-200-000(INSPECTION/CHECK-000).

      Table 41. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2235

      No.4 bearing seal ring holder

      No. 4 Bearing Rear Face Seal Assembly(72-43-20, 01-060), location

      diameter

      No.4 bearing support assembly

      ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010), location

      diameter

      No.4 bearing seal ring holder

      10.892

      Intf

      10.892

      Intf

      location diameter

      10.888

      0.000

      10.888

      0.000

      No.4 bearing support assembly

      10.896

      0.008

      10.897

      0.009

      location diameter

      10.892

      Intf

      10.892

      Intf

      Table 42. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2235

      No.4 bearing seal ring holder

      No. 4 Bearing Rear Face Seal Assembly(72-43-20, 01-060), location

      diameter

      No.4 bearing support assembly

      ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010), location

      diameter

      No.4 bearing seal ring holder

      276.657

      Intf

      276.657

      Intf

      location diameter

      276.556

      0.000

      276.556

      0.000

      No.4 bearing support assembly

      276.758

      0.203

      276.784

      0.228

      location diameter

      276.657

      Intf

      276.657

      Intf

    23. SUBTASK 72-00-43-220-058 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2236 (Pre SBE 72-0111)

    1. Refer to Figure

    2. Reference the clearence at location 2236. If required, use the data written as a note in TASK 72-43-30-200-000(INSPECTION/CHECK-000).

      Table 43. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2236

      No.4 bearing heatshield

      diameter

      No.4 bearing rear cooling duct

      diameter

      No.4 bearing heatshield

      6.185

      Clear

      location diameter

      6.195

      0.010

      No.4 bearing cooling duct

      6.205

      0.030

      location diameter

      6.215

      Clear

      Table 44. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2236

      No.4 bearing heatshield

      diameter

      No.4 bearing rear cooling duct

      diameter

      No.4 bearing heatshield

      157.10

      Clear

      location diameter

      157.35

      0.25

      No.4 bearing cooling duct

      157.61

      0.76

      location diameter

      157.86

      Clear

    24. SUBTASK 72-00-43-220-059-A00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2240 (Pre SBE 72-0111)

    1. Refer to Figure

    2. Reference the clearance/interference at location 2240. If required, use the data written as a note in TASK 72-43-30-200-000(INSPECTION/CHECK-000) and TASK 72-43-20-200-000(INSPECTION/CHECK-000).

      Table 45. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2240

      No.4 bearing seal ring holder

      No. 4 Bearing Rear Face Seal Assembly(72-43-20,01-020), location

      diameter

      No.4 bearing rear cooling duct

      diameter

      No.4 bearing seal ring holder

      6.055

      Clear

      location diameter

      6.051

      0.002

      No.4 bearing cooling duct

      6.057

      0.006

      location diameter

      6.053

      Intf

      Table 46. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2240

      No.4 bearing seal ring holder

      No. 4 Bearing Rear Face Seal Assembly(72-43-20,01-020), location

      diameter

      No.4 bearing rear cooling duct

      diameter

      No.4 bearing seal ring holder

      153.797

      Clear

      location diameter

      153.696

      0.051

      No.4 bearing cooling duct

      153.847

      0.152

      location diameter

      153.747

      Intf

    25. SUBTASK 72-00-43-220-059-B00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2240 (SBE 72-0111)

      SBE 72-0111: New stage 1 HPT air seal

    1. Refer to Figure

    2. Reference the clearance/interference at location 2240. If required, use the data written as a note in TASK 72-43-30-200-000(INSPECTION/CHECK-000) and TASK 72-43-20-200-000 (INSPECTION/CHECK-000).

      Table 47. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2240

      No.4 bearing seal ring holder

      No. 4 Bearing Rear Face Seal Assembly(72-43-20, 01-020), location

      diameter

      No.4 bearing rear cooling duct

      diameter

      No.4 bearing seal ring holder

      6.055

      Clear

      location diameter

      6.051

      0.002

      No.4 bearing cooling duct

      6.057

      0.006

      location diameter

      6.053

      Intf

      Table 48. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2240

      No.4 bearing seal ring holder

      No. 4 Bearing Rear Face Seal Assembly(72-43-20, 01-020), location

      diameter

      No.4 bearing rear cooling duct

      diameter

      No.4 bearing seal ring holder

      153.797

      Clear

      location diameter

      153.696

      0.051

      No.4 bearing cooling duct

      153.847

      0.152

      location diameter

      153.747

      Intf

    26. SUBTASK 72-00-43-220-059-C00 V2500-A5 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2240

    1. Refer to Figure

    2. Reference the clearance/interference at location 2240. If required, use the data written as a note in TASK 72-43-30-200-000(INSPECTION/CHECK-000) and TASK 72-43-20-200-000 (INSPECTION/CHECK-000).

      Table 49. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2240

      No.4 bearing seal ring holder

      No. 4 Bearing Rear Face Seal Assembly(72-43-20, 01-020), location

      diameter

      No.4 bearing rear cooling duct

      diameter

      No.4 bearing seal ring holder

      6.055

      Clear

      location diameter

      6.051

      0.002

      No.4 bearing cooling duct

      6.057

      0.006

      location diameter

      6.053

      Intf

      Table 50. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2240

      No.4 bearing seal ring holder

      No. 4 Bearing Rear Face Seal Assembly(72-43-20, 01-020), location

      diameter

      No.4 bearing rear cooling duct

      diameter

      No.4 bearing seal ring holder

      153.797

      Clear

      location diameter

      153.696

      0.051

      No.4 bearing cooling duct

      153.847

      0.152

      location diameter

      153.747

      Intf

    27. SUBTASK 72-00-43-220-060-A00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2264 (Pre SBE 72-0111)

    1. Refer to Figure

    2. Reference the interference at location 2264. If required use the data written as a note in TASK 72-43-30-200-000(INSPECTION/CHECK-000) and TASK 72-43-20-200-000 (INSPECTION/CHECK-000).

      Table 51. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2264

      No.4 bearing support assembly

      ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31,01-010), location

      diameter

      No.4 bearing ENGINE-NO.4 BEARING(72-43-13,01-010),

      location diameter

      No.4 bearing support assembly

      7.5532

      Intf

      7.5532

      Intf

      location diameter

      7.5522

      0.0018

      7.5522

      0.0018

      No.4 bearing location diameter

      7.556

      0.0038

      7.557

      0.0038

      7.555

      Intf

      7.555

      Intf

      Table 52. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2264

      No.4 bearing support assembly

      ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31,01-010), location

      diameter

      No.4 bearing ENGINE-NO.4 BEARING(72-43-13,01-010),

      location diameter

      No.4 bearing support assembly

      191.851

      Intf

      191.851

      Intf

      location diameter

      191.826

      0.046

      191.826

      0.046

      No.4 bearing location diameter

      191.922

      0.096

      191.947

      0.096

      191.897

      Intf

      191.897

      Intf

    28. SUBTASK 72-00-43-220-060-B00 V2500-A1 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2264 (SBE 72-0111)

      SBE 72-0111: New stage 1 HPT air seal

    1. Refer to Figure

    2. Reference the interference at location 2264. If required, use the data written as a note in TASK 72-42-31-200-000 (INSPECTION/CHECK-000) and TASK 72-43-13-200-000 (INSPECTION/CHECK-000).

      Table 53. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2264

      No.4 bearing seal support

      assembly

      ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010), location

      diameter

      No.4 bearing ENGINE-NO.4 BEARING(72-43-13, 01-010),

      location diameter

      No.4 bearing support assembly

      7.5532

      Intf

      7.5532

      Intf

      location diameter

      7.5522

      0.0018

      7.5522

      0.0018

      No.4 bearing location diameter

      7.556

      0.0038

      7.557

      0.0038

      7.555

      Intf

      7.555

      Intf

      Table 54. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2264

      No.4 bearing seal support assembly

      ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010), location

      diameter

      No.4 bearing ENGINE-NO.4 BEARING(72-43-13, 01-010),

      location diameter

      No.4 bearing support assembly

      191.851

      Intf

      191.851

      Intf

      location diameter

      191.826

      0.046

      191.826

      0.046

      No.4 bearing location diameter

      191.922

      0.096

      191.947

      0.096

      191.897

      Intf

      191.897

      Intf

    29. SUBTASK 72-00-43-220-060-C00 V2500-A5 Reference the Fits and Clearances of the No.4 Bearing and Rear Compartment Parts at Location 2264

    1. Refer to Figure

    2. Reference the interference at location 2264. If required, use the data written as a note in TASK 72-42-31-200-000 (INSPECTION/CHECK-000) and TASK 72-43-13-200-000 (INSPECTION/CHECK-000).

      Table 55. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2264

      No.4 bearing seal support assembly

      ENGINE-NO.4 BEARING SUPPORT ASSEMBLY(72-42-31, 01-010), location

      diameter

      No.4 bearing ENGINE-NO.4 BEARING(72-43-13, 01-010),

      location diameter

      No.4 bearing support assembly

      7.5532

      Intf

      7.5532

      Intf

      location diameter

      7.5522

      0.0018

      7.5522

      0.0018

      No.4 bearing location diameter

      7.556

      0.0038

      7.557

      0.0038

      7.555

      Intf

      7.555

      Intf

      Table 56. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 2264

      No.4 bearing seal support assembly

      (72-42-31, 01-010, location

      diameter

      No.4 bearing ENGINE-NO.4 BEARING(72-43-13, 01-010),

      location diameter

      No.4 bearing support assembly

      191.851

      Intf

      191.851

      Intf

      location diameter

      191.826

      0.046

      191.826

      0.046

      No.4 bearing location diameter

      191.922

      0.096

      191.947

      0.096

      191.897

      Intf

      191.897

      Intf

    30. SUBTASK 72-00-43-420-052 Install the No. 4 Bearing Outer Race Retaining Nut

    1. Refer to Figure, Figure and Figure

    2. Install the No.4 bearing keywasher ENGINE-NO.4 BEARING LOCK AND NUT(72-42-32,01-010) to the support with the tabs on the keywasher in the slots on the support.

    3. Install the No.4 bearing outer race retaining nut ENGINE-NO.4 BEARING LOCK AND NUT(72-42-32,01-020) to the No.4 bearing support.

    4. CAUTION

      WHEN USING THE IAE 1P16035 Hand wrench THE ACTUAL TORQUE WRENCH READING WILL BE LESS THAN THAT GIVEN BELOW. SEE THE STANDARD PRACTICES MANUAL.

      Put the IAE 1P16035 Hand wrench 1 off in place on the nut and, with a standard torque wrench, torque the nut to 1900 to 2100 lbfin (214.671 to 237.268 Nm). Loosen the nut to 0 lbfin (0 Nm) and then torque to 1900 to 2100 lbfin (214.671 to 237.268 Nm) again. Remove the wrench from the nut.

    5. NOTE

      A gap is permitted between the fixture ring and the support outer flange.

      Lift the IAE 1P16145 Crimp fixture 1 off with a hoist and position over the assembly. Look to see if the jaws are rotated away from the base stop. Look to see if the locator has been retracted. Lower the fixture to the No.4 bearing support. Hold the fixture to the support with the three cap screws and washers. Tighten by hand only.

    6. NOTE

      Fixture may be turned to obtain a positive location in nut slot. The base of the fixture is slotted for visual verification of the locator in the nut slot.

      Install the locator in to a slot in the No.4 bearing outer race retaining nut.

    7. Attach the IAE 1F10026 Hydraulic hand pump 1 off to the fixture and actuate to crimp the keywasher. Hydraulic pressure setting should be 3000 psi (20684.3 kPa) to crimp the keywasher in eight places.

    31. SUBTASK 72-00-43-420-053 Install the No. 4 Bearing Front Seal Seat and the No.4 Bearing Seal Spacer

    1. Refer to Figure

    2. Install the No.4 bearing front seal seat ENGINE-NO.4 BEARING FRONT SEAT SEAL(72-43-11,01-010) on to the HP compressor rear hub with the ID puller groove up. Seal seat must touch the shoulder on the HP compressor hub.

    3. Install the No.4 bearing seal spacer ENGINE-NO.4 BEARING SEAL SPACER(72-43-12,01-010) (with the smooth OD down) on to the HP compressor rear hub. Spacer must touch the front seal seat.

    32. SUBTASK 72-00-43-420-054 Install the No. 4 Bearing Inner Race and Rollers

    1. Refer to Figure.

    2. CAUTION

      NEVER LET THE BEARINGS TOUCH THE BOTTOM OF THE HOT OIL TANK. A HEAVY SCREEN OR SOME RODS ATTACHED 3 INCHES (76 MM) ABOVE THE BOTTOM OF THE TANK WILL KEEP HOT OIL ON ALL SIDES OF THE BEARING.
      IF YOU USE AN INDUCTION HEATER FOLLOW THE MANUFACTURERS INSTRUCTIONS. DO NOT LET THE BEARING TEMPERATURE GET MORE THAN 250 DEG F (121 DEG C).

      NOTE

      The No.4 bearing inner and outer race and rollers are a serialized set that must be kept together as a set in each engine build.

      Increase the temperature of the No.4 bearing inner race and rollers ENGINE-NO.4 BEARING(72-43-13,01-010) to 250 deg F (121 deg C) in a hot oil tank for 20 minutes or use an induction heater.

    3. CAUTION

      SLOWLY ROTATE THE HP COMPRESSOR DURING THE INSTALLATION OF THE INNER RACE TO PREVENT DAMAGE TO THE BEARING.

      Remove the bearing inner race and rollers from the hot oil tank or the heater with protective gloves. Install the inner race on to the HP compressor rear hub with the puller groove rearward (upward) and use the IAE 1P16470 Drift 1off to install the inner race against the spacer. Remove the drift.

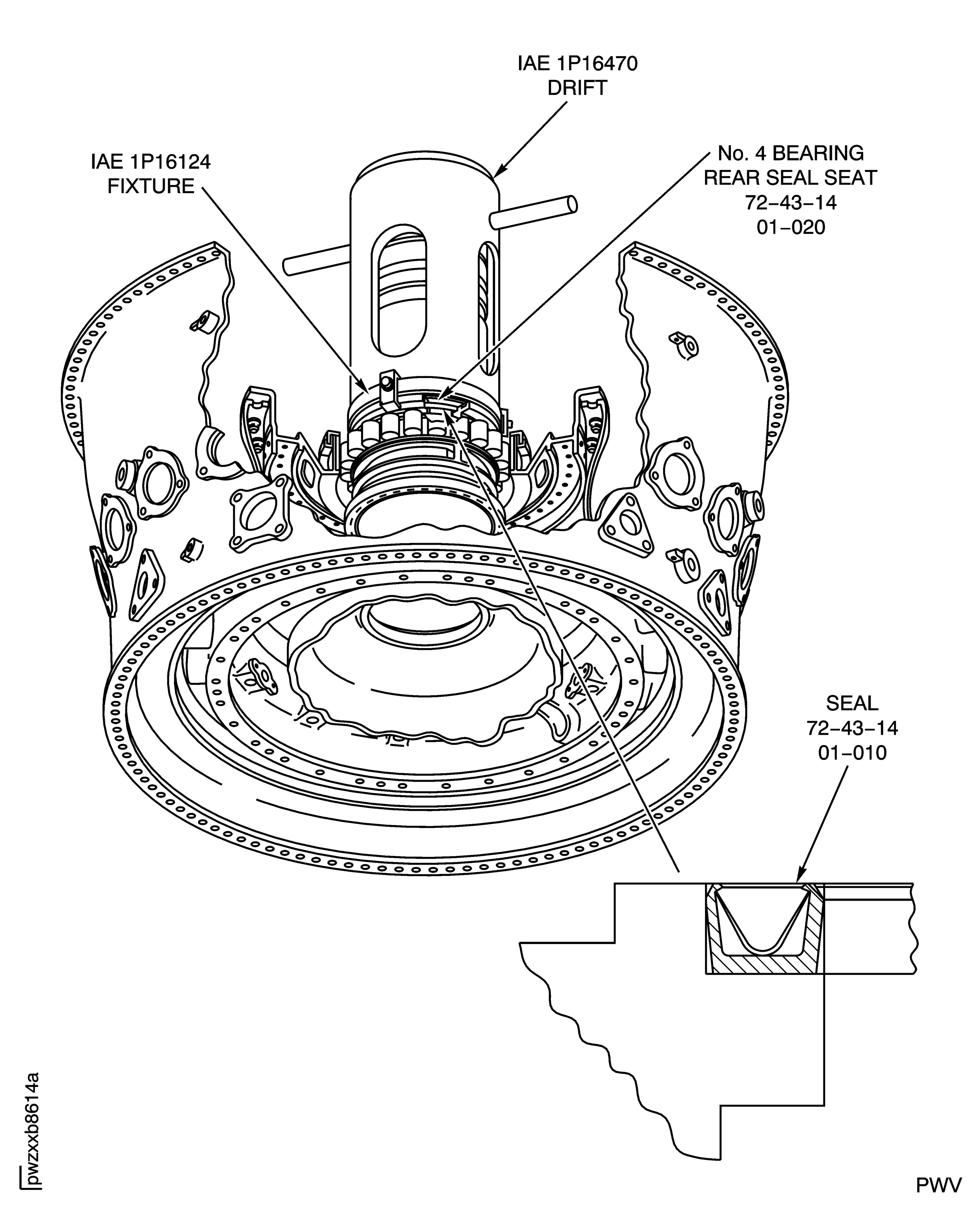

    33. SUBTASK 72-00-43-420-055Install the No.4 Bearing Rear Seal Seat and the Seal

    1. Refer to Figure and Figure.

    2. Put the No.4 bearing rear seal seat ENGINE-NO.4 BEARING REAR SEAT SEAL(72-43-14,01-020) on the work bench with the tapered side down.

    3. Install the seal ENGINE-NO.4 BEARING REAR SEAT SEAL(72-43-14,01-010) to the ID groove on the rear seal seat.

    4. Install the ring portion of the IAE 1P16124 Fixture 1off to the rear seal seat. Secure in place with the three clamps and bolts. Tighten by hand.

    5. Install the rear seal seat (with fixture attached) on to the HP compressor hub. Install the IAE 1P16470 Drift 1 off on to the rear HP compressor hub to contact the fixture and tap with a mallet until the rear seal seat contacts the bearing inner race. Remove the drift. Release the three clamps and remove the fixture from the rear seal seat.

    34. SUBTASK 72-00-43-420-056 Install the No. 4 Bearing Rear Seal Assembly

    1. Refer to Figure and Figure.

    2. Remove the cover from the No. 4 bearing support.

    3. Put the rear seal assembly on the work bench with the large flange up.

    4. Install No. 4 Bearing Rear Face Seal Assembly (72-43-20, 01-010) the gasket 1 off to the No.4 bearing support ENGINE-NO.4 BEARING SUPPORT ASSEMBLY (72-42-31, 01-010). Hold the gasket onto the flange in the mating position with CoMat 01-573 WAX BLEND, PARAFFIN.

    5. Heat the No. 4 bearing rear seal assembly No. 4 Bearing Rear Face Seal Assembly(72-43-20, 01-120) to 225 deg F - 250 deg F (107 deg C - 121 deg C).

    6. Use T-handles or other shop aids to install the No. 4 bearing rear seal assembly onto the No. 4 bearing support with the offset hole aligned with the dowel pin. Make sure that the gasket No. 4 Bearing Rear Face Seal Assembly(72-43-20,01-010) is in the correct position on the No.4 bearing support flange to prevent incorrect assembly. Install six work bolts and tighten them by hand. When the mated parts have cooled to room temperature, remove the work bolts and replace them with bolts No. 4 Bearing Rear Face Seal Assembly(72-43-20, 01-040).

    7. Lubricate the threads of the bolts with CoMat 10-129 ANTI-SEIZE PASTE. Install the bolts No. 4 Bearing Rear Face Seal Assembly(72-43-20, 01-040) to the flange of the support.

    8. Torque the bolts in the sequence shown in Figure to 62 lbfin to 72 lbfin (7.005 Nm to 8.135 Nm). Do not loosen the bolts. Do the complete torque procedure two more times. Wipe off excess paste.

    9. Install the spacer assemblies No. 4 Bearing Rear Face Seal Assembly(72-43-20, 01-260) to the threaded holes in the seal assembly flange. Torque the spacer assemblies to 55 lbfin to 60 lbfin (6.214 Nm to 6.779 Nm).

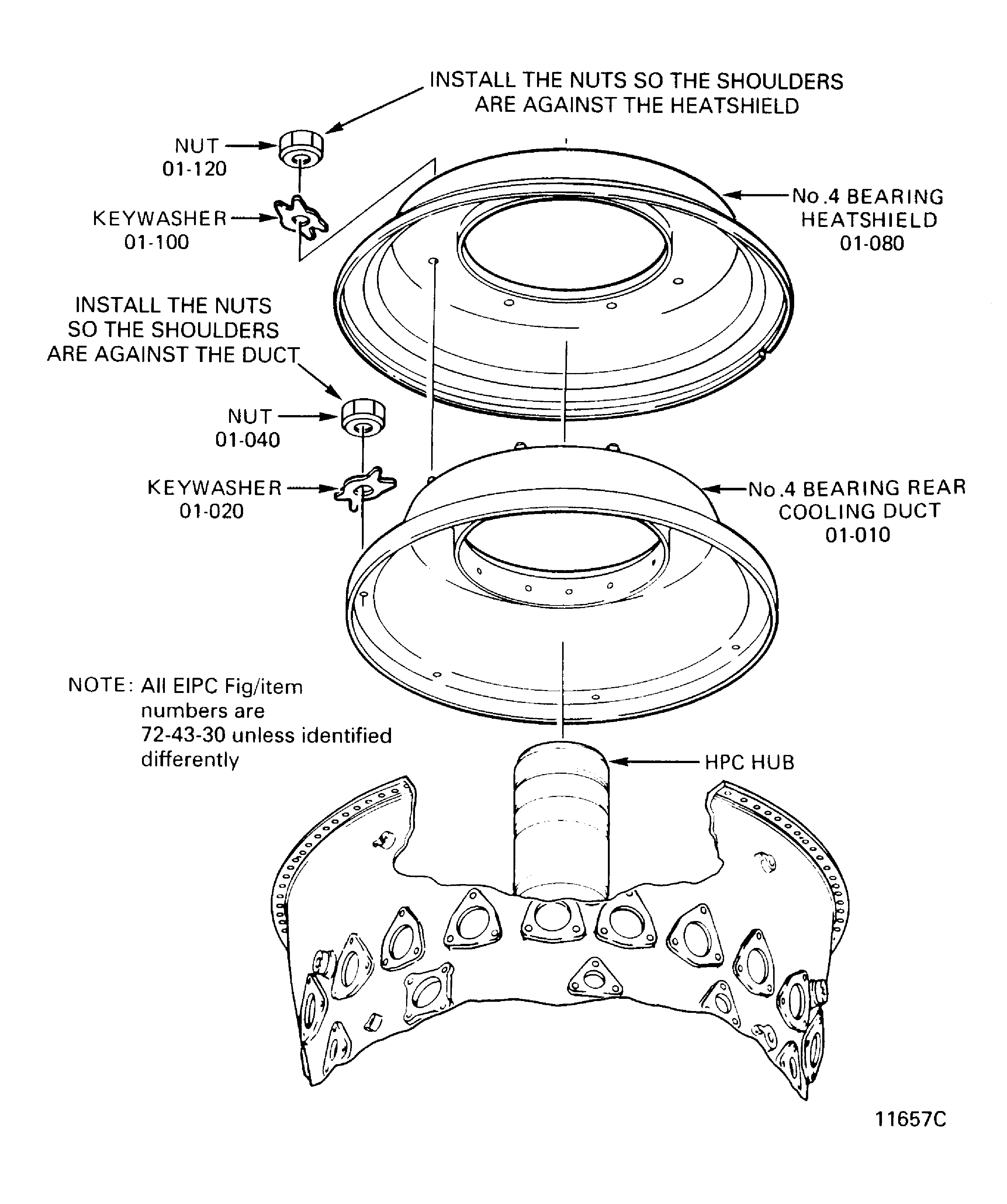

    35. SUBTASK 72-00-43-420-057 Install the No. 4 Bearing Rear Cooling Duct and the No.4 Bearing Heatshield

    1. Refer to Figure.

    2. CAUTION

      MAKE SURE YOU INSTALL THE NUTS WITH THE SHOULDERS AGAINST THE COOLING DUCT.

      CAUTION

      DO NOT LUBRICATE THE SPACER THREADS ON THE NO.4 BEARING FRONT COOLING DUCT WITH OIL OR OTHER THREAD LUBRICANTS. THESE SPACERS MUST HAVE ANTIGALLING COMPOUND PER TASK 72-42-35-200-001 BEFORE ASSEMBLY.

      NOTE

      The 2A0891-01 and 2A1205-01 No.4 rear bearing cooling duct can be used with the new 2A1203 stage 1 HPT air seal. The new 2A1203 air seal must be used with the new 2A1204-01 No.4 bearing heatshield assembly. The old 2A0890-01 heatshield must not be used with the new air seal.

      Install the No.4 bearing rear cooling duct No. 4 Bearing Rear Cooling Duct And Heatshield(72-43-30,01-010) over the No.4 bearing rear seal assembly. Align the holes in the duct flange with the spacer assemblies installed on the seal flange. Install No. 4 Bearing Rear Cooling Duct And Heatshield(72-43-30,01-020) keywashers7 off (bent tabs up) and the nuts No. 4 Bearing Rear Cooling Duct And Heatshield(72-43-30,01-040) over the spacer assemblies. Torque the nuts to 23 to 26 lbfin (2.592 to 2.938 Nm). Bend the washer tabs up against the flats of the nuts.

    3. CAUTION

      MAKE SURE YOU INSTALL THE NUTS WITH THE SHOULDERS AGAINST THE HEATSHIELD.

      Install the No.4 bearing heatshield No. 4 Bearing Rear Cooling Duct And Heatshield(72-43-30,01-080) over the No.4 bearing rear cooling duct. Align the offset hole with the offset stud on the cooling duct. Install No. 4 Bearing Rear Cooling Duct And Heatshield(72-43-30,01-100) keywashers8 off (bent tabs up) and the nuts No. 4 Bearing Rear Cooling Duct And Heatshield(72-43-30,01-120) to the studs. Torque the nuts to 23 to 26 lbfin (2.592 to 2.938 Nm). Bend the washer tabs up against the flats of the nuts.

    4. Install the IAE 1P17511 cover 1 off over the rear of the engine and secure with hand pressure at the outer edge.

    36. SUBTASK 72-00-43-720-051 Do a Check of the No. 4 Front and Rear Bearing Compartment for Leaks

    1. Refer to Figure.

    2. Install the IAE 1P16089 Leak check cap 1 off in the coupling nut of the pressure tube.

    3. Install the IAE 1P16088 Leak check adapter 1 off in the scavenge tube.

    4. Connect the IAE 6F10030 Vacuum test cart 1 off to the adapter.

    5. Adjust the vacuum on the cart to 20in. HG and evacuate the bearing compartment. Based on the ambient pressure, refer to the table below for the vacuum pressure in psia.

      Ambient Pressure of the Day (psia)

      Vacuum Pressure (psia)

      14.7

      4.9

      14.5

      4.7

      14.3

      4.5

      14.1

      4.3

      13.9

      4.1

      13.7

      3.9

      13.5

      3.7

      13.3

      3.5

      13.1

      3.3

      Vacuum pressure (psia) = Ambient pressure of the day (psia) - 9.8 psia

      6. Check the air flow on the No.4 front and rear bearing compartment.

        1. Air flow.

          1. Not more than 17 pph (7.71 kgph)

          1. Accept

          2. More than 17 pph (7.71 kgph) but not more than 21 pph (9.53 kgph)

          1. Accept, if the engine has no leaks out of the No.4 oil weep tube during pass-off testing, the engine has no abnormal oil system indications (MOP, oil consumption, external oil leaks) since the last shop visit, and P4SCAV is in limits during pass-off testing. Otherwise, reject.

          3. More than 21 pph (9.53 kgph)

          1. Reject

    7. Decrease the vacuum to 0 in. Hg and disconnect the cart from the fixture.

    8. Remove the leak check cap from the pressure tube.

    9. Remove the leak check adapter from the scavenge tube.

    37. Figure: No.4 Bearing, Outer Race Retaining Nut and Lock

    No.4 Bearing, Outer Race Retaining Nut and Lock

    Figure: Install the No.4 Bearing Outer Race

    Install the No.4 Bearing Outer Race

    Figure: Install the No.4 Bearing Outer Race Retaining Nut

    Install the No.4 Bearing Outer Race Retaining Nut

    Figure: Install the No.4 Bearing Outer Race Keywasher

    Install the No.4 Bearing Outer Race Keywasher

    Figure: No.4 Bearing Inner Race, Spacer and Front Seal Seat

    No.4 Bearing Inner Race, Spacer and Front Seal Seat

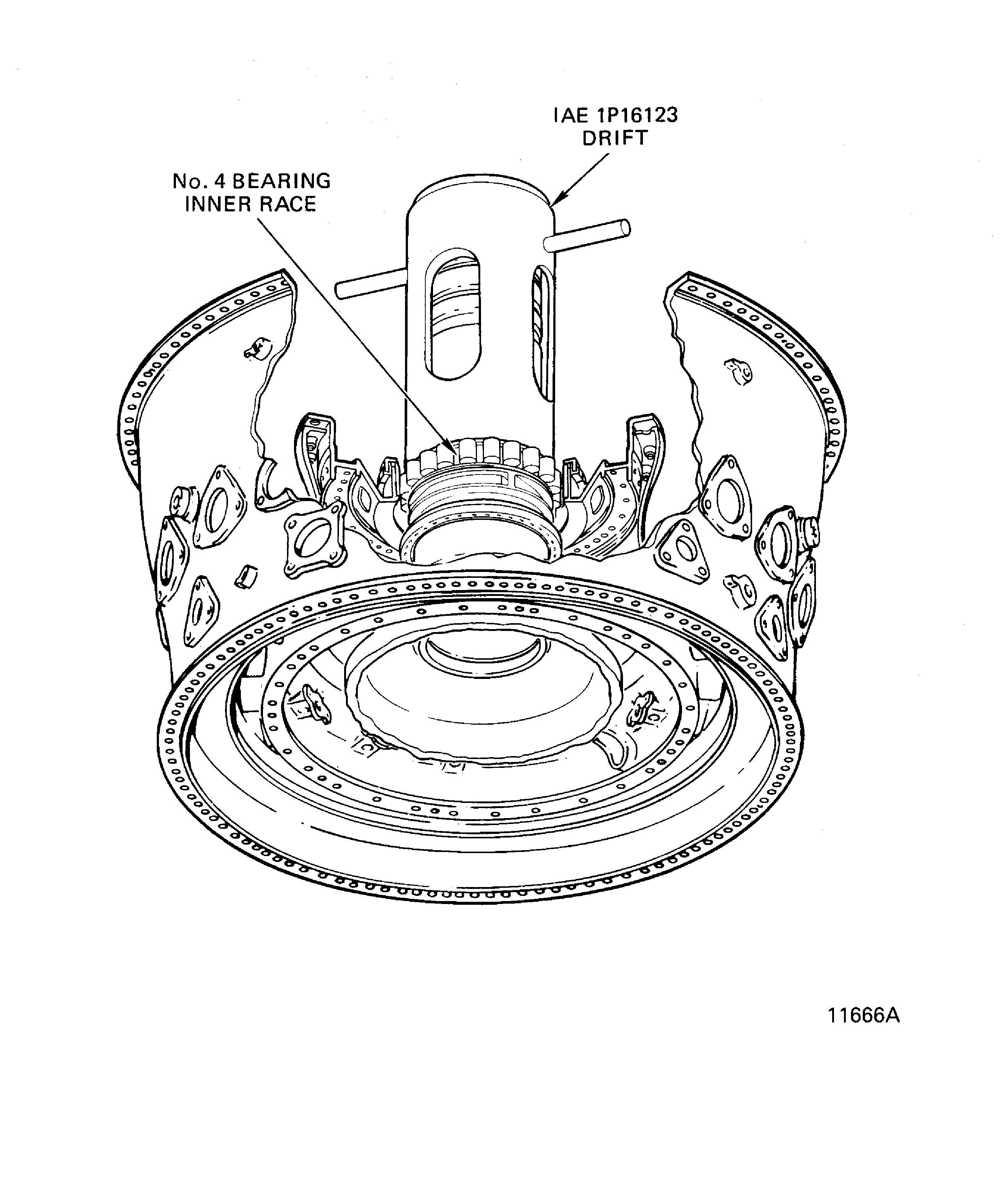

    Figure: Install the No.4 Bearing Inner Race

    Install the No.4 Bearing Inner Race

    Figure: No.4 Bearing Seal and Rear Seal Seat

    No.4 Bearing Seal and Rear Seal Seat

    Figure: Install the No.4 Bearing Rear Seal Seat

    Install the No.4 Bearing Rear Seal Seat

    Figure: Install the No.4 Bearing Rear Seal Assembly

    Install the No.4 Bearing Rear Seal Assembly

    Figure: Torque the No.4 Bearing Rear Seal Bolts

    Torque the No.4 Bearing Rear Seal Bolts

    Figure: Install the No.4 Bearing Rear Cooling Duct and Heatshield

    Install the No.4 Bearing Rear Cooling Duct and Heatshield

    Figure: V2500-A1 Pre SBE 72-0111: No.4 Bearing and Rear Compartment Parts - Fits and Clearances

    V2500-A1 Pre SBE 72-0111: No.4 Bearing and Rear Compartment Parts - Fits and Clearances

    Figure: V2500-A1 SBE 72-0111 and V2500-A5: No.4 Bearing and Rear Compartment Parts - Fits and Clearances

    V2500-A1 SBE 72-0111 and V2500-A5: No.4 Bearing and Rear Compartment Parts - Fits and Clearances

    Figure: Check the No.4 Front and Rear Bearing Compartment for Leaks

    Check the No.4 Front and Rear Bearing Compartment for Leaks

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised consumable table. (19VC093)

Link not Found
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:24269
Enterprise Name:SCHAEFER MACHINE CO., INC.
BU Name:SCHAEFER MACHINE CO., INC.
Street:200 COMMERCIAL DRIVE
City:DEEP RIVER
State:CT
Zip Code:06417
Country:USA
Phone Number:1-860-526-4000
Fax Number:1-860-526-4654
Internet:www.schaeferco.com
Manufacturer Code:34568
Enterprise Name:TIODIZE CO., INC.
BU Name:TIODIZE CO., INC.
Street:5858 ENGINEER DRIVE
City:HUNTINGTON BEACH
State:CA
Zip Code:92649
Country:USA
Phone Number:1-714-898-4377
Fax Number:1-714-891-7467
Internet:www.tiodize.com
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:X333X
Enterprise Name:REFER TO V2500 SB ENG-79-0108
Link not Found
Manufacturer Code:24269
Supply Number:CoMat 01-573
Type:sp01
Supply Short Name:CoMat 01-573 WAX BLEND, PARAFFIN
Supply Name:CoMat 01-573 WAX BLEND, PARAFFIN
Specification Groups:
Doc NumberType
PMC 9462 (PW REF)CW-5
PMC 9462 (PW REF)WB17 ADHESIVE WAX
Suppliers:
ManufacturerRemarks
24269
Manufacturer Code:X333X
Supply Number:CoMat 10-077
Type:sp01
Supply Short Name:CoMat 10-077 APPROVED ENGINE OILS
Supply Name:CoMat 10-077 APPROVED ENGINE OILS
Specification Groups:
Doc NumberType
For V2500-A1/A5/D5 models - Refer to V2500 Service Bulletin ENG-79-0108
For V2500-E5 model - Refer to Service Bulletin E5-79-0001
Suppliers:
ManufacturerRemarks
X333X
Manufacturer Code:34568
Supply Number:CoMat 10-129
Type:sp01
Supply Short Name:CoMat 10-129 ANTI-SEIZE PASTE
Supply Name:CoMat 10-129 ANTI-SEIZE PASTE
Specification Groups:
Doc NumberType
TIODIZE T8E PASTE
Suppliers:
ManufacturerRemarks
34568
Manufacturer Code:LOCAL
Supply Number:DELETED
Type:sp01
Supply Short Name:DELETED
Supply Name:DELETED
Specification Groups:
Doc NumberType
DELETED
Suppliers:
ManufacturerRemarks
LOCAL
Manufacturer Code:0AM53
Tool Number:IAE 1F10018
Tool Name:IAE 1F10018 Hydraulic hand pump
Manufacturer Code:0AM53
Tool Number:IAE 1F10026
Tool Name:IAE 1F10026 Hydraulic hand pump
Manufacturer Code:0AM53
Tool Number:IAE 1P16035
Tool Name:IAE 1P16035 Hand wrench
Manufacturer Code:0AM53
Tool Number:IAE 1P16036
Tool Name:IAE 1P16036 Pusher/puller
Manufacturer Code:0AM53
Tool Number:IAE 1P16041
Tool Name:IAE 1P16041 Heater
Manufacturer Code:0AM53
Tool Number:IAE 1P16073
Tool Name:IAE 1P16073 Jaw set
Manufacturer Code:0AM53
Tool Number:IAE 1P16088
Tool Name:IAE 1P16088 Leak check adapter
Manufacturer Code:0AM53
Tool Number:IAE 1P16089
Tool Name:IAE 1P16089 Leak check cap
Manufacturer Code:0AM53
Tool Number:IAE 1P16104
Tool Name:IAE 1P16104 Cover
Manufacturer Code:0AM53
Tool Number:IAE 1P16123
Tool Name:IAE 1P16123 Drift
Manufacturer Code:0AM53
Tool Number:IAE 1P16124
Tool Name:IAE 1P16124 Fixture
Manufacturer Code:0AM53
Tool Number:IAE 1P16145
Tool Name:IAE 1P16145 Crimp fixture
Manufacturer Code:0AM53
Tool Number:IAE 1P16469
Tool Name:IAE 1P16469 Heater
Manufacturer Code:0AM53
Tool Number:IAE 1P16470
Tool Name:IAE 1P16470 Drift
Manufacturer Code:0AM53
Tool Number:IAE 1P17511
Tool Name:IAE 1P17511 cover
Manufacturer Code:0AM53
Tool Number:IAE 6F10027
Tool Name:IAE 6F10027 Heater control unit
Manufacturer Code:0AM53
Tool Number:IAE 6F10030
Tool Name:IAE 6F10030 Vacuum test cart
