TASK 72-32-00-430-003 LPC/Intermediate Case Module - Install The No. 3 Bearing, Internal Gearbox And Support Assembly, Assembly-003

DMC:V2500-A0-72-32-0000-03A-710A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-00-430-003 LPC/Intermediate Case Module - Install The No. 3 Bearing, Internal Gearbox And Support Assembly, Assembly-003

General

This TASK gives the procedure to install the No.3 bearing, internal gearbox and support assembly. For other parts of the LP compressor/intermediate case module, refer to TASK 72-32-00-430-000 (72-32-00 ASSEMBLY-00).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501 and TASK 70-41-02-400-501.

To identify, lubricate and install seal rings, refer to the SPM TASK 70-44-01-400-501.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

The abbreviation Intf shows an interference or tight fit. This causes REJECT IF MORE THAN to become REJECT IF IF LESS THAN. The abbreviation Clear shows a clearance fit.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

The No.1 strut, which is the top position strut of the fan frame assembly, is identified by the five pressure tubes on the strut leading edge.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1J12024 Special wrench0AM53IAE 1J120241
IAE 1J12326 Vertical sling0AM53IAE 1J123261
IAE 1J12505 0AM53 heater0AM53IAE 1J125051
IAE 6F10027 Heater control unit0AM53IAE 6F100271

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-149 DRY ICELOCALCoMat 02-149
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Packing1

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-220-109 Reference Fits and Clearances of the No.3 Bearing Seal Support and Fan Frame at Location 0308

    1. Refer to Figure.

    2. Reference dimensions at location 0308. If required, use the data written as a NOTE in TASK 72-32-03-200-000 (INSPECTION/CHECK-000) and TASK 72-32-22-200-000 (INSPECTION/CHECK-000).

      Table 1. Fits and Clearances (all dimensions are in inches)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 0308

      No.3 bearing seal support

      ENGINE-NO.3 BEARING SEAL SUPPORT (72-32-22, 01-040) and

      fan frame Fan Frame Assembly And Related Parts (72-32-03, 03-100)

      No.3 bearing seal support

      11.3400

      outside diameter

      11.3439

      0.0000

      Fan frame bore diameter

      11.3381

      0.0058

      11.3400

      Intf

      Table 2. Fits and Clearances (all dimensions are in millimeters)

      NEW PART WORN PART

      DIMENSIONS DIMENSIONS REJECT IF

      PART IDENT Size Clearance (Non-select) MORE THAN

      LOCATION 0308

      No.3 bearing seal support

      ENGINE-NO.3 BEARING SEAL SUPPORT (72-32-22, 01-040) and

      Fan frame Fan Frame Assembly And Related Parts (72-32-03, 03-100)

      No.3 bearing seal support

      288.036

      outside diameter

      288.137

      0.000

      Fan frame bore diameter

      287.986

      0.151

      288.036

      Intf

    2. SUBTASK 72-32-00-430-097 Turn the Fan Frame Assembly Vertical with the Front End Up

    1. Refer to Figure.

    2. Make sure that the fan frame assembly is installed horizontally on the turnover stand. Refer to TASK 72-32-00-430-002 (Assembly-002).

    3. Release the lock pin from the hole in the handle and the hole in the support C of the turnover stand.

    4. Turn the handle to set the fan frame assembly vertical with the front end up.

    5. NOTE

      Make sure that the hole in the support C and one of the eight holes in the handle are aligned. If necessary, turn the handle to align the two holes.

      Reinstall the lock pin into position to lock the handle.

    3. SUBTASK 72-32-00-430-098 Install the Support Assembly (No. 3 Bearing, Internal Gearbox and Support Assembly) into the Fan Frame Assembly

    1. Refer to Figure, Figure, Figure and Figure.

    2. Use CoMat 02-149 DRY ICE to cause the PTO inner seal ring Fan Frame Assembly And Related Parts (72-32-03, 03-050) to be cold, Figure.

    3. Install the PTO seal ring into the PTO guide tube in the No.6 strut of the fan frame assembly.

      4. Increase the temperature of the mounting flange on the fan frame assembly, Figure.

      1. Install the IAE 1J12505 0AM53 heater 1 off on to the mounting flange.

      2. Connect the cables of the local heater to the IAE 6F10027 Heater control unit 1 off.

      3. Increase the temperature of the mounting flange to 194 deg F (90 deg C).

    5. NOTE

      The support assembly is on the work stand and this time. Refer to TASK 72-32-10-440-001 (ASSEMBLY).

      Install the seal ring (02-495) into the support assembly, Figure.

      6. Install the IAE 1J12326 Vertical sling 1 off on to the support assembly, Figure.

      1. Loosen the three nuts on the clamps (part of the vertical sling). Set the clamps in the not locked position.

      2. Put the vertical sling on to the support assembly.

      3. Set the clamps in the locked position. Tighten the nuts on the clamps.

    7. Attach a hoist to the vertical sling.

    8. WARNING

      USE APPROVED GLOVES WHEN YOU TOUCH THE LOCAL HEATER.

      Disconnect the cables of the local heater from the heater control.

    9. Remove the local heater from the mounting flange.

      10. Move the support assembly from the work stand to the fan frame assembly.

      1. Remove the 20 bolts which attach the support assembly to the work stand.

      2. Lift the support assembly until it is clear of the work stand.

      3. Move the support assembly to a position above the fan frame assembly.

      4. Lubricate "NO.3 BEARING,ROTOR CENTRE & SUPPORT ASSY (72-32-20, 01-100) packing 1 off with CoMat 10-077 APPROVED ENGINE OILS. Install the packing into the groove in the support assembly, Figure.

      5. Align the locating hole in the support assembly with the locating pin on the fan frame assembly.

      6. Slowly lower the support assembly until it is installed on the mounting flange of the fan frame assembly.

      11. Remove the vertical sling from the support assembly, Figure.

      1. Remove the hoist from the vertical sling.

      2. Loosen the three nuts on the clamps. Set the clamps the in the not locked position.

      3. Remove the vertical sling.

    12. Install an applicable cover sheet over the openings XX and YY of the No.6 strut so that the bolts do not go accidentally into the strut, Figure.

      13. Attach the support assembly to the fan frame assembly, Figure and Figure.

      1. NOTE

        Use the IAE 1J12024 Special wrench 1 off to tighten the three bolts at the holes Z.
        The two bolts (02-350) that attach the oil filter housing No. 2 And No. 3 Bearing Oil Distributor And Tubes (72-32-36, 01-100) are installed into holes X in TASK 72-32-00-430-004 (ASSEMBLY-004).

        Put the 14 bolts (02-480) into the holes of the mounting flange of the support assembly, but not into holes X and Y. Tighten the bolts lightly.

      2. Install the NF C and NF D brackets (02-466 and 02-468), Figure. on to the mounting flange of the support assembly with the four bolts (02-472) at holes Y. Tighten the bolts lightly.

      3. NOTE

        Use the special wrench (1J12024) to torque the three bolts at holes Z.

        Torque the 18 bolts (02-480 and 02-472) to 180 to 220 1bfin (22.00 and 25.00 Nm). Refer to Figure for the bolt torque sequence.

    14. Remove the cover sheet from the openings XX of and YY of the No. 6 strut.

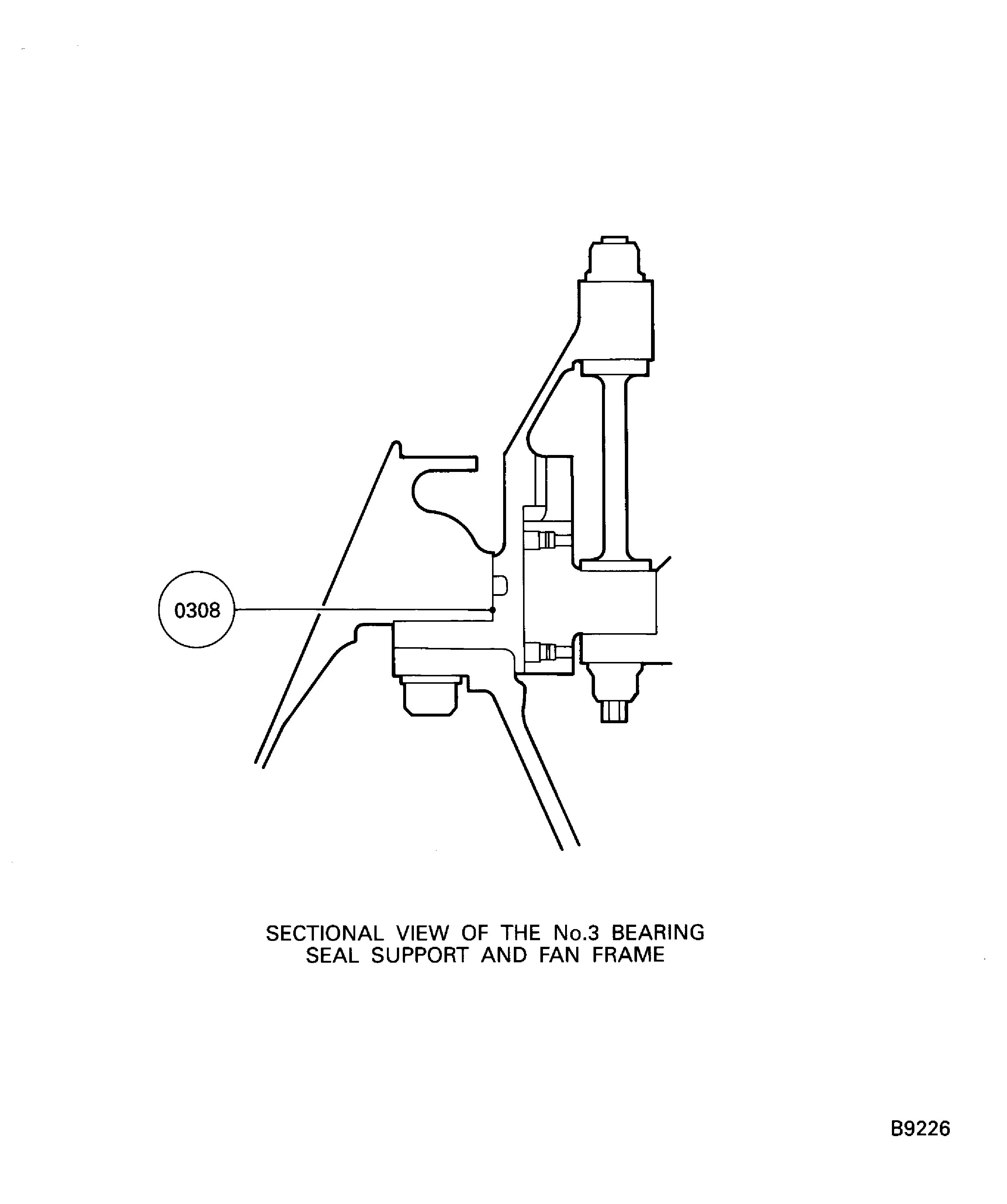

    4. Figure: Locations for the fits and clearances

    Locations for the fits and clearances

    Figure: Install the lock pin into position to lock the handle of the turnover stand

    Install the lock pin into position to lock the handle of the turnover stand

    Figure: Install the No.3 bearing, internal gearbox and support assembly into the fan frame assembly

    Install the No.3 bearing, internal gearbox and support assembly into the fan frame assembly

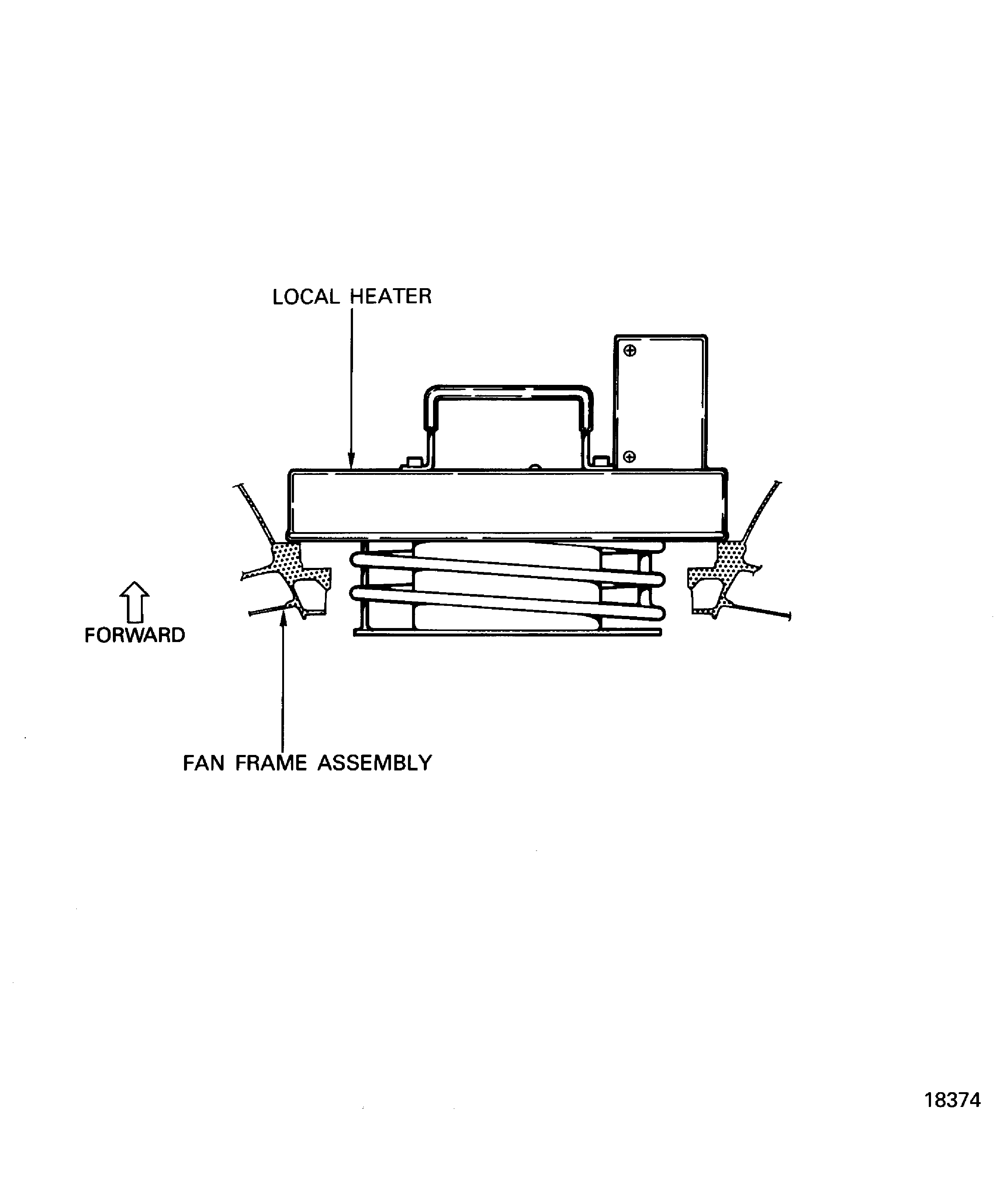

    Figure: Use the local heater to increase the temperature of the mounting flange on the fan frame assembly

    Use the local heater to increase the temperature of the mounting flange on the fan frame assembly

    Figure: Remove the No.3 bearing, internal gearbox and support assembly from the work stand

    Remove the No.3 bearing, internal gearbox and support assembly from the work stand

    Figure: Install a cover sheet to the openings of the fan frame assembly

    Install a cover sheet to the openings of the fan frame assembly

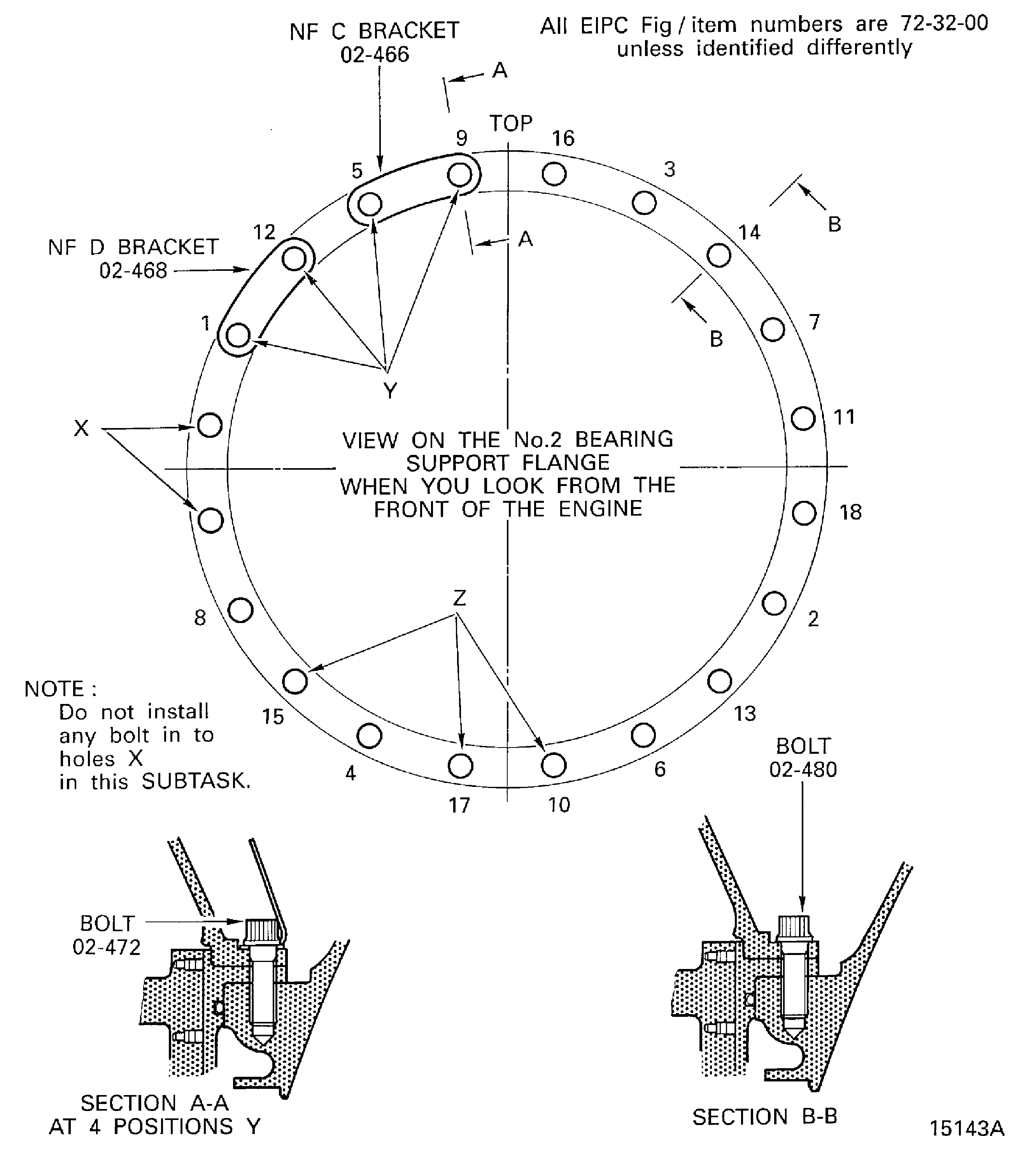

    Figure: Position of the NF C and NF D brackets and bolt torque sequence

    Position of the NF C and NF D brackets and bolt torque sequence

Requirements After Job Completion

Follow-On Conditions

NONE
