TASK 72-32-03-200-008 Engine Front Mount Bush - Examine, Inspection-008

DMC:V2500-A0-72-32-0306-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-200-008 Engine Front Mount Bush - Examine, Inspection-008

Effectivity

FIG/ITEM

PART NO.

03-075

5A1272

General

This TASK gives the procedure for the inspection of the mount tube front bush. For the other parts of the intermediate structure fan frame, refer to TASK 72-32-03-200-000 (INSPECTION-000).

Fig/Item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the parts are visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for the data on these items.

Definitions of Damages, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items are contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-230-066 Examine the Mount Tube Front Bush (03-075) for Cracks

    1. Clean the part. Refer to TASK 72-32-03-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below. Use the applicable penetrant procedure.

        PART IDENT

        TASK/SUBTASK

        Mount Tube Front Bush

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-03-220-114 Examine the Mount Tube Front Bush (03-075) Diameter

    1. Refer to Figure.

      2. Examine the outer diameter at Location 0408.

        1. Worn.

          1. If the diameter is between 1.7334 and 1.7339 in. (44.026 and 44.042 mm)

          1. Accept

          2. Less than 1.7334 in. (44.026 mm)

          1. Reject

        2. Scratched.

          1. Up to 0.004 in. (0.101 mm)

          1. Repair, VRS1791 TASK 72-32-03-300-021 (REPAIR-021)

          2. More than Step

          1. Reject

      3. Examine the inner diameter at Location 5002.

        1. Worn.

          1. If the diameter is between 1.4961 and 1.4966 in. (38.000 and 38.016 mm)

          1. Accept

          2. More than 1.4966 in. (38.016 mm)

          1. Reject

        2. Scratched.

          1. Up to 0.004 in. (0.101 mm)

          1. Repair, VRS1791 TASK 72-32-03-300-021 (REPAIR-021)

          2. More than Step

          1. Reject

    3. SUBTASK 72-32-03-220-115 Examine the Mount Tube Front Bush (03-075) Surface

    1. Refer to Figure.

      2. Examine all other surfaces.

        1. Scored or galled.

          1. Up to 0.011 in. (0.3 mm) in depth

          1. Accept

          2. More than Step

          1. Reject

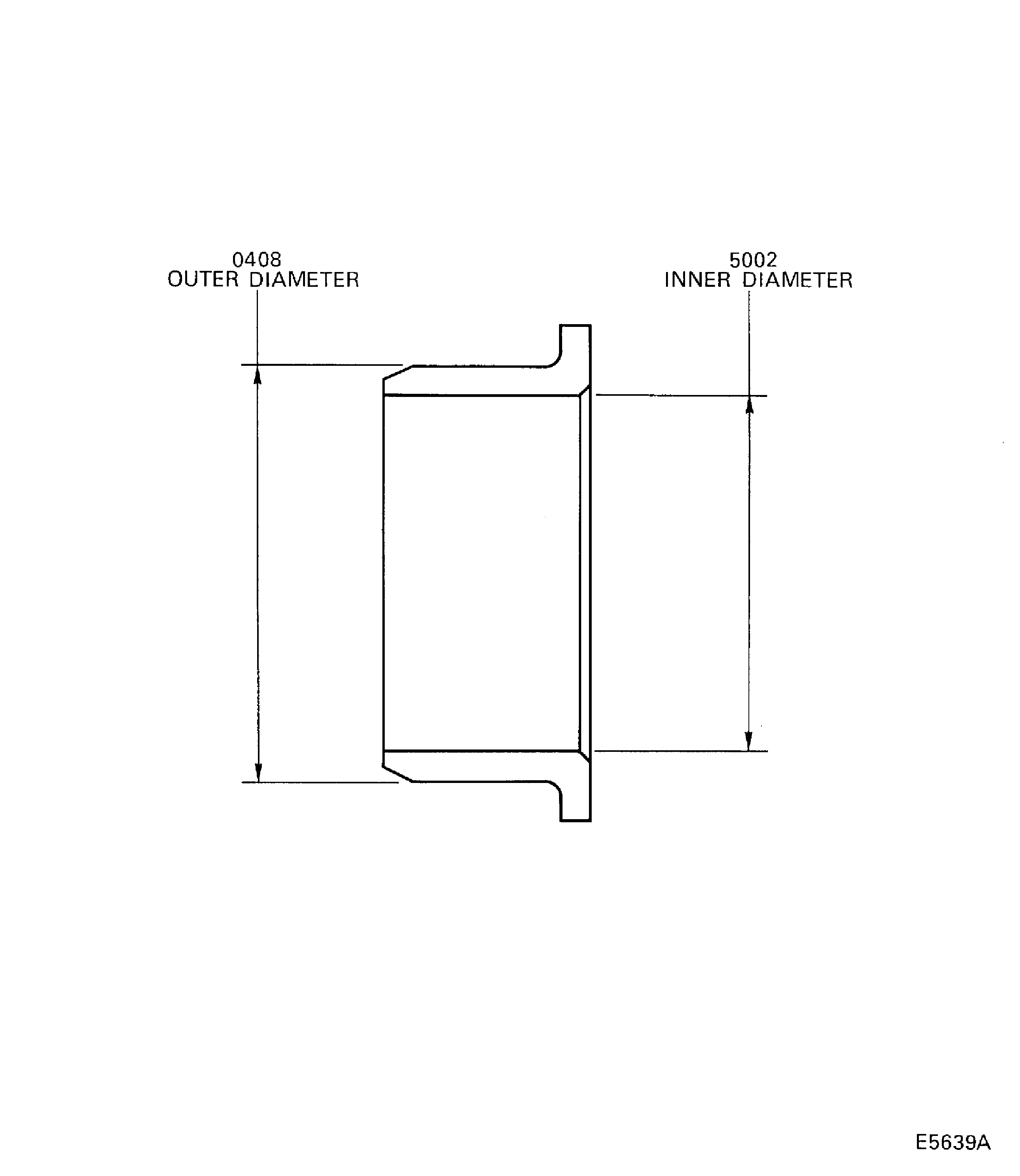

    4. Figure: Mount Tube Front Bush Inspection Locations

    Mount Tube Front Bush Inspection Locations
