TASK 72-32-03-200-009 Panel Supporting Brackets - Examine, Inspection-009

DMC:V2500-A0-72-32-0315-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-200-009 Panel Supporting Brackets - Examine, Inspection-009

Effectivity

FIG/ITEM

PART NO.

02-500

5A0046

02-500

5A1749

02-500

5A1886

02-550

5A0046

02-550

5A1749

General

This TASK gives the procedure for the inspection of the panel supporting bracket. For the other parts of fan case, refer to TASK 72-32-03-200-000 (INSPECTION-000).

All Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-03-100-000 (CLEANING-000).

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in the Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definition of Damages, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items are contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-230-071 Examine the Panel Supporting Bracket (02-500 and 02-550) for Cracks

    1. Clean the parts. Refer to TASK 72-32-03-100-000 (CLEANING-000).

      2. Do the test for cracks on the parts that are given below. Use the applicable penetrant procedure.

        PART IDENT

        TASK/SUBTASK

        Panel supporting bracket

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-03-220-129 Examine the Panel Supporting Bracket (02-500 and 02-550) all the Surfaces

    1. Refer to Figure.

      2. Examine all the surfaces.

        1. Nicked or scored

        1. Repair, VRS1711 TASK 72-32-03-300-030 (REPAIR-030)

        2. Galled.

          1. Not more than 0.010 in. (0.25 mm) in depth with no raised material

          1. Accept

          2. More than in Step

          1. Reject

      3. Dented.

        4. Not more than 0.020 in. (0.50 mm) in depth

        1. Accept

        5. More than in Step

        1. Reject

    3. SUBTASK 72-32-03-220-130 Examine the Panel Supporting Bracket (02-500 and 02-550) Bolt Hole

    1. Refer to Figure.

      2. Examine the bolt holes at location 1.

        1. Burred, nicked or scored

        1. Repair, VRS1711 TASK 72-32-03-300-030 (REPAIR-030)

        2. Galled.

          1. Not more than 0.010 in. (0.25 mm) in depth with no raised material

          1. Accept

          2. More than in Step

          1. Reject

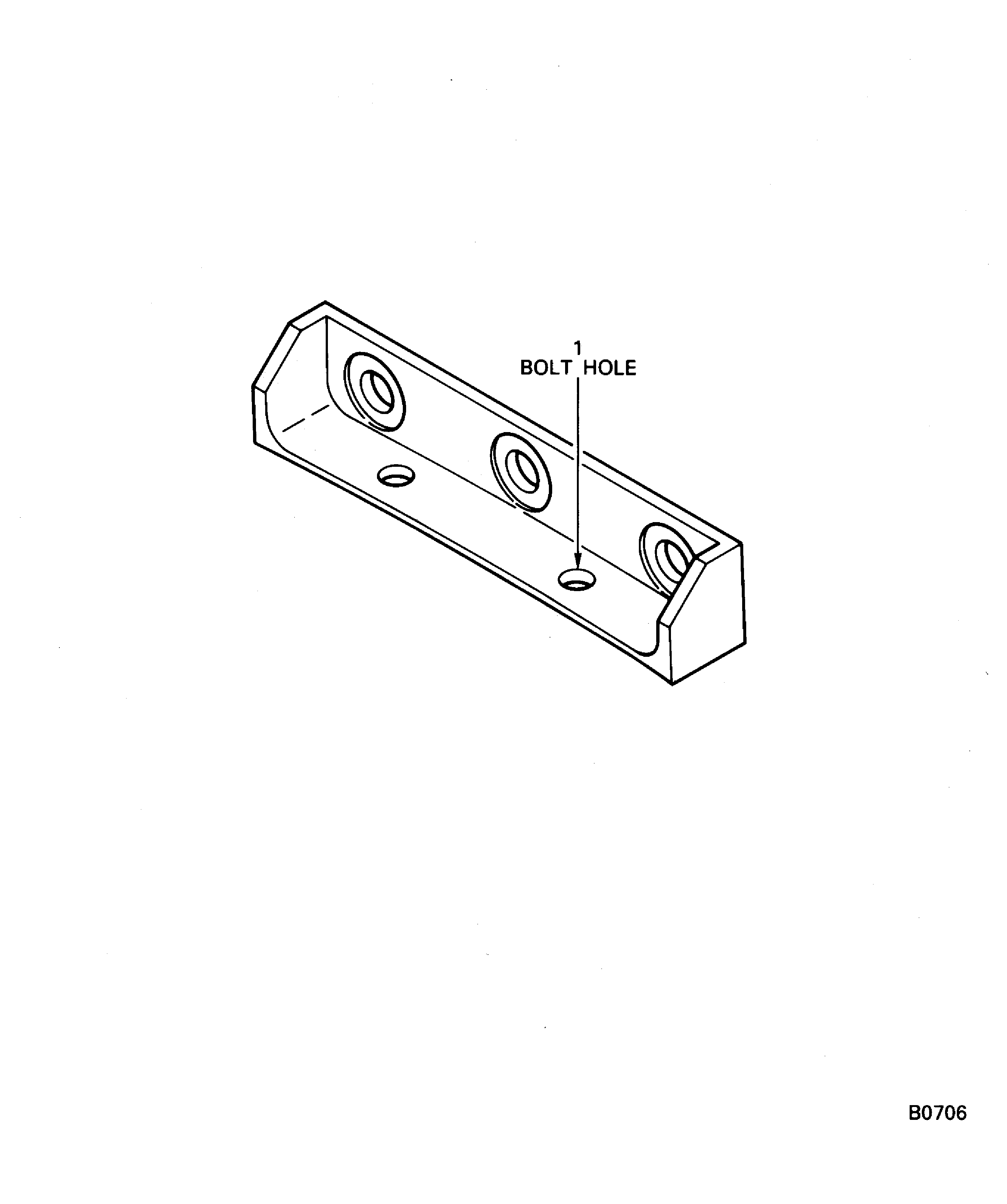

    4. Figure: Location on the Panel Supporting Bracket

    Location on the Panel Supporting Bracket

Requirements After Job Completion

Follow-On Conditions

NONE
