TASK 72-32-16-200-001 Gearshaft Bearing Housing - Examine, Inspection-001

DMC:V2500-A0-72-32-1601-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-16-200-001 Gearshaft Bearing Housing - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-150

5A0982

01-150

5A6234

General

This TASK gives the procedure for the inspection of the gearshaft bearing housing assembly. For the other internal gearbox driven gear assembly parts, refer to TASK 72-32-16-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-16-100-000.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-00-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-16-230-053 Examine the Gearshaft Bearing Housing Assembly (01-150) for Cracks

    1. Clean the part. Refer to TASK 72-32-16-100-000.

      2. Do the test for cracks on the parts that are given below. Use the applicable fluorescent penetrant inspection procedure.

        PART IDENT

        TASK/OP

        Gearshaft Bearing Housing Assembly

        SPM

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-16-220-073 Examine the Gearshaft Bearing Housing Assembly (01-150) Faces

    1. Refer to Figure.

      2. Examine the faces at location 1.

        1. Scored

        1. Repair, VRS1196 TASK 72-32-16-300-009

    3. SUBTASK 72-32-16-220-074 Examine the Gearshaft Bearing Housing Assembly (01-150) Face

    1. Refer to Figure.

      2. Examine the face at location 2.

        1. Galled

        1. Repair, VRS1196 TASK 72-32-16-300-009

    4. SUBTASK 72-32-16-220-075 Examine the Gearshaft Bearing Housing Assembly (01-150) Bolt Holes

    1. Refer to Figure.

      2. Examine the bolt holes at location 3.

        1. Burred

        1. Repair, VRS1196 TASK 72-32-16-300-009

    5. SUBTASK 72-32-16-220-076 Examine the Gearshaft Bearing Housing Assembly (01-150) Housing Bore and Shoulder

    1. Refer to Figure.

      2. Examine the housing bore and shoulder at location 4.

        1. Scored

        1. Repair, VRS1197 TASK 72-32-16-300-010

        2. Chipped and cracked

        1. Repair VRS1197 TASK 72-32-16-300-010

        3. Worn

          1. If the housing bore is between 2.9522 and 2.9529 in. (74.985 and 75.004 mm)

          1. Accept

          2. More than 2.9529 in. (75.004 mm)

          1. Repair, VRS1197 TASK 72-32-16-300-010

    6. SUBTASK 72-32-16-220-077 Examine the Gearshaft Bearing Housing Assembly (01-150) Inside Diameter

    1. Refer to Figure.

      2. Examine the inside diameter at location 5.

        1. Scored

        1. Repair, VRS1196 TASK 72-32-16-300-009

    7. SUBTASK 72-32-16-220-078 Examine the Gearshaft Bearing Housing Assembly (01-150) Snap Diameter

    1. Refer to Figure.

      2. Examine the snap diameter at location 6.

        1. Worn.

          1. If the snap diameter is between 6.0642 and 6.0649 in. (154.030 and 154.050 mm)

          1. Accept

          2. Less than 6.0642 in. (154.030 mm)

          1. Repair, VRS1198 TASK 72-32-16-300-012

        2. Scored

        1. Repair, VRS1196 TASK 72-32-16-300-009

    8. SUBTASK 72-32-16-220-079 Examine the Gearshaft Bearing Housing Assembly (01-150) Insert

    1. Refer to Figure.

      2. Examine the insert at location 7.

        1. Loose

        1. Repair, VRS1195 TASK 72-32-16-300-011

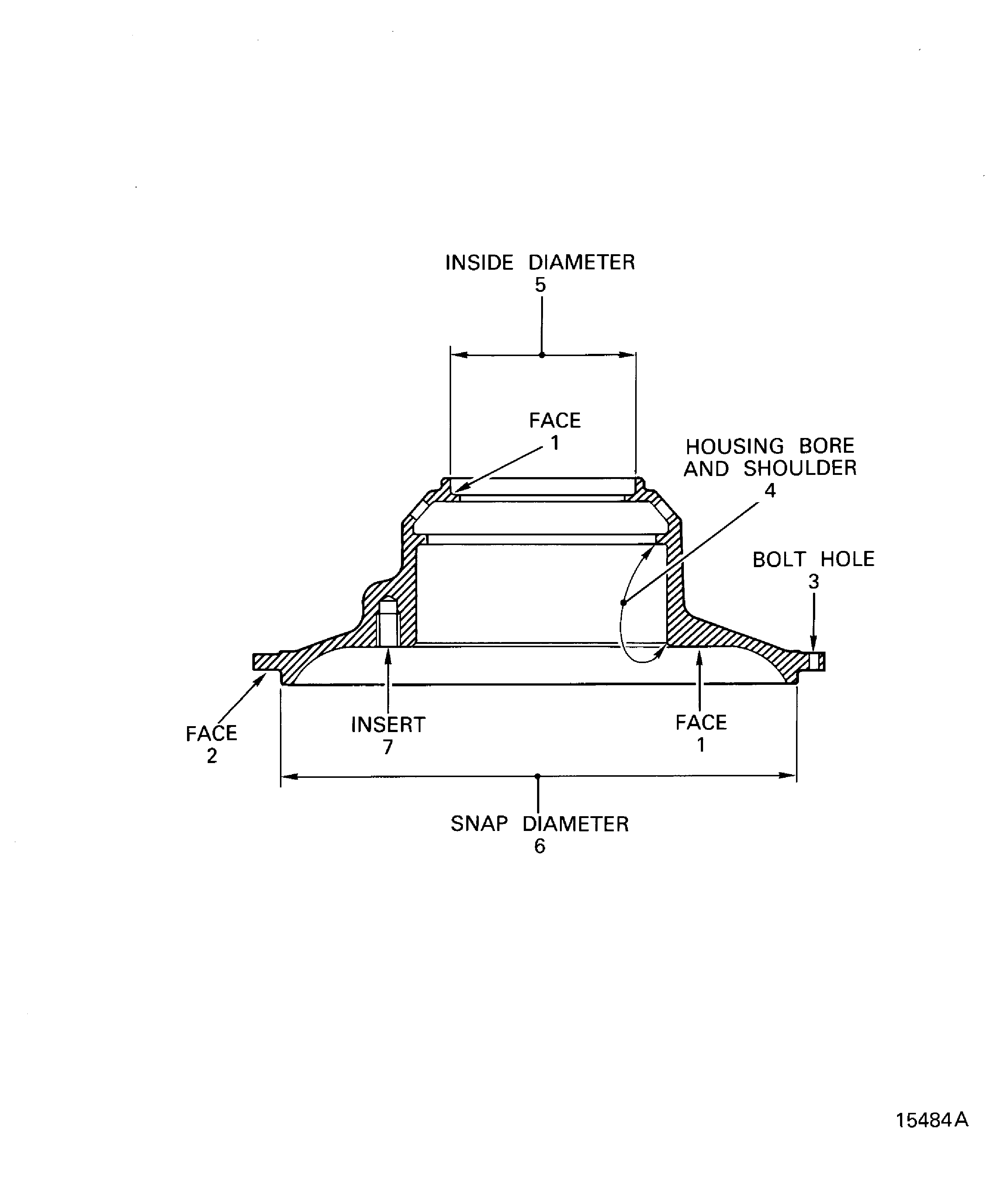

    9. Figure: Locations on the gearshaft bearing housing

    Locations on the gearshaft bearing housing

Requirements After Job Completion

Follow-On Conditions

NONE
