TASK 72-32-16-200-002 Gearbox Gearshaft Bearing Retaining Plate - Examine, Inspection-002

DMC:V2500-A0-72-32-1621-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-16-200-002 Gearbox Gearshaft Bearing Retaining Plate - Examine, Inspection-002

Effectivity

FIG/ITEM

PART NO.

01-170

5A0778

01-170

5A1600

General

This TASK gives the procedure for the inspection of the retaining plate. For the other internal gearbox driven gear assembly parts, refer to TASK 72-32-16-200-000 (INSPECTION-000)

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-16-100-000 (CLEANING-000)

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, TASK 70-02-02-350-501

Inspection of Parts, TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-16-240-051 Examine the Retaining Plate (01-170) for Cracks

    1. Clean the part. Refer to TASK 72-32-16-100-000 (CLEANING-000).

      2. Do the crack test on the part that is given below. Use the applicable magnetic inspection procedure.

        PART IDENT

        TASK/SUBTASK

        Retaining plate

      1. Threading bar 500 amp wet continuous TASK 70-24-01-240-501

      2. Current induction 6000 amp turns wet continuous TASK 70-24-01-240-501

        3. Cracked

        1. Reject

    2. SUBTASK 72-32-16-220-052 Examine the Retaining Plate (01-170) Surfaces

    1. Refer to Figure.

      2. Examine all the surfaces at location 1.

        1. Galled.

          1. Any galls

          1. Repair, VRS1199 TASK 72-32-16-300-001 (REPAIR-001)

    3. SUBTASK 72-32-16-220-053 Examine the Retaining Plate (01-170) Bolt Holes

    1. Refer to Figure.

      2. Examine the bolt holes at location 2.

        1. Burred

        1. Repair, VRS1199 TASK 72-32-16-300-001 (REPAIR-001)

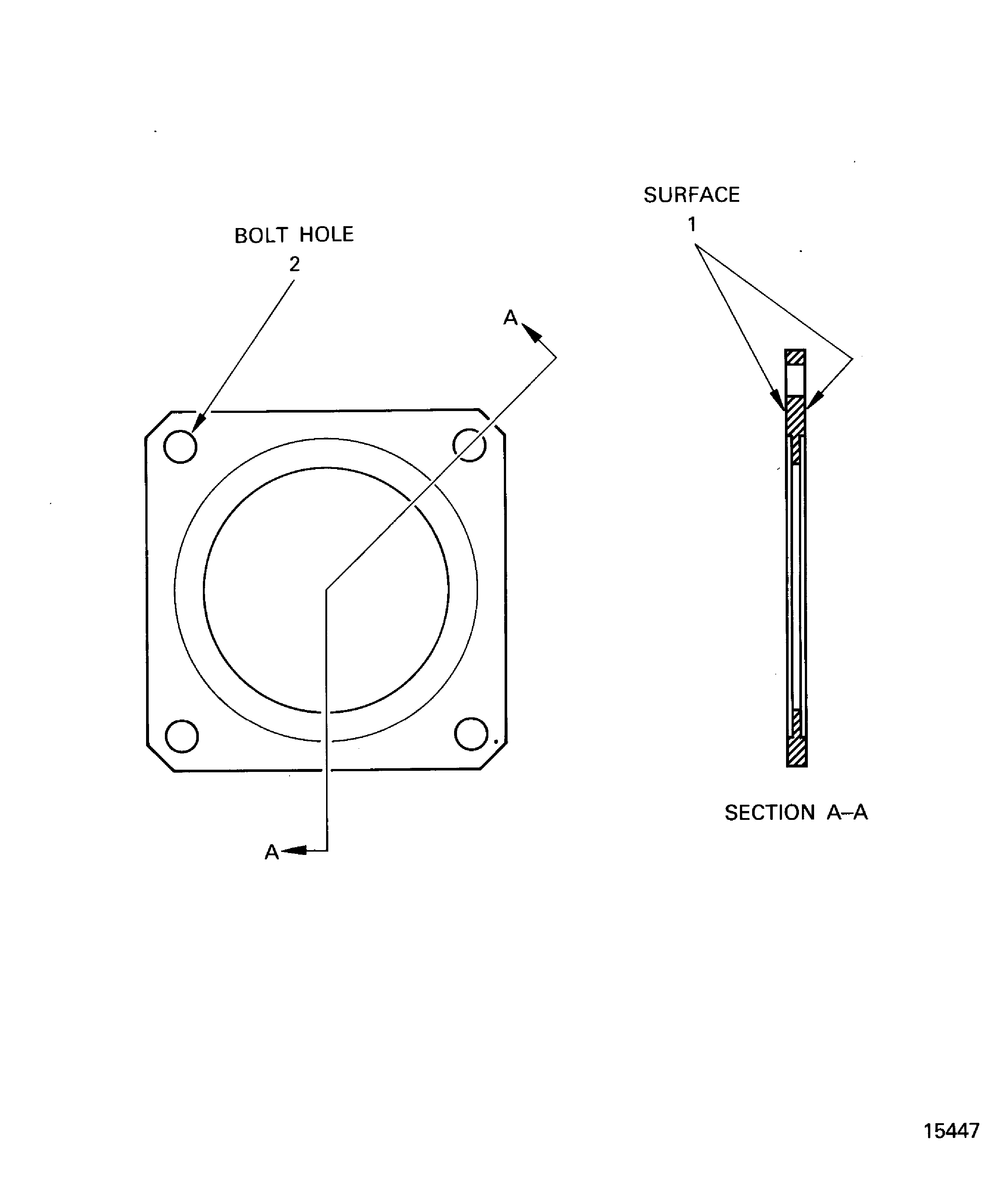

    4. Figure: Locations on the retaining plate

    Locations on the retaining plate

Requirements After Job Completion

Follow-On Conditions

NONE
