TASK 72-32-51-300-019 LP Rotor Center Shaft - Repair By Plasma Spraying The Seal Surface, Repair-019 (VRS1941)

DMC:V2500-A0-72-32-5101-03A-609A-C|Issue No:002.00|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-51-300-019 LP Rotor Center Shaft - Repair By Plasma Spraying The Seal Surface, Repair-019 (VRS1941)

Effectivity

FIG/ITEM

PART NO.

01-100

5R7016

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Rotor Center Shaft

Titanium alloy

General

Price and Availability

Refer to IAE for any of the following:

Tools

Engine parts

Repair of spares

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

This Repair scheme gives the procedure for plasma spraying the seal surface of the rotor center shaft.

The use of clean gloves is necessary to carefully prevent contamination by perspiration or by salts.

NOTE

Equivalent equipment may be used.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
LatheLOCALLathe
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent Penetrant Inspection Equipment
Pressure Shotpeen SystemLOCALPressure Shotpeen System
Abrasive Blast EquipmentLOCALAbrasive Blast Equipment
Magnifying glassLOCALMagnifying glass

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-003 ADHESIVE TAPE BLACK WATERPROOFLOCALCoMat 02-003
CoMat 02-006 ADHESIVE TAPE ALUMINIUM FOILK0993CoMat 02-006
CoMat 03-038 METAL SPRAYING POWDER NICKEL ALUMINIUM (95/5)IE200CoMat 03-038
CoMat 05-031 CAST STEEL SHOT DELETED0AM53CoMat 05-031
CoMat 05-130 ABRASIVE DELETED0AM53CoMat 05-130

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-51-325-054 Machine the Worn Seal Surface

    1. Refer to Figure and Figure.

      2. Locate the rotor center shaft on a lathe, set the rotor center shaft to run true. Secure the rotor center shaft.

      1. Use a lathe.

      3. Machine the seal surface between 7.4198 in. (188.463 mm) and 7.4079 in. (188.160 mm). Break any sharp edges.

      1. Machining data is given for guidance only.

        Machining data

        Machine speed

        65.62 ft (20 m) per minute

        Rate of feed

        0.1in. (2.54 mm) per revolution

        NOTE

        Hold the diameter to a minimum to allow for subsequent repairs. However any previous coating and damage must be removed.
        If more than 7.4198 in. (188.463 mm), reject the rotor center.

    2. SUBTASK 72-32-51-220-113 Inspect the Rotor Center Shaft

      1. Do a visual inspection for the machined area.

      1. Refer to the SPM TASK 70-21-01-220-501.

    2. Dimensionally inspect the machined area.

    3. SUBTASK 72-32-51-230-063 Examine the Rotor Center Shaft for Cracks

      1. Do a crack test.

      1. Refer to the SPM TASK 70-23-03-230-501.

        No cracks permitted.

    4. SUBTASK 72-32-51-380-059 Shot Peen the Rotor Center Shaft

    1. Refer to Figure.

      2. Apply the masking tape.

      1. Apply the masking tape to the areas which are not to be shot peened.

      3. Shot peen the seal surface to an intensity of 6A.

      1. Do the procedure given in the SPM TASK 70-38-04-300-503.

        Complete coverage is required.

    5. SUBTASK 72-32-51-120-055 Abrasive Blast the Rotor Center Shaft

    1. Refer to Figure.

      2. Mask off areas that are not to be plasma sprayed.

      3. Abrasive blast the rotor center shaft surface to be plasma sprayed.

        1. Refer to the SPM TASK 70-34-01-340-501.

        2. Amount of dimensional change by blasting is negligible and does not affect subsequent procedure.

    6. SUBTASK 72-32-51-340-055 Apply Plasma Spray on the Seal Surface

    1. Refer to Figure.

      2. Touch up masking if necessary.

      3. Apply plasma spray. A diameter of 7.391 in. (187.75 mm) is required after plasma spraying.

    7. SUBTASK 72-32-51-324-061 Machine the Seal Surface

    1. Refer to Figure.

      2. Machine the plasma sprayed seal surface between 7.4040 in. (188.063 mm) and 7.4016 in. (188.000 mm).

      1. Use a lathe.

        NOTE

        Machining data is given for guidance only.

        Machining data

        Machine speed

        65.62 ft (20 m) per minute

        Rate of feed

        0.1in. (2.54 mm) per revolution

    3. Dress to remove the metal sprayed step from the lead in chamfer, blend to form a uniform chamfer profile.

    8. SUBTASK 72-32-51-220-114 Examine the Rotor Center Shaft

      1. Do a visual inspection.

        1. Us a magnification glass.

        1. Visually examine the plasma sprayed area for chips, cracks, lifted material and coating that is not attached to the parent material. Surfaces that show heat cracks are not permitted.

    9. SUBTASK 72-32-51-350-070 Identify the Repair

    1. Refer to Figure.

      2. Make a beehive symbol mark with the letters PS inside the beehive and mark VRS1941 adjacent to part number as shown.

        1. Make a permanent mark by the procedure given in the SPM TASK 70-09-00-400-501.

        1. Use electrolytic permanent mark.

    10. Figure: Rotor Center Shaft

    Rotor Center Shaft

    Figure: Machine the worn seal surface

    Machine the worn seal surface

    Figure: Apply plasma spray

    Apply plasma spray

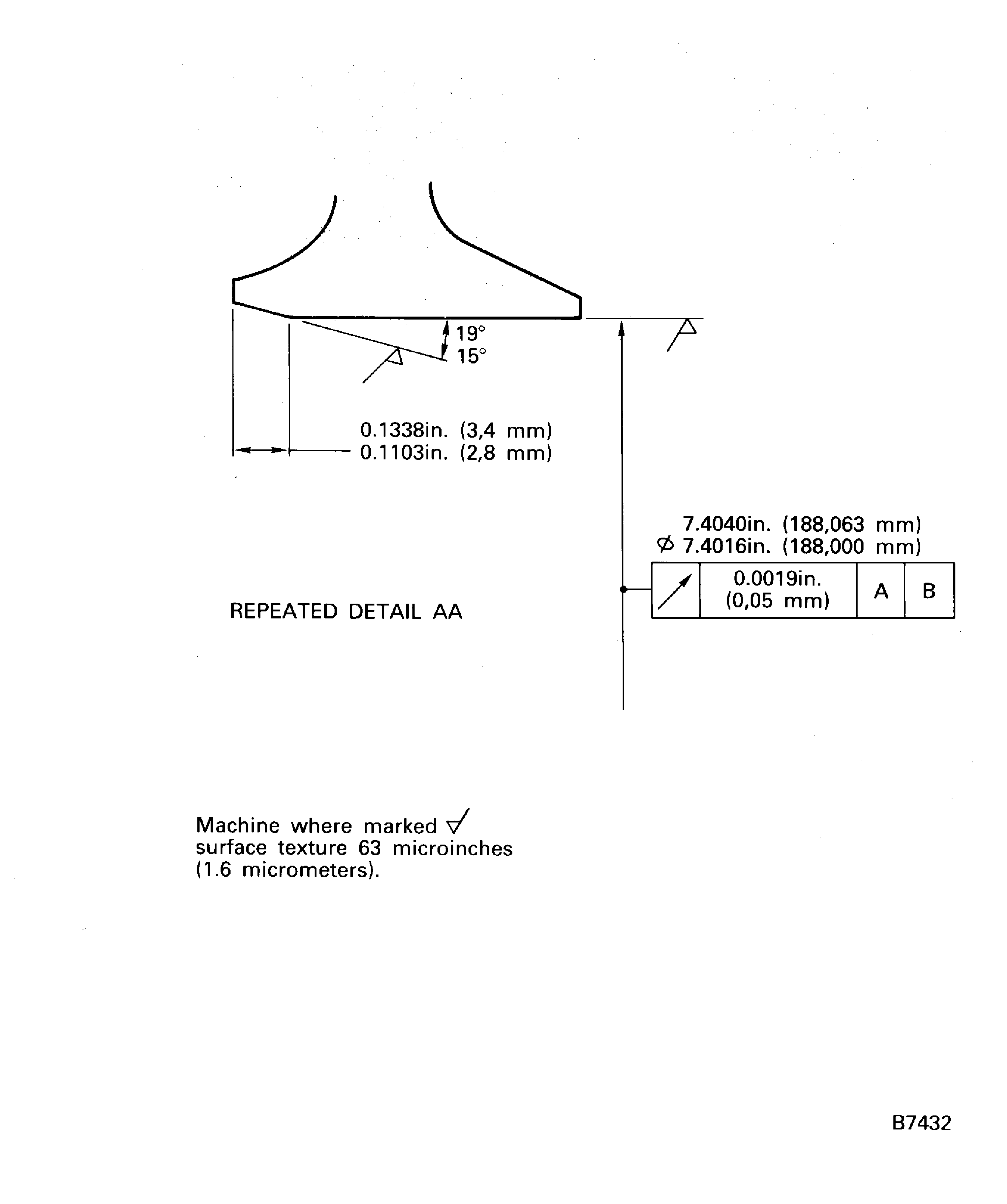

    Figure: Machine the seal surface

    Machine the seal surface

Requirements After Job Completion

Follow-On Conditions

NONE
