TASK 72-32-51-200-005 Front Seal Runner Ring - Examine, Inspection-005

DMC:V2500-A0-72-32-5102-01A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-51-200-005 Front Seal Runner Ring - Examine, Inspection-005

Effectivity

FIG/ITEM

PART NO.

01-200

5R0068

General

This TASK gives the procedure for the inspection of the nut ring. For the other parts of the LP stub shaft and rotor center, refer to TASK 72-32-51-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-51-100-000 (CLEANING-000).

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for the data on these items.

Definitions of damage, SPM TASK 70-02-02-350-501

Inspection of parts, SPM TASK 70-20-00-200-501

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Magnetic particle inspection equipmentLOCALMagnetic particle inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-011 MAGNETIC PARTICLES, FLUORESCENT, DRY POWDERLOCALCoMat 06-011

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-51-240-062 Examine the Nut Ring (01-200) for Cracks

    1. Clean the part. Refer to TASK 72-32-51-100-000.

      2. Do the crack test on the part that is given below. Use the applicable magnetic particle inspection procedure.

        PART IDENT

        PROCEDURE

        CURRENT/INSPECT

        TASK/SUBTASK

        Nut

        Threading Bar Inspect using continuous wet or simultaneous inking with CoMat 06-011 MAGNETIC PARTICLES, FLUORESCENT, DRY POWDER

        1000 amp Nut outside diameter visually inspect for longitudinal and radial defects. Check doubtful indications using low power magnification. If necessary, inspect under white light at 15X binocular

        1-turn solenoid continuous wet or simultaneous inking

        2000 A/T Do again the magnetisation and inspection along nut length. Visually inspect for circumferential defects. Check doubtful indications using low power magnification. If necessary, inspect under white light at 15X binocular

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-51-220-149 Examine the Nut Ring (01-200) Captive Nuts

    1. Refer to Figure.

      2. Examine the captive nuts at location 1.

        1. Loose or damaged

        1. Repair, VRS1857 TASK 72-32-51-300-026 (REPAIR-026)

    3. SUBTASK 72-32-51-220-150 Examine the Nut Ring (01-200) Threads

    1. Refer to Figure.

      2. Examine the threads at location 2.

        1. Worn or damaged

        1. Reject

    4. SUBTASK 72-32-51-220-151 Examine the Nut Ring (01-200) Other Surfaces

      1. Nicked.

        1. Not more than 0.005 in. (0.12 mm) in depth

        1. Repair, VRS1856 TASK 72-32-51-300-025 (REPAIR-025)

        2. More than 0.005 in (0.12 mm)

        1. Reject

      2. Scored.

        1. Not more than 0.005 in. (0.12 mm) in depth

        1. Repair, VRS1856 TASK 72-32-51-300-025 (REPAIR-025)

        2. More than 0.005 in (0.12 mm)

        1. Reject

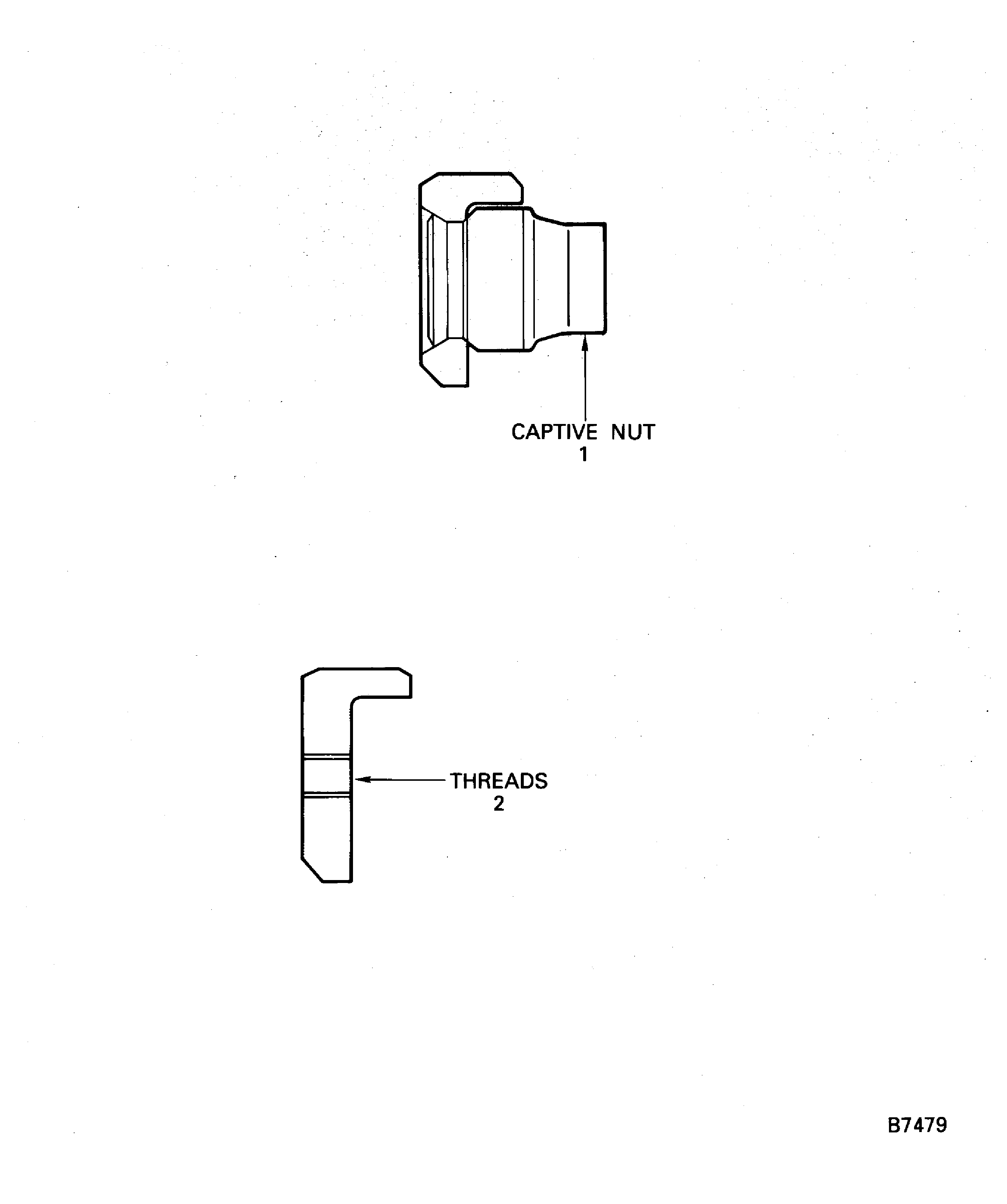

    5. Figure: Ring - A/O Nut

    Ring - A/O Nut

Requirements After Job Completion

Follow-On Conditions

NONE
