TASK 72-32-57-200-101 No. 1 Bearing Compartment Air Tube - Examine, Inspection-001

DMC:V2500-A0-72-32-5700-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-57-200-101 No. 1 Bearing Compartment Air Tube - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-100

5R0233

01-100

5R0240

General

This TASK gives the procedure for the inspection of the No.1 bearing compartment air tubes.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All parts must be cleaned before any part is examined. Refer to Cleaning-000 TASK 72-32-57-100-100.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definition of Damages, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications.

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-57-230-051 Do a Crack Test on the Air Feed Tube (01-100)

    1. Clean the parts. Refer to Cleaning-000 TASK 72-32-57-100-100.

      2. Do the test for cracks on the parts that are given below. Use the applicable penetrant procedure.

        1. Air feed tube. Refer to SPM TASK 70-23-01-230-501.

          1. Cracked

          1. Reject

    2. SUBTASK 72-32-57-220-054 Examine the Air Feed Tube (01-100) Surface

    1. Refer to Figure.

      2. Dented

        1. Any dents within 0.50 in. (12.70 mm) from any weld joint.

        1. Reject

        2. Smooth dents less than one tenth diameter in depth, with bore reduction less than 10 per cent at each area.

        1. Accept

        3. More than in Step.

        1. Reject

      3. Nicked

        1. Nicks on the outer surface of bends.

        1. Reject

        2. Nicks that are round bottomed and less than 0.005 in. (0.13 mm) in depth.

        1. Repair, VRS1310 (Repair-001) TASK 72-32-57-300-001.

        3. More than in Step.

        1. Reject

      4. Scratched or scored

        1. Scratches or scores on the outer surface of bends.

        1. Reject

        2. Scratches or scores that are less than 0.005 in. (0.13 mm) in depth.

        1. Repair, VRS1310 (Repair-001) TASK 72-32-57-300-001.

        3. More than in Step.

        1. Reject

      5. Galled or fretted

        1. Galling or fretting on the outer surface of bends.

        1. Reject

        2. Galling or fretting on the tube surface that are less than 0.005 in. (0.13 mm) in depth.

        1. Repair, VRS1310 (Repair-001) TASK 72-32-57-300-001.

        3. More than in Step.

        1. Reject

    3. SUBTASK 72-32-57-220-055 Examine the Air Feed Tube (01-100) End Fittings

    1. Refer to Figure.

      2. Abutment face

        1. Galled

        1. Repair, VRS1310 (Repair-001) TASK 72-32-57-300-001.

      3. Sealing ring groove.

        1. Galled

        1. Reject

      4. Sealing ring groove flange.

        1. Galling or fretting that are less than 0.005 in. (0.13 mm) in depth.

        1. Repair, VRS1310 (Repair-001) TASK 72-32-57-300-001.

        2. More than in Step.

        1. Reject

    4. SUBTASK 72-32-57-220-052 Examine the Air Feed Tube Bore (01-100)

    1. Refer to Figure.

      2. Plugged (Obstructed)

      1. Be clear with air blast.

      3. Contaminated

      1. Clean, Cleaning-000 TASK 72-32-57-100-100.

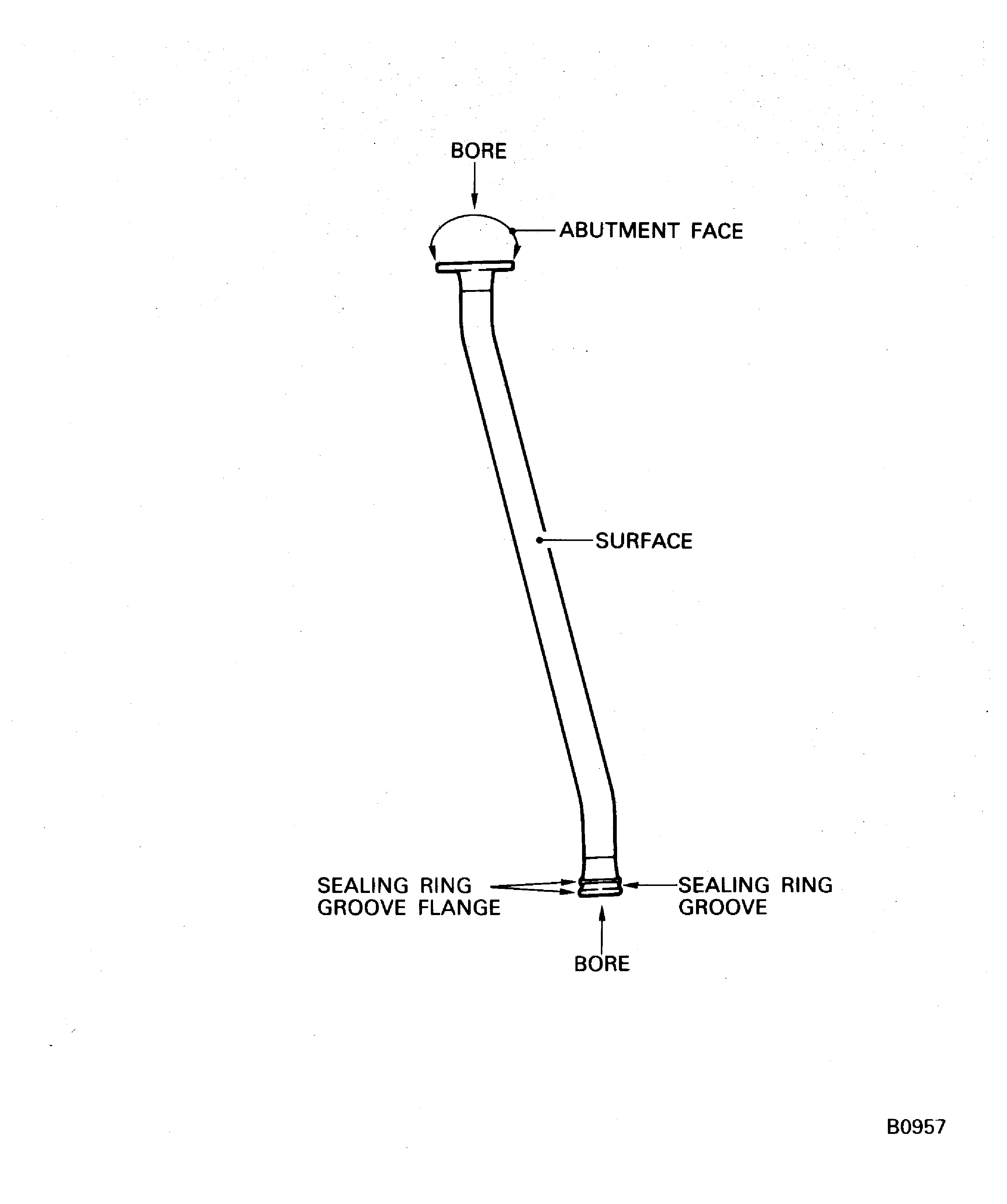

    5. Figure: Air Feed Tube

    Air Feed Tube

Requirements After Job Completion

Follow-On Conditions

NONE
