TASK 72-32-72-200-001-B00 LPC Bleed Valve Ring - Examine, Inspection-001

DMC:V2500-A0-72-32-7200-00B-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-72-200-001-B00 LPC Bleed Valve Ring - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-100

5A3734

General

This TASK gives the procedure for the inspection of the valve assembly.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-72-100-000 (CLEANING-000).

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in SUBTASK 72-32-72-230-052. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definition of Damages, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-00-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-72-230-059 Examine the Valve Assemblies (01-100) for Cracks

    1. Clean the parts. Refer to TASK 72-32-72-100-001 (CLEANING-000).

      2. Do the test for cracks on the parts that are given below. Use the applicable penetrant procedure.

        PART IDENT

        TASK/SUBTASK

        Valve

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-72-220-080 Examine the Valve Assemblies (01-100) Sealing Face

    1. Refer to Figure.

      2. Examine the sealing faces at location 1.

        1. Galled

        1. Repair, VRS1333 TASK 72-32-72-300-001 (REPAIR-001)

    3. SUBTASK 72-32-72-220-081 Examine the Valve Assemblies (01-100) Hinge Faces

    1. Refer to Figure.

      2. Examine the hinge faces at location 2.

        1. Nicked.

          1. Not more than 0.01 in. (0.25 mm) in depth

          1. Accept

          2. More than in Step

          1. Reject

        2. Scratched.

          1. Not more than 0.01 in. (0.25 mm) in depth

          1. Accept

          2. More than in Step

          1. Reject

    4. SUBTASK 72-32-72-220-082 Examine the Valve Assemblies (01-100) Pin Hole Diameters at Location 0445 and 0451

    1. Refer to Figure.

      2. Worn at location 0445.

        1. If the diameter is between 0.1882 and 0.1889 in. (4.78 and 4.80 mm)

        1. Accept

      2. Write down the dimensions of the diameters

        3. More than in Step

        1. Repair, VRS1360 TASK 72-32-72-300-008 (REPAIR-008)

      3. Worn at location 0451.

        1. If the diameter is between 0.2363 and 0.2371 in. (6.000 and 6.024 mm)

        1. Accept

      2. Write down the dimensions of the diameters

        3. More than in Step

        1. Repair, VRS1360 TASK 72-32-72-300-008 (REPAIR-008)

    5. SUBTASK 72-32-72-220-083 Examine the Valve Assemblies (01-100) Bonding Area

    1. Refer to Figure.

      2. Examine the bonding area at location 5.

        1. Unbond, even partially

        1. Repair, VRS1334 TASK 72-32-72-300-002(REPAIR 002)

    6. SUBTASK 72-32-72-220-084 Examine the Valve Assemblies (01-100) Seal

    1. Refer to Figure.

      2. Examine the seal at location 6.

        1. Missing

        1. Repair, VRS1334 TASK 72-32-72-300-002(REPAIR-002)

        2. Damaged

        1. Repair, VRS1334 TASK 72-32-72-300-002 (REPAIR-002)

    7. SUBTASK 72-32-72-220-085 Examine the Valve Assemblies (01-100) Flow Path Surface

    1. Refer to Figure.

      2. Examine the flow path surface at location 7.

        1. Nicked.

          1. Not more than 0.010 in. (0.25 mm) in depth

          1. Repair, VRS1333 TASK 72-32-72-300-001(REPAIR-001)

          2. More than in Step

          1. Reject

        2. Dented.

          1. Not more than 0.010 in. (0.25 mm) in depth

          1. Repair, VRS1333 TASK 72-32-72-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

    8. SUBTASK 72-32-72-220-086 Examine the Valve Assemblies (01-100) Sealing Area

    1. Refer to Figure.

      2. Examine the sealing area at location 8.

        1. Galled

        1. Reject

    9. SUBTASK 72-32-72-220-087 Examine the Valve Assemblies (01-100) Arm

    1. Refer to Figure.

      2. Examine the arm at location 9.

        1. Galled.

          1. Not more than 0.005 in. (0.12 mm) in depth

          1. Repair VRS1333 TASK 72-32-72-300-001 (REPAIR-001)

          2. More than in Step

          1. Reject

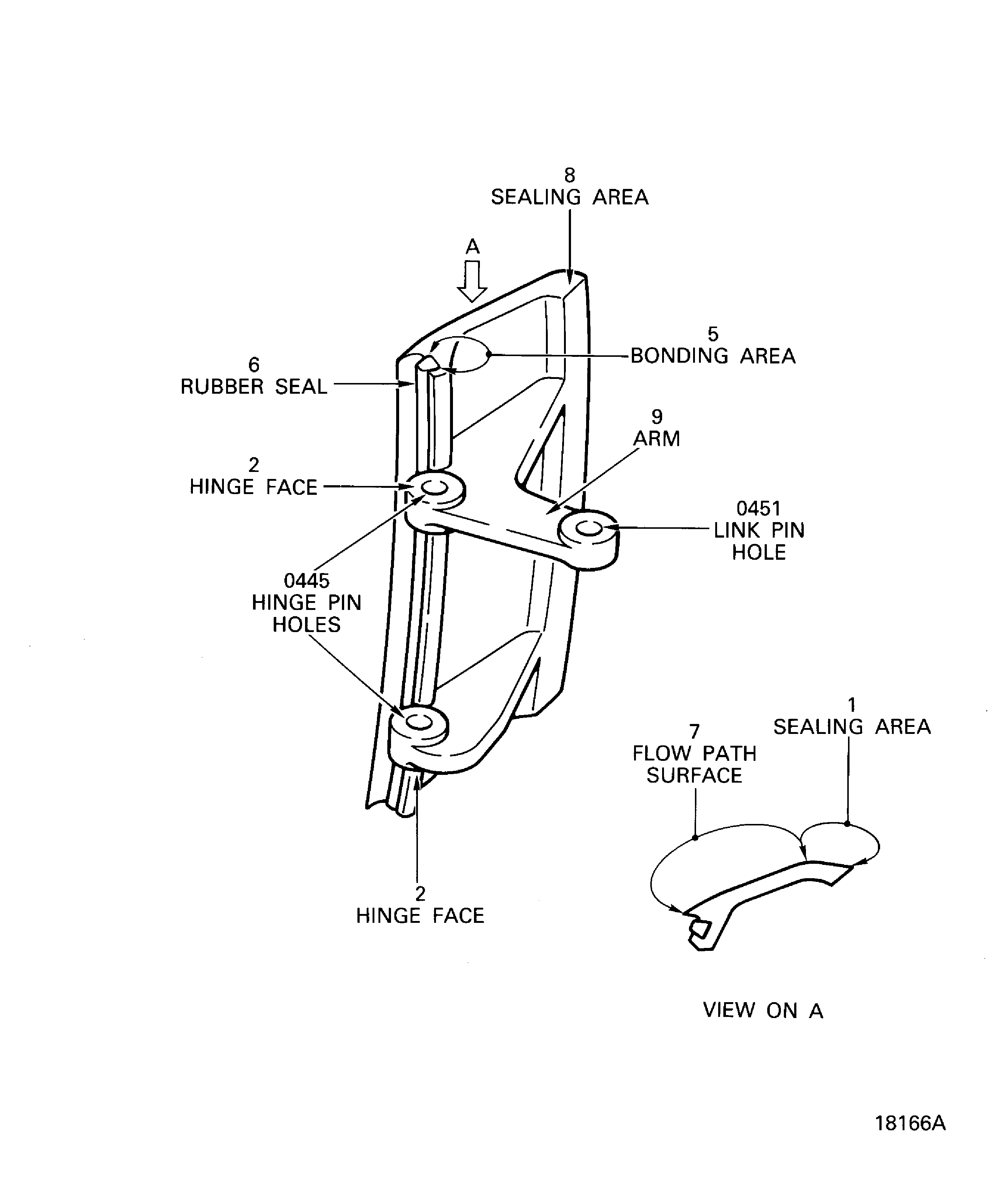

    10. Figure: Location on the Valve Assembly

    Location on the Valve Assembly
