TASK 72-32-73-200-001-A00 LPC Bleed Valve Synchronizing Ring - Examine, Inspection-001

DMC:V2500-A0-72-32-7301-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-73-200-001-A00 LPC Bleed Valve Synchronizing Ring - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-150

5A3724

General

This TASK gives the procedure for the inspection of the synchronize ring assembly.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-73-100-000.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-73-220-052 Examine the Synchronize Ring Assembly (01-150) Synchronize Ring

    1. Refer to Figure.

      2. Examine the synchronize ring at location 1.

        1. Nicked

        1. Repair, VRS1335 TASK 72-32-73-300-001

        2. Scratched

        1. Repair, VRS1335 TASK 72-32-73-300-001

    2. SUBTASK 72-32-73-220-053 Examine the Synchronize Ring Assembly (01-150) Pin Holes

    1. Refer to Figure.

      2. Examine the pin holes at location 2.

        1. Worn.

          1. If the pin hole diameter is between 0.1642 and 0.1651 in. (4.170 and 4.194 mm)

          1. Accept

          2. More than 0.1651 in. (4.194 mm)

          1. Reject

      3. Examine the pin holes at location 3.

        1. Worn.

          1. If the pin hole diameter is between 0.3938 and 0.3948 in. (10.000 and 10.030 mm)

          1. Accept

          2. More than 0.3948 in. (10.030 mm)

          1. Repair, VRS1361 TASK 72-32-73-300-003

    3. SUBTASK 72-32-73-220-054 Examine the Synchronize Ring Assembly (01-150) Guide Assembly

    1. Refer to Figure.

      2. Examine the guide assembly at location 4.

        1. Loose

        1. Repair, VRS1336 TASK 72-32-73-300-002

        2. Missing

        1. Repair, VRS1336 TASK 72-32-73-300-002

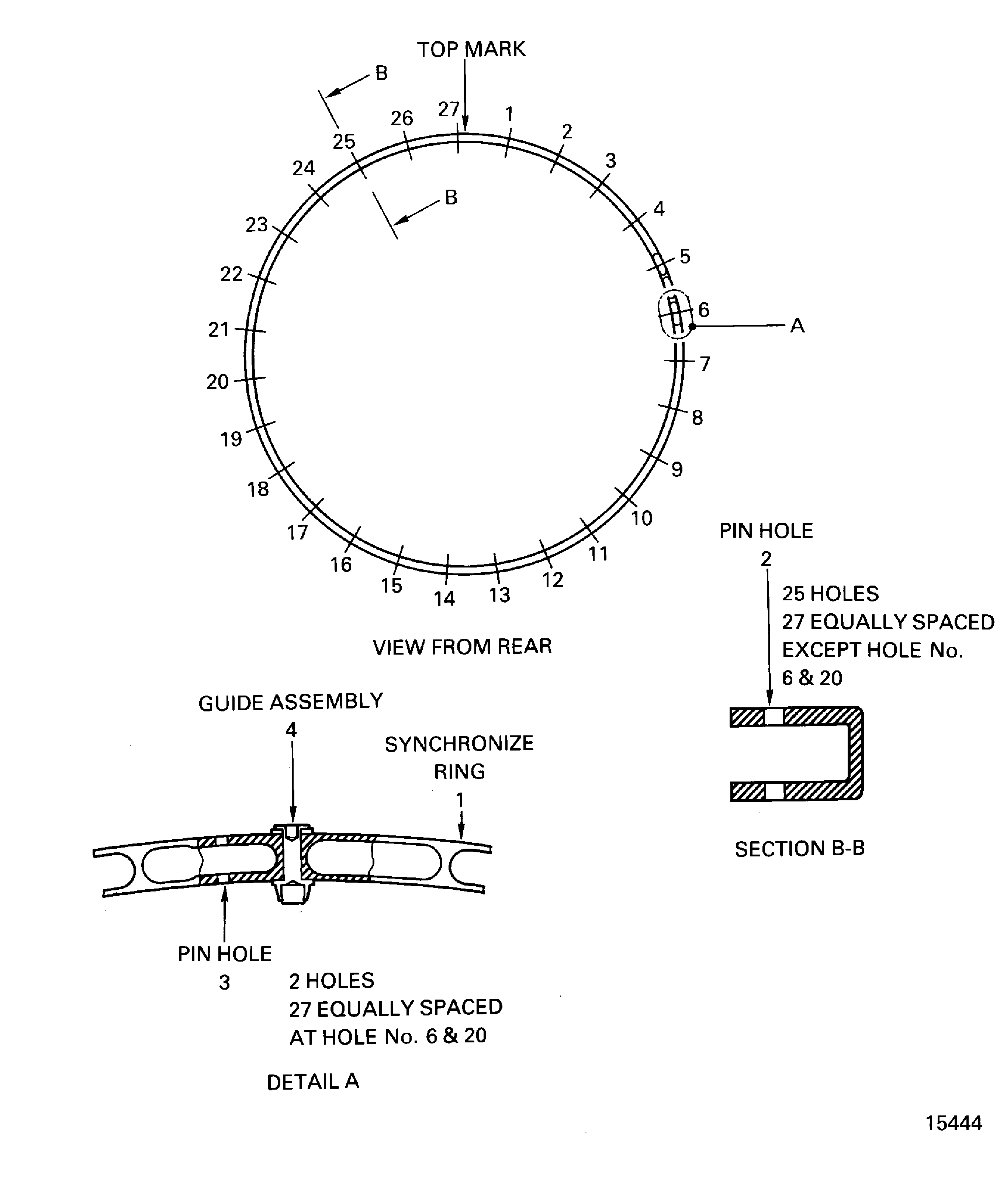

    4. Figure: Locations on the synchronize ring assembly

    Locations on the synchronize ring assembly

Requirements After Job Completion

Follow-On Conditions

NONE
