TASK 72-32-73-200-001-B00 LPC Bleed Valve Synchronizing Ring - Examine, Inspection-001

DMC:V2500-A0-72-32-7301-00B-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-73-200-001-B00 LPC Bleed Valve Synchronizing Ring - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-150

5A0954

General

This TASK gives the procedure for the inspection of the synchronized ring assembly.

Fig/Item numbers in parentheses in the procedure agree with those used in the IPC

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501 .

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-73-100-000 (CLEANING-000)

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM

References

Refer to the SPM for the date on these items

Definitions of Damages, SPM TASK 70-02-02-350-501

Inspection of parts, SPM TASK 70-20-01-200-501

Some data on these items are contained in this TASK. For more data on these items refer to the SPM.

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-73-220-060 Examine the Synchronize Ring Assembly (01-150) Synchronize Ring

    1. Refer to Figure.

      2. Examine the synchronize ring at location 1.

        1. Nicked

        1. Repair, VRS1335 TASK 72-32-73-300-001 (REPAIR-001)

        2. Scratched

        1. Repair, VRS1335 TASK 72-32-73-300-001 (REPAIR-001)

    2. SUBTASK 72-32-73-220-061 Examine the Synchronize Ring Assembly (01-150) Pin Holes

    1. Refer to Figure.

      2. Examine the pin holes at location 2.

        1. Worn.

          1. If the pin hole diameter is between 0.3150 and 0.3155 in. (8.000 and 8.015 mm)

          1. Accept

          2. More than 0.3155 in. (8.015 mm)

          1. Repair, VRS1361 TASK 72-32-73-300-003 (REPAIR-003)

      3. Examine the pin holes at location 2 (marked L - 1st oversize).

        1. Worn.

          1. If the pin hole diameter is between 0.3544 and 0.3549 in. (9.000 and 9.015 mm)

          1. Accept

          2. More than 0.3549 in. (9.015 mm)

          1. Repair, VRS1361 TASK 72-32-73-300-003 (REPAIR-003)

      4. Examine the pin holes at location 2 (marked LL - 2nd oversize).

        1. Worn.

          1. If the pin hole diameter is between 0.3938 and 0.3942 in. (10.000 and 10.015 mm)

          1. Accept

          2. More than 0.3942 in. (10.015 mm)

          1. Reject

    3. SUBTASK 72-32-73-220-062 Examine the Synchronize Ring Assembly (01-150) Pin Hole

    1. Refer to Figure.

      2. Examine the pin holes at location 3.

        1. Worn.

          1. If the pin hole diameter is between 0.3938 and 0.3942 in. (10.000 and 10.015 mm)

          1. Accept

          2. More than 0.3942 in. (10.015 mm)

          1. Repair, VRS1361 TASK 72-32-73-300-003 (REPAIR-003)

      3. Examine the pin holes at location 3 (marked L - 1st oversize).

        1. Worn.

          1. If the pin hole diameter is between 0.4331 and 0.4337 in. (11.000 and 11.018 mm)

          1. Accept

          2. More than 0.4337 in. (11.018 mm)

          1. Repair, VRS1361 TASK 72-32-73-300-003 (REPAIR-003)

      4. Examine the pin holes at location 3 (marked LL - 2nd oversize).

        1. Worn.

          1. If the pin hole diameter is between 0.4725 and 0.4731 in. (12.000 and 12.018 mm)

          1. Accept

          2. More than 0.4731 in. (12.018 mm)

          1. Reject

    4. SUBTASK 72-32-73-220-063 Examine the Synchronize Ring Assembly (01-150) Guide Assembly

    1. Refer to Figure.

      2. Examine the guide assembly at location 4.

        1. Loose

        1. Repair, VRS1336 TASK 72-32-73-300-002 (REPAIR-002)

        2. Missing

        1. Repair, VRS1336 TASK 72-32-73-300-002 (REPAIR-002)

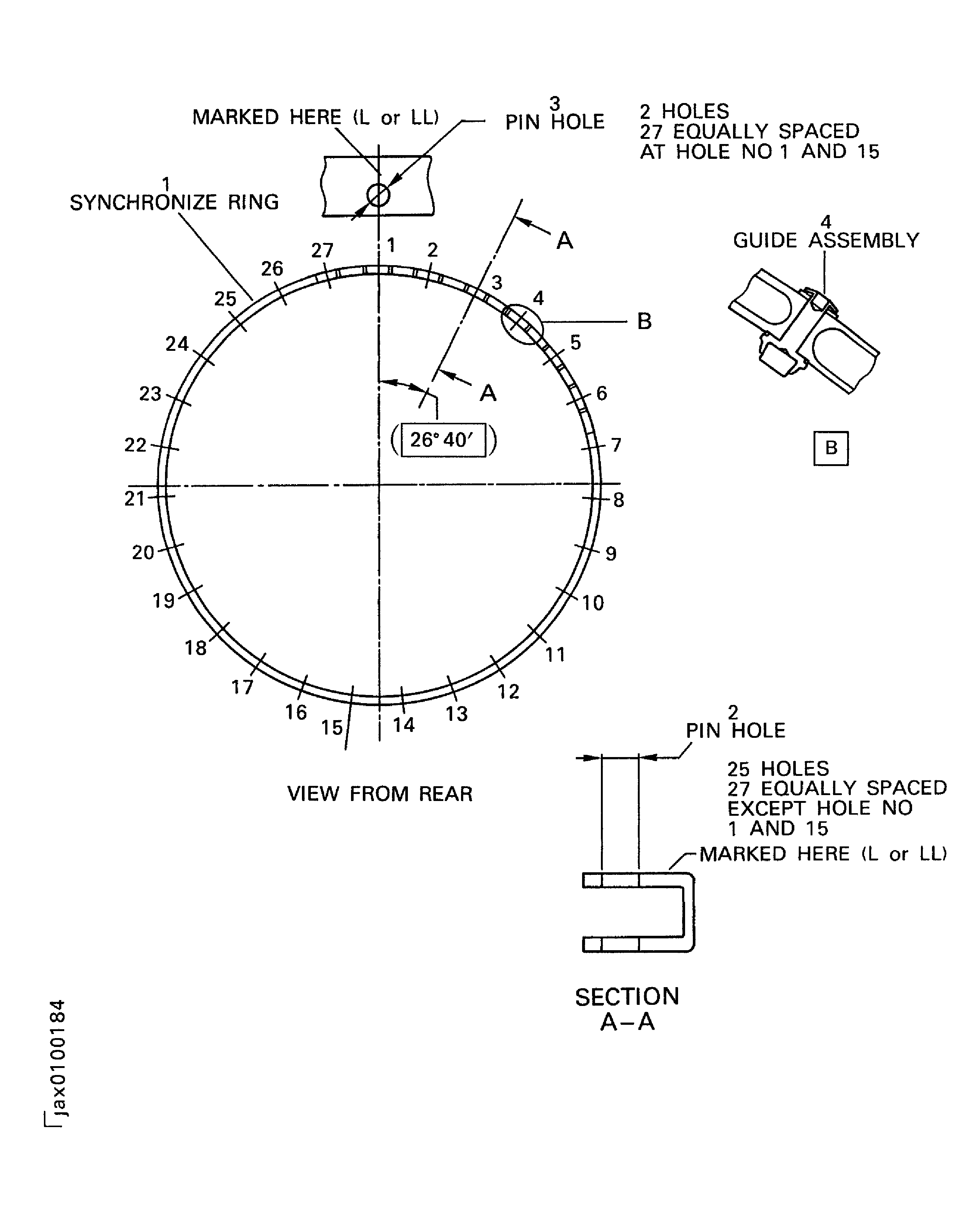

    5. Figure: Location on the synchronize ring assembly

    Location on the synchronize ring assembly

Requirements After Job Completion

Follow-On Conditions

NONE
