TASK 72-32-75-200-001-A00 LPC Bleed Valve Actuating Rod Ends - Examine, Inspection-001

DMC:V2500-A0-72-32-7520-00A-300A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-75-200-001-A00 LPC Bleed Valve Actuating Rod Ends - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-120

5A0498

01-120

5A3666

01-190

5A0498

01-420

5A3666

01-420

5A0498

01-490

5A0498

General

This TASK gives the procedure for the inspection of the rod end adaptors. For the other bleed valve actuating rod assembly parts, refer to TASK 72-32-75-200-000 (INSPECTION-000).

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-75-100-000 (CLEANING-000).

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-75-220-052 Examine the Rod End Adaptors Spherical Bearing

    1. Refer to Figure.

      2. Examine the spherical bearing at location 1.

        1. Loose.

          1. If the radial clearance between the ball and the race is less than 0.002 in. (0.05 mm)

          1. Accept

          2. More than in Step

          1. Reject

    2. SUBTASK 72-32-75-220-053 Examine the Rod End Adaptors Surfaces

    1. Refer to Figure.

      2. Examine all the surfaces.

        1. Cracked

        1. Reject

        2. Nicked or scratched

        1. Repair, VRS1342 TASK 72-32-75-300-001 (REPAIR-001)

    3. SUBTASK 72-32-75-220-054 Examine the Rod End Adaptors Threads

    1. Refer to Figure.

      2. Examine the threads at location 2.

        1. Stripped

        1. Reject

        2. Crossed

        1. Reject

        3. Pick-up

        1. Repair, VRS1342 TASK 72-32-75-300-001 (REPAIR-001)

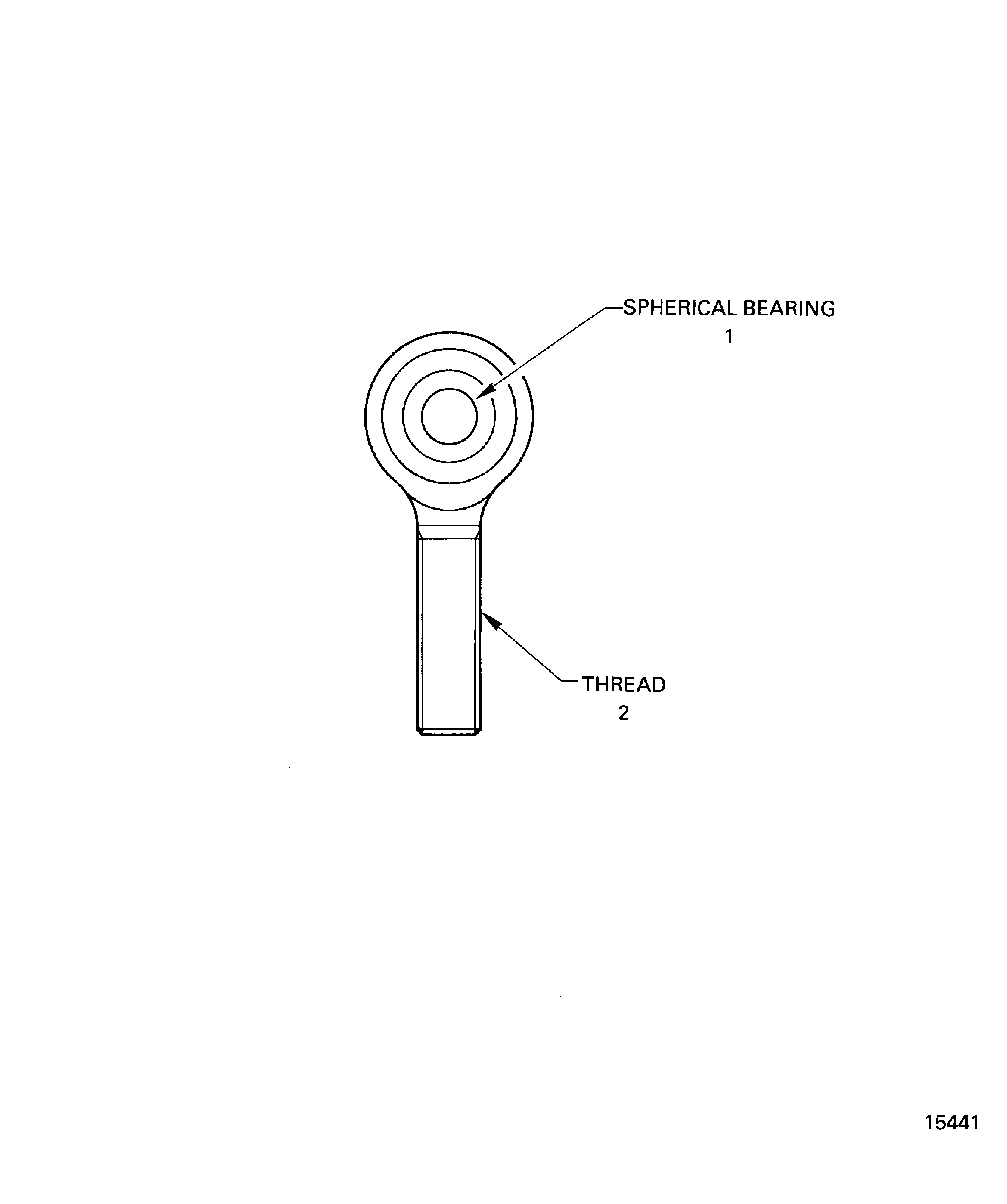

    4. Figure: Locations on the rod end adaptor

    Locations on the rod end adaptor

Requirements After Job Completion

Follow-On Conditions

NONE
