TASK 72-32-83-300-044 LPC Stage 1.5 Stator - Replace The Vane, Repair-044 (VRS1763)

DMC:V2500-A0-72-32-8315-02A-920A-C|Issue No:002.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-83-300-044 LPC Stage 1.5 Stator - Replace The Vane, Repair-044 (VRS1763)

Effectivity

FIG/ITEM

PART NO.

02-500

5A0436

General

This Repair TASK gives the procedure for the replacement of the LPC stage 1.5 vane.

Material of component

PART IDENT

SYMBOL

MATERIAL

LPC Stage 1.5 stator assembly

Vane: Titanium alloy

Inner ring: Aluminum alloy

Price and availability - none

The practices and processes referred to in this procedure by TASK numbers are in SPM.

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
InjectorLOCALInjector

(Air pressure type)

Plastic chisel type toolLOCALPlastic chisel type tool
SpatulaLOCALSpatula
Vacuum pumpLOCALVacuum pump
IAE 3J12807 Molding fixture0AM53IAE 3J12807

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-124 ISOPROPYL ALCOHOLLOCALCoMat 01-124
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 02-005 ADHESIVE TAPE (MASKING)LOCALCoMat 02-005
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 05-123 SILICON CARBIDE GRITIAE72CoMat 05-123
CoMat 05-124 SILICON CARBIDE GRITIAE72CoMat 05-124
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANTLOCALCoMat 08-014
CoMat 08-036 SILICONE RUBBER COMPOUNDLOCALCoMat 08-036
CoMat 08-042 SILICONE RUBBER COMPOUNDIAE55CoMat 08-042

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Vane, STG 1,5 LPC5A043757 A/R
Vane, STG 1.5 LPC5A043857 A/R

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-83-350-090 Remove Identified Vane from the LPC Stage 1.5 Stator Assembly

    1. Refer to Figure.

      2. CAUTION

        BE CAREFUL NOT TO DAMAGE THE SURFACE OF VANE AND RING WHEN REMOVING MOLDING RUBBER.

        Remove molding rubber to break the connection between vane and inner ring. Remove the identified vane from the inner ring.

      1. Use a clean, plastic chisel type tool.

      3. Remove molding rubber from AREA A and AREA B.

      1. Use a clean, plastic chisel type tool.

      4. Remove the remaining molding rubber from the remove vane if it is serviceable. Refer to Repair, VRS1765 TASK 72-32-83-300-047 (Repair-047). If the rubber is serviceable then it should be protected from possible damage during this repair by installing protective shield.

        NOTE

        If abradable seal silicone rubber on inner ring is to be replaced, remove rubber after vanes are removed. New rubber should be installed and cured after new vanes are installed and bonded.

      1. Use a clean, plastic chisel type tool.

      5. Remove the remaining molding rubber from AREA A, AREA B and/or the removed vane, if the remaining rubber is not fully removed in Step or Step.

        1. Apply adhesive tape for masking to the areas which do not require removing the remaining rubber.

        2. Use dry plastic blast to remove the remaining rubber.

        1. Refer to SPM TASK 70-12-07-120-501.

      3. Remove adhesive tape for masking.

    2. SUBTASK 72-32-83-110-066 Prepare the Bonding Area

    1. Refer to Figure.

      2. Apply adhesive tape for masking to the areas which do not require the molding compound.

      3. Apply dry abrasive blast to the bonding area.

    4. Remove the remaining abrasive by vacuuming or clean air blow.

    6. NOTE

      After cleaning the component you must not touch it by hand and must be covered by craft paper to prevent contamination.

      Dry by air for 15 minutes minimum.

    3. SUBTASK 72-32-83-360-112 Apply the Primer to the Bonding Area

    1. Refer to Figure.

      2. CAUTION

        THE PRIMER MUST NOT BE APPLIED TO THE SILICONE RUBBER.

        Apply the primer to the bond surfaces.

      2. The primer must be applied to the metal surface only.

    3. Dry in air for 30 minutes.

    4. SUBTASK 72-32-83-360-113 Make up of CoMat 08-042 Silicone Rubber Compound

      1. NOTE

        When mixed, the life of the silicone rubber compound is a maximum of 1.5 hours at room temperature.

        Mix 9.5 to 10.5 parts by weight of the base material with 0.8 to 1.2 parts by weight of the curing agent in 8 to 10 minutes at 70 to 80 deg F (21 to 27 deg C) until the material is a constant color.

      1. Use CoMat 08-042 SILICONE RUBBER COMPOUND, and a clean spatula or equivalent.

      2. Remove all the air from the mixture at 28 in. (711.2 mm) of mercury for a minimum of 15 minutes.

      1. Use the vacuum pump.

    5. SUBTASK 72-32-83-360-114 Apply CoMat 08-042 Silicone Rubber Compound

    1. Refer to Figure, Figure, Figure and Figure.

      2. Set up the mold with the molding fixture and install the new or serviceable blade vane in position.

      3. Apply the silicone rubber compound to the mold area.

      1. Use an air pressure type injector.

    6. SUBTASK 72-32-83-360-115 Cure CoMat 08-042 Silicone Rubber Compound

    1. Cure the silicone rubber compound at 70 to 80 deg F (21 to 27 deg C) for a minimum of 4 hours with the molding fixture attached.

    7. SUBTASK 72-32-83-360-116 Make up of CoMat 08-036 Silicone Rubber Compound

      1. Mix the base material and the curing agent.

      1. Refer to the SPM TASK 70-36-04-360-501.

      2. Remove all air from the mixture.

      1. Refer to the SPM TASK 70-36-04-360-501.

    8. SUBTASK 72-32-83-360-117 Apply CoMat 08-036 Silicone Rubber Compound

    1. Refer to Figure, Figure, Figure and Figure.

      2. Apply the silicone rubber compound to the remaining mold area.

      1. Use an air pressure type injector.

    9. SUBTASK 72-32-83-360-118 Cure CoMat 08-036 Silicone Rubber Compound

    1. Cure the silicone rubber compound at room temperature for 16 hours followed by being kept at 290 to 310 deg F (143 to 153 deg C) for 2 hours with the molding fixture attached.

    10. SUBTASK 72-32-83-220-186 Examine the Repaired Areas

    1. Refer to Figure, Figure, Figure and Figure.

    2. Dimensionally and visually examine the repaired area.

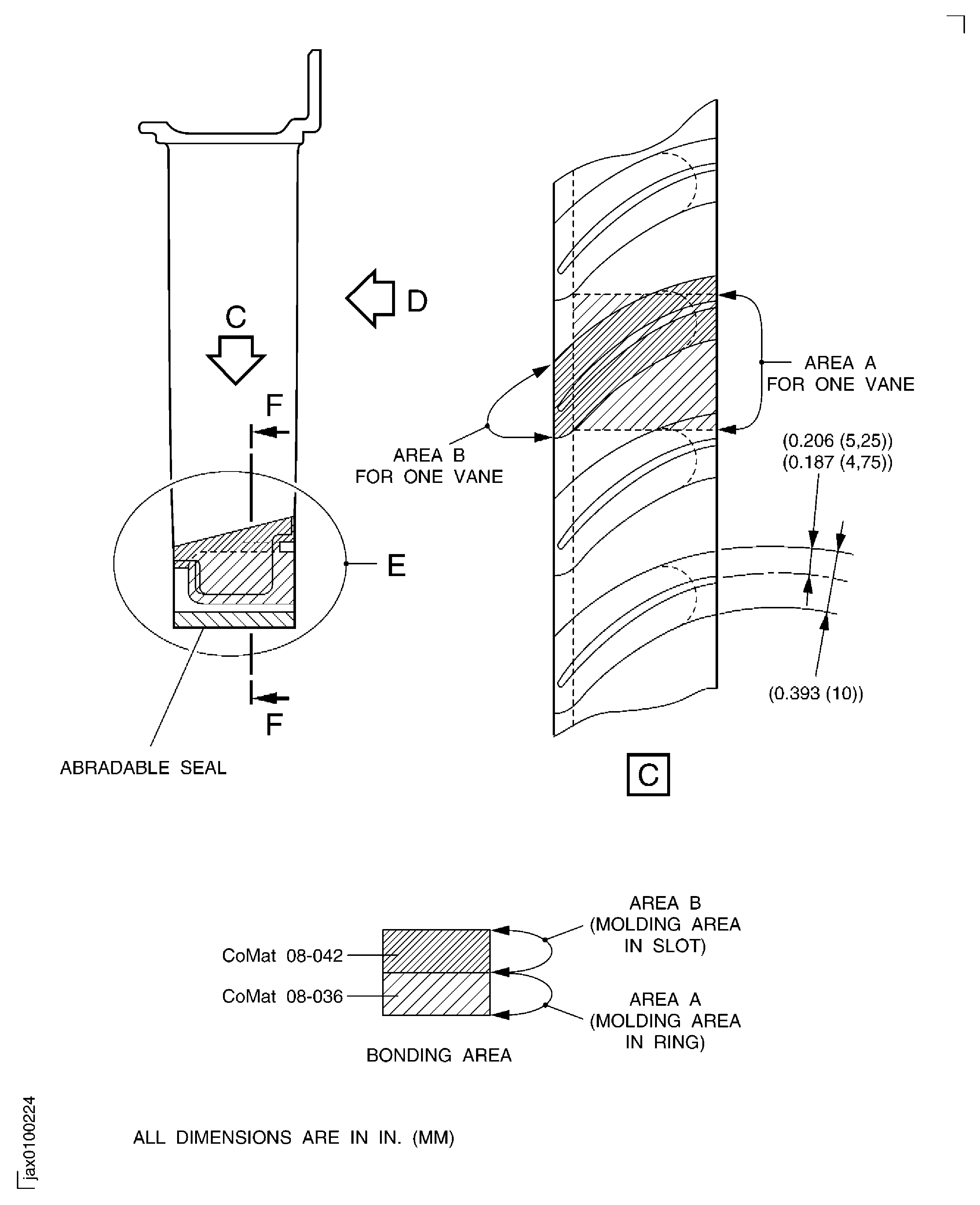

    11. Figure: Replace the stator vane of the LPC stage 1.5 stator assembly

    Replace the stator vane of the LPC stage 1.5 stator assembly

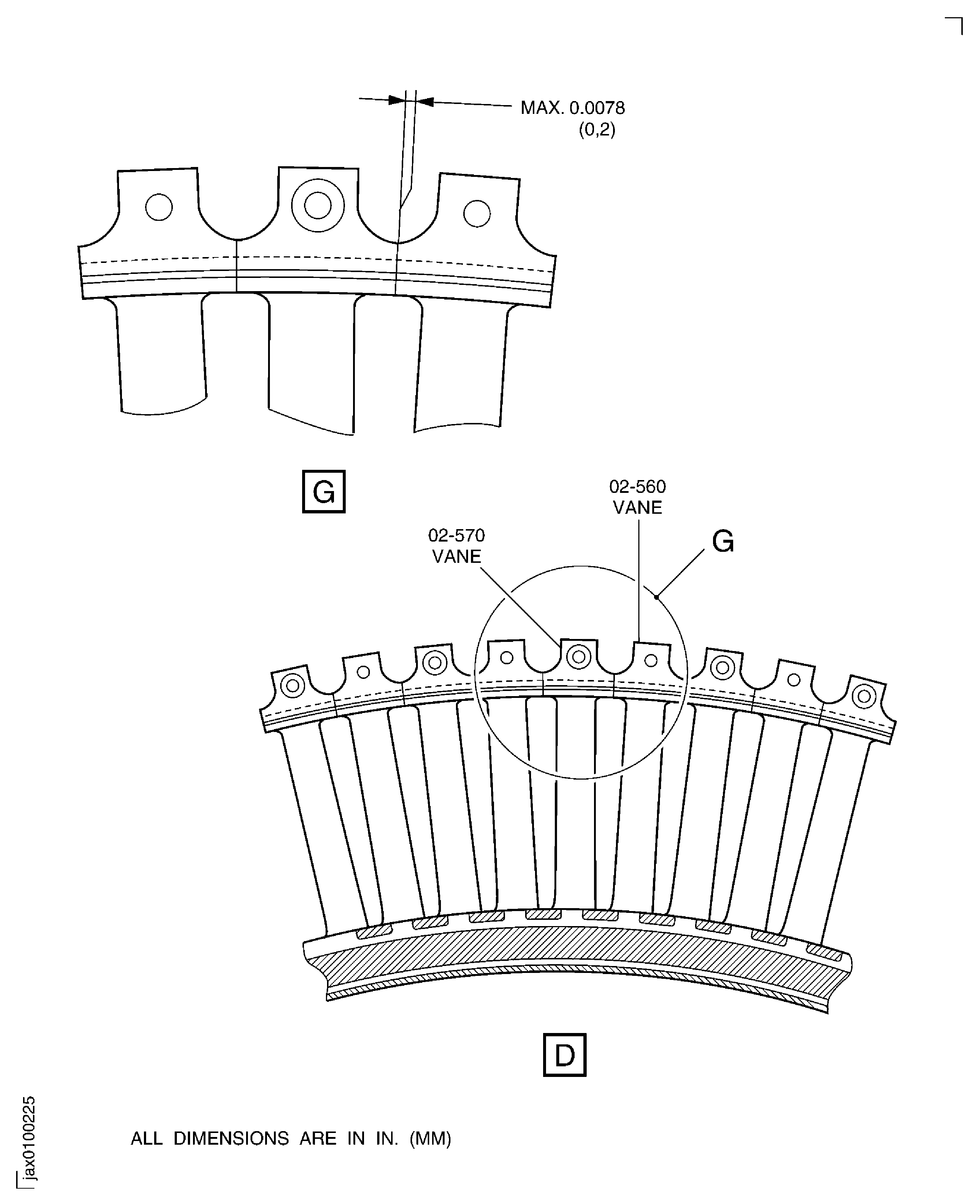

    Figure: Replace the stator vane of the LPC stage 1.5 stator assembly

    Replace the stator vane of the LPC stage 1.5 stator assembly

    Figure: Replace the stator vane of the LPC stage 1.5 stator assembly

    Replace the stator vane of the LPC stage 1.5 stator assembly

    Figure: Replace the stator vane of the LPC stage 1.5 stator assembly

    Replace the stator vane of the LPC stage 1.5 stator assembly

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added steps. (95VJ822C)
