Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
Common Information
TASK 72-32-87-300-006 Fan Case Rear Liner Panel - Repair Surface Crack, Repair-006 (VRS1936)
Effectivity
FIG/ITEM PART NO. | |
|---|---|
02-100 | 5A2149 |
02-100 | 5A0258 |
02-100 | 5A0842 |
02-100 | 5A1379 |
02-100 | 5A1743 |
02-100 | 5A0809 |
02-100 | 5A1622 |
02-100 | 5A1680 |
02-100 | 5A1737 |
02-100 | 5A1119 |
02-150 | 5A2149 |
02-150 | 5A0258 |
02-150 | 5A0842 |
02-150 | 5A1379 |
02-150 | 5A1743 |
02-150 | 5A0809 |
02-150 | 5A1622 |
02-150 | 5A1680 |
02-150 | 5A1737 |
02-150 | 5A1120 |
02-200 | 5A2150 |
02-200 | 5A0259 |
02-200 | 5A0843 |
02-200 | 5A1380 |
02-200 | 5A1744 |
02-200 | 5A0814 |
02-200 | 5A1623 |
02-200 | 5A1681 |
02-200 | 5A1738 |
02-200 | 5A1122 |
02-250 | 5A2151 |
02-250 | 5A0844 |
02-250 | 5A1381 |
02-250 | 5A0817 |
02-250 | 5A1625 |
02-290 | 5A0815 |
02-290 | 5A1626 |
02-300 | 5A2152 |
02-300 | 5A0260 |
02-300 | 5A0845 |
02-300 | 5A1382 |
02-300 | 5A1745 |
02-300 | 5A0818 |
02-300 | 5A1624 |
02-300 | 5A1682 |
02-300 | 5A1739 |
02-300 | 5A1125 |
02-350 | 5A2149 |
02-350 | 5A0258 |
02-350 | 5A0842 |
02-350 | 5A1379 |
02-350 | 5A1743 |
02-350 | 5A0809 |
02-350 | 5A1622 |
02-350 | 5A1680 |
02-350 | 5A1737 |
02-350 | 5A1121 |
02-400 | 5A2150 |
02-400 | 5A0259 |
02-400 | 5A0843 |
02-400 | 5A1380 |
02-400 | 5A1744 |
02-400 | 5A0814 |
02-400 | 5A1623 |
02-400 | 5A1681 |
02-400 | 5A1738 |
02-400 | 5A1123 |
02-450 | 5A2150 |
02-450 | 5A0259 |
02-450 | 5A0843 |
02-450 | 5A1380 |
02-450 | 5A1744 |
02-450 | 5A0814 |
02-450 | 5A1623 |
02-450 | 5A1681 |
02-450 | 5A1738 |
02-450 | 5A1124 |
02-500 | 5A2152 |
02-500 | 5A0260 |
02-500 | 5A0845 |
02-500 | 5A1382 |
02-500 | 5A1745 |
02-500 | 5A0818 |
02-500 | 5A1624 |
02-500 | 5A1682 |
02-500 | 5A1739 |
02-500 | 5A1126 |
02-550 | 5A2152 |
02-550 | 5A0260 |
02-550 | 5A0845 |
02-550 | 5A1382 |
02-550 | 5A1745 |
02-550 | 5A0818 |
02-550 | 5A1624 |
02-550 | 5A1682 |
02-550 | 5A1739 |
02-550 | 5A1143 |
03-100 | 5A0807 |
03-100 | 5A1086 |
03-100 | 5A1615 |
03-100 | 5A1627 |
03-150 | 5A0807 |
03-150 | 5A1086 |
03-150 | 5A1615 |
03-150 | 5A1627 |
03-200 | 5A0807 |
03-200 | 5A1086 |
03-200 | 5A1615 |
03-200 | 5A1627 |
03-250 | 5A0807 |
03-250 | 5A1086 |
03-250 | 5A1615 |
03-250 | 5A1627 |
03-300 | 5A0807 |
03-300 | 5A1086 |
03-300 | 5A1615 |
03-300 | 5A1627 |
03-350 | 5A0807 |
03-350 | 5A1086 |
03-350 | 5A1615 |
03-350 | 5A1627 |
03-400 | 5A0807 |
03-400 | 5A1086 |
03-400 | 5A1615 |
03-400 | 5A1627 |
03-450 | 5A0807 |
03-450 | 5A1086 |
03-450 | 5A1615 |
03-450 | 5A1627 |
03-500 | 5A0807 |
03-500 | 5A1086 |
03-500 | 5A1615 |
03-500 | 5A1627 |
03-550 | 5A0807 |
03-550 | 5A1086 |
03-550 | 5A1615 |
03-550 | 5A1627 |
General
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Price and availability - none
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Standard workshop equipment | LOCAL | Standard workshop equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 01-124 ISOPROPYL ALCOHOL | LOCAL | CoMat 01-124 | ||
| CoMat 02-005 ADHESIVE TAPE (MASKING) | LOCAL | CoMat 02-005 | ||
| CoMat 05-016 GARNET PAPER, 80-GRIT | LOCAL | CoMat 05-016 | ||
| CoMat 05-017 GARNET PAPER, 60 GRIT | LOCAL | CoMat 05-017 | ||
| CoMat 08-015 RESIN | LOCAL | CoMat 08-015 | ||
| CoMat 08-016 HARDENER | LOCAL | CoMat 08-016 | ||
| CoMat 08-049 FIBREGLASS CLOTH | K6835 | CoMat 08-049 |
Spares
NONESafety Requirements
NONEProcedure
Refer to: Figure
Refer to the SPM TASK 70-11-26-300-503.
NOTE
If necessary, mask the surface that is not to be repaired. Use CoMat 02-005 ADHESIVE TAPE (MASKING).Clean the area that is to be repaired.
NOTE
If necessary, remove the damaged area by CoMat 05-016 GARNET PAPER, 80-GRIT or CoMat 05-017 GARNET PAPER, 60 GRIT.Lightly remove the damaged area by cutter knife.
Refer to the SPM TASK 70-11-26-300-503.
Wipe clean the repaired area.
SUBTASK 72-32-87-350-014 Prepare the Panel Liner for Repair
Refer to the SPM TASK 70-36-02-360-501, SUBTASK 70-36-02-360-021.
When the repaired area is more than 0.078 in. (2.0 mm) in depth, add fiberglass cloth, which is cut less than 0.039 in. (1.0 mm) strips, to the epoxy resin.
Use CoMat 08-015 RESIN epoxy resin and CoMat 08-016 HARDENER.
WARNING
DURING THE OPERATION, WEAR PROTECTIVE GLOVES AND GOGGLES.WARNING
DURING THE OPERATION, MAKE SURE THERE IS SUFFICIENT VENTILATION.Make up the epoxy resin.
SUBTASK 72-32-87-380-021 Apply Epoxy Resin to the Damaged Area
Nicks, dents, scratches, delamination or other damages are not permitted.
Refer to TASK 72-32-87-200-000 (INSPECTION-000).
Visually examine the repaired area.
Visually examine the panel.
SUBTASK 72-32-87-220-082 Examine the Panel Liner
Refer to the SPM TASK 70-09-00-400-501.
Use the ink method.
Make a mark VRS1936 with permanent ink adjacent to the part number.
SUBTASK 72-32-87-350-015 Mark Repair Number on Panel Liner

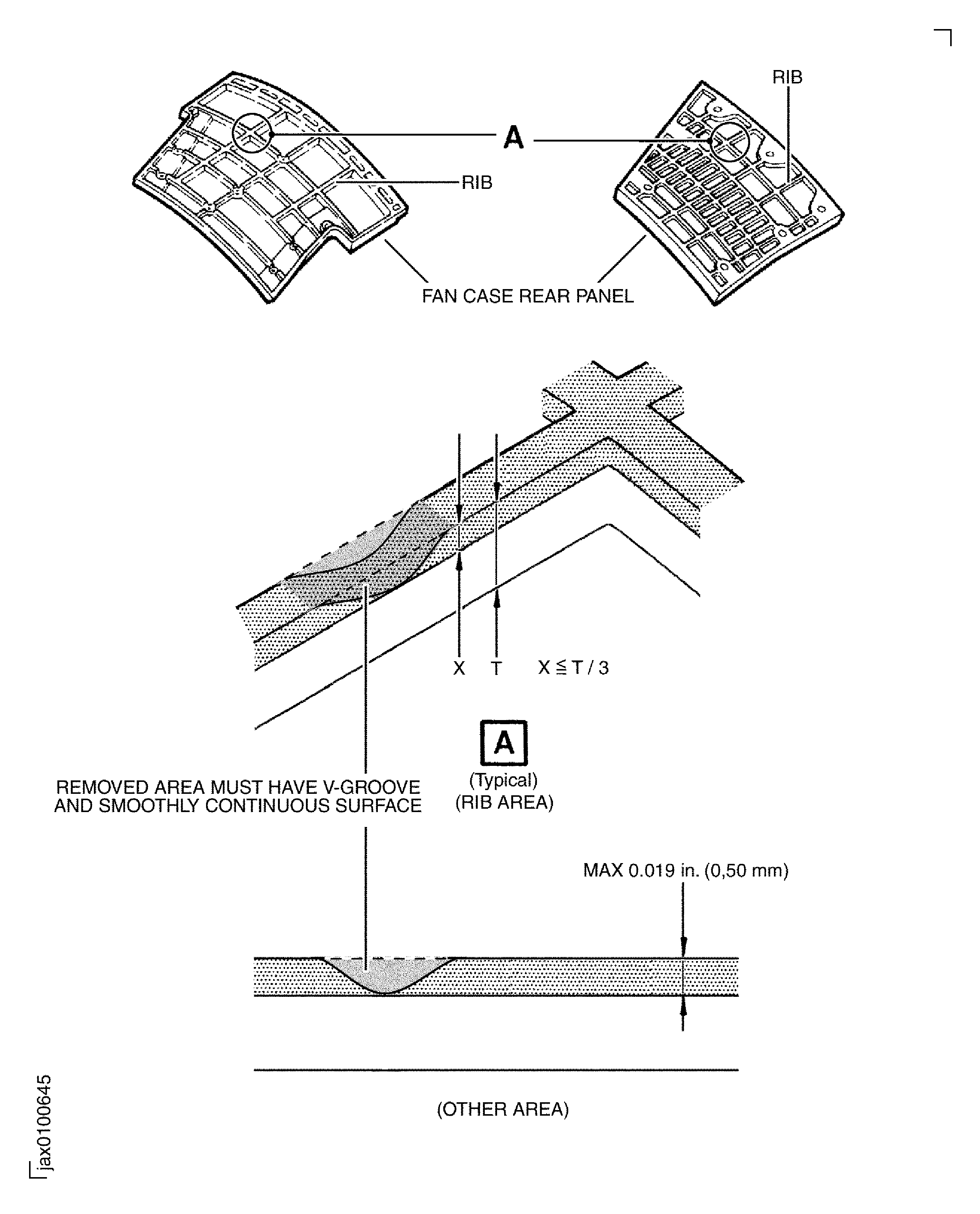

Figure: Removed Details and Dimensions
Removed Details and Dimensions
