TASK 72-32-93-300-002 Intermediate Structure Front Fairing - Replace The Rubber Seal, Repair-002 (VRS1446)

DMC:V2500-A0-72-32-9302-01A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-93-300-002 Intermediate Structure Front Fairing - Replace The Rubber Seal, Repair-002 (VRS1446)

Effectivity

FIG/ITEM

PART NO.

01-200

5A3447

01-200

5A0836

01-200

5A1444

01-200

5A1830

Material of component

DESCRIPTION

SYMBOL

MATERIAL

Front fairing

CFRP and Aluminium alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUMLOCALCoMat 01-275
CoMat 02-095 POLYETHYLENE PREFORMEDBAGSLOCALCoMat 02-095
CoMat 05-016 GARNET PAPER, 80-GRITLOCALCoMat 05-016
CoMat 05-017 GARNET PAPER, 60 GRITLOCALCoMat 05-017
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 08-013 COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT0AM53CoMat 08-014

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Rubber seal5A34551

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-93-330-052 Remove the Defective Rubber Seal from the Front Fairing Assembly

    1. Refer to Figure.

    2. Inspect and identify the damaged rubber seal.

      3. Remove the damaged rubber seal without any damage to the parent material, and remove the remaining compound.

    2. SUBTASK 72-32-93-360-052 Prepare the Mating Surfaces for the Cold Curing Silicone Rubber Compound

    1. Refer to Figure.

      2. Remove the grease from the mating surfaces.

      1. Refer to the SPM TASK 70-11-26-300-503.

      3. Hand clean the mating surfaces.

    4. NOTE

      A water break-test is not necessary.

      Do Step again.

    3. SUBTASK 72-32-93-350-052 Apply the Surface Protection to the Front Fairing Assembly

    1. Refer to Figure.

      2. Apply chromate conversion coating to the repaired surfaces, if necessary.

    4. SUBTASK 72-32-93-360-053 Apply and Cure the Cold Curing Silicone Rubber Compound

    1. Refer to Figure.

      2. CAUTION

        DO NOT APPLY THE PRIMER TO THE MATING SURFACE OF THE RUBBER SEAL BECAUSE THE SILICON RUBBER IS WEAK IN THE BOND STRENGTH IF YOU APPLY THE PRIMER.

        CAUTION

        DO NOT EAT ANYTHING OR SMOKE AT LOCATIONS WHERE THESE MATERIALS ARE USED.
        AFTER PREPARATION THE MATING SURFACES MUST BE FULLY CLEANED AND MUST NOT BE TOUCHED BY HAND, TO PREVENT CONTAMINATION.

        NOTE

        The primer must be applied immediately after the mating surfaces are prepared. It is cured at room temperature by touching to moisture in air.
        If the parts are not used immediately, after the primer is applied, they must be kept in CoMat 02-095 POLYETHYLENE PREFORMEDBAGS, but for not longer than 24 hours.

        Apply a thin layer of primer only to the prepared mating surface of front fairing. Dry in air for 30 minutes minimum.

      2. Refer to the SPM TASK 70-36-02-360-501 step 23.C.

      3. Apply the cold curing silicone compound to each of the mating surfaces. Thickness to be 0.010 to 0.15in. (0.25 to 0.38 mm).

      2. Refer to the SPM TASK 70-36-02-360-501 step 23.D.

      4. Install the rubber seal to the front fairing within three minutes after the compound is applied.

      1. Apply sufficient pressure to ensure good contact and to form a witness of adhesive at all edges.

      2. Make sure that compound can be seen around the sealed surfaces.

      5. NOTE

        The parts can be handled carefully after 2 hours at room temperature.

        Cure the compound at 68 deg F (20 deg C) for 48 hours.

      1. Do not apply a load during this time.

    5. SUBTASK 72-32-94-330-057 Examine the Repaired Areas of the Front Fairing Assembly

    1. Refer to Figure.

    2. Dimensionally inspect the position of the repaired rubber seal.

    3. Visually inspect gapping and filling.

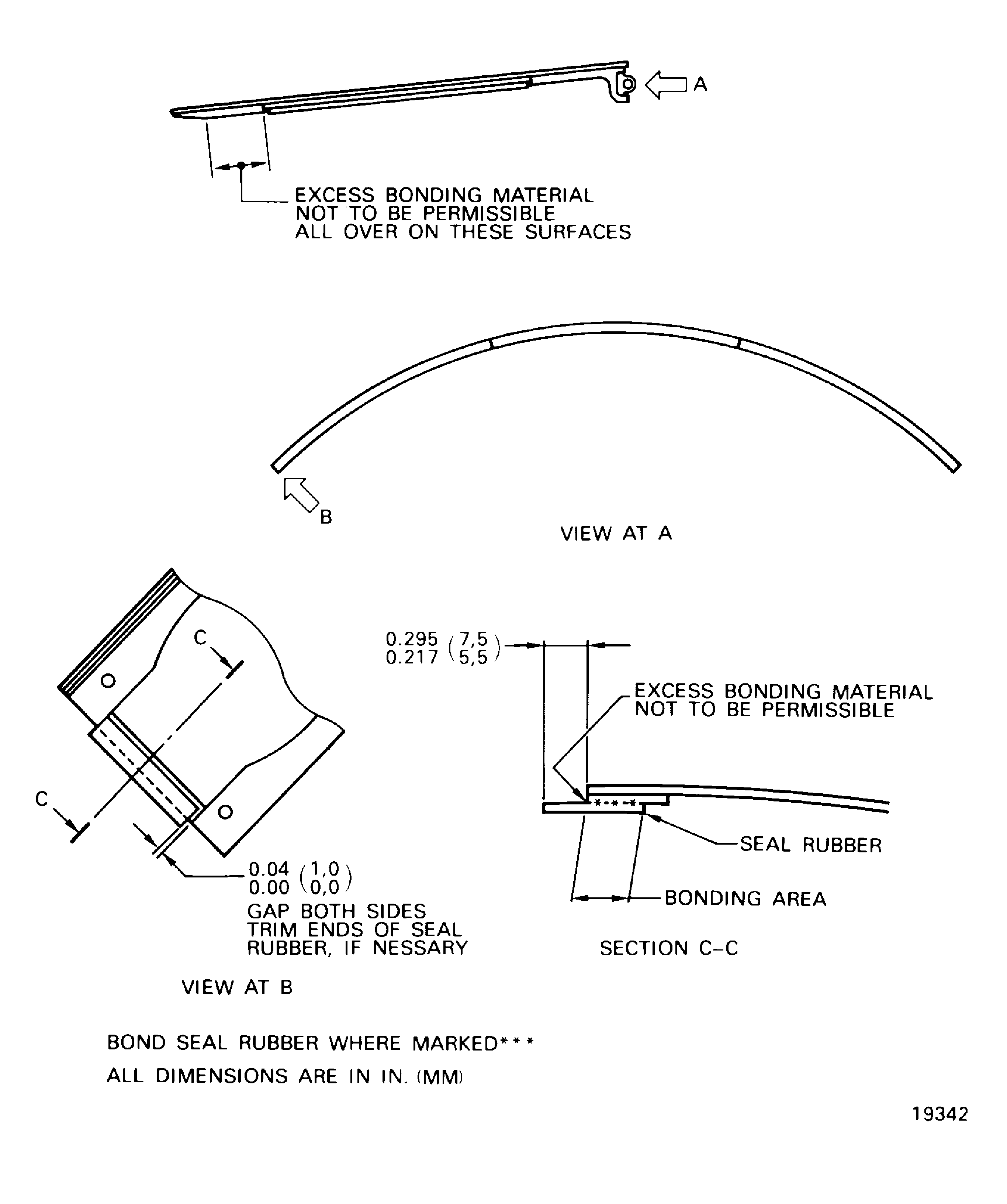

    6. Figure: Replace the seal rubber

    Replace the seal rubber

Requirements After Job Completion

Follow-On Conditions

NONE
Link not Found
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Link not Found
Manufacturer Code:00BB6
Supply Number:CoMat 01-275
Type:sp01
Supply Short Name:CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUM
Supply Name:CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUM
Specification Groups:
Doc NumberType
BONDERITE M-CR-1200S AEROJCR-047 (JAEC REF)
JCR-048 (JAEC REF)SPMC 206 (PW REF)
Suppliers:
ManufacturerRemarks
00BB6
71410
Manufacturer Code:LOCAL
Supply Number:CoMat 02-095
Type:sp01
Supply Short Name:CoMat 02-095 POLYETHYLENE PREFORMED BAGS
Supply Name:CoMat 02-095 POLYETHYLENE PREFORMEDBAGS
Specification Groups:
Doc NumberType
PMC 4215POLYETHYLENE BAG WITH ZIP-LOCK, SLIDE-LOCK TYPE CLOSURE OR OPEN END BAG (0.002 INCH (0,51 MM) MINIMUM THICKNESS)
Suppliers:
ManufacturerRemarks
LOCAL
Manufacturer Code:0KHE3
Supply Number:CoMat 05-016
Type:sp01
Supply Short Name:CoMat 05-016 GARNET PAPER, 80-GRIT
Supply Name:CoMat 05-016 GARNET PAPER, 80-GRIT
Specification Groups:
Doc NumberType
GARNET PAPER, CAMI GRIT SIZE 80 GRADE 0 (ANSI B74.18)
Suppliers:
ManufacturerRemarks
0KHE3
1E1X8
LOCAL
C4347
K0993
K2F42
K6835
V571V
Manufacturer Code:0KHE3
Supply Number:CoMat 05-017
Type:sp01
Supply Short Name:CoMat 05-017 GARNET PAPER, 60 GRIT
Supply Name:CoMat 05-017 GARNET PAPER, 60 GRIT
Specification Groups:
Doc NumberType
GARNET PAPER, CAMI GRIT SIZE 60 GRADE 1/2 (ANSI B74.18)
Suppliers:
ManufacturerRemarks
0KHE3
1E1X8
C4347
LOCAL
K0993
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-019
Type:sp01
Supply Short Name:CoMat 05-019 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-019 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/31 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 400 (ANSI B74.18)
JCR-184 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-020
Type:sp01
Supply Short Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/33 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 320 (ANSI B74.18)
JCR-027 (JAEC REF)
JCR-186 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:X222X
Supply Number:CoMat 08-013
Type:sp01
Supply Short Name:CoMat 08-013 COLD CURING SILICONE COMPOUND
Supply Name:CoMat 08-013 COLD CURING SILICONE COMPOUND
Specification Groups:
Doc NumberType
If CoMat 08-013 is specified without an asterisk or a letter suffix, use one of the letter suffix alternative materials.
Suppliers:
ManufacturerRemarks
X222X
Manufacturer Code:X222X
Supply Number:CoMat 08-014
Type:sp01
Supply Short Name:CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT
Supply Name:CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT
Specification Groups:
Doc NumberType
Use the applicable letter suffix material. Refer to SPM TASK 70-36-02-360-501.
Suppliers:
ManufacturerRemarks
X222X
