TASK 72-38-11-300-014 Inlet Cone Fairing - Replace The Strip Seal, Repair-014 (VRS1057)

DMC:V2500-A0-72-38-1102-01A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-38-11-300-014 Inlet Cone Fairing - Replace The Strip Seal, Repair-014 (VRS1057)

Effectivity

FIG/ITEM

PART NO.

01-100

5A1833

01-100

5A1834

Material of component

PART IDENT

SYMBOL

MATERIAL

Inlet cone fairing

-

Titanium alloy

General

Price and availability - none

The area used for molding shall be segregated from normal workshop conditions, and shall be kept clean. Refer to the SPM TASK 70-36-07-360-501

The practices and processes referred to in the procedure by the TASK numbers are in the SPM

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the primary number

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
IAE 3J12854 Locating fixture0AM53IAE 3J12854

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-124 ISOPROPYL ALCOHOLLOCALCoMat 01-124
CoMat 05-016 GARNET PAPER, 80-GRITLOCALCoMat 05-016
CoMat 05-017 GARNET PAPER, 60 GRITLOCALCoMat 05-017
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 08-013 COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT0AM53CoMat 08-014

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Seal, Strip5A1255AR
Seal, Strip5A1837AR

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-38-11-350-065 Remove the Damaged Strip Seals from the Inlet Cone Fairing

    1. Refer to Figure.

    2. Examine and identify damaged strip seal of the inlet cone fairing.

      3. Remove damaged strip seal without any damage to the parent metal and remove the remaining compound.

    2. SUBTASK 72-38-11-230-055 Examine the Inlet Cone Fairing for Cracks

      1. Do a crack test on the repaired area.

        1. Make sure there are no cracks in the repair area.

        1. Refer to the SPM TASK 70-23-02-230-501.

        2. Use penetrant crack test equipment.

    3. SUBTASK 72-38-11-360-071 Prepare the Mating Surfaces for the Silicone Rubber Compound

    1. Refer to Figure.

      2. Prepare the strip seal(s).

        1. Use the 5A1255 strip seal.

        1. Cut the strip seal to the dimensions given in the figure.

      3. Install the fairing onto the locating fixture.

    4. Check and determine the mating surface area of the fairing using strip seal.

    5. Remove the fairing from the locating fixture.

      6. Degrease the mating surfaces of the fairing and strip seal.

      7. Hand clean the mating surfaces of the fairing and strip seal.

      2. Refer to SPM TASK 70-36-02-360-501.

      8. Degrease the mating surfaces of the fairing and strip seal.

    4. SUBTASK 72-38-11-360-072 Apply and Cure the Cold Curing Silicone Rubber Compound

    1. Refer to Figure.

      2. CAUTION

        AFTER PREPARATION THE MATING SURFACES MUST BE FULLY CLEANED AND MUST NOT BE TOUCHED BY HAND, TO PREVENT CONTAMINATION.

        CAUTION

        DO NOT APPLY THE PRIMER TO THE MATING SURFACE OF THE STRIP SEAL.

        NOTE

        The primer must be applied immediately after the mating surfaces are prepared.
        If the parts are not used immediately, after the primer is applied, they must be kept in polythene bags but for not longer than 24 hours.

        Apply a thin layer of primer only to the prepared mating surfaces of the fairing. Dry in the air for 30 minutes.

      2. Refer to the SPM TASK 70-36-02-360-501, SUBTASK 70-36-02-360-020.

      3. NOTE

        Install the strip seal to the fairing within three minutes after the compound is applied.

        Apply the cold curing silicone rubber compound to each of the mating surfaces.

      1. Use a spatula and CoMat 08-013 COLD CURING SILICONE COMPOUND cold curing silicone rubber compound.

      2. Refer to the SPM TASK 70-36-02-360-501, SUBTASK 70-36-02-360-020.

      4. Install the fairing onto the locating fixture.

    5. Install the strip seal(s) on the fairing.

      6. Clamp the strip seal(s) and fairing with clips during curing.

      1. Use washing clip or equivalent.

    7. Remove the fairing with strip seal from the locating fixture.

      8. Remove excess adhesive compound from the fairing and strip seal(s).

      1. Make sure that the compound can be seen around the sealed surfaces. Use a scraper.

    9. NOTE

      The parts can be touched after 12 hours.

      Cure the compound at room temperature for 48 hours.

    10. Remove the clips from the fairing.

    5. SUBTASK 72-38-11-220-172 Examine the Repaired areas of the Inlet Cone Fairing

    1. Refer to Figure.

    2. Dimensionally examine the position of the repaired strip seal(s).

    3. Visually examine gapping and filling.

    6. SUBTASK 72-38-11-350-066 Identify the Repair

      1. Mark the VRS1057 adjacent to the part number.

      1. Use the electrolytic etch method.

      2. Refer to the SPM TASK 70-09-00-400-501.

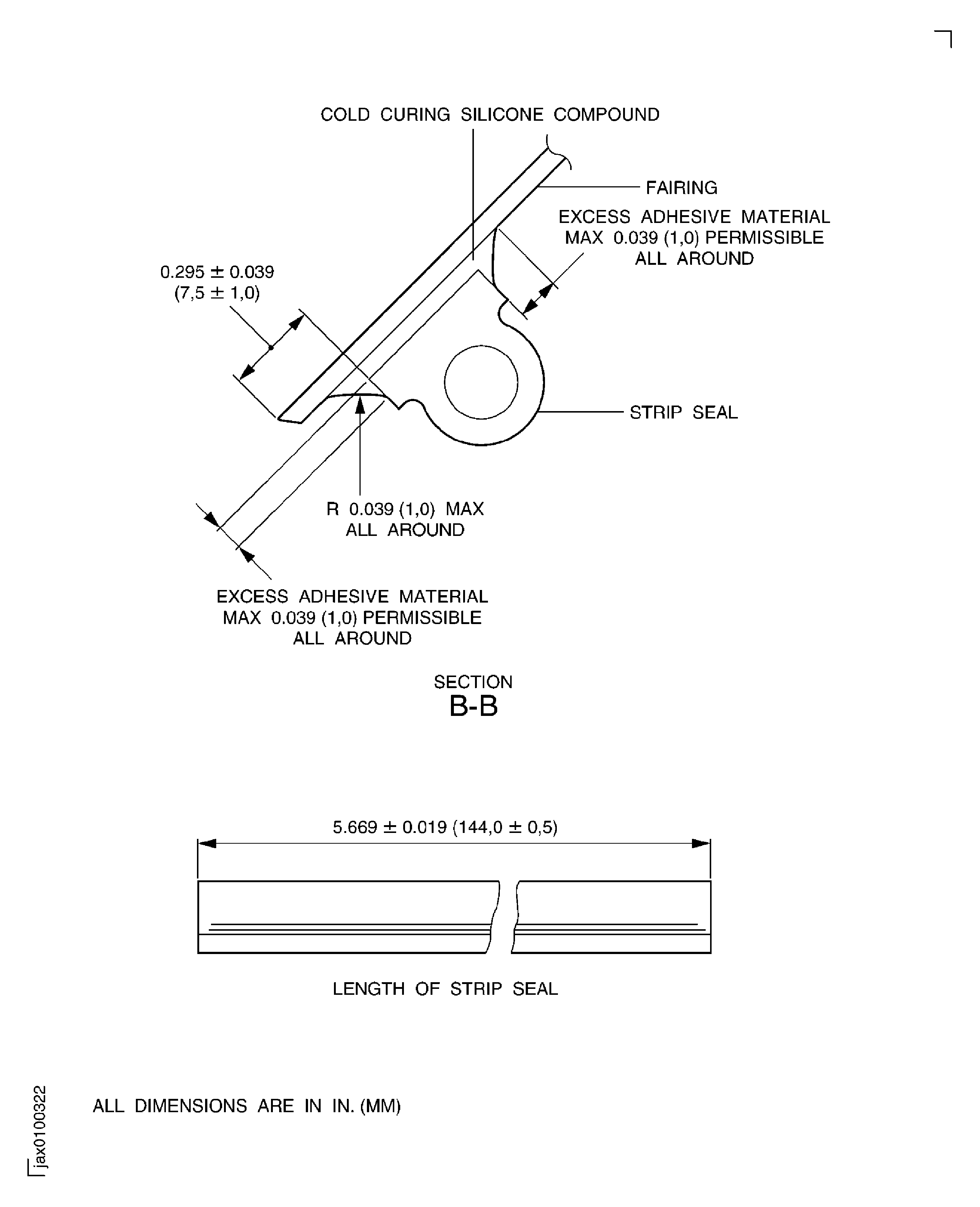

    7. Figure: Repair details and dimensions

    Repair details and dimensions

    Figure: Repair details and dimensions

    Repair details and dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
