TASK 72-40-00-200-003 Rod Bracket - Examine, Inspection-003

DMC:V2500-A0-72-40-0033-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-40-00-200-003 Rod Bracket - Examine, Inspection-003

Effectivity

FIG/ITEM

PART NO.

01-790

5W2141

01-790

6A4355

01-790

5W2242

General

This TASK gives the procedure for the inspection of the rod bracket. For the other HP system module parts, refer to TASK 72-40-00-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item number is used. For the Service Bulletin alpha variants refer to the I.P.C.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-40-00-100-000.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definition of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-40-00-230-052 Examine the Rod Bracket for Cracks

    1. Clean the part. Refer to TASK 72-40-00-100-000.

      2. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        Rod bracket

        1. Cracked

        1. Reject

    2. SUBTASK 72-40-00-220-092 Examine the Rod Bracket Surface

    1. Refer to Figure.

      2. Examine all the surface.

        1. Cracked or distorted.

          1. Any cracks or distortion

          1. Reject

        2. Nicked and dented.

          1. Any nicks or dents

          1. Repair, VRS1469 TASK 72-40-00-300-003

        3. Galled.

          1. Any galls

          1. Repair, VRS1469 TASK 72-40-00-300-003

        4. Scratched.

          1. Any scratches

          1. Repair, VRS1469 TASK 72-40-00-300-003

    3. SUBTASK 72-40-00-220-093 Examine the Rod Bracket (5W2141 and 6A4355) Bolt Holes

    1. Refer to Figure.

      2. Examine the bolt holes at location 1.

        1. Within replacement limits of 0.324 in. (8.23 mm)

        1. Accept

        2. More than replacement limits

        1. Reject

      3. Examine the bolt holes at location 2 for wear.

        1. Within replacement limits of 0.371 in. (9.41mm)

        1. Accept

        2. More than replacement limits

        1. Reject

    4. SUBTASK 72-40-00-220-162 Examine the Rod Bracket (5W2242) Bolt Holes

    1. Refer to Figure

      2. Examine the bolt holes at location 4 for wear.

        1. Within replacement limit of 0.337 in. (8.50mm)

        1. Accept

        2. More than replacement limit

        1. Reject

      3. Examine the bolt holes at location 5 for wear.

        1. Within replacement limit of 0.266 in. (6.75mm)

        1. Accept

        2. More than replacement limit

        1. Reject

    5. SUBTASK 72-40-00-220-094 Examine the Rod Bracket (5W2141 and 6A4355) Bush

    1. Refer to Figure.

      2. Examine the surface at location 3.

        1. Galled.

          1. Any galls

          1. Repair, VRS1469 TASK 72-40-00-300-003

        2. Scratched.

          1. Any scratches

          1. Repair, VRS1469 TASK 72-40-00-300-003

        3. Worn.

          1. If the inner diameter is less than 0.363 in (9.22 mm)

          1. Accept

          2. More than in Step

          1. Reject

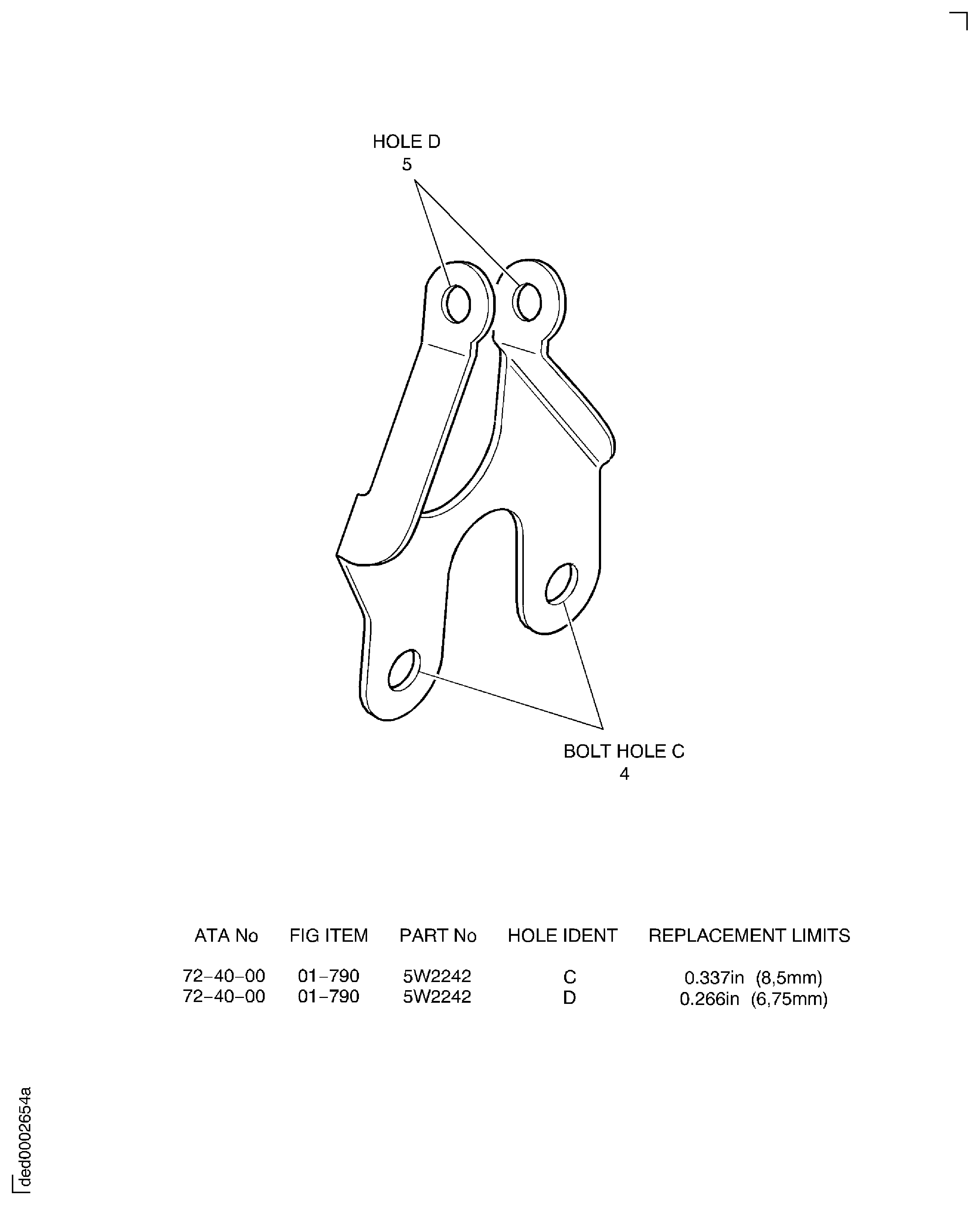

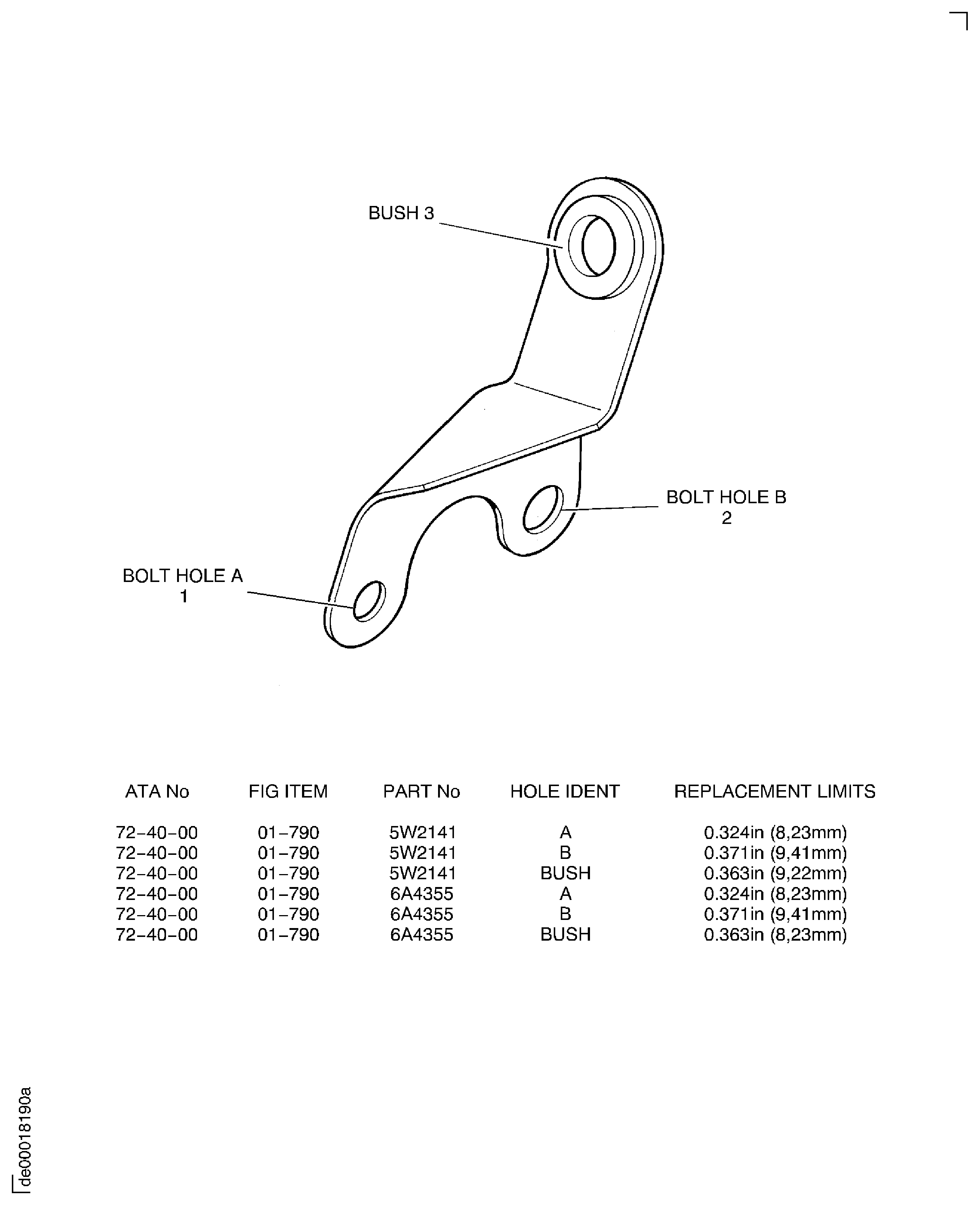

    6. Figure: Inspection of the rod bracket

    Inspection of the rod bracket

    Figure: Inspection of the rod bracket

    Inspection of the rod bracket
