TASK 72-41-13-200-003 HPC Rear Shaft Heatshield Nut And Washer - Examine, Inspection-003

DMC:V2500-A0-72-41-1303-00A-300A-C|Issue No:002.00|Issue Date:2016-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-13-200-003 HPC Rear Shaft Heatshield Nut And Washer - Examine, Inspection-003

Effectivity

FIG/ITEM

PART NO.

01-872

UP10896

01-872

6B1413

01-873

UP10897

General

This TASK gives the procedure for the inspection of the HP compressor shaft remaining parts. For the other HP compressor shaft parts, refer to TASK 72-41-13-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined.

All the parts must be visually examined for damage, corrosion and wear. Defects that are not identified in the procedure must be referred to International Aero Engines AG.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

The procedure for those parts which must have a crack test is given in SUBTASK 72-41-13-230-051. Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-13-230-052 Examine the Ring Nut (01-872) for Cracks

    1. Clean the part. Refer to TASK 72-41-13-100-000.

      2. Do the test for cracks for the parts that follow.

        PART IDENT

        TASK/SUBTASK

        Ring Nut

        1. Cracked

        1. Reject

    2. SUBTASK 72-41-13-220-057 Examine the Ring Nut (01-872) Threads at Location 1

    1. Refer to Figure.

      2. Crossed, stripped and threads that are not there

      1. Reject

      3. Worn

      1. Reject

    3. SUBTASK 72-41-13-220-058 Examine the Ring Nut (01-872) Surface at Location 2

    1. Refer to Figure.

      2. Galled and scored.

        1. Up to 0.005 in. (0.12 mm)

        1. Accept

        2. More than in Step

        1. Repair, VRS6371 TASK 72-41-13-300-006

    4. SUBTASK 72-41-13-220-059 Examine the Ring Nut (01-872) Slots at Location 3

    1. Refer to Figure.

      2. Burred or nicked

      1. Repair, VRS6371 TASK 72-41-13-300-006

    5. SUBTASK 72-41-13-220-060 Examine the Ring Nut (01-872) Remaining Surfaces

      1. Burred, nicked and scored

      1. Repair, VRS6371 TASK 72-41-13-300-006

    6. SUBTASK 72-41-13-220-061 Replace the Ring Nut (01-872) Silver Plate

      1. Apply the silver plate

      1. Repair, VRS6372 TASK 72-41-13-300-007

    7. SUBTASK 72-41-13-220-062 Examine the Cup Washer (01-873)

      1. Cup washer

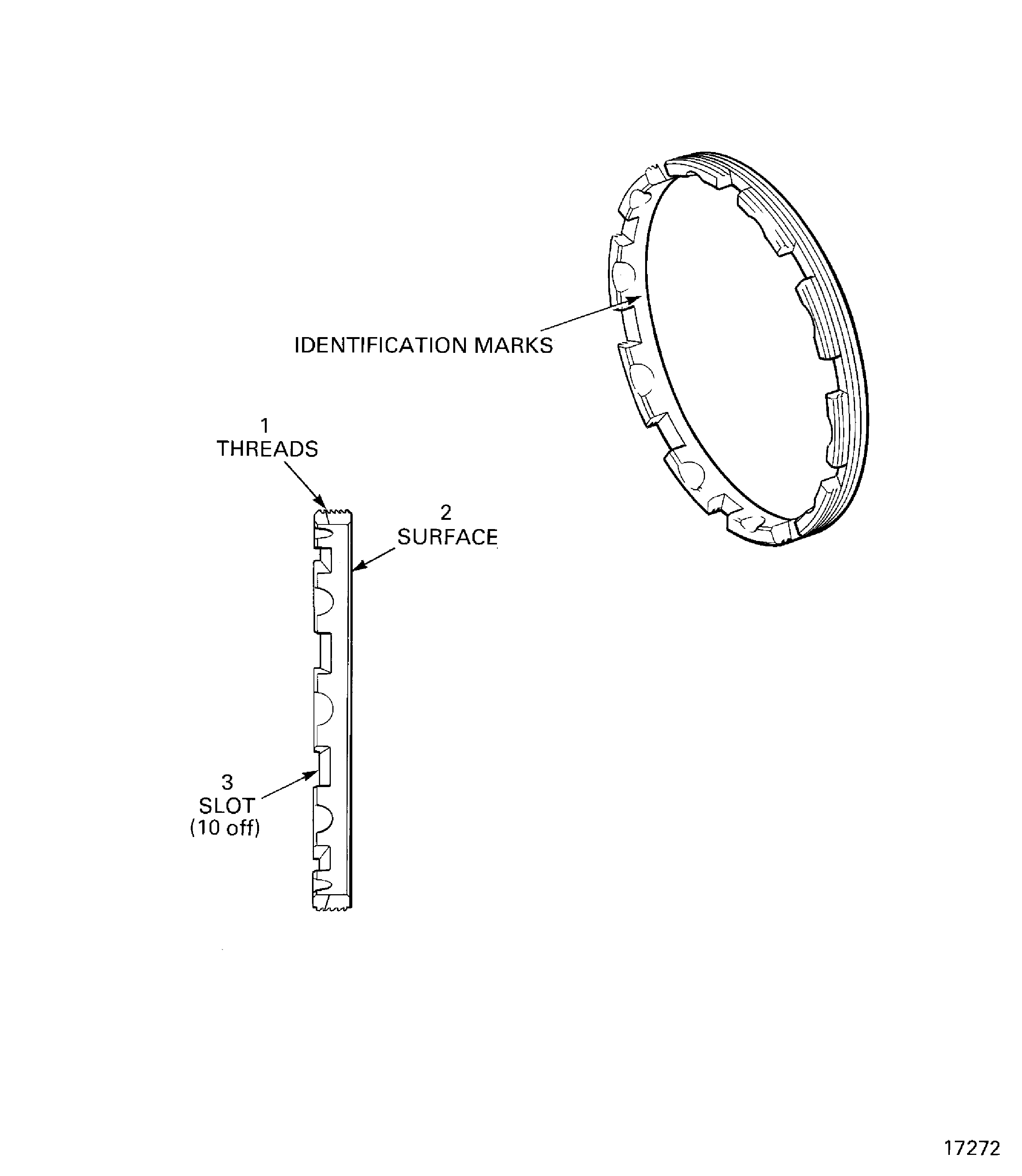

    8. Figure: HP Compressor Shaft Remaining Parts - Inspection Locations

    HP Compressor Shaft Remaining Parts - Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the effectivity table to add part number 6B1413. (12VR788)
