TASK 72-41-15-300-032 HPC Stage 5 Rotor Blade - Replace The Seal Strip, Repair-032 (VRS6215)

DMC:V2500-A0-72-41-1505-00A-621A-C|Issue No:003.00|Issue Date:2019-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-15-300-032 HPC Stage 5 Rotor Blade - Replace The Seal Strip, Repair-032 (VRS6215)

Effectivity

FIG/ITEM

PART NO

ASSEMBLY

01-800

6A3335

A

01-800

6A3637

A

01-800

6A3941

A

01-800

6A4198

B

01-800

6A7506

B

01-800

6A8449

A

01-800

6A8451

B

01-800

6B1346

B

General Data

This repair must only be done when the instruction to do so is given in 72-41-15 Inspection.

The dry film lubricant where applicable must be applied before the sealing strips are bonded into position.

The area used for bonding shall be segregated from normal workshop conditions, and shall be kept clean. Refer to SPM TASK 70-36-07-360-501.

Preliminary Requirements

Pre-Conditions

Action/ConditionData Module/Technical Publication
Make sure that all the cleaning and inspection procedures are done before this repair.

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
DELETEDLOCALDELETED
CoMat 05-016 GARNET PAPER, 80-GRITLOCALCoMat 05-016
CoMat 05-017 GARNET PAPER, 60 GRITLOCALCoMat 05-017
CoMat 08-012 COLD CURING SILICONE COMPOUNDX222XCoMat 08-012
CoMat 08-013 COLD CURING SILICONE COMPOUNDX222XCoMat 08-013
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANTX222XCoMat 08-014

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
STRIP - SEALING BLADE, 5TH STAGE0AM536A10371
STRIP0AM536A42001

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-15-110-079-A00 Prepare the Parts for Bonding, Assembly A

    1. Refer to Figure.

      2. Prepare the blade for bonding.

      2. Clean the repair area with a solvent. Refer to SPM TASK 70-11-26-300-503, SUBTASK 70-11-26-110-003.

      3. Prepare the seal for bonding.

      2. Clean the repair area with a solvent. Refer to SPM TASK 70-11-26-300-503, SUBTASK 70-11-26-110-003.

    2. SUBTASK 72-41-15-110-079-B00 Prepare the Parts for Bonding, Assembly B

    1. Refer to Figure.

      2. Prepare the blade for bonding.

      2. Clean the repair area with a solvent. Refer to SPM TASK 70-11-26-300-503, SUBTASK 70-11-26-110-003.

      3. Prepare the seal for bonding.

      1. Use 6A4200 6A4200 STRIP.

      2. Clean the repair area with a solvent. Refer to SPM TASK 70-11-26-300-503, SUBTASK 70-11-26-110-003.

    3. SUBTASK 72-41-15-360-052-A00 Apply the Adhesive, Assembly A

    1. Refer to Figure and Figure.

      2. Apply a thin layer of primer to the mating surface on the blade.

      1. Refer to SPM TASK 70-36-02-360-501, SUBTASK 70-36-02-360-020.

      3. Dry in air for 30 minutes.

      3. Apply the compound to the mating surfaces on the blade and the seal.

      1. Refer to the SPM TASK 70-36-02-360-501, SUBTASK 70-36-02-360-020.

      4. Assemble the seal to the blade.

      1. Refer to SPM TASK 70-36-02-360-501, SUBTASK 70-36-02-360-020.

      2. Assemble immediately, or less than three minutes after the compound was applied.

      3. Make sure that the compound can be seen around the seal edges.

      4. Remove excess compound from the adjacent areas.

      5. Cure at 60 deg F to 80 deg F (16 deg C to 27 deg C) for 48 hours. The relative humidity must be controlled at a minimum of 50 percent at 75 deg F (24 deg C) or equivalent moisture level. To find equivalent moisture levels, see Figure.

    4. SUBTASK 72-41-15-360-052-B00 Apply the Adhesive, Assembly B

    1. Refer to Figure and Figure.

      2. Apply a thin layer of primer to the mating surface on the blade.

      1. Refer to SPM TASK 70-36-02-360-501, SUBTASK 70-36-02-360-020.

      3. Dry in air for 30 minutes.

      3. Apply the compound to the mating surfaces on the blade and the seal.

      1. Refer to the SPM TASK 70-36-02-360-501, SUBTASK 70-36-02-360-020.

      2. Use 6A4200 6A4200 STRIP.

      4. Assemble the seal to the blade.

      1. Refer to the SPM TASK 70-36-02-360-501, SUBTASK 70-36-02-360-020.

      2. Assemble immediately, or less than three minutes after the compound was applied.

      3. Make sure that the compound can be seen around the seal edges.

      4. Remove excess compound from the adjacent areas.

      5. Cure at 60 deg F to 80 deg F (16 deg C to 27 deg C) for 48 hours. The relative humidity must be controlled at a minimum of 50 percent at 75 deg F (24 deg C) or equivalent moisture level. To find equivalent moisture levels, see Figure.

    5. SUBTASK 72-41-15-220-192 Examine the Seal

    1. Refer to Figure.

      2. Visually examine and measure the dimensions of the seal.

      1. Make sure that there is no compound on the surfaces adjacent to the seal.

      2. There must be continuity of bond around the seal.

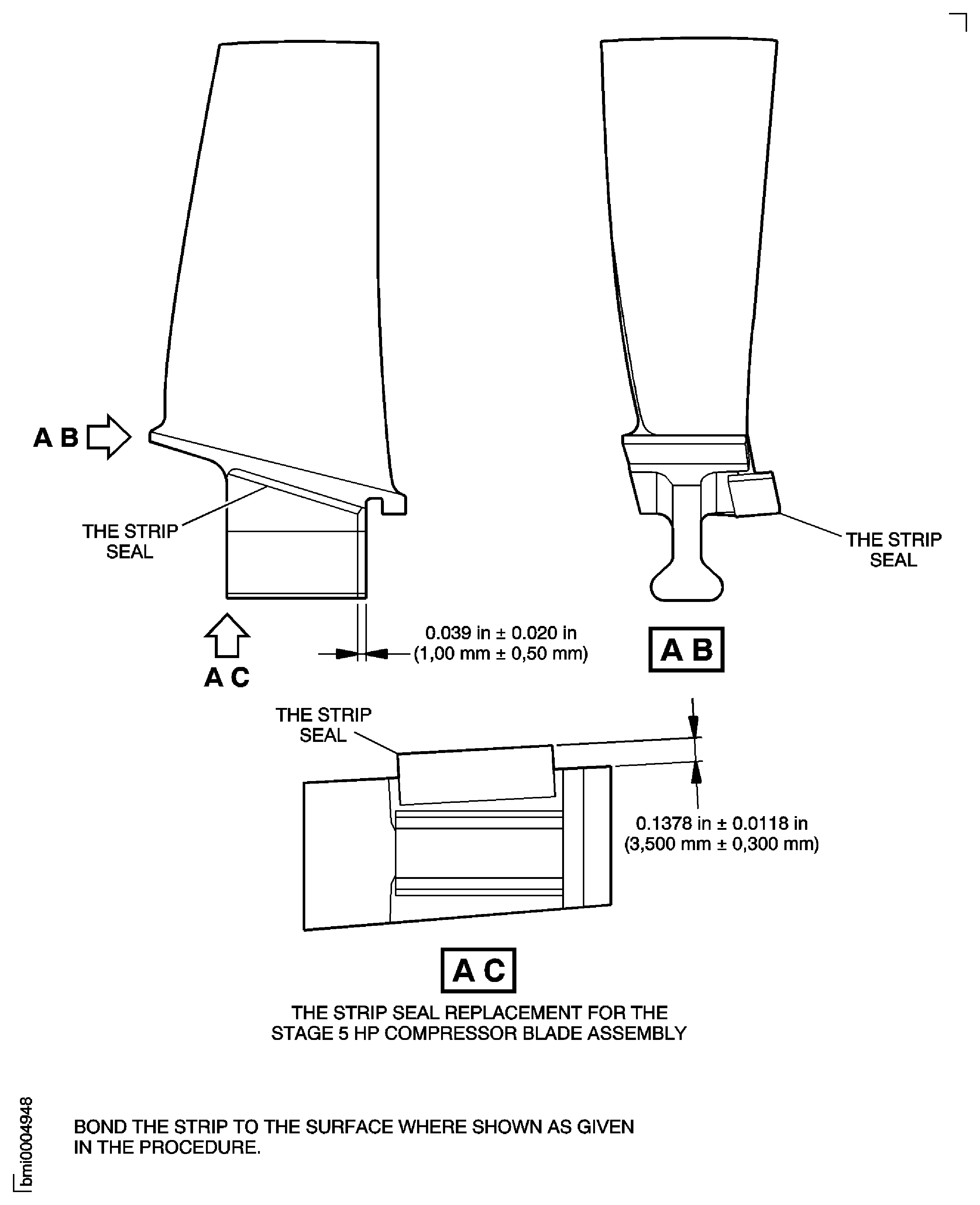

    6. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

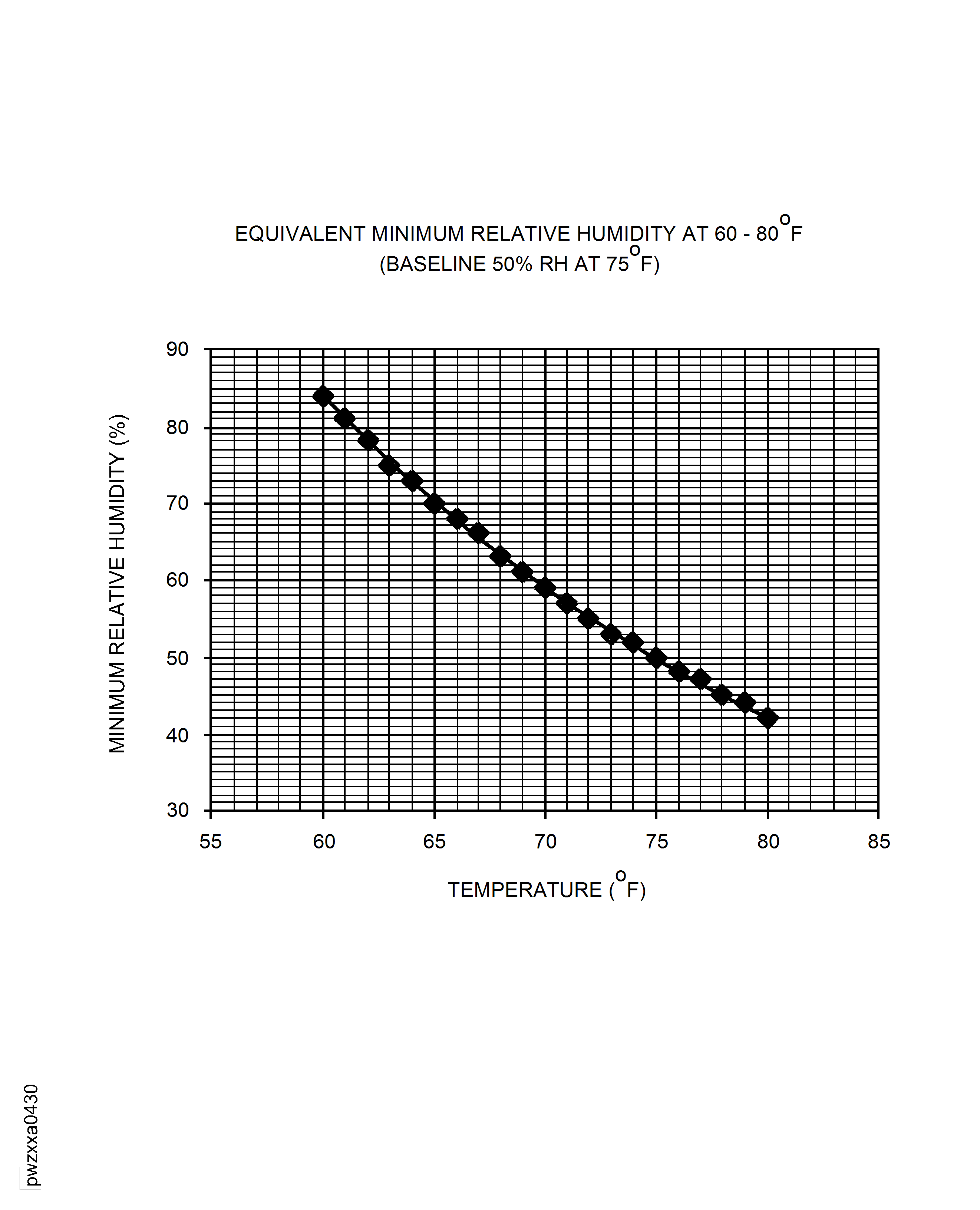

    Figure: Equivalent Relative Humidity

    Equivalent Relative Humidity

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Correct the CoMat 08-014 primer reference (REA18C393)
