TASK 72-41-15-300-028 HPC Stage 11 Rotor Blade - Vibro Polish To Restore The Surface Finish, Repair-028 (VRS6073)

DMC:V2500-A0-72-41-1511-00A-648A-C|Issue No:003.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-15-300-028 HPC Stage 11 Rotor Blade - Vibro Polish To Restore The Surface Finish, Repair-028 (VRS6073)

Effectivity

FIG/ITEM

PART NO

ASSEMBLY

02-670

6A3258

A

02-670

6A4728

A

02-670

6A5641

A

02-670

6A6564

A

02-670

6A6568

A

02-670

6A8759

B

02-685

6A3259

A

02-685

6A4253

A

02-685

6A5642

A

02-685

6A5647

A

02-685

6A8760

B

02-700

6A3257C01

A

02-700

6A4251C01

A

02-700

6A8757

B

02-715

6A3257C01

A

02-715

6A4251C01

A

02-715

6A8757

B

02-717

6A3257C02

A

02-717

6A4251C02

A

02-717

6A8758

B

Material of component

PART IDENT

MATERIAL

HPC - Stage 11 Rotor Blade

Nickel chromium alloy

General

This TASK gives the procedure to vibro-polish the HPC Stage 11 Rotor Blades.

The blades must have been repaired, where necessary, and inspected before vibro-polishing.

The blades can only have this repair completed on them three times.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

Price and Availability

Refer to International Aero Engines.

Related Repairs - None

NOTE

Equipment and materials necessary to do this repair are given in the SPM TASKS given below:
SPM TASK 70-09-00-400-501
SPM TASK 70-11-03-300-503
SPM TASK 70-38-25-380-501

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

Action/ConditionData Module/Technical Publication
Make sure that all cleaning and inspection procedures are done before this repair.
All other repairs must be completed before you apply VRS6073.
Restore the airfoil surface finish before you apply VRS6073. Refer to repair VRS6150 (REPAIR-040).TASK 72-41-15-300-040

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 3R18555 Mask0AM53IAE 3R185551

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-093 SUPERFINISHING MEDIA, CERAMIC, ANGLE CUT TRIANGLE IAE56CoMat 05-093
CoMat 05-095 LIQUID COMPOUND (VIBROPOLISHING FINISHING FLUID)IE230CoMat 05-095
CoMat 05-181 VIBRO POLISHING MEDIA, CERAMIC PINLOCALCoMat 05-181
CoMat 05-182 VIBRO POLISHING COMPOUND, LIQUIDIAE56CoMat 05-182
CoMat 05-183 VIBRO POLISHING PASTEIAE56CoMat 05-183

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-15-220-185 Make sure that the Stage 11 Rotor Blade can be Vibro Polished

    1. Refer to Figure.

      2. Examine the blade platform underside surface, the dovetail side surface, and the dovetail bottom surface to find, if VRS6073 was done before.

        1. Examine the component for the repair identification symbol, a 1 in a triangle, and any suffixes.

          1. If the repair identification symbol and a /2 suffix are engraved on the blade.

          1. Reject.

          2. If there is no repair identification symbol or if the repair identification symbol is engraved with a /1 suffix or with no suffix on the blade.

          1. Continue with the repair.

    2. SUBTASK 72-41-15-350-081 Apply the Mask to the Stage 11 Rotor Blade

      1. Apply a mask or maskants to the blade root.

      1. Apply a mask or maskants over minimum area of blade air washed surface.

      2. Refer to SPM TASK 70-38-25-380-501 and/or use IAE 3R18555 Mask.

    3. SUBTASK 72-41-15-380-072-A00 Vibro-Polish the Stage 11 Rotor Blade Airfoil, Assembly A

    1. Refer to Figure.

      2. Vibro-polish the blade airfoil and adjacent annulus surfaces.

      1. Refer to SPM TASK 70-38-25-380-501.

        2. Polish the surfaces in the area specified AB.

        1. The surface finish is to be 20 microinches (0.50 micrometers) maximum on a minimum of 70 percent of the surface area.

        2. On the remainder of the blade, the surface finish is to be between 20 microinches (0.50 micrometers) and 32 microinches (0.80 micrometers).

        3. Do not have more than 50 blades for one cubic foot of the superpolishing media.

          4. Use one of the following options to get the surface finish limits. The dimension of the superfinishing media is to be 10 mm x 10 mm maximum.

          3. Option 3: Method Two consumables.

    4. SUBTASK 72-41-15-380-072-B00 Vibro-Polish the Stage 11 Rotor Blade Airfoil, Assembly B

    1. Refer to Figure.

      2. Vibro-polish the blade airfoil and adjacent annulus surfaces.

      1. Refer to SPM TASK 70-38-25-380-501.

        2. Polish the surfaces in the area specified AB.

        1. A maximum of 10 microinches (0.25 micrometers) surface finish is permitted on blade airfoil and fillet surfaces.

        2. On the remainder of the blade, the maximum surface finish is to be 16 microinches (0.40 micrometers).

        3. Do not have more than 50 blades for one cubic foot of the superpolishing media.

          4. Use one of the following options to get the surface finish limits. The dimension of the superfinishing media is to be 10 mm x 10 mm maximum.

          3. Option 3: Method Two consumables.

    5. SUBTASK 72-41-15-350-146 Remove the Mask from the Stage 11 Rotor Blade

    1. Remove the mask or maskants.

    6. SUBTASK 72-41-15-110-205 Clean the Stage 11 Rotor Blade

      1. Clean by aqueous degreasing.

      1. Refer to SPM TASK 70-11-03-300-503.

    7. SUBTASK 72-41-15-220-186-A00 Examine the Stage 11 Rotor Blade Surface Finish, Assembly A

    1. Refer to Figure.

      2. Examine the surface finish of the blade.

      1. Refer to SPM TASK 70-38-25-380-501.

        2. Examine the surface finish on the each side of the airfoil and the adjacent surfaces in the area specified AB.

        1. The surface finish must obey the limits of Step.

          2. If the surface finish is not in the specified limits, do the repair from Step again.

          1. Record each application of vibro-polishing during procedure of VRS6073.

          2. Repair can be applied again, only if the repair identification symbol suffix number will not be more than /2 after the initial application. Each application must be recorded.

        3. If the surface finish is in the specified limits, continue with the repair.

    8. SUBTASK 72-41-15-220-186-B00 Examine the Stage 11 Rotor Blade Surface Finish, Assembly B

    1. Refer to Figure.

      2. Examine the surface finish of the blade.

      1. Refer to SPM TASK 70-38-25-380-501.

        2. Examine the surface finish on the each side of the airfoil and the adjacent surfaces in the area specified AB.

        1. The surface finish must obey the limits of Step.

          2. If the surface finish is not in the specified limits, do the repair from Step again.

          1. Record each application of vibro-polishing during procedure of VRS6073.

          2. Repair can be applied again, only if the repair identification symbol suffix number will not be more than /2 after the initial application. Each application must be recorded.

        3. If the surface finish is in the specified limits, continue with the repair.

    9. SUBTASK 72-41-15-350-082 Identify the Repair

    1. Refer to Figure.

      2. Mark the repair identification symbol and the applicable suffix numbers at the indicated location on the blade, use vibration peen method.

      1. Refer to SPM TASK 70-09-00-400-501.

        2. If this is the first application of VRS6073, mark the repair identification symbol, a 1 in a triangle, on the indicated surface.

        1. If the blade is already identified with the repair identification symbol, only the suffix number is to be updated.

      3. If this is the second application of VRS6073, mark /1 adjacent to the repair identification symbol.

      4. If this is the third application of VRS6073, mark /2 adjacent to the repair identification symbol.

      5. Record each application of vibro-polishing during procedure of VRS6073. The process can be applied again, only if the inspection is in agreement with Step or Step, then this must be counted as an additional application of VRS6073 and the applicable suffix number must be updated.

    10. Figure: Repair Details And Dimensions - Assembly A

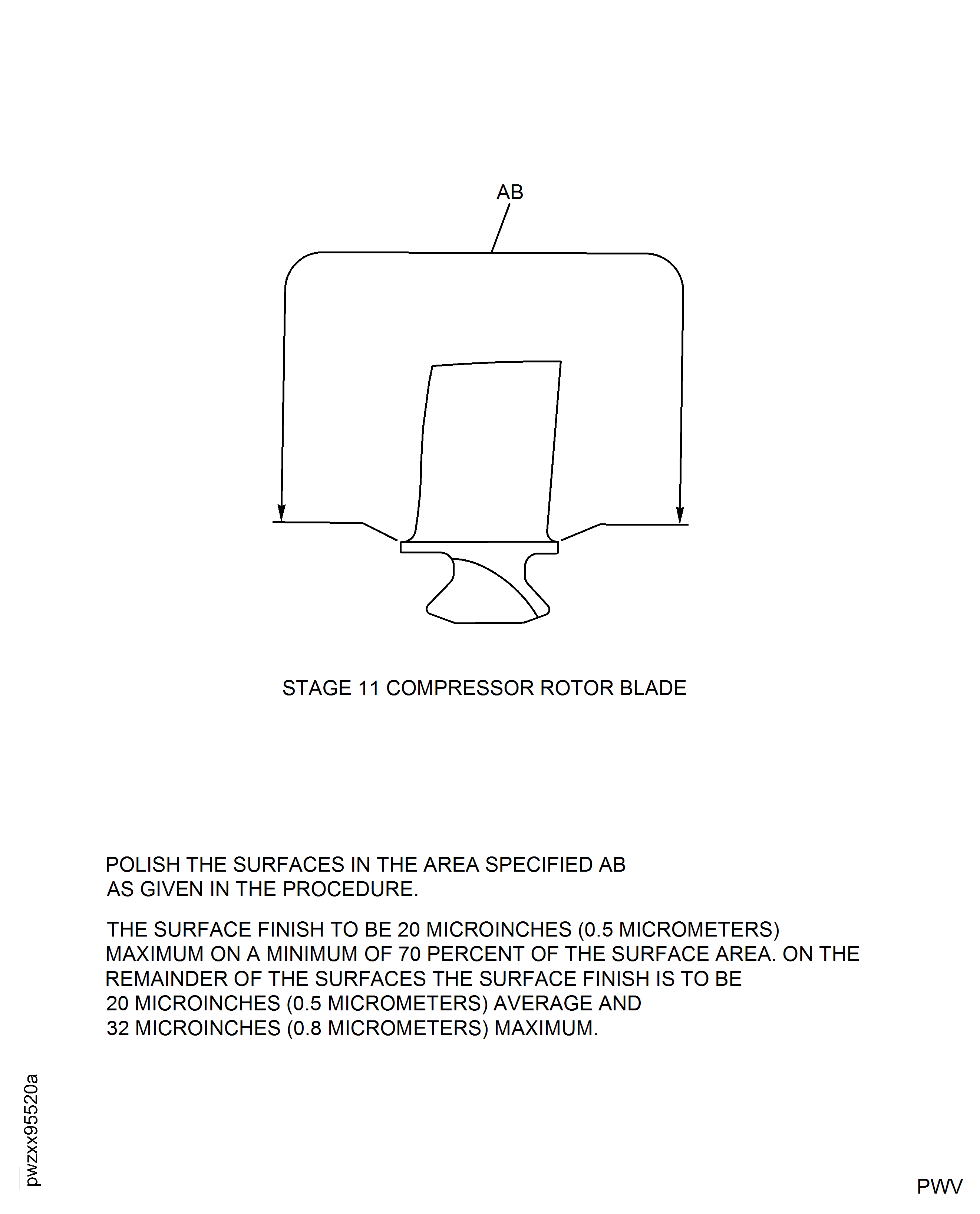

    Repair Details And Dimensions - Assembly A

    Figure: Repair Details And Dimensions - Assembly B

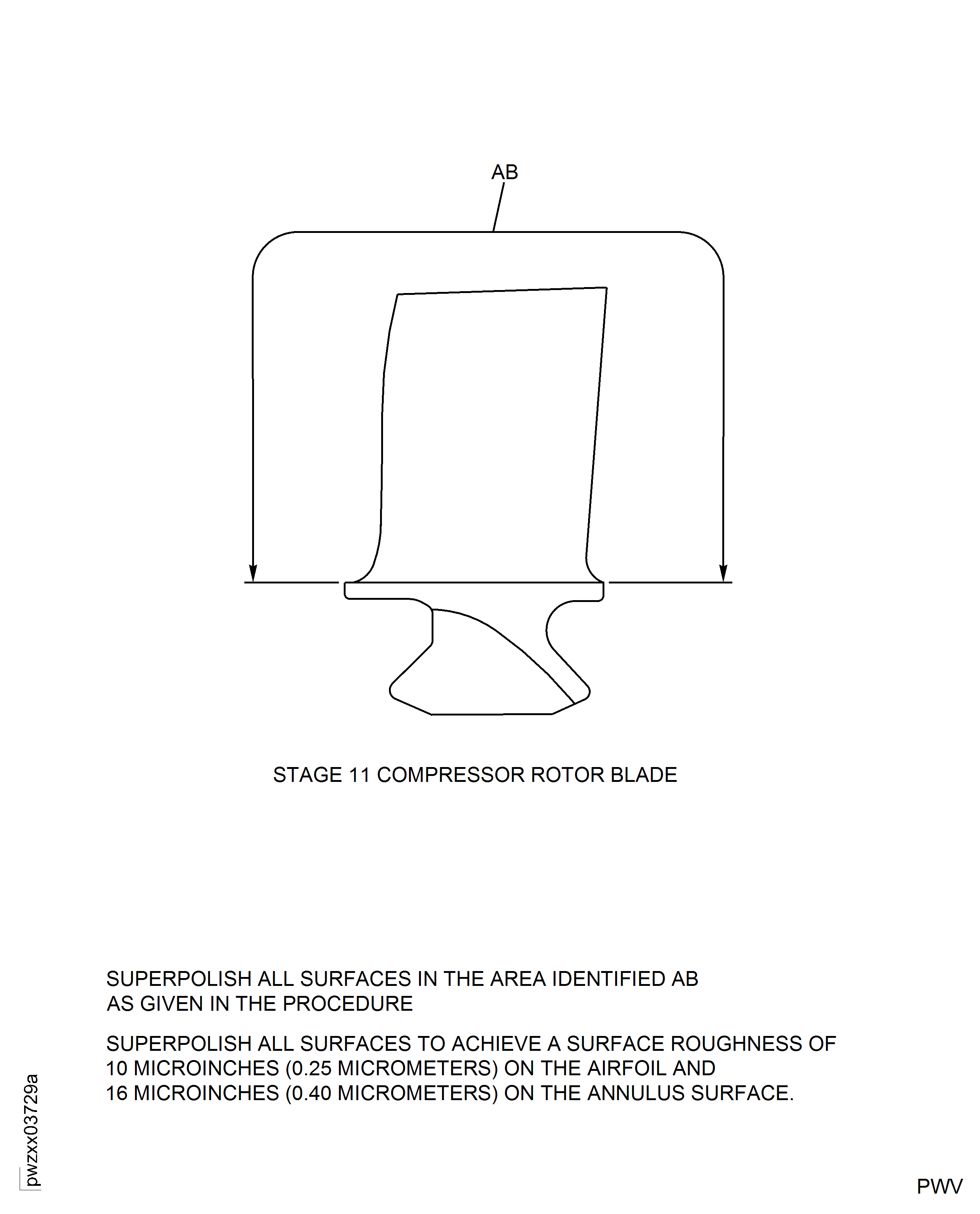

    Repair Details And Dimensions - Assembly B

    Figure: HPC Stage 11 Rotor Blade - Repair Marking Areas

    HPC Stage 11 Rotor Blade - Repair Marking Areas

    Legend
    3

    HPC Stage 11 Rotor Blade - Repair Marking Areas

    1. Dovetail Side Surface Marking Area. Each Side Of Dovetail.

    2. Platform Underside Surfaces Marking Areas. Do Not Mark On Outer Edges.

    3. Dovetail Bottom Surfaces Marking Areas.

    4. 0.0315 Inch (0.800 mm) Minimum.

    5. Corner Radius Minimum. Each Side Of Dovetail.

    6. Fillet Radius Minimum.

    7. Corner Radius Minimum.

    8. Distance From Dovetail Fillet Radius To The Projected Dovetail Bottom Surface. Do Not Extend Marking Into The Fillet Radius.

    Close
