TASK 72-41-21-300-028 HPC Stage 9 Case - Replace The Intrascope Access Port And/or Rivet(s), Repair-028 (VRS6162)

DMC:V2500-A0-72-41-2109-01A-920A-C|Issue No:003.00|Issue Date:2017-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-21-300-028 HPC Stage 9 Case - Replace The Intrascope Access Port And/or Rivet(s), Repair-028 (VRS6162)

Effectivity

FIG/ITEM

PART NO.

Assembly

03-800

6A3388

A

03-800

6A4311

A

03-800

6A4326

B

03-800

6A6511

B

03-800

6A6550

C

03-800

6B1434

D

Material of component

PART IDENT

SYMBOL

MATERIAL

HP Compressor, Stage 9 Case Assembly

QRK

Nickel, Cobalt Alloy

Boss, intrascope access port

EAK

Corrosion Resistant Steel

Rivet, solid

QBE or

QPK

Nimonic 75

General

This Repair must only be done when the instruction to do so is given in TASK 72-41-21-200-000 (INSPECTION/CHECK-000).

This repair replaces any rivet(s) or a damaged intrascope access port, in the HP Compressor Stage 9 Case Assembly.

When the intrascope access port is to be replaced, do SUBTASK 72-41-21-323-054.

When any of the rivet(s), which secure the intrascope access port, are to be replaced, do Step.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are given in the SPM.

Price and availability

Refer to International Aero Engines

Related repairs

None

NOTE

  1. More equipment and materials necessary to do this Repair are in the SPM TASKS given below:

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Vertical drilling machineLOCALVertical drilling machine
Chemical cleaning equipmentLOCALChemical cleaning equipment
Standard workshop equipmentLOCALStandard workshop equipment
Workshop inspection equipmentLOCALWorkshop inspection equipment
Dial indicatorLOCALDial indicator
DrillLOCALDrill
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Cold squeeze riveting equipmentLOCALCold squeeze riveting equipment
Vibrating marking pencilLOCALVibrating marking pencil
Location clampLOCALLocation clamp

locally made

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-121 TEMPORARY MARKER PENCIL/CRAYONIE304CoMat 02-121
CoMat 02-122 TEMPORARY MARKER PENCIL/CRAYONK6835CoMat 02-122
CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY)LOCALCoMat 06-022

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
RIVET - SOLID, COUNTERSUNK HEADU1653AS166884

Assembly A, B, C and D

03-842

RIVET - SOLID, COUNTERSUNK HEADU1653AS167294

Assembly A, B, C and D

03-843

BOSS - INTRASCOPE ACCESS PORT0AM536A54511

Assembly A

03-844

Adaptor, intrascope access portLOCAL6A59481

Assembly B, C and D

03-844

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-21-323-054-A00 Disassemble the Intrascope Access Port from the HP Compressor Stage 9 Case Assembly, Assembly A

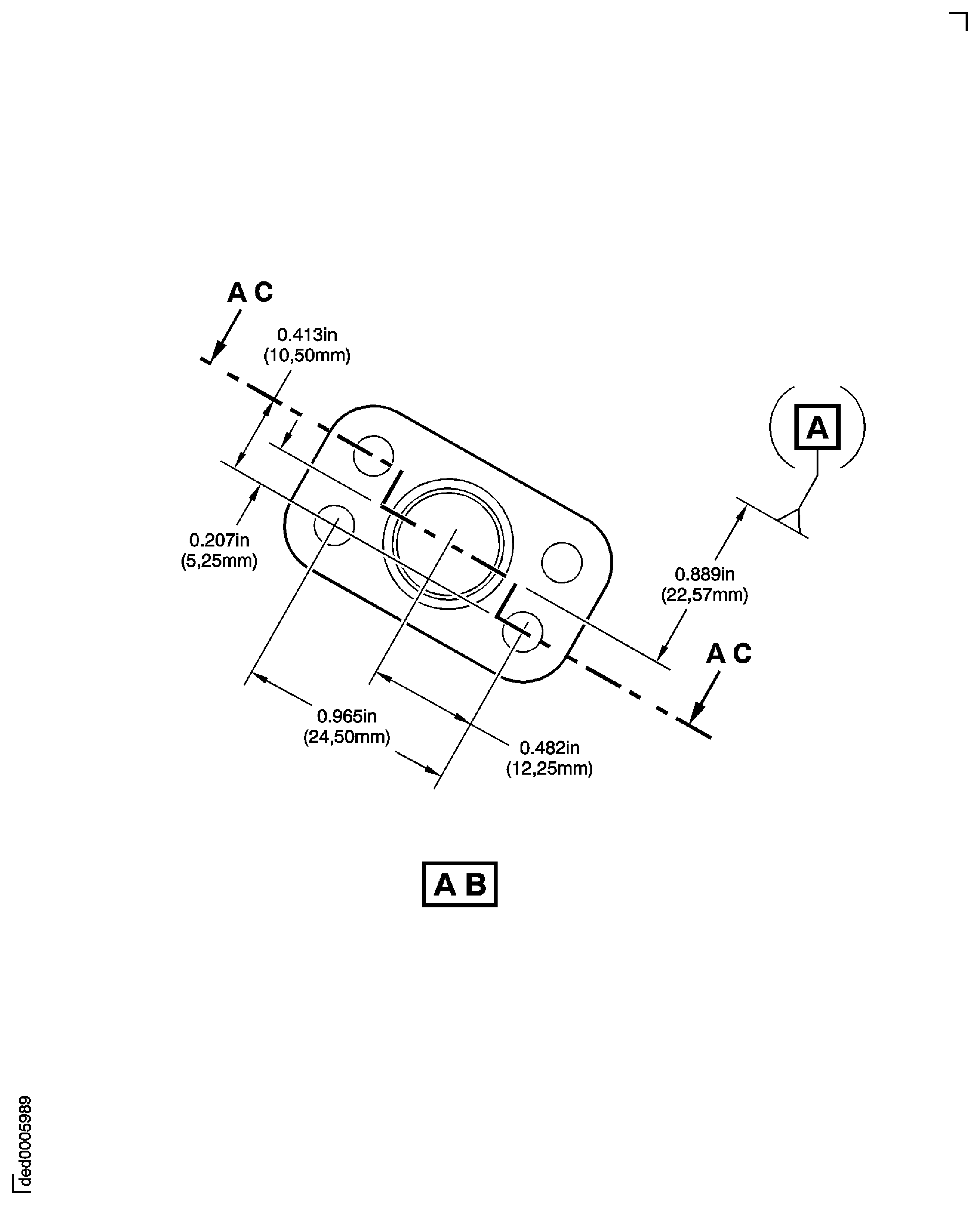

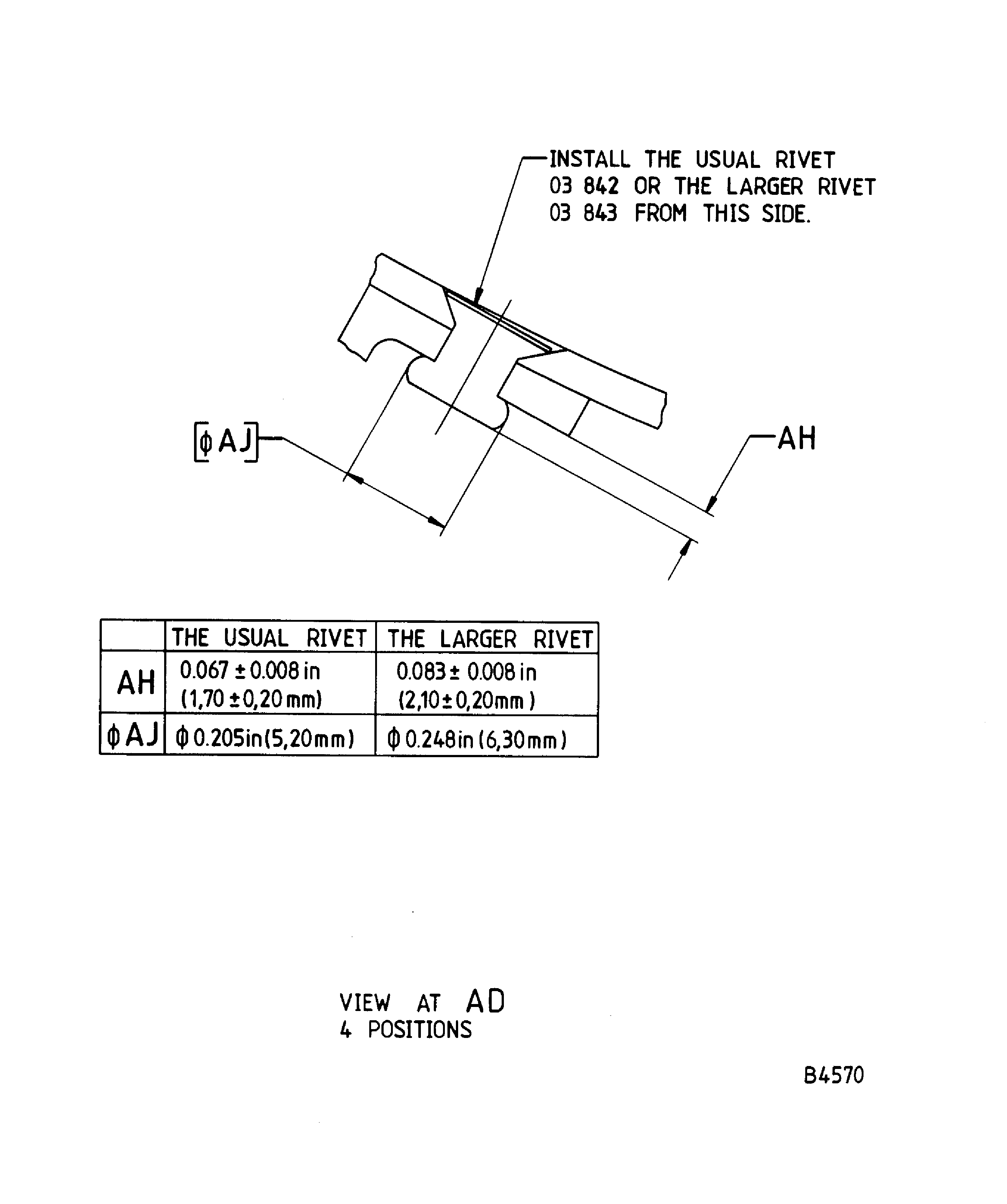

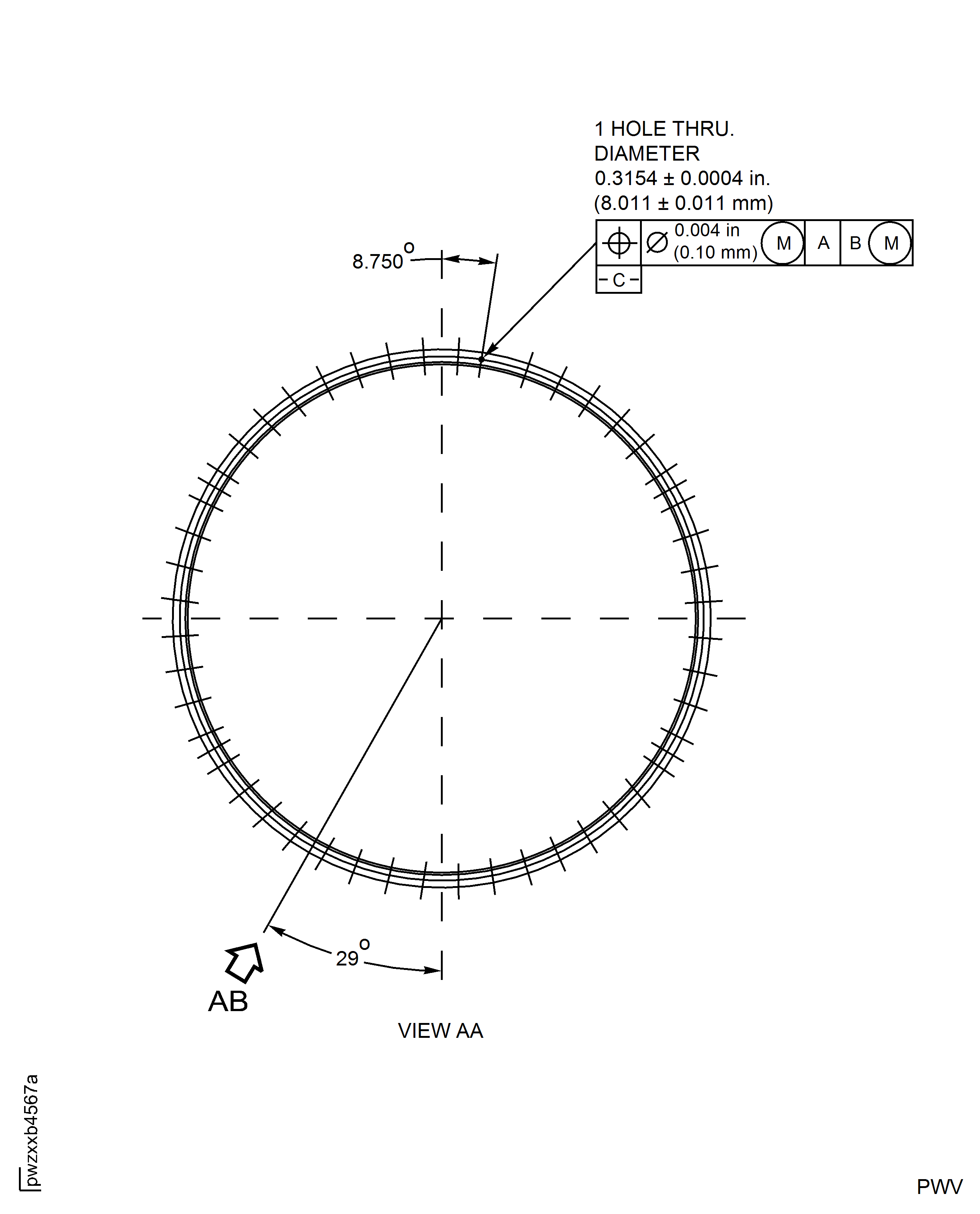

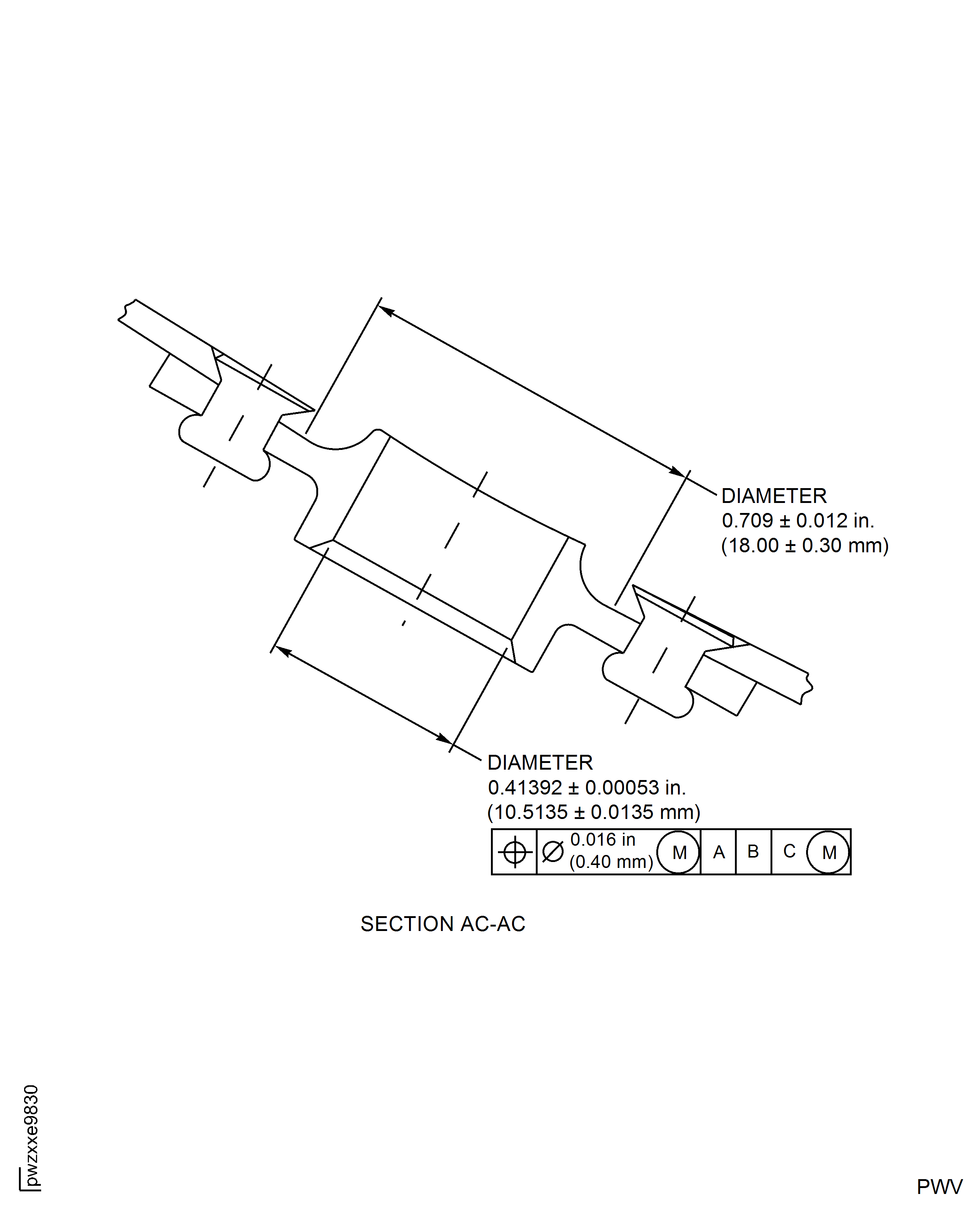

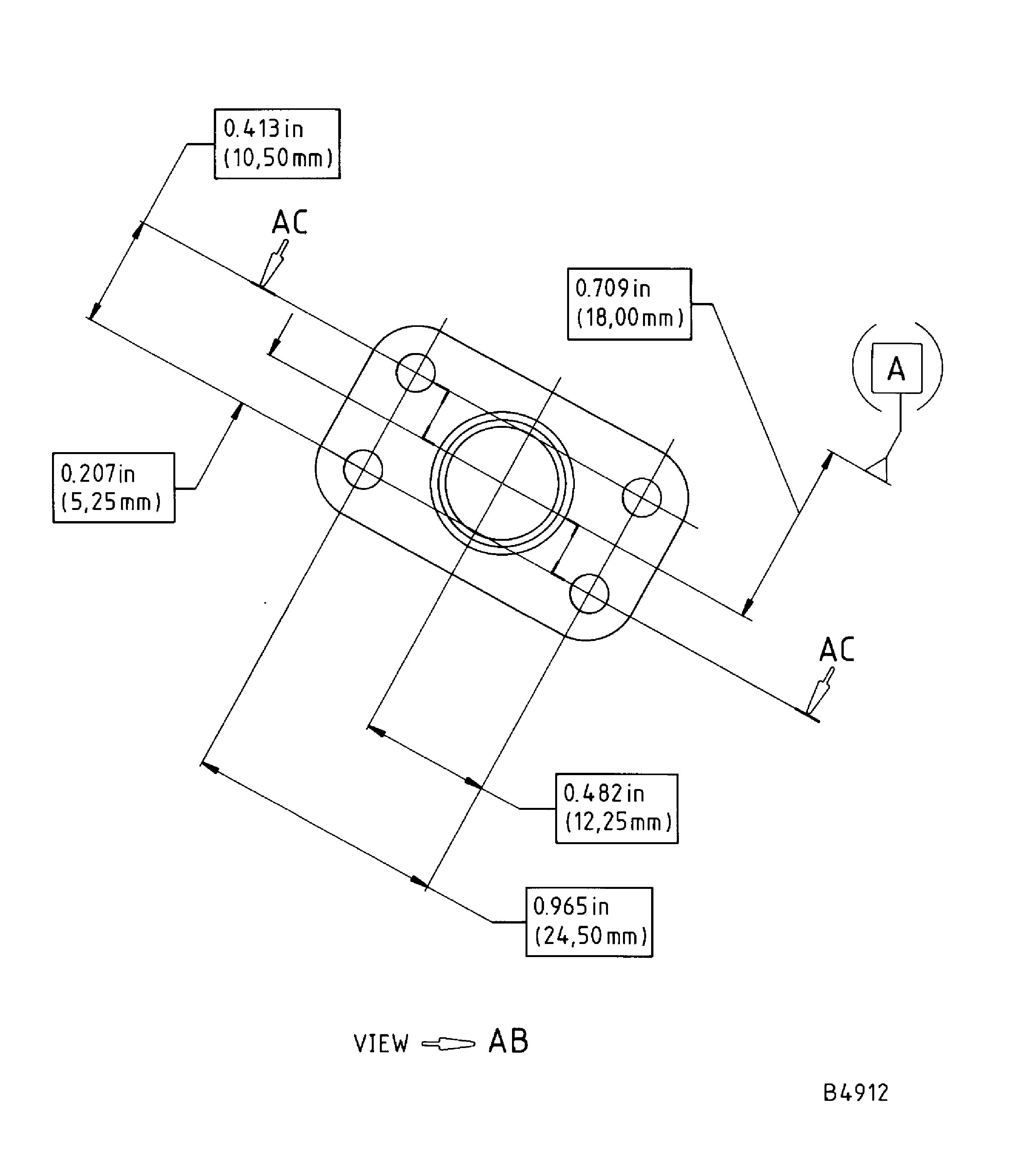

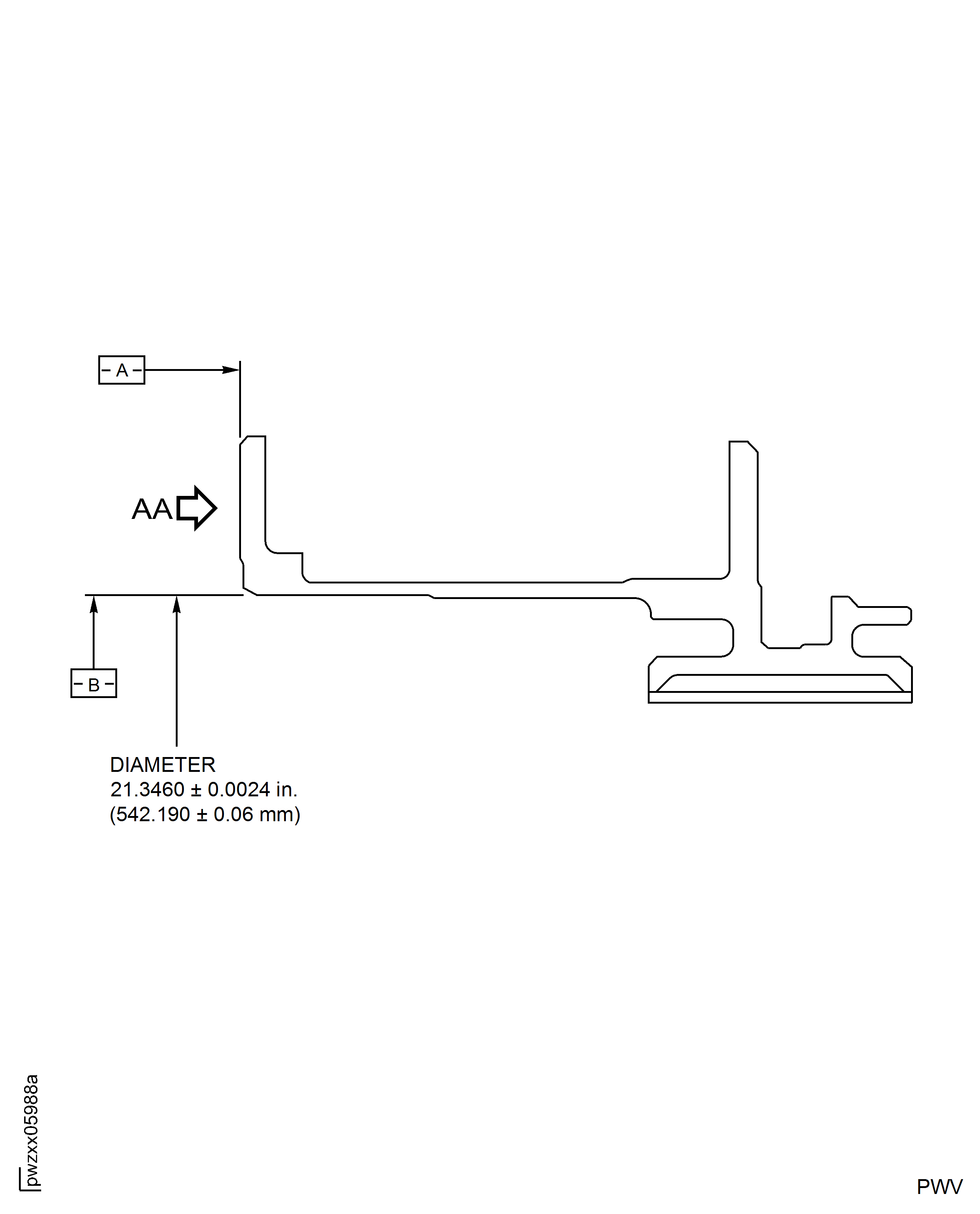

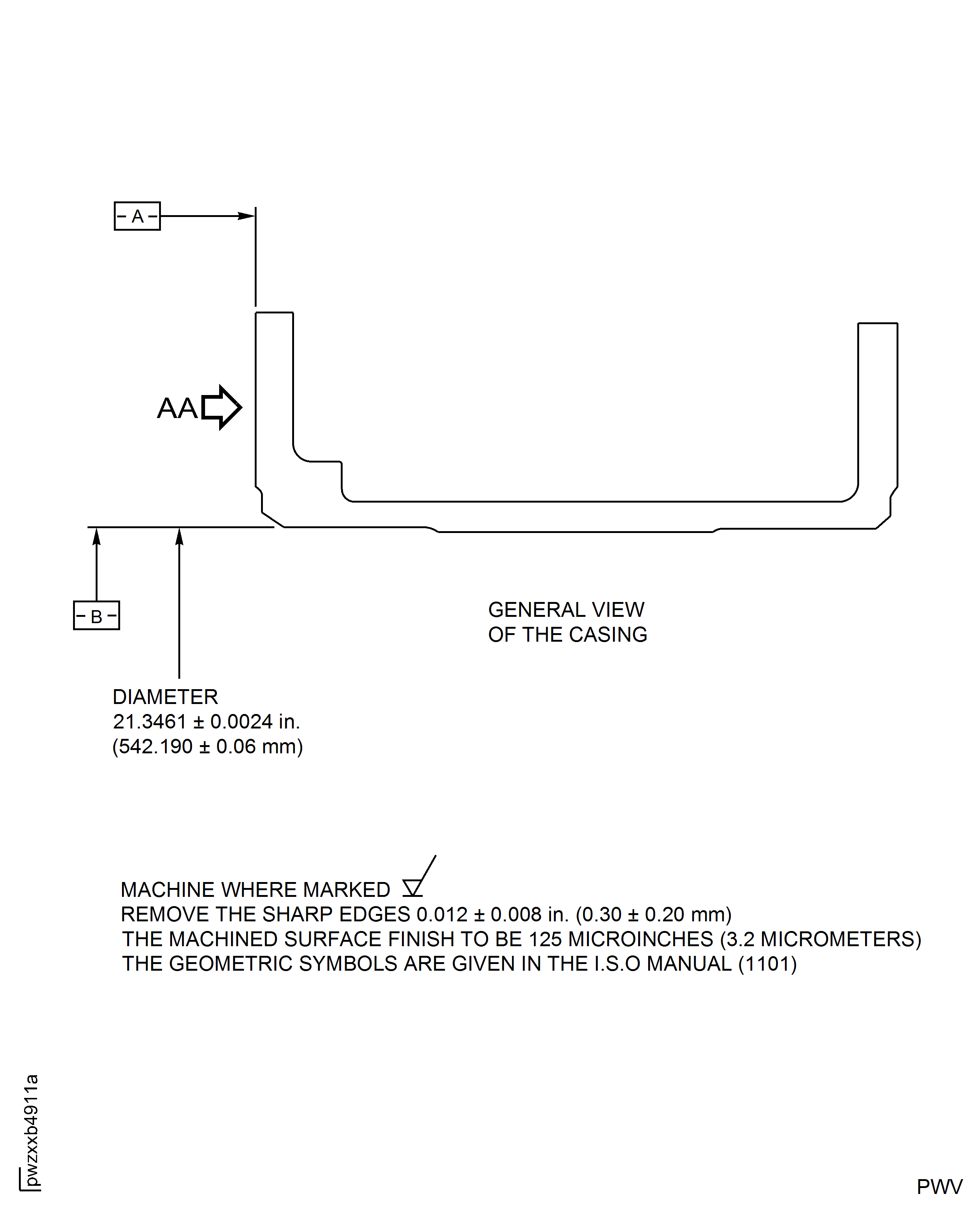

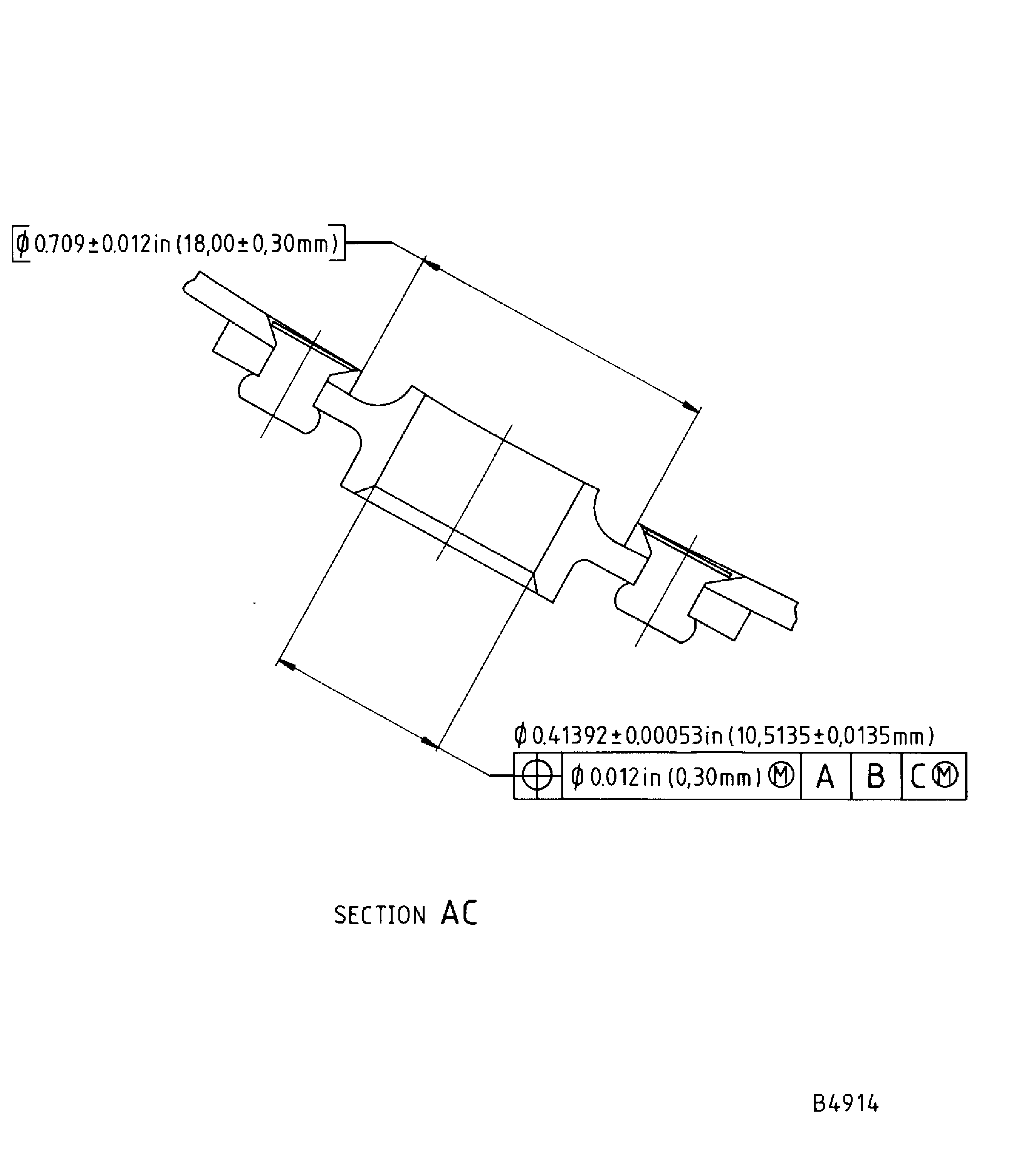

    1. Refer to Figure, Figure, Figure and Figure.

      2. CAUTION

        DO NOT DAMAGE THE HP COMPRESSOR STAGE 9 CASE ASSEMBLY.

        NOTE

        The SUBTASKS which follow must only be used to replace a damaged intrascope access port.

        Drill out the rivets.

      1. Use a Vertical drilling machine, with a drill of a diameter less than that of the rivets.

    3. Discard the intrascope access port.

    2. SUBTASK 72-41-21-323-054-B00 Disassemble the Intrascope Access Port from the HP Compressor Stage 9 Case Assembly, Assembly B

    1. Refer to Figure, Figure, Figure and Figure.

      2. CAUTION

        DO NOT DAMAGE THE HP COMPRESSOR STAGE 9 CASE ASSEMBLY.

        NOTE

        The SUBTASKS which follow must only be used to replace a damaged intrascope access port.

        Drill out the rivets.

      1. Use a Vertical drilling machine, with a drill of a diameter less than that of the rivets.

    3. Discard the intrascope access port.

    3. SUBTASK 72-41-21-323-054-C00 Disassemble the Intrasope Access Port From the HP Compressor Stage 9 Case Assembly C and Assembly D

      2. CAUTION

        DO NOT DAMAGE THE HP COMPRESSOR STAGE 9 CASE ASSEMBLY.

        NOTE

        The SUBTASKS which follow must only be used to replace a damaged intrascope access port.

        Drill out the rivets.

      1. Use a Vertical drilling machine, with a drill of a diameter less than that of the rivets.

    3. Discard the intrascope access port.

    4. SUBTASK 72-41-21-110-160 Clean the HP Compressor Stage 9 Case Assembly

      1. Chemically clean the Case Assembly.

      1. Refer to SPM TASK 70-11-03-300-503.

    5. SUBTASK 72-41-21-220-386-A00 Examine the Rivet Holes in the HP Compressor Stage 9 Case Assembly, Assembly A

    1. Refer to Figure, Figure, Figure and Figure.

      2. Visually examine and measure the diameter of the rivet holes.

    6. SUBTASK 72-41-21-220-386-B00 Examine the Rivet Holes in the HP Compressor Stage 9 Case Assembly, Assembly B

    1. Refer to Figure, Figure, Figure and Figure.

      2. Visually examine and measure the diameter of the rivet holes.

    7. SUBTASK 72-41-21-220-386-C00 Examine the Rivet Holes in the HP Compressor Stage 9 Case Assembly, Assembly C and Assembly D

      2. Visually examine and measure the diameter of the rivet holes.

    8. SUBTASK 72-41-21-323-055-A00 Drill the Rivet Hole(s), in the Intrascope Access Port and/or the HP Compressor Stage 9 Case Assembly, Assembly A

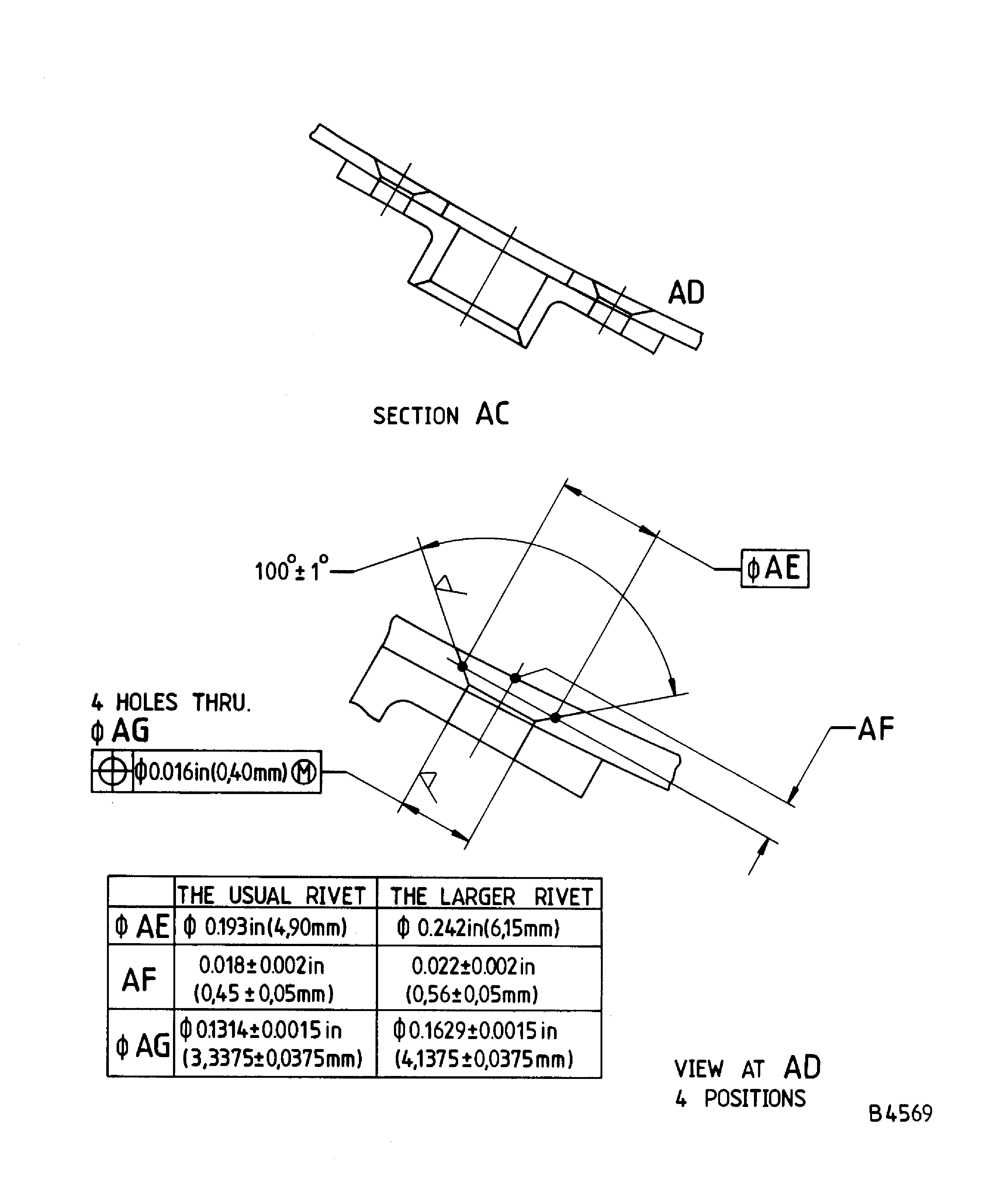

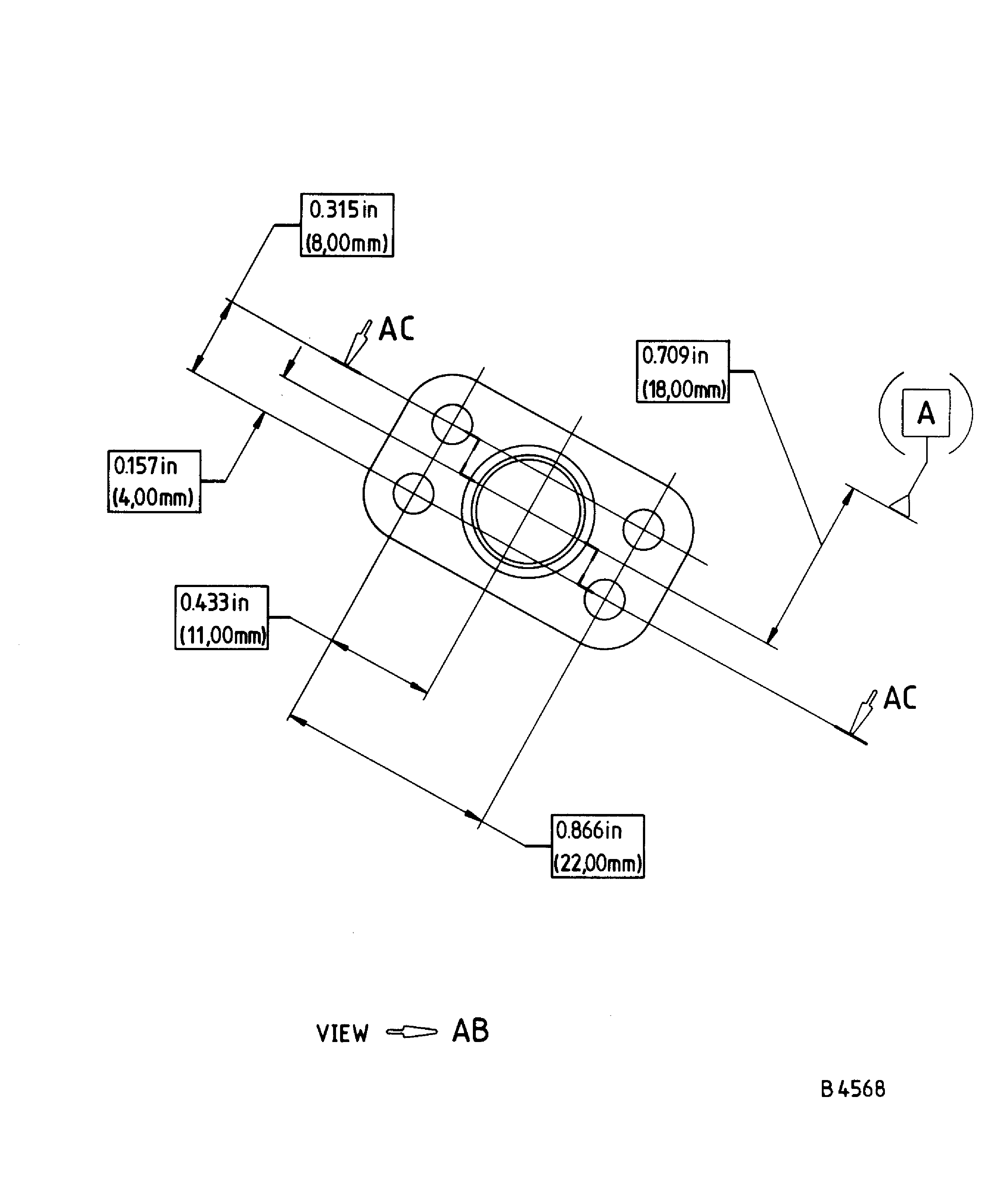

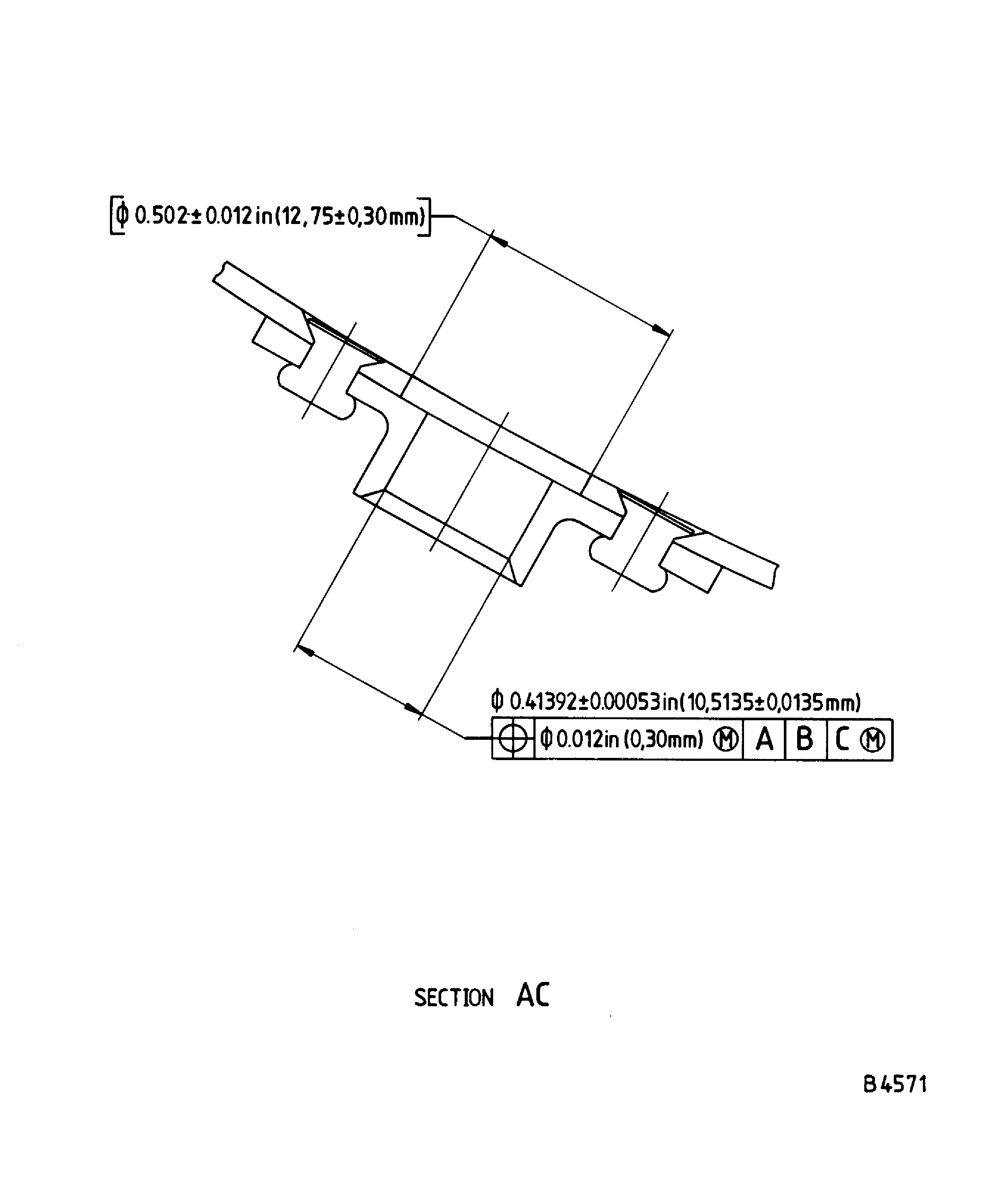

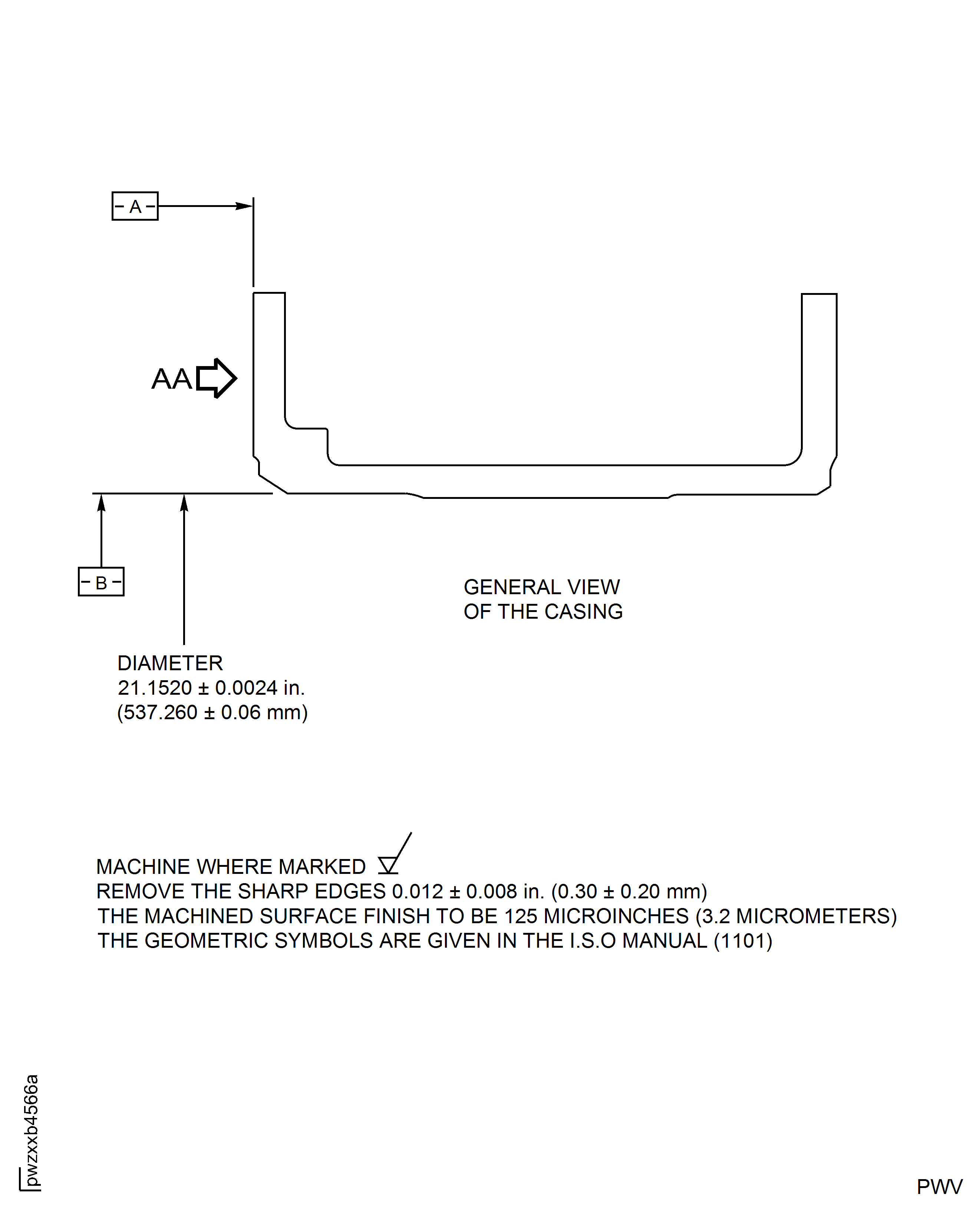

    1. Refer to Figure, Figure, Figure and Figure.

      2. Temporarily install the intrascope access port on to the Case Assembly.

      2. Make sure the intrascope access port hole is in line with the hole in the case assembly.

      3. Use the holes on the case as a template to drill the holes on the intrascope access port.

      4. If necessary, drill the damaged rivet holes in the case for the larger rivets.

    5. Remove the intrascope access port from the casing.

      6. Remove the burrs.

    9. SUBTASK 72-41-21-323-055-B00 Drill the Rivet Hole(s), in the Intrascope Access Port and/or the HP Compressor Stage 9 Case Assembly, Assembly B

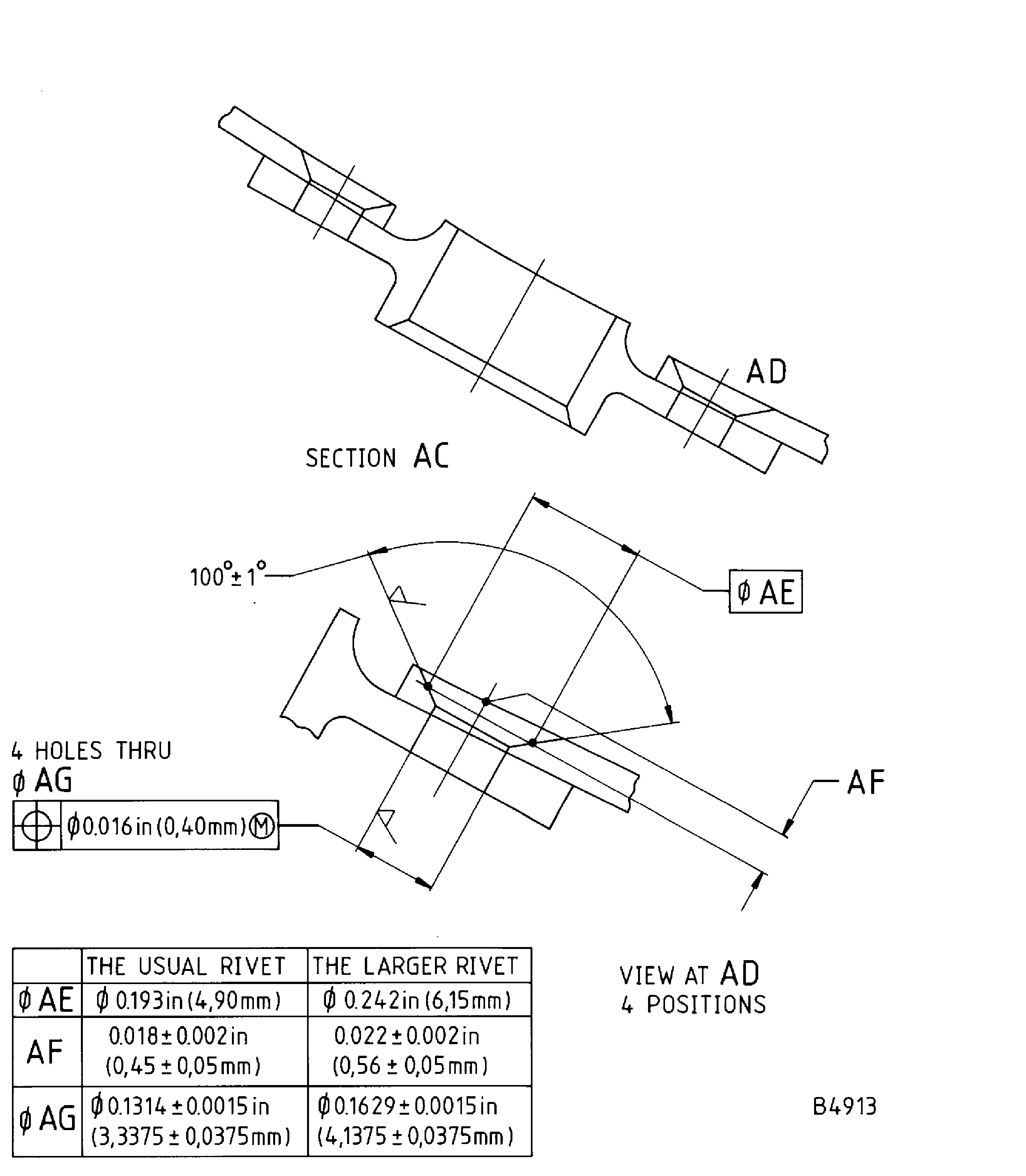

    1. Refer to Figure, Figure, Figure and Figure.

      2. Temporarily install the intrascope access port on to the case assembly.

      2. Make sure the intrascope access port hole is in line with the hole in the case assembly.

      3. Use the holes on the case as a template to drill the holes on the intrascope access port.

      4. If necessary, drill the damaged rivet holes in the case for the larger rivets.

    5. Remove the intrascope access port from the casing.

      6. Remove the burrs.

    10. SUBTASK 72-41-21-323-055-C00 Drill the Rivet Hole(s), in the Intrascope Access Port and/or the HP Compressor Stage 9 Case Assembly, Assembly C, and Assembly D

      2. Temporarily install the intrascope access port on to the case assembly.

      2. Make sure the intrascope access port is in line with the hole in the case assembly.

      3. Use the holes on the case as a template to drill the holes on the intrascope access port.

      4. If necessary, drill the damaged rivet holes in the case for the larger rivets.

    5. Remove the intrascope access port from the casing.

      6. Remove the burrs.

    11. SUBTASK 72-41-21-220-387-A00 Examine the HP Compressor Stage 9 Case Assembly, Assembly A

    1. Refer to Figure, Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the rivet holes.

    12. SUBTASK 72-41-21-220-387-B00 Examine the HP Compressor Stage 9 Case Assembly, Assembly B

    1. Refer to Figure, Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the rivet holes.

    13. SUBTASK 72-41-21-220-387-C00 Examine the HP Compressor Stage 9 Case Assembly, Assembly C and Assembly D

      2. Visually examine and measure the dimensions of the rivet holes.

    14. SUBTASK 72-41-21-230-154 Do a Crack Test

      1. Do a local penetrant crack test of the drilled holes.

      1. Refer to SPM TASK 70-23-05-230-501.

      3. Cracks are not permitted.

    15. SUBTASK 72-41-21-390-055-A00 Assemble the Intrascope Access Port to the HP Compressor Stage 9 Case Assembly, Assembly A

      2. Assemble the HP Compressor Stage 9 Case Assembly, the intrascope access port and the rivets.

      1. Use AS16688 RIVET - SOLID, COUNTERSUNK HEAD, 03-842, 4 off and/or AS16729 RIVET - SOLID, COUNTERSUNK HEAD, 03-843, 4 off, as necessary and 6A5451 BOSS - INTRASCOPE ACCESS PORT, 03-844, 1 off.

      3. Cold squeeze the rivets.

      1. Refer to SPM TASK 70-39-03-390-501.

    16. SUBTASK 72-41-21-390-055-B00 Assemble the Intrascope Access Port to the HP Compressor Stage 9 Case Assembly, Assembly B

      2. Assemble the HP Compressor Stage 9 Case Assembly, the intrascope access port and the rivets.

      1. Use AS16688 RIVET - SOLID, COUNTERSUNK HEAD, 03-842, 4 off and/or AS16729 RIVET - SOLID, COUNTERSUNK HEAD, 03-843, 4 off, as necessary and 6A5948 , 03-844, 1 off.

      3. Cold squeeze the rivets.

      1. Refer to SPM TASK 70-39-03-390-501.

    17. SUBTASK 72-41-21-390-055-C00 Assemble the Intrascope Access Port to the HP Compressor Stage 9 Case Assembly, Assembly C and Assembly D

      2. Assemble the HP Compressor Stage 9 Case Assembly, the intrascope access port and the rivets.

      1. Use AS16688 RIVET - SOLID, COUNTERSUNK HEAD, 03-842, 4 off and/or AS16729 RIVET - SOLID, COUNTERSUNK HEAD, 03-843, 4 off, as necessary and 6A5948 , 03-844, 1 off.

      3. Cold squeeze the rivets.

      1. Refer to SPM TASK 70-39-03-390-501.

    18. SUBTASK 72-41-21-230-155 Do a Crack Test

      1. Do a local penetrant crack test on the new rivets.

      1. Refer to SPM TASK 70-23-05-230-501.

      3. Discard cracked rivet(s).

    19. SUBTASK 72-41-21-220-388-A00 Examine the HP Compressor Stage 9 Case Assembly, Assembly A

      2. Visually examine and measure the dimensions of the assembly.

      1. Refer to SPM TASK 70-39-03-390-501, SUBTASK 70-39-03-390-005.

    20. SUBTASK 72-41-21-220-388-B00 Examine the HP Compressor Stage 9 Case Assembly, Assembly B

      2. Visually examine and measure the dimensions of the assembly.

      1. Refer to SPM TASK 70-39-03-390-501, SUBTASK 70-39-03-390-005.

    21. SUBTASK 72-41-21-220-388-C00 Examine the HP Compressor Stage 9 Case Assembly, Assembly C and Assembly D

      2. Visually examine and measure the dimensions of the assembly.

      1. Refer to SPM TASK 70-39-03-390-501, SUBTASK 70-39-03-390-005.

    22. SUBTASK 72-41-21-350-146 Identify the Repair

      1. Mark VRS6162/1 adjacent to the assembly number, when a damaged intrascope access port is replaced.

      1. Refer to SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

    23. SUBTASK 72-41-21-323-056 Remove Loose and/or Damaged Rivet(s)

      1. CAUTION

        DO NOT DAMAGE THE INTRASCOPE ACCESS PORT OR THE HP COMPRESSOR STAGE 9 CASE ASSEMBLY.

        NOTE

        The SUBTASKS which follow must only be used to replace loose and/or damaged rivet(s).

        Drill out the loose and/or damaged rivet(s).

      1. Use a Vertical drilling machine, with a drill of a diameter less than that of the rivet(s).

      2. Remove sharp edges from the rivet hole(s).

    24. SUBTASK 72-41-21-220-389-A00 Examine the Rivet Holes in the HP Compressor Stage 9 Case Assembly, Assembly A

    1. Refer to Figure, Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the rivet hole(s).

    25. SUBTASK 72-41-21-220-389-B00 Examine the Rivet Hole(s) in the HP Compressor Stage 9 Case Assembly, Assembly B

    1. Refer to Figure, Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the rivet hole(s).

    26. SUBTASK 72-41-21-220-389-C00 Examine the Rivet Hole(s) in the HP Compressor Stage 9 Case Assembly, Assembly C and Assembly D

      2. Visually examine and measure the dimensions of the rivet hole(s).

    27. SUBTASK 72-41-21-323-078-A00 Drill the Rivet Hole(s), Assembly A

      NOTE

      Only do this SUBTASK if larger rivet(s) are to be installed.

    1. Refer to Figure, Figure, Figure and Figure.

      2. Drill damaged rivet hole(s) to suit the larger rivet(s), as necessary.

      1. Use a Vertical drilling machine, with the correct size drill, to suit the larger size rivet(s), as necessary.

      3. Remove the sharp edges around the rivet hole(s).

    28. SUBTASK 72-41-21-323-078-B00 Drill the Rivet Hole(s), Assembly B

      NOTE

      Only do this SUBTASK if larger rivet(s) are to be installed.

    1. Refer to Figure, Figure, Figure and Figure.

      2. Drill damaged rivet hole(s) to suit the larger rivet(s), as necessary.

      1. Use a Vertical drilling machine, with the correct size drill, to suit the larger size rivet(s), as necessary.

      3. Remove the sharp edges around the rivet hole(s).

    29. SUBTASK 72-41-21-323-078-C00 Drill the Rivet Hole(s), Assembly C and Assembly D

      NOTE

      Only do this SUBTASK if larger rivet(s) are to be installed.

      2. Drill the damaged rivet hole(s) to suit the larger rivet(s), as necessary.

      1. Use a Vertical drilling machine, with the correct size drill, to suit the larger size rivet(s), as necessary.

      3. Remove the sharp edges around the rivet hole(s).

    30. SUBTASK 72-41-21-220-390-A00 Examine the Rivet Hole(s), Assembly A

    1. Refer to Figure, Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the rivet hole(s).

      3. Identify holes that have been drilled for the larger rivets.

      1. Refer to SPM TASK 70-09-01-400-501.

    31. SUBTASK 72-41-21-220-390-B00 Examine the Rivet Hole(s), Assembly B

    1. Refer to Figure, Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the rivet hole(s).

      3. Identify holes that have been drilled for the larger rivets.

      1. Refer to SPM TASK 70-09-01-400-501.

    32. SUBTASK 72-41-21-220-390-C00 Examine the Rivet Hole(s), Assembly C and Assembly D

      2. Visually examine and measure the dimensions of the rivet hole(s).

      3. Identify holes that have been drilled for the larger rivets.

      1. Refer to SPM TASK 70-09-01-400-501.

    33. SUBTASK 72-41-21-230-156 Do a Crack Test

      1. Do a local penetrant crack test of the drilled holes.

      1. Refer to SPM TASK 70-23-05-230-501.

      3. Cracks are not permitted.

    34. SUBTASK 72-41-21-390-056-A00 Install the Rivet(s), Assembly A

      2. Assemble the HP Compressor Stage 9 Case Assembly, intrascope access port and rivets.

      1. Use AS16688 RIVET - SOLID, COUNTERSUNK HEAD, 03-842, 4 off and /or AS16729 RIVET - SOLID, COUNTERSUNK HEAD, 03-843, 4 off, as necessary and 6A5451 BOSS - INTRASCOPE ACCESS PORT, 03-844, 1 off.

      3. Cold squeeze the rivets.

      1. Refer to SPM TASK 70-39-03-390-501.

    35. SUBTASK 72-41-21-390-056-B00 Install the Rivet(s), Assembly B

      2. Assemble the HP Compressor Stage 9 Case Assembly, intrascope access port and rivets.

      1. Use AS16688 RIVET - SOLID, COUNTERSUNK HEAD, 03-842, 4 off and/or AS16729 RIVET - SOLID, COUNTERSUNK HEAD, 03-843, 4 off, as necessary and 6A5948 , 03-844, 1 off.

      3. Cold squeeze the rivets.

      1. Refer to SPM TASK 70-39-03-390-501.

    36. SUBTASK 72-41-21-390-147-C00 Install the Rivet(s), Assembly C and Assembly D

      2. Assemble the HP Compressor Stage 9 Case Assembly, intrascope access port and rivets.

      1. Use AS16688 RIVET - SOLID, COUNTERSUNK HEAD, 03-842, 4 off and/or AS16729 RIVET - SOLID, COUNTERSUNK HEAD, 03-843, 4 off, as necessary and 6A5948 , 03-844, 1 off.

      3. Cold squeeze the rivets.

      1. Refer to SPM TASK 70-39-03-390-501.

    37. SUBTASK 72-41-21-230-061 Do a Crack Test

      1. Do a local penetrant crack test on the new rivets.

      1. Refer to SPM TASK 70-23-05-230-501.

      3. Discard cracked rivet(s).

    38. SUBTASK 72-41-21-220-460-A00 Examine the HP Compressor Stage 9 Case Assembly, Assembly A

      2. Visually examine and measure the dimensions of the assembly.

      1. Refer to SPM TASK 70-39-03-390-501, SUBTASK 70-39-03-390-005

    39. SUBTASK 72-41-21-220-460-B00 Examine the HP Compressor Stage 9 Case Assembly, Assembly B

      2. Visually examine and measure the dimensions of the assembly.

      1. Refer to SPM TASK 70-39-03-390-501, SUBTASK 70-39-03-390-005.

    40. SUBTASK 72-41-21-220-460-C00 Examine the HP Compressor Stage 9 Case Assembly, Assembly C and Assembly D

      2. Visually examine and measure the dimensions of the assembly.

      1. Refer to SPM TASK 70-39-03-390-501, SUBTASK 70-39-03-390-005.

    41. SUBTASK 72-41-21-350-148 Identify the Repair

      1. Mark VRS6162/2, adjacent to the assembly number when the damaged rivet(s) is/are replaced.

      1. Refer to SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

    42. Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

    Figure: Repair Details and Dimensions - Assembly B

    Repair Details and Dimensions - Assembly B

    Figure: Repair Details and Dimensions - Assembly C

    Repair Details and Dimensions - Assembly C

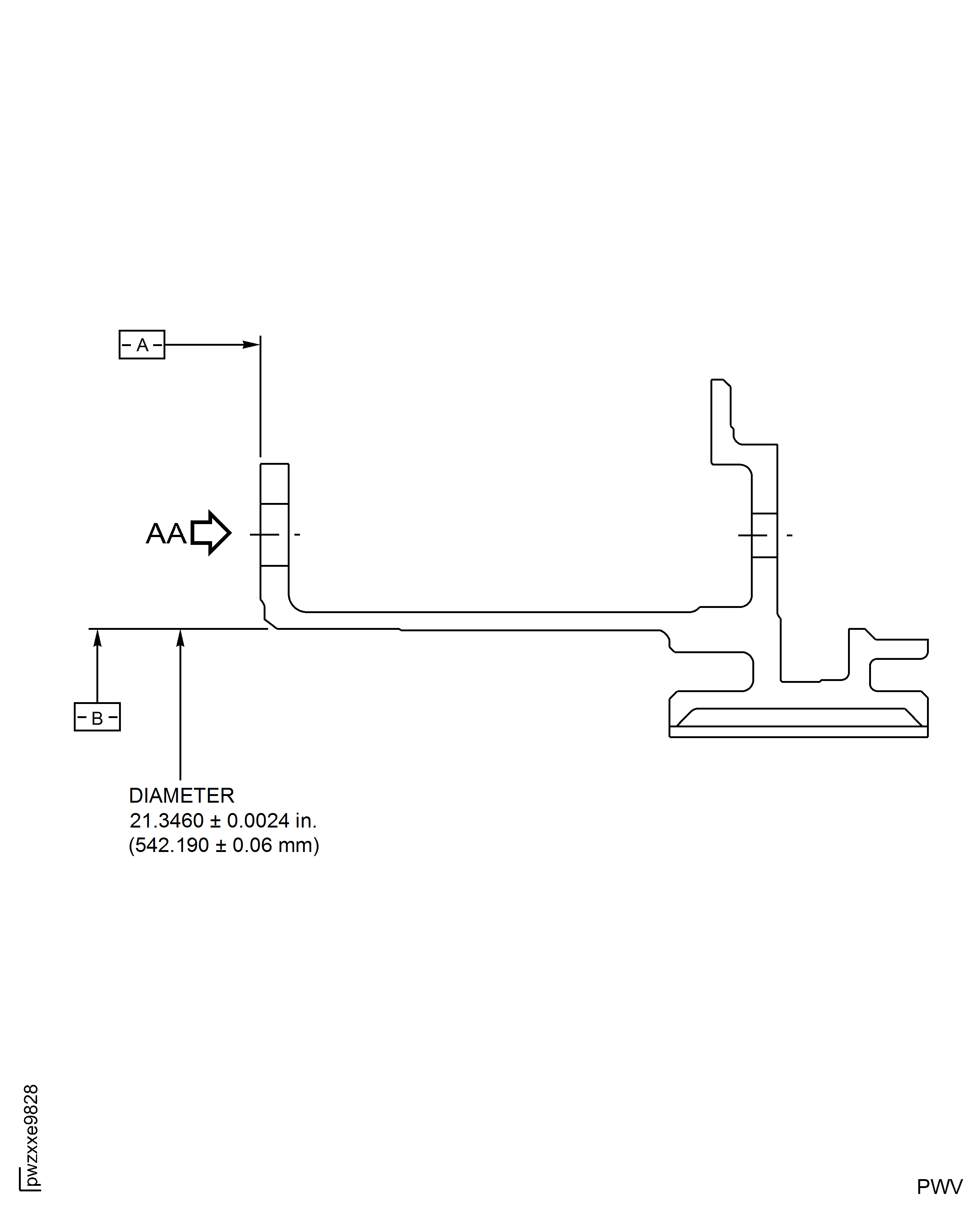

    Figure: Repair Details and Dimensions - Assembly D

    Repair Details and Dimensions - Assembly D

    Figure: Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Figure: Repair Details and Dimensions - Assembly D

    Repair Details and Dimensions - Assembly D

    Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

    Figure: Repair Details and Dimensions - Assembly B

    Repair Details and Dimensions - Assembly B

    Figure: Repair Details and Dimensions - Assembly C and Assembly D

    Repair Details and Dimensions - Assembly C and Assembly D

    Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

    Figure: Repair Details and Dimensions - Assembly B, Assembly C and Assembly D

    Repair Details and Dimensions - Assembly B, Assembly C and Assembly D

    Figure: Repair Details and Dimensions - Assembly A, Assembly B, Assembly C and Assembly D

    Repair Details and Dimensions - Assembly A, Assembly B, Assembly C and Assembly D

    Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

    Figure: Repair Details and Dimensions - Assembly B and Assembly C

    Repair Details and Dimensions - Assembly B and Assembly C

    Figure: Repair Details and Dimensions - Assembly D

    Repair Details and Dimensions - Assembly D

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Corrected link for SPM Task 70-11-03-300-503 per REA17VC131

Change Type:

Editorial updates in Spares Section for link

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:IE304
Enterprise Name:DELETED
BU Name:DELETED,SEE CAGE CODE 0V6W9
Manufacturer Code:K6835
Enterprise Name:MED-LAB LTD
BU Name:MED-LAB LTD
Street:COPELAND ST
City:DERBY
Zip Code:DE1 2PU
Country:GREAT BRITAIN
Phone Number:44-1332-349094
Fax Number:44-1332-371237
Email:sales@med-lab.co.uk
Internet:www.med-lab.co.uk
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:6A5451
Part Name:BOSS - INTRASCOPE ACCESS PORT
Manufacturer Code:0AM53
Link not Found
Part Number:AS16688
Part Name:RIVET - SOLID, COUNTERSUNK HEAD
Manufacturer Code:U1653
Part Number:AS16729
Part Name:RIVET - SOLID, COUNTERSUNK HEAD
Manufacturer Code:U1653
Manufacturer Code:IE304
Supply Number:CoMat 02-121
Type:sp01
Supply Short Name:CoMat 02-121 TEMPORARY MARKER PENCIL/CRAYON
Supply Name:CoMat 02-121 TEMPORARY MARKER PENCIL/CRAYON
Specification Groups:
Doc NumberType
OMAT: 261BEROL VERITHIN (HARD TYPE)
Suppliers:
ManufacturerRemarks
IE304
K5720
K6835
LOCAL
Manufacturer Code:K6835
Supply Number:CoMat 02-122
Type:sp01
Supply Short Name:CoMat 02-122 TEMPORARY MARKER PENCIL/CRAYON
Supply Name:CoMat 02-122 TEMPORARY MARKER PENCIL/CRAYON
Specification Groups:
Doc NumberType
DELETED
Suppliers:
ManufacturerRemarks
K6835
IE133
Manufacturer Code:X222X
Supply Number:CoMat 06-022
Type:sp01
Supply Short Name:CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY)
Supply Name:CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY)
Specification Groups:
Doc NumberType
ARDROX 985-P14 OMAT: 652 (CHEMETALL OAKITE 985-P14)It is not permitted to mix the selected CoMat 06‐022 letter suffix material with other CoMat 06‐022 letter suffix materials. Where CoMat 06‐022 is specified with no suffix, use one of the CoMat 06‐ 022 letter suffix materials.
Suppliers:
ManufacturerRemarks
X222X
Manufacturer Code:LOCAL
Tool Number:Chemical cleaning equipment
Tool Name:Chemical cleaning equipment
Manufacturer Code:LOCAL
Tool Number:Cold squeeze riveting equipment
Tool Name:Cold squeeze riveting equipment
Manufacturer Code:LOCAL
Tool Number:Dial indicator
Tool Name:Dial indicator
Manufacturer Code:LOCAL
Tool Number:Drill
Tool Name:Drill
Link not Found
Manufacturer Code:LOCAL
Tool Number:Penetrant crack test equipment
Tool Name:Penetrant Crack Test Equipment
Link not Found
Manufacturer Code:LOCAL
Tool Number:Vertical drilling machine
Tool Name:Vertical drilling machine
Link not Found
Manufacturer Code:LOCAL
Tool Number:Workshop inspection equipment
Tool Name:Workshop inspection equipment
