TASK 72-41-21-200-012-B00 HPC Stage 11 Rotor Path Ring - Examine, Inspection-012

DMC:V2500-A0-72-41-2128-00B-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-21-200-012-B00 HPC Stage 11 Rotor Path Ring - Examine, Inspection-012

Effectivity

FIG/ITEM PART NO.

04-550

6A4297

General

This TASK gives the procedure for the inspection of the stage 11 rotor path ring. For other parts of the HP compressor ring cases, refer to TASK 72-41-21-200-000 (INSPECTION-000).

Fig/item number in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item number are used. For the service bulletin alpha variants refer to the IPC.

The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for the parts which must have a crack test is given in Step. Do the crack test before a part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in the repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part can be shown to be necessary at a subsequent date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK/SUBTASK number are in the SPM.

References

Refer to the SPM for data on these items:

Definition of Damage, SPM TASK 70-02-02-350-501,

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items are contained in this TASK. For more data on these items refer to the SPM:

Methods of Testing for Crack Indications,

Chemical Processes,

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-21-230-146 Examine the Stage 11 Rotor Path Ring for Cracks

    1. Clean the parts. Refer to TASK 72-41-21-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below.

        PART IDENT TASK/SUBTASK

        Stage 11 rotor path ring

        TASK

        70-23-02-230-501

        1. Cracked

        1. Reject

    2. SUBTASK 72-41-21-220-200 Examine the Stage 11 Rotor Path Ring Lining at Location 1054

    1. Refer to Figure.

      2. Scored.

        1. Up to 0.005in. (0.13 mm) in depth

        1. Accept

        2. More than in (1)

        1. Repair, VRS6023 TASK 72-41-21-300-019 (REPAIR-019)

        3. Chipped

        1. Repair, VRS6023 TASK 72-41-21-300-019 (REPAIR-019)

      3. Worn.

        1. If the lining radius is between 10.300 and 10.304in. (261.62 and 261.722 mm)

        1. Accept

        2. More than 10.304in. (261.722 mm)

        1. Repair, VRS6023 TASK 72-41-21-300-019 (REPAIR-019)

    3. SUBTASK 72-41-21-220-201 Examine the Stage 11 Rotor Path Ring Faces at Locations 1, 2, 1111, 1113 and 1165

    1. Refer to Figure.

      2. Galled/Scored.

        1. Not more than to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in (1)

        1. Repair VRS6100, TASK 72-41-21-300-018 (REPAIR-018)

      3. Location 1111.

        1. If the diameter is between 21.3512 and 21.3543 in. (542.320 and 542.400 mm)

        1. Accept

        2. Less than 21.3512 in. (542.320 mm)

        1. Reject

      4. Location 1113.

        1. If the diameter is between 22.5354 and 22.5433 in. (572.400 and 572.600 mm)

        1. Accept

        2. Less than 22.5354 in. (572.400 mm)

        1. Reject

      5. Location 1165.

        1. If the diameter is between 21.3512 and 21.3543 in. (542.320 and 542.400 mm)

        1. Accept

        2. Less than 21.3512 in. (542.320 mm)

        1. Reject

    4. SUBTASK 72-41-21-220-632 Examine the Stage 11 Rotor Path Ring Bolt Holes at Location 3

    1. Refer to Figure.

      2. Scratched or with burred edges.

        1. Up to 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in (1)

        1. Repair, VRS6100 TASK 72-41-21-300-018 (REPAIR-018)

    5. SUBTASK 72-41-21-220-203 Examine the Stage 11 Rotor Path Ring Grooves at Locations 1136 and 1139

    1. Refer to Figure.

      2. Scored or galled.

        1. Up to 0.002in. (0.05 mm) in depth

        1. Accept

        2. More than in (1)

        1. Reject

      3. Location 1139.

        1. If the width of the groove is between 0.1154 and 0.1173in. (2.93 and 2.98 mm)

        1. Accept

        2. More than 0.1173in. (2.98 mm)

        1. Reject

    6. SUBTASK 72-41-21-220-204 Examine the Stage 11 Rotor Path Ring Location Dowel Hole at Location 1198

    1. Refer to Figure.

      2. Scratched or with burred edges

      1. Reject

        2. Location dowel hole diameter 1198.

          1. If the diameter is between 0.315 and 0.373in. (8.00 and 8.36 mm)

          1. Accept

          2. More than 0.373in. (8.36 mm)

          1. Reject

    7. SUBTASK 72-41-21-220-205 Examine the stage 11 Rotor Path Ring all Remaining Surfaces

      1. Nicked, dented or scratched.

        1. Up to 0.002in. (0.05 mm) in depth

        1. Accept

        2. More than in (1)

        1. Repair, VRS6100 TASK 72-41-21-300-018 (REPAIR-018)

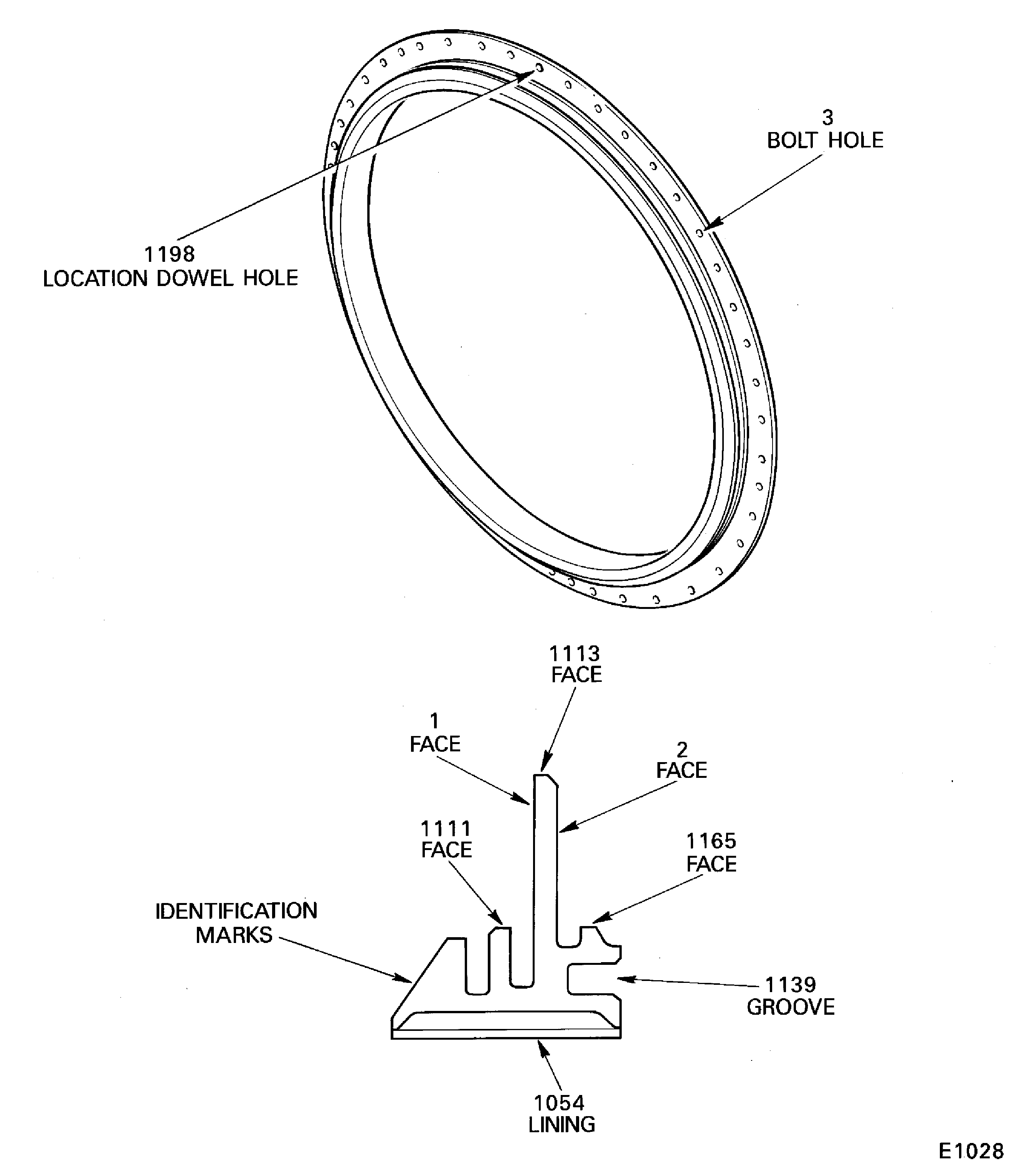

    8. Figure: Stage 11 rotor path ring - inspection locations

    Stage 11 rotor path ring - inspection locations

Requirements After Job Completion

Follow-On Conditions

NONE
