TASK 72-41-34-300-033 HPC Vane Actuating Crankshaft Bearing Housings - Replace The Surface Protection, Repair-033 (VRS6356)

DMC:V2500-A0-72-41-3412-02A-920A-C|Issue No:002.00|Issue Date:2018-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-34-300-033 HPC Vane Actuating Crankshaft Bearing Housings - Replace The Surface Protection, Repair-033 (VRS6356)

Effectivity

FIG/ITEM

PART NO.

01-730

6A3517

01-760

6A3519

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Front housing

EAD

Jethete

or EAK

Rear housing

EAD

Jethete

or EAK

General

This Repair must only be done when the instruction to do so is given in TASK 72-41-34 Inspection/Check.

This Repair is to locally repair or replace the surface protection on the HP compressor front and rear housing assemblies.

The surface protection will be replaced after all other Repairs to the component have been completed.

The HP compressor front and rear housing assemblies will have to be disassemblied, if full replacement of the surface protection is necessary.

Local repairs are to be done to Step in the disassemblied state and Step in the assemblied state.

The practices and processes referred to in the procedure by the TASK/SUBTASK number are in the SPM.

Price and Availability - none

Related Repairs

HP Compressor Front Housing Assembly - Replace the bearing, Refer to TASK 72-41-34-300-015 (VRS6239)

HP Compressor Rear Housing Assembly - Replace the bearing, Refer to TASK 72-41-34-300-016 (VRS6240)

NOTE

Equivalent materials or equipment can be used.

NOTE

More equipment and materials necessary to do this repair are in the SPM TASKS given below:
SPM TASK 70-09-00-400-501
SPM TASK 70-11-01-300-503
SPM TASK 70-11-10-300-503
SPM TASK 70-12-01-120-501
SPM TASK 70-38-34-300-503
SPM TASK 70-11-14-100-501

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Degreasing equipmentLOCALDegreasing equipment
Paint stripping equipmentLOCALPaint stripping equipment
Abrasive blast equipmentLOCALAbrasive blast equipment
Paint spray equipmentLOCALPaint spray equipment
Paint brushLOCALPaint brush

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING94960CoMat 02-019
CoMat 05-003 ABRASIVE MEDIUM ALUMINUM OXIDE, 120/220 GRADELOCALCoMat 05-003
CoMat 06-073 INK, METAL MARKING88303CoMat 06-073
CoMat 07-024 AEROLAC METAL PROTECTIVE VARNISH, CLEARLOCALCoMat 07-024
CoMat 07-062 TWO-PACK EPOXY FINISH, GREY, AIRCRAFT, BS381C 693LOCALCoMat 07-062
DELETEDLOCALDELETED
CoMat 07-080 TWO-PACK EPOXY PRIMER AND CATALYSTLOCALCoMat 07-080
CoMat 07-082 THINNERLOCALCoMat 07-082
CoMat 07-086 CHROMATE EPOXY PRIMERLOCALCoMat 07-086
CoMat 07-087 EPOXY ENAMEL GREYLOCALCoMat 07-087

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-34-040-052 Disassemble the HP Compressor Front and Rear Housing Assemblies (as necessary)

      1. Disassemble the front and rear housing assemblies.

      1. Refer to VRS6239, TASK 72-41-34-300-015 and/or VRS6240, TASK 72-41-34-300-016.

    2. SUBTASK 72-41-34-220-225 Examine the HP Compressor Front and Rear Housing Assemblies (as necessary)

      1. Make a visual/dimensional inspection of the front and rear housing components.

      1. Refer to VRS6239, TASK 72-41-34-300-015 and/or VRS6240, TASK 72-41-34-300-016 for Inspection Standards.

    3. SUBTASK 72-41-34-110-064 Clean the HP Compressor Front and Rear Housing Components

      1. Chemically clean the front and rear housings.

      1. Refer to the SPM TASK 70-11-01-300-503.

        Use degreasing equipment.

    4. SUBTASK 72-41-34-110-065 Remove Damaged Surface Protection

      1. Remove damaged surface protection.

      1. Refer to the SPM TASK 70-11-10-300-503.

        Use paint stripping equipment.

    5. SUBTASK 72-41-34-120-051 Abrasive Blast

    1. Refer to: Figure, Figure, Figure and Figure

      2. Mask areas which are not to be painted.

      3. Abrasive blast surfaces to be painted.

      1. Refer to the SPM TASK 70-12-01-120-501.

    4. Remove masking tape.

    6. SUBTASK 72-41-34-110-066 Clean the HP Compressor Front and Rear Housing

      1. Chemically clean the front and rear housings.

      1. Refer to the SPM TASK 70-11-01-300-503.

        Use degreasing equipment.

    7. SUBTASK 72-41-34-380-055 Apply the Surface Protection

    1. Refer to: Figure, Figure, Figure and Figure

      3. Apply primer and cure.

      1. Refer to the SPM TASK 70-38-34-300-503 SUBTASK 70-38-34-300-001.

        Use paint spray equipment.

        NOTE

        Remove the masking tape before you stove the primer.

      4. Re-apply the masking tape to the areas not to be painted.

      5. Apply enamel and cure.

      1. Refer to the SPM TASK 70-38-34-300-503 SUBTASK 70-38-34-300-001.

        Use paint spray equipment.

        NOTE

        Remove the masking tape before you stove the enamel.

    8. SUBTASK 72-41-34-220-226 Examine the Surface Protection

      1. Examine the surface protection.

      1. Refer to the SPM TASK 70-38-34-300-503 SUBTASK 70-38-34-300-001.

      2. If the surface protection is not satisfactory.

      1. Do again Step, Step, Step and Step.

      3. If local damage has occurred.

      1. Refer to Step for local application of the oven cure surface protection.

    9. SUBTASK 72-41-34-380-056 Locally Apply Oven Cure Surface Protection

      1. Locally apply the surface protection.

      1. Refer to 3. General.

        Refer to the SPM TASK 70-38-34-300-503 SUBTASK 70-38-34-300-002.

    10. SUBTASK 72-41-34-440-052 Assemble the HP Compressor Front and Rear Housing Assemblies

      1. Assemble the front and rear housing assemblies.

      1. Refer to VRS6239, TASK 72-41-34-300-015 and/or VRS6240, TASK 72-41-34-300-016.

        If possible use serviceable components.

    11. SUBTASK 72-41-34-380-057 Locally Apply Cold Cure Surface Protection

      1. Locally apply the surface protection.

    12. SUBTASK 72-41-34-350-092 Identify the Part

    1. Refer to: Figure and Figure

      2. Re-identify the part.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-002.

        Put the part number adjacent to the existing markings which are under the surface protection.

        Use a paint brush.

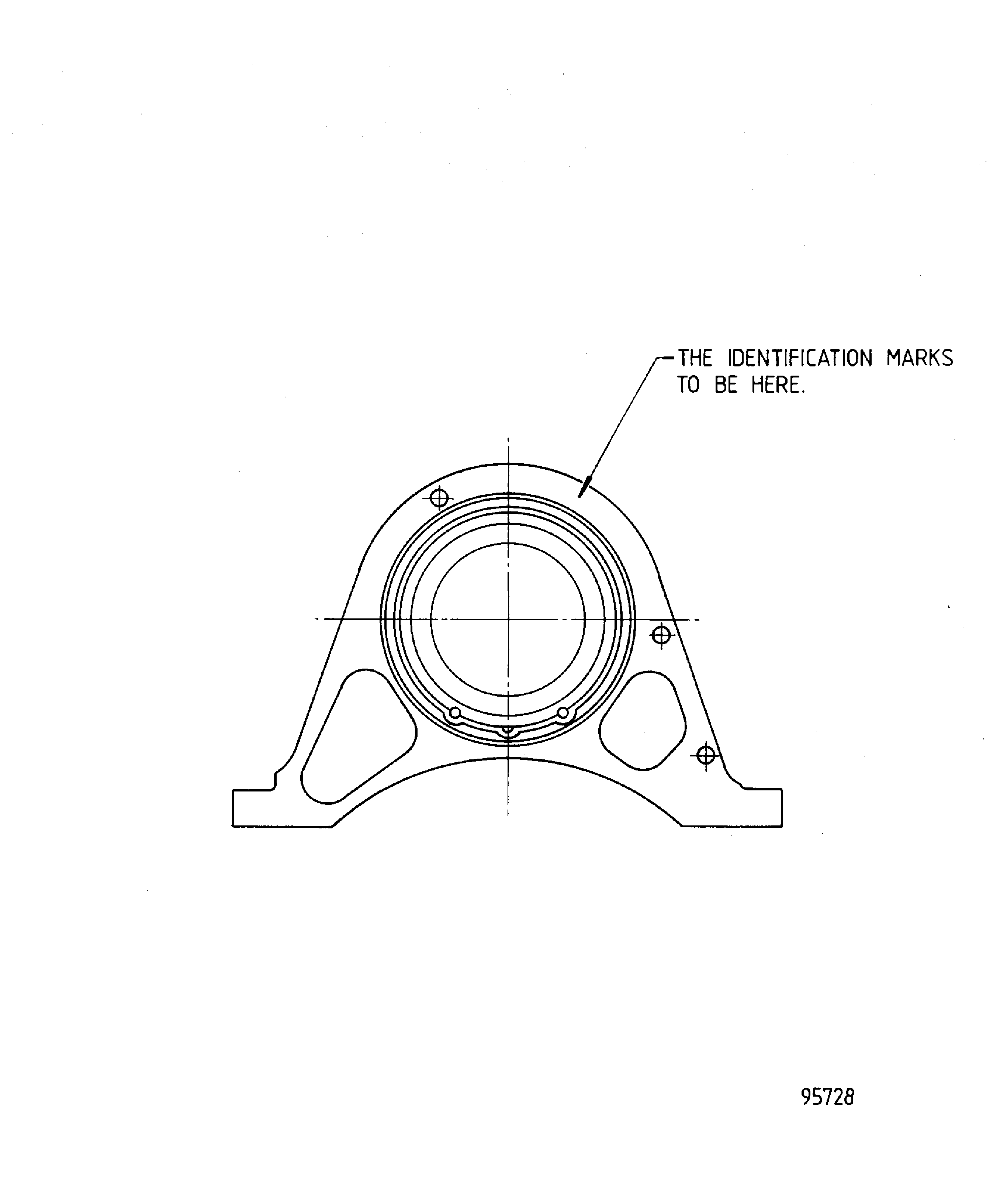

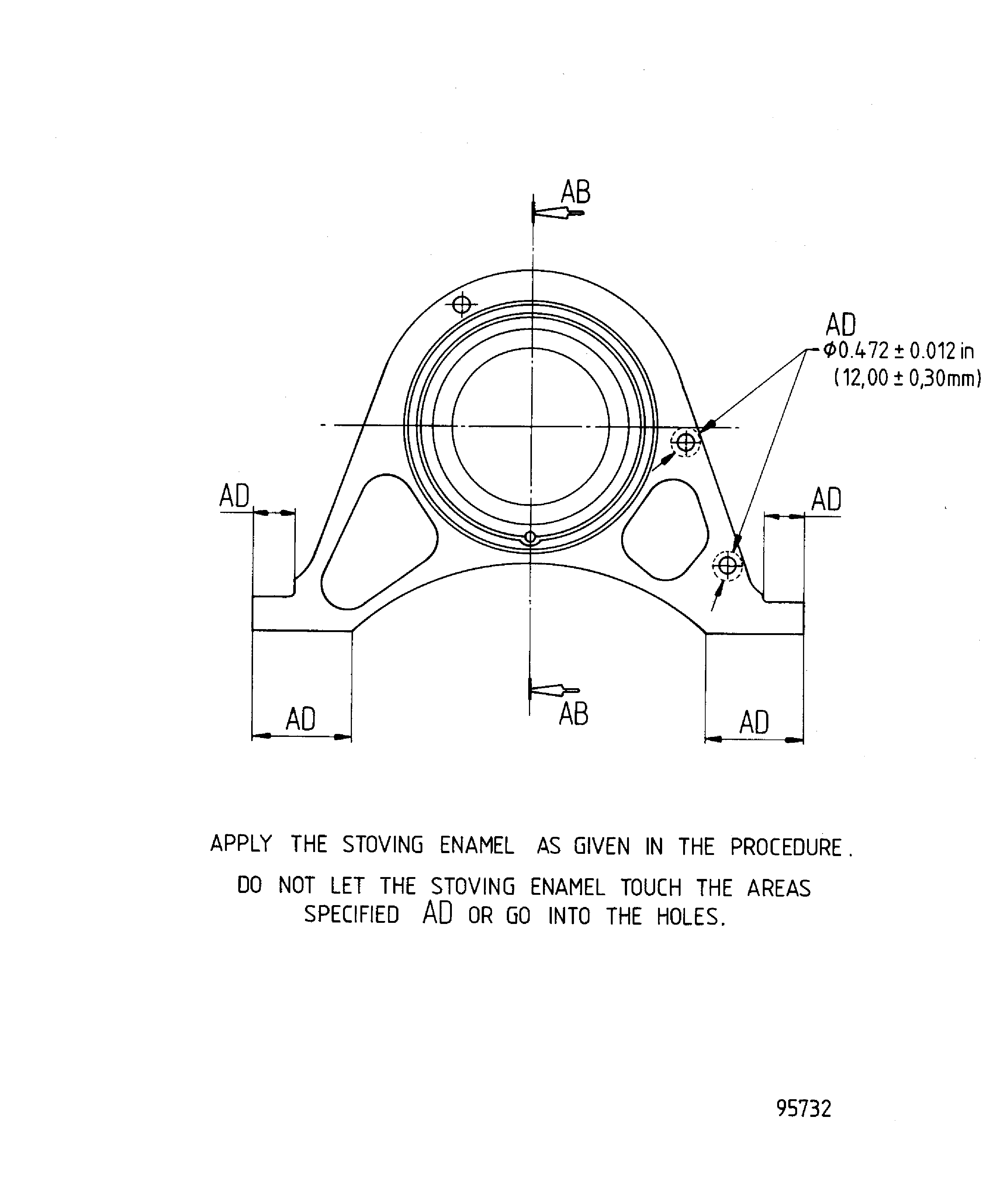

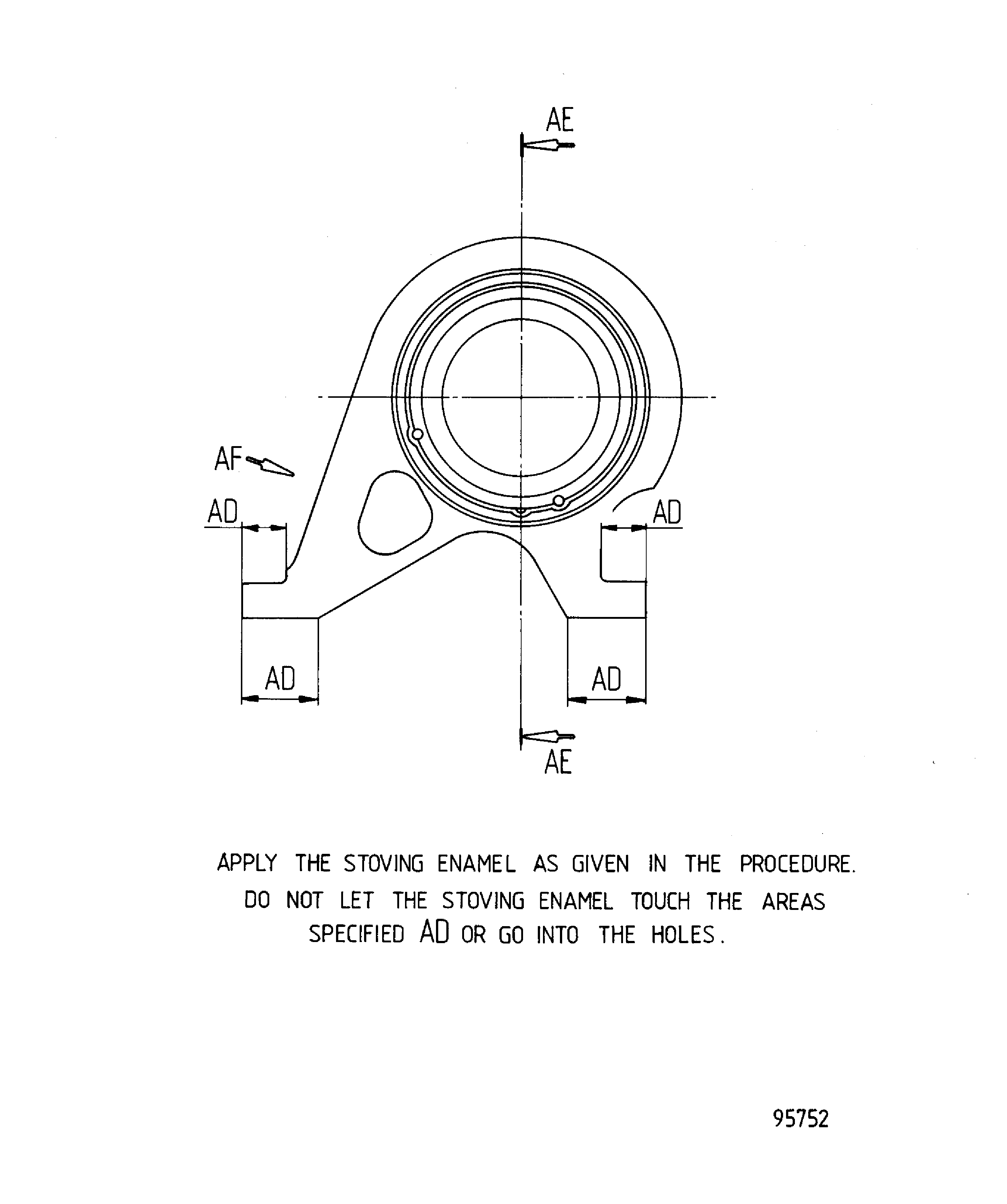

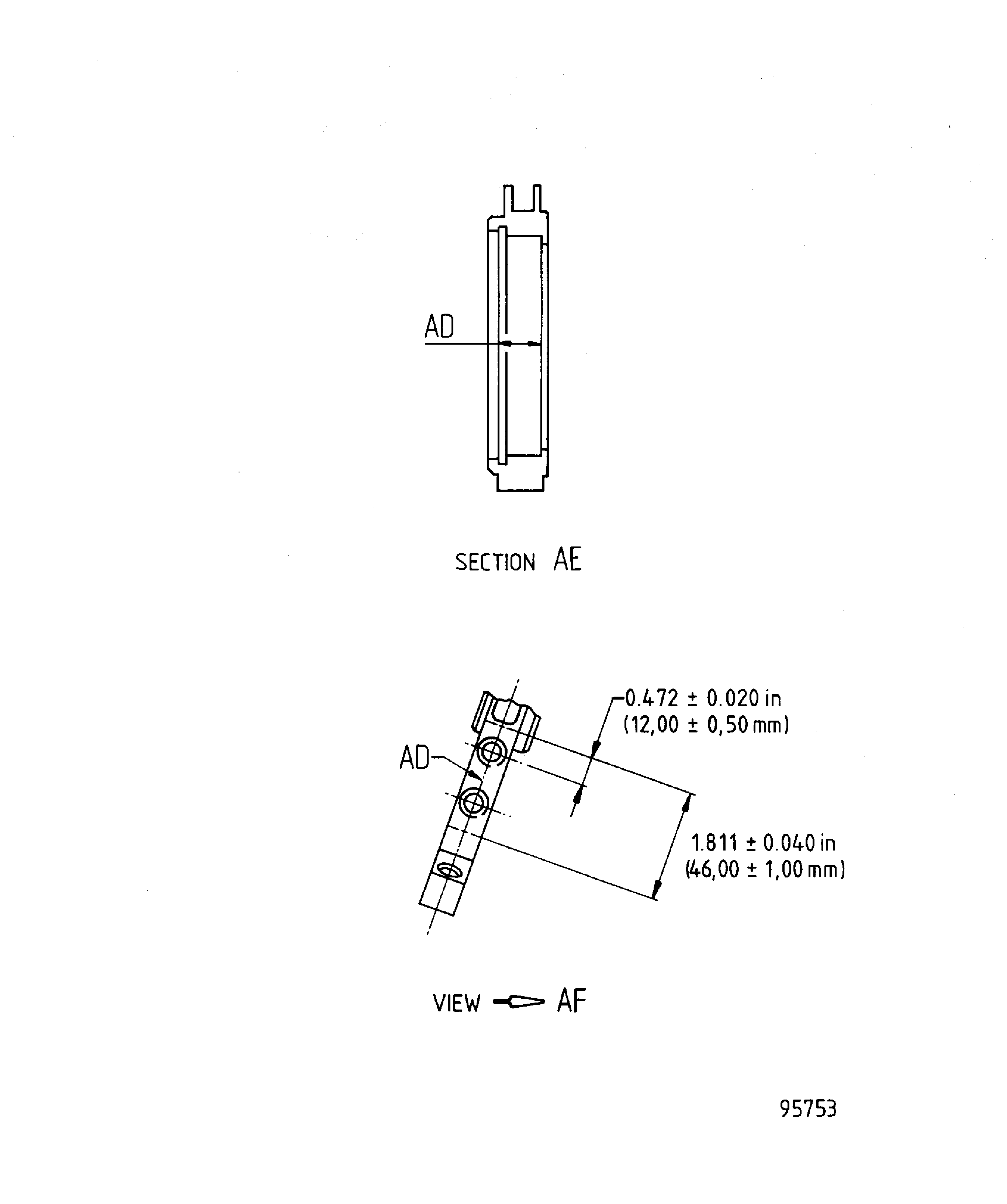

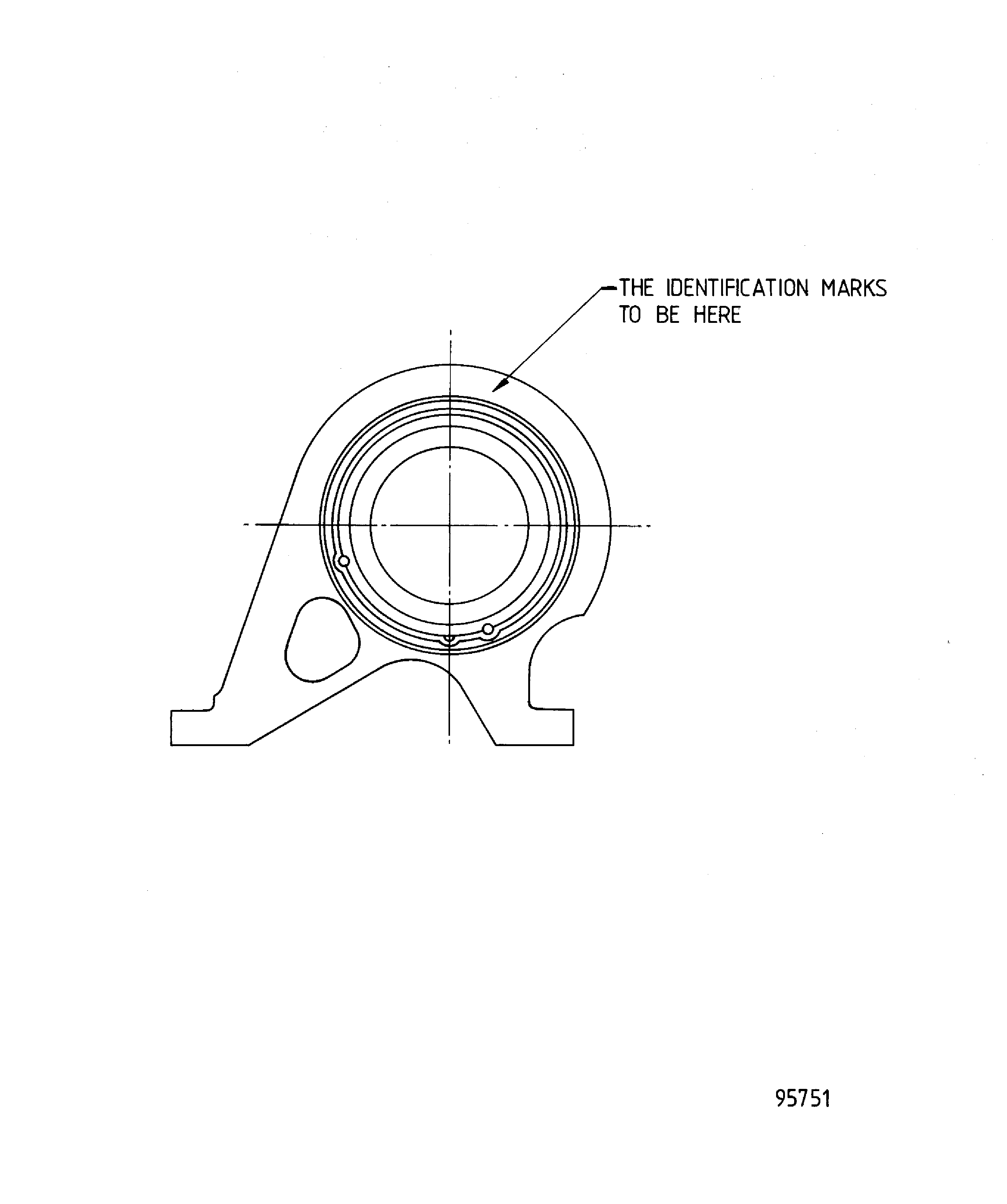

    13. Figure: Repair details and dimensions

    Repair details and dimensions

    Figure: Repair details and dimensions

    Repair details and dimensions

    Figure: Repair details and dimensions

    Repair details and dimensions

    Figure: Repair details and dimensions

    Repair details and dimensions

    Figure: Repair details and dimensions

    Repair details and dimensions

    Figure: Repair details and dimensions

    Repair details and dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added CoMat 07-080 and deleted CoMat 07-070. (17VG173)
