TASK 72-41-34-200-010 HPC Inlet Variable Stator Vane Ring Connector Bridges - Examine, Inspection-010

DMC:V2500-A0-72-41-3432-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-34-200-010 HPC Inlet Variable Stator Vane Ring Connector Bridges - Examine, Inspection-010

Effectivity

FIG/ITEM PART NO.

02-200

6A2510

02-200

6A7586

02-200

6A7847

02-200

6B1068

02-200

6B1069

General

This TASK gives the procedure for the inspection of the variable inlet guide vane actuating ring connector.

Fig/item numbers in parentheses in the procedure agree with those used in the EIPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for the parts which must have a crack test is given in Step. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part can be shown to be necessary at a subsequent date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

References

Refer to the SPM for data on these items:

Definition of Damage, SPM TASK 70-02-02-350-501,

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501,

Inspection of Parts, SPM TASK 72-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM:

Method of Testing for Crack Indications,

Chemical Processes,

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-34-230-059 Examine the Variable Inlet Guide Vane Actuating Ring Connector (02-200) for Cracks

    1. Clean the parts. Refer to TASK 72-41-34-100-000.

      2. Do the test for cracks on the part that is given below.

        PART IDENT TASK/OP

        Variable inlet guide vane actuating ring

        connector

        1. Cracked

        1. Reject

    2. SUBTASK 72-41-34-220-101 Examine the Variable Inlet Guide Vane Actuating Ring Connectors (72-41-34,02-200) Bodies at Location 1

    1. Refer to Figure, Figure and Figure.

      2. Nicked.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step B.(1)

        1. Repair VRS6189, TASK 72-41-34-300-022 (REPAIR-022)

      3. Scored.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step C.(1)

        1. Repair VRS6189, TASK 72-41-34-300-022 (REPAIR-022)

      4. Scratched.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step D.(1)

        1. Repair VRS6189, TASK 72-41-34-300-022 (REPAIR-022)

    3. SUBTASK 72-41-34-220-102 Examine the Variable Inlet Guide Vane Actuating Ring Connectors (72-41-34,02-200) Surfaces at Locations 2 and/or 3

    1. Refer to Figure.

      2. Galled.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step B.(1)

        1. Repair VRS6189, TASK 72-41-34-300-022 (REPAIR-022)

      3. Scratched.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step C.(1)

        1. Repair VRS6189, TASK 72-41-34-300-022 (REPAIR-022)

    4. SUBTASK 72-41-34-220-103 Examine the Variable Inlet Guide Vane Actuating Ring Connectors (72-41-34,02-200) Bushes at Location 4 (Pre SBE 72-0564)

    1. Refer to Figure.

      2. Wear on the bore.

        1. If the diameter is between 0.2360 to 0.2370 in. (5.994 to 6.020 mm)

        1. Accept

        2. More than in step B.(1)

        1. Repair VRS6262, TASK 72-41-34-300-023 (REPAIR-023)

      3. Scored.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step C.(1)

        1. Repair VRS6262, TASK 72-41-34-300-023 (REPAIR-023)

      4. If the bushes are missing

      1. Repair VRS6262, TASK 72-41-34-300-023 (REPAIR-023)

    5. SUBTASK 72-41-34-220-104 Examine the Variable Inlet Guide Vane Actuating Ring Connectors (72-41-34,02-200) Bolt Holes at Locations 5 and/or 6

    1. Refer to Figure, Figure and Figure.

      2. Scored.

        1. Not more than 0.002 in. (0.05 mm) in depth

        1. Accept

        2. More than in step B.(1)

        1. Reject

      3. Burred

      1. Reject

      4. Elongated

      1. Reject

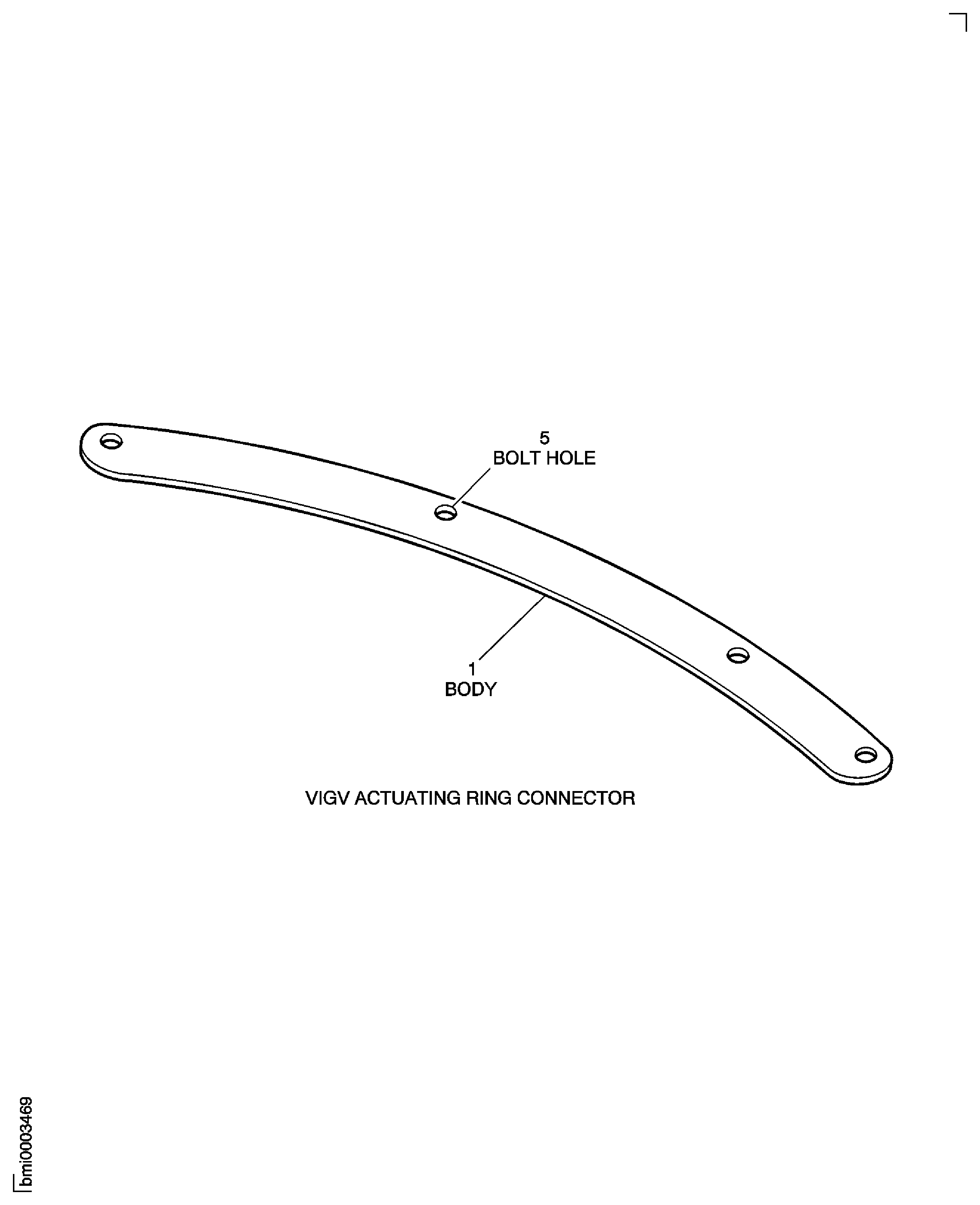

    6. Figure: Variable Inlet Guide Vane Actuating Ring Connector - Inspection Locations

    Sheet 1

    Legend
    Variable Inlet Guide Vane Actuating Ring Connector - Inspection Locations

    Sheet 1

    Close

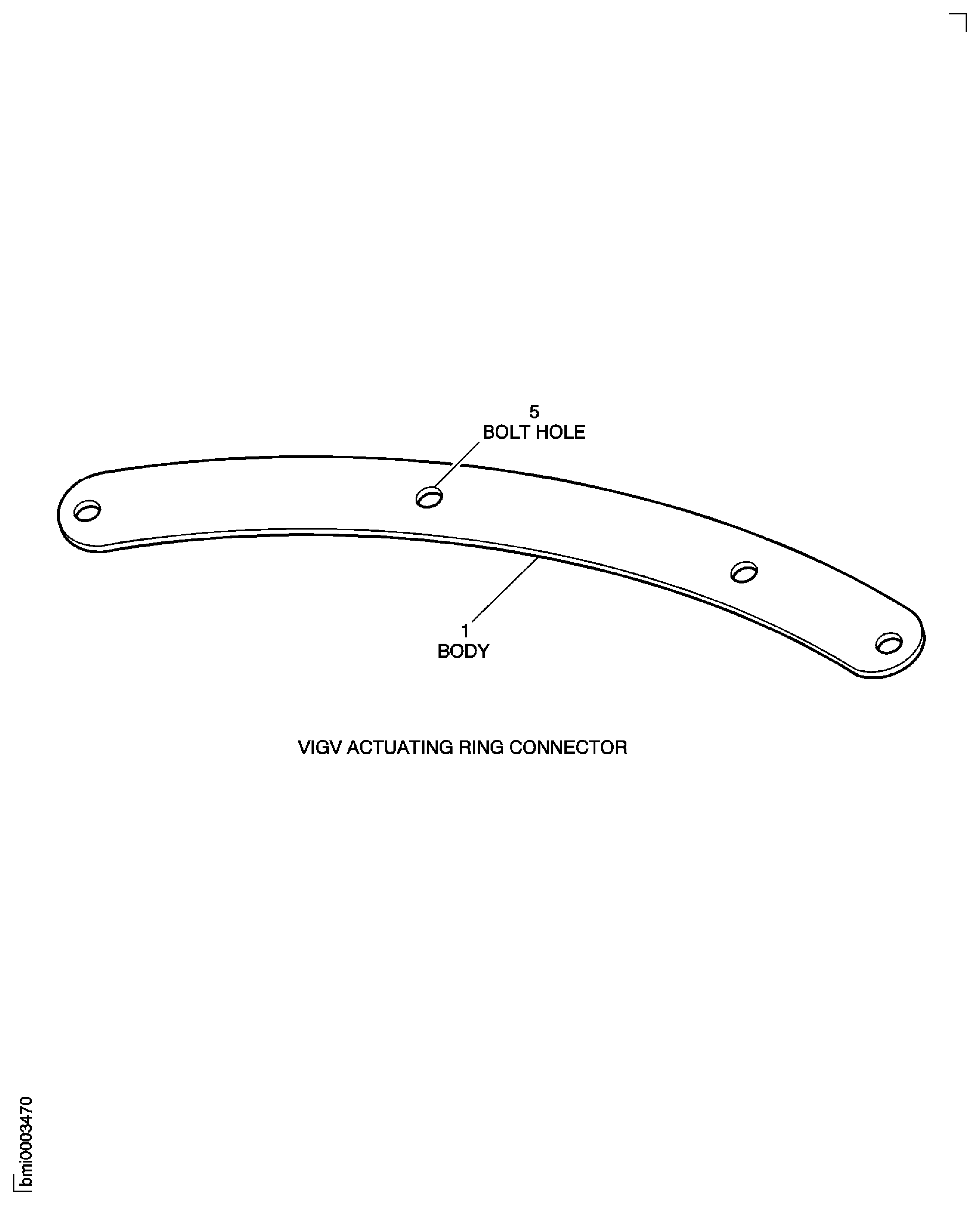

    Figure: Variable Inlet Guide Vane Actuating Ring Connector - Inspection Locations

    Sheet 2

    Legend
    Variable Inlet Guide Vane Actuating Ring Connector - Inspection Locations

    Sheet 2

    Close

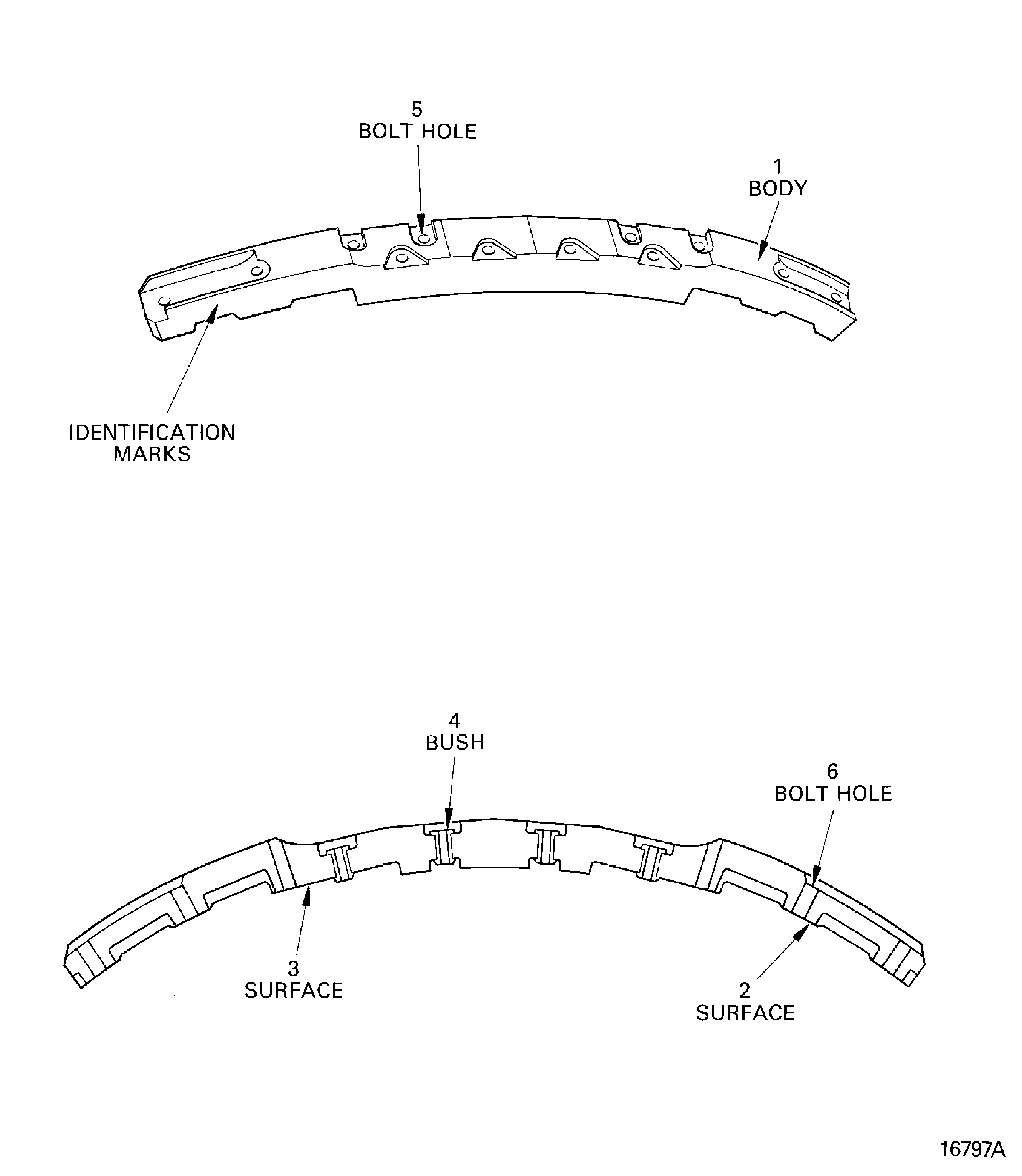

    Figure: Variable Inlet Guide Vane Actuating Ring Connector - Inspection Locations

    Sheet 3

    Legend
    Variable Inlet Guide Vane Actuating Ring Connector - Inspection Locations

    Sheet 3

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
