TASK 72-42-34-200-001 No. 4 Bearing Oil Nozzle Assembly - Examine, Inspection-001

DMC:V2500-A0-72-42-3400-00A-300A-B|Issue No:003.00|Issue Date:2020-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-34-200-001 No. 4 Bearing Oil Nozzle Assembly - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-010

2A0896

01-010

2A0896-001

01-010

2A3966-01

01-010

2A4327-01

General

This TASK gives the procedure for the inspection of the No. 4 bearing nozzle housing.

Fig./item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Part numbers with more REACh (Registration, Evaluation, Authorization, and Restriction of Chemicals) information are listed below:

2A3966-01

2A4327-01

Refer to How To Use (Engine Manual) Substances of Very High Concern and Safe Use Information.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1P16074 Oil flow fixture0AM53IAE 1P160741

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-039 ENGINE OILLOCALCoMat 10-039
CoMat 10-040 LUBRICANT (ENGINE OIL)0AM53CoMat 10-040

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-34-220-051 Examine the No. 4 Bearing Nozzle Housing (01-010) for Damage, Nicks, Dents, High Metal and Nozzle Blockage

    1. Refer to Figure.

      2. Examine the housing for damage, nicks, dents, high metal and nozzle blockage.

        1. Damage, nicks or dents.

        1. Accept.

        2. High metal on the mating surface at Location 1

        1. Reject.

        3. Nozzle blockage at Locations 4 and 5

        1. Do an oil flow of the No. 4 bearing nozzle assembly. Refer to Step and Step.

    2. SUBTASK 72-42-34-710-051 Examine the No. 4 Bearing Nozzle Housing (01-010) for the Oil Flow of the No. 4 Bearing Nozzle Assembly

      NOTE

      Do the subsequent steps only if you found damage, nicks, dents, or blockage during visual inspection.

    1. Refer to Figure.

    2. Install the No. 4 bearing nozzle housing in the IAE 1P16074 Oil flow fixture 1 off.

      3. Use IAE 1P16074 Oil flow fixture to examine the housing at location 2 for the oil flow of the No. 4 bearing nozzle assembly.

      1. Use CoMat 10-039 ENGINE OIL or CoMat 10-040 LUBRICANT (ENGINE OIL) at 99 to 100 psig (682.58 to 689.48 kPa) and 195 to 205 deg F (90.6 to 96.1 deg C). The flow must be 32.5 to 35.5 pounds per minute (14.742 to 16.103 kilograms per minute).

        2. Oil flow.

          1. If a minimum of 95 percent of the flow goes through a 0.470 in. (11.94 mm) diameter circle. The center of the circle must be on the axis of the diameter at Location 3 and 3.0 in. (76.2 mm) from Surface A.

          1. Accept.

          2. Other than Step.

          1. Reject.

    3. SUBTASK 72-42-34-710-052 Examine the No. 4 Bearing Nozzle Housing (01-010) for the Oil Flow of the No. 4 Bearing Nozzle

      NOTE

      Do the subsequent steps only if you found damage, nicks, dents or blockage during visual inspection.

    1. Refer to Figure and Figure.

      2. Use the IAE 1P16074 Oil flow fixture 1 off, to examine the housing at Location 4 for the oil flow of the No. 4 bearing nozzle.

      1. Use CoMat 10-039 ENGINE OIL or CoMat 10-040 LUBRICANT (ENGINE OIL) at 99 to 100 psig (682.58 to 689.48 kPa) and 195 to 205 deg F (90.6 to 96.1 deg C). The flow must be 14.0 to 16.0 pounds per minute (6.350 to 7.257 kilograms per minute).

        2. Oil flow.

          1. If a minimum of 95 percent of the flow goes through 0.300 in. (7.62 mm) diameter circle. The center of the circle must be on the axis of the diameter at Location 5 and 1.300 in. (33.02 mm) from Surface C

          1. Accept.

          2. Other than Step.

          1. Reject.

    4. SUBTASK 72-42-34-710-053 Examine the No. 4 Bearing Oil Nozzle Housing (01-010) for loose or missing pins - Post SB 72-0629

    1. Refer to Figure.

      2. Examine for loose or missing pins.

        1. No loose pin.

        1. Accept.

        2. Loose or missing pin.

        1. Reject.

      3. Examine the pin protrusion distance.

        1. Between 0.120 in. - 0.140 in. (3.048 mm - 3.556 mm).

        1. Accept.

        2. Other than in Step.

        1. Reject.

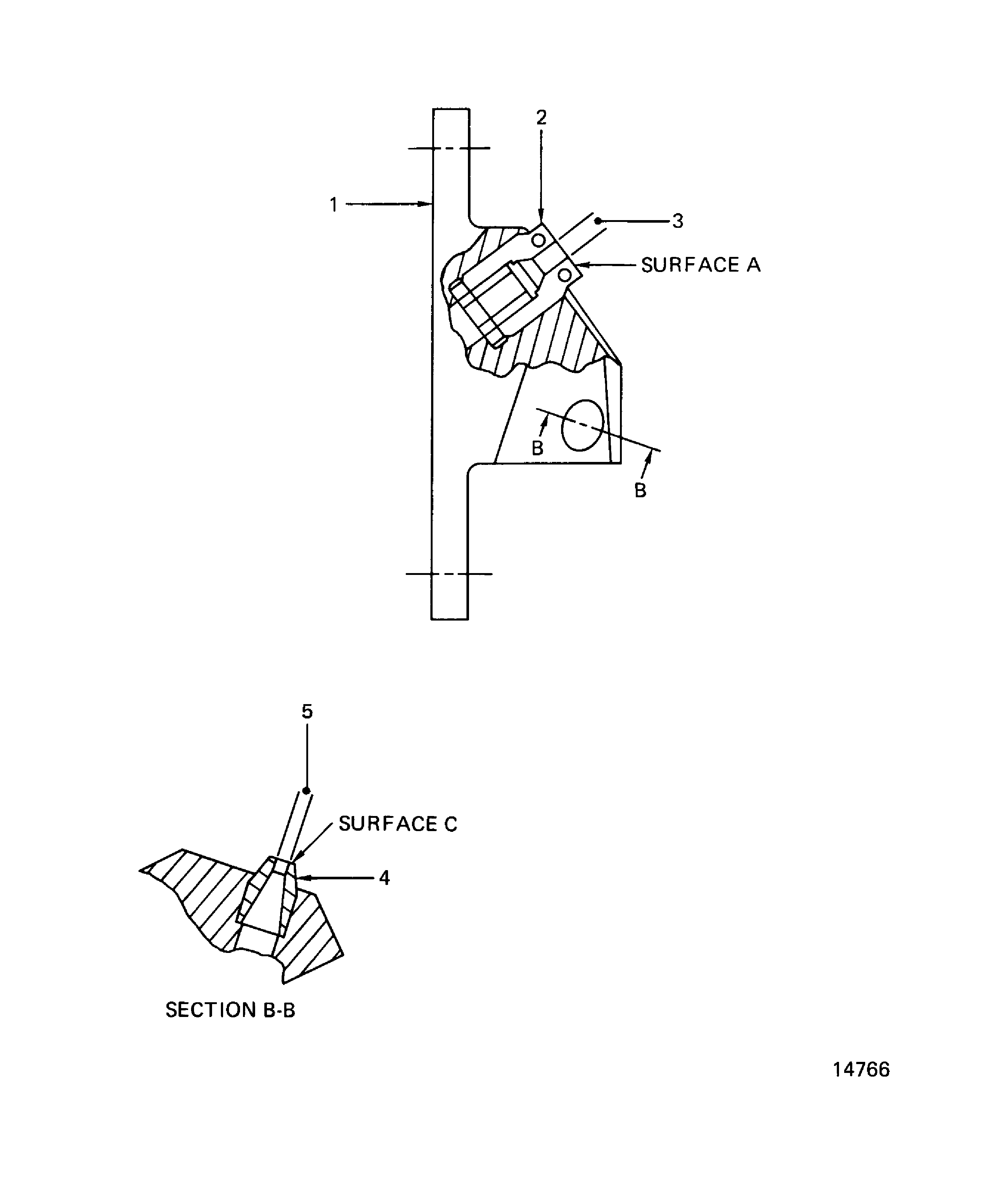

    5. Figure: No. 4 Bearing Nozzle Housing Inspection Locations

    No. 4 Bearing Nozzle Housing Inspection Locations

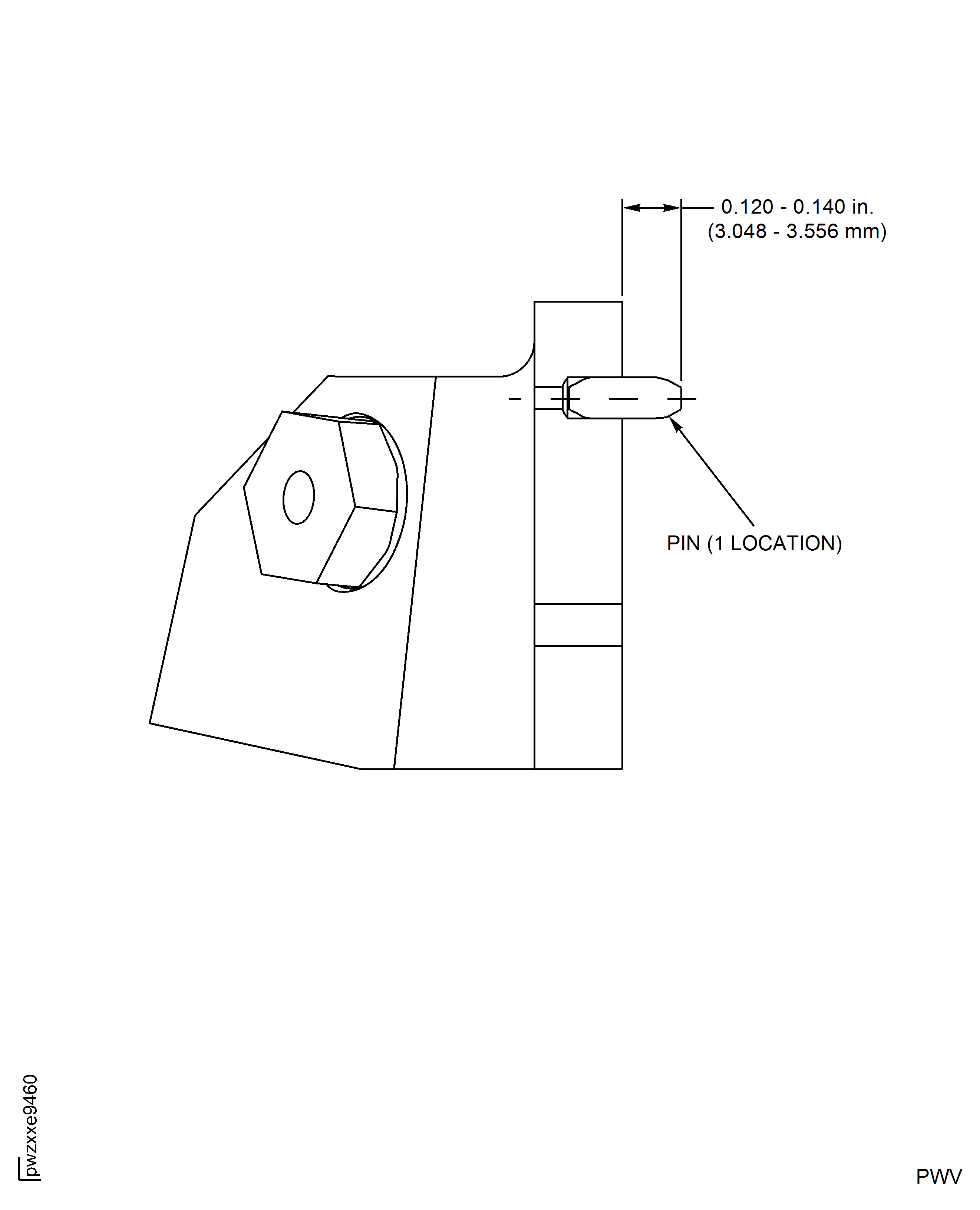

    Figure: No. 4 Bearing Nozzle Housing Inspection Locations (Post SB 72-0629)

    No. 4 Bearing Nozzle Housing Inspection Locations (Post SB 72-0629)

Requirements After Job Completion

Follow-On Conditions

NONE
