TASK 72-42-61-300-006 Outer Combustion Chamber Liner - Replace The Bushing, Repair-006 (VRS3094)

DMC:V2500-A0-72-42-6101-01A-920A-C|Issue No:002.00|Issue Date:2019-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-61-300-006 Outer Combustion Chamber Liner - Replace The Bushing, Repair-006 (VRS3094)

Effectivity

FIG/ITEM PART NO.

01-501

2A0550-01

01-501

2A1383

01-501

2A1385

01-501

2A1399

01-501

2A1618

01-501

2A1620

01-501

2A1666

01-501

2A2013

01-501

2A2032

01-501

2A2723-01

01-501

2A2837-01

01-501

2A3345-01

01-501

2A3345-001

01-501

2A3345-002

01-501

2A3345-003

01-501

2A3345-004

01-501

2A3347-01

01-501

2A3347-001

01-501

2A3347-002

01-501

2A3347-003

01-501

2A3347-004

01-501

2A3347-005

01-501

2A3439-01

01-501

2A3439-001

01-501

2A3439-002

01-501

2A3439-003

01-501

2A3439-004

01-501

2A3439-005

01-501

2A3439-006

01-501

2A3439-007

01-501

2A3439-008

01-501

2A3440-01

01-501

2A3440-001

01-501

2A3440-002

01-501

2A3440-003

01-501

2A3440-004

01-501

2A3440-005

01-501

2A3440-006

01-501

2A3440-007

01-501

2A3441-01

01-501

2A3441-001

01-501

2A3441-002

01-501

2A3441-003

01-501

2A3441-004

01-501

2A3441-005

01-501

2A3441-006

01-501

2A3441-007

01-501

2A3441-008

01-501

2A3442-01

01-501

2A3442-001

01-501

2A3442-002

01-501

2A3442-003

01-501

2A3442-004

01-501

2A3442-005

01-501

2A3442-006

01-501

2A3442-007

01-501

2A3442-008

01-501

2A4284-01

01-501

2A4309-01

01-501

2A4312-01

01-501

2A4314-01

01-501

2A4314-001

01-520

2A2711-01

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

Combustion chamber outer liner

-

-

General

Price and availability - refer to IAE.

The practices and processes referred to in the procedure by the TASK number are in SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 3P16237 Bushing Driver0AM53IAE 3P162371
IAE 3P16386 Jackscrew Puller0AM53IAE 3P163861

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-026 LIQUID NITROGENLOCALCoMat 03-026
CoMat 03-078 METAL SPRAYING POWDER,Co-BASE ALLOYIE426CoMat 03-078
CoMat 03-080 METAL SPRAYING POWDER,Co BASE ALLOYIE426CoMat 03-080

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
BUSHING0AM532A03285

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-61-350-058 Remove the Damaged Bushing

      1. Use the IAE 3P16386 Jackscrew Puller 1 off to remove the damaged or worn bushings. Discard the bushings.

      1. Refer to Figure.

    2. SUBTASK 72-42-61-220-124 Examine the Bushing Hole in the Hood of the Combustion Chamber Outer Liner

      1. Measure the diameter of the hole after your remove the bushing.

      1. The diameter of the hole must be 0.519 in. to 0.521 in. (13.182 mm to 13.233 mm).

        You can repair the diameter by plasma coat or by welding.

    3. SUBTASK 72-42-61-340-051 Repair the Bushing Hole in the Hood by Plasma Spray

      1. Apply the plasma spray to repair the bushing hole.

      1. Machine the hole to the 0.519 in. to 0.521 in. (13.182 mm to 13.233 mm) diameter.

        Refer to the SPM TASK 70-34-03-340-501 and Figure.

    4. SUBTASK 72-42-61-310-052 Weld Repair the Bushing Hole in the Hood

      1. Weld the bushing hole to repair the diameter.

      1. Refer to the SPM TASK 70-31-13-310-501.

        Machine the bushing hole to 0.519 in. to 0.521 in. (13.182 mm to 13.233 mm) diameter.

    5. SUBTASK 72-42-61-350-059 Install the New Bushing

      1. Use IAE 3P16237 Bushing Driver 1 off to install a new bushing into the hood.

      1. Make sure the inside diameter of the new bushing is 0.447 in. to 0.449 in. (11.353 mm to 11.405 mm).

        You can put the bushing in CoMat 03-026 LIQUID NITROGEN.

        This will make the bushing cold and easier to install.

    6. SUBTASK 72-42-61-350-060 Indentify the Repair

      1. Make a mark VRS3094 adjacent to the part number.

      1. Make a permanent mark by the SPM TASK 70-09-00-400-501.

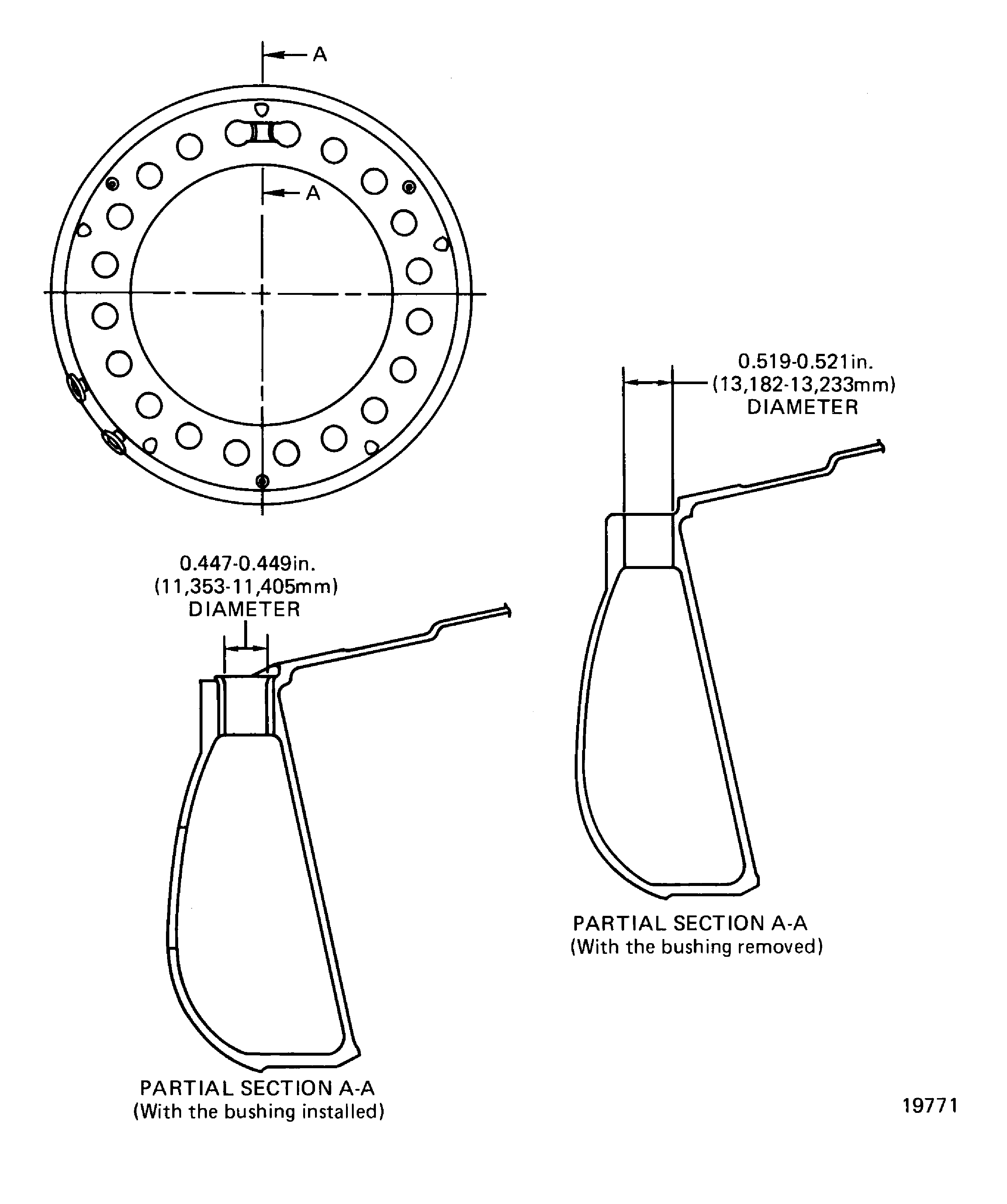

    7. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
