TASK 72-45-11-300-022 HPT Stage 1 Hub - Replace The Metering Plug, Repair 022 (VRS3814) - Post SBE 72-0451

DMC:V2500-A0-72-45-1100-00B-920A-C|Issue No:006.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-11-300-022 HPT Stage 1 Hub - Replace The Metering Plug, Repair 022 (VRS3814) - Post SBE 72-0451

Effectivity

FIG/ITEM

PART NO.

01-011

2A2201

01-011

2A2801

01-011

2A5001

Material of component

DESCRIPTION

SYMBOL

MATERIAL

Stage 1 HPT Hub

-

Nickel Alloy

General

The practices and procedures referred to in the procedure by the TASK number are in SPM.

Price and availability - not applicable.

NOTE

Metering plug PN 2A3182 is applicable for Stage 1 HPT Hub PN 2A2201 only.
Metering plug PN 2A3847 is applicable for Stage 1 HPT Hub PNs 2A5001 and 2A2801 only.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1P16495 Installation Fixture0AM53IAE 1P16495
IAE 1P17763 Metering plug drift0AM53IAE 1P17763

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

CAUTION

DO NOT REPLACE METERING PLUGS ON THE STAGE 1 TURBINE ROTOR ASSEMBLY THAT HAS INCORPORATED SB 72-0511. POST SB 72-0511 STAGE 1 TURBINE ROTOR ASSEMBLY DOES NOT REQUIRE METERING PLUGS.

Procedure

    1. SUBTASK 72-45-11-350-072 Remove all the Stage 1 HPT Hub Metering Plugs

    1. Refer to Figure.

      2. Remove and discard all of the Stage 1 HPT metering plugs HPT Stage 1 Hub (72-45-11, 01-040).

      1. If the metering plugs are missing, damaged and or have missing or cracked tangs, inspect the No. 4 bearing rear carbon seal. Refer to TASK 72-43-20-200-002. Report all findings to IAE Technical Services.

    2. SUBTASK 72-45-11-110-059 Clean the Stage 1 HPT Hub Metering Plug Holes

    1. CAUTION

      DO NOT REPLACE METERING PLUGS ON THE STAGE 1 TURBINE ROTOR ASSEMBLY THAT HAS INCORPORATED SB 72-0511. POST SB 72-0511 STAGE 1 TURBINE ROTOR ASSEMBLY DOES NOT REQUIRE METERING PLUGS.

      Refer to Figure.

      2. Clean the Stage 1 HPT hub metering plug holes HPT Stage 1 Hub (72-45-11, 01-011).

      1. Refer to SPM TASK 70-11-26-300-503.

    3. SUBTASK 72-45-11-220-115 Examine the Stage 1 Turbine Hub Metering Plug Hole (PN 2A2201, 01-011)

      NOTE

      For Stage 1 HPT Hub PN 2A2201 HPT Stage 1 Hub (72-45-11, 01-011), do the procedure as mentioned in Step and Step for replacing the metering plugs.
      For Stage 1 HPT Hub PNs 2A2801 and 2A5001 HPT Stage 1 Hub (72-45-11, 01-011), do the procedure as mentioned in Step and Step for replacing the metering plugs.

    1. Refer to Figure.

      2. If the hole diameter is between 0.373 in. to 0.383 in. (9.47 mm to 9.73 mm).

      1. Accept this dimension to installing the metering plug, PN 2A3182.

      3. Other than the dimension of Step.

      1. Contact IAE Technical Services.

    4. SUBTASK 72-45-11-350-073 Install New Stage 1 HPT Hub Metering Plugs (PN 2A3182, 01-040)

      CAUTION

      DO NOT USE THE OLD METERING PLUGS AGAIN. MAKE SURE YOU INSTALL ONLY NEW METERING PLUGS.

      CAUTION

      FAILURE TO CORRECTLY INSTALL STAGE 1 HPT METERING PLUGS CAN RESULT IN DAMAGE TO THE ENGINE.

    1. Refer to Figure, Figure, and Figure.

      2. Install the new Stage 1 metering plugs into inner side of Stage 1 turbine hub holes.

        1. Install 24 metering plugs.

        1. Use IAE 1P16495 Installation Fixture as shown in Figure or IAE 1P17763 Metering plug drift as shown in Figure to seat the metering plugs in the holes of the hub.

        2. Make sure the metering plug tangs touch the outer side of the hub hole.

    5. SUBTASK 72-45-11-220-116 Examine the Stage 1 HPT Hub Metering Plug Hole (PNs 2A2801, 2A5001, 01-011)

      NOTE

      Measure the diameter at the outer 25 percent of the hole as shown in Figure.

    1. Refer to Figure.

      2. If the hole diameter is between 0.379 in. to 0.383 in. (9.63 mm to 9.73 mm).

      1. Accept this dimension for installing the metering plug, PN 2A3847.

      3. If the hole diameter is greater than 0.383 in. (9.73 mm) and less than or equal to 0.387 in. (9.83 mm).

      1. Accept this dimension for select fit only. The metering plug PN 2A3847 should have the limits as shown in Table to have tight fit requirements of 0.004 in. (0.10 mm) minimum.

      4. Other than the dimensions of Step or Step.

        1. If one hole of the 24 metering plug holes does not meet the requirements of either Step or Step.

        1. Identify the hole location.

        2. Assembly requirements will allow one metering plug not to be installed if the hole diameter is out of limits.

        3. Record this in the Engine Build Records.

        2. If more than one hole of the 24 metering plug holes does not meet the requirements of either Step or Step.

        1. Contact IAE Technical Services.

    6. SUBTASK 72-45-11-350-074 Install the New Stage 1 HPT Hub Metering Plugs (PN 2A3847, 01-040)

      CAUTION

      DO NOT USE THE OLD METERING PLUGS AGAIN. MAKE SURE YOU INSTALL ONLY NEW METERING PLUGS.

      CAUTION

      FAILURE TO CORRECTLY INSTALL STAGE 1 HPT METERING PLUGS CAN RESULT IN DAMAGE TO THE ENGINE.

    1. Refer to Figure, Figure, Figure and Figure.

      2. Install the new Stage 1 metering plugs into inner side of Stage 1 turbine hub holes.

        1. Install 23 or 24 metering plugs, as required.

        1. Use IAE 1P16495 Installation Fixture as shown in Figure or IAE 1P17763 Metering plug drift as shown in Figure to seat the metering plugs in the holes of the hub.

        2. Make sure the metering plug tangs touch the outer side of the hub hole as shown in Figure.

    7. SUBTASK 72-45-11-220-117 Examine the Repair

    1. Refer to Figure, Figure and Figure.

      2. Inspect the installed metering plugs.

      1. Make sure the metering plug tangs touch the outer side of the hub hole as shown in Figure.

        Table 3. For Metering Plug Diameter "B", PN 2A3847

        If the hole diameter "A" is

        Use metering plug diameter "B"

        Type of Fit

        0.379 in. to 0.383 in.

        (9.63 mm to 9.73 mm)

        0.387 in. to 0.391 in.

        (9.83 mm to 9.93 mm)

        Non-Select Fit

        0.384 in. (9.75 mm)

        0.388 in. to 0.391 in.

        (9.86 mm to 9.93 mm)

        Select Fit Only

        0.385 in. (9.78 mm)

        0.389 in. to 0.391 in.

        (9.88 mm to 9.93 mm)

        Select Fit Only

        0.386 in. (9.80 mm)

        0.390 in. to 0.391 in.

        (9.91 mm to 9.93 mm)

        Select Fit Only

        0.387 in. (9.83 mm)

        0.391 in. (9.93 mm)

        Select Fit Only

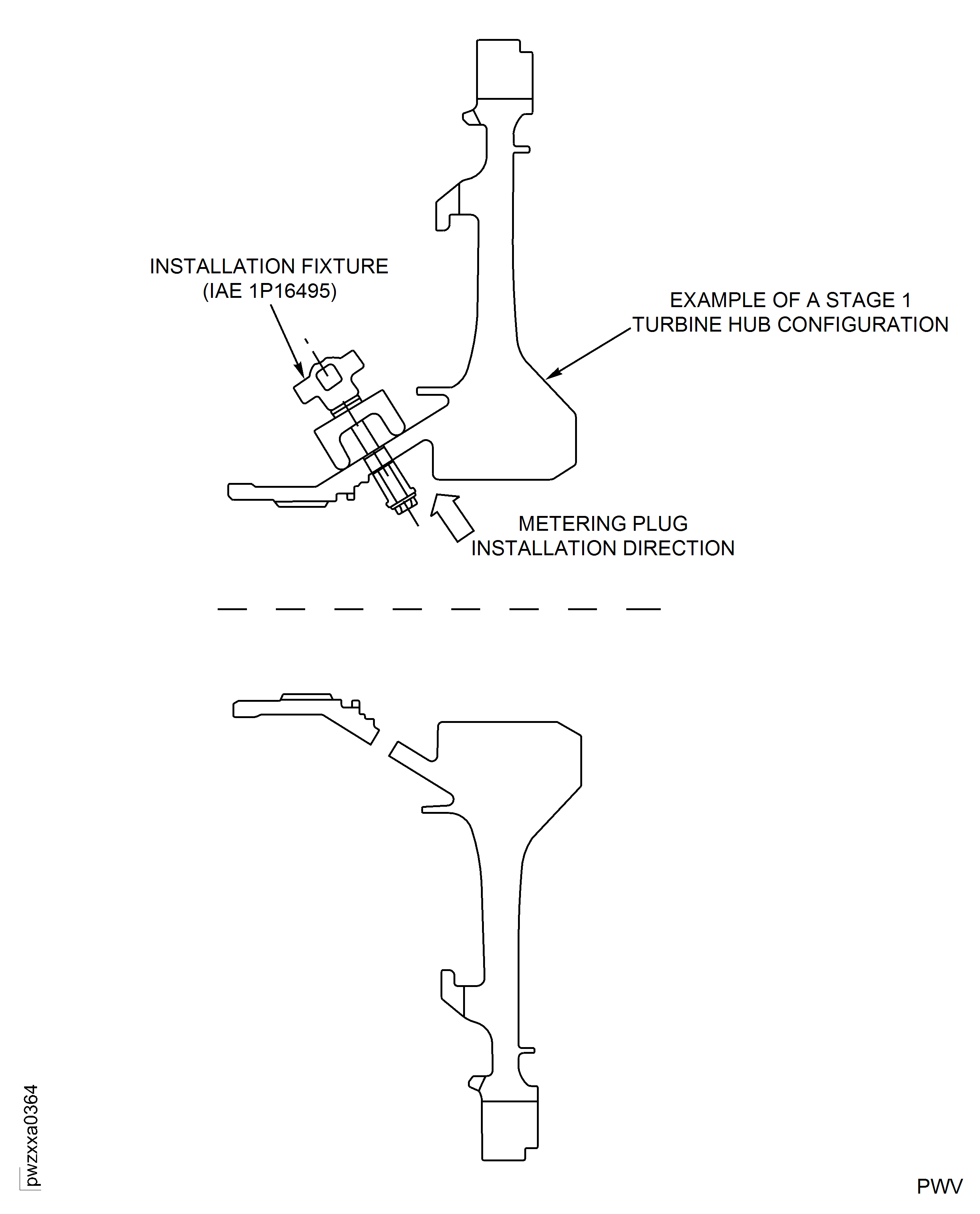

    8. Figure: Metering Plug Installation with Fixture IAE 1P16495

    Metering Plug Installation with Fixture IAE 1P16495

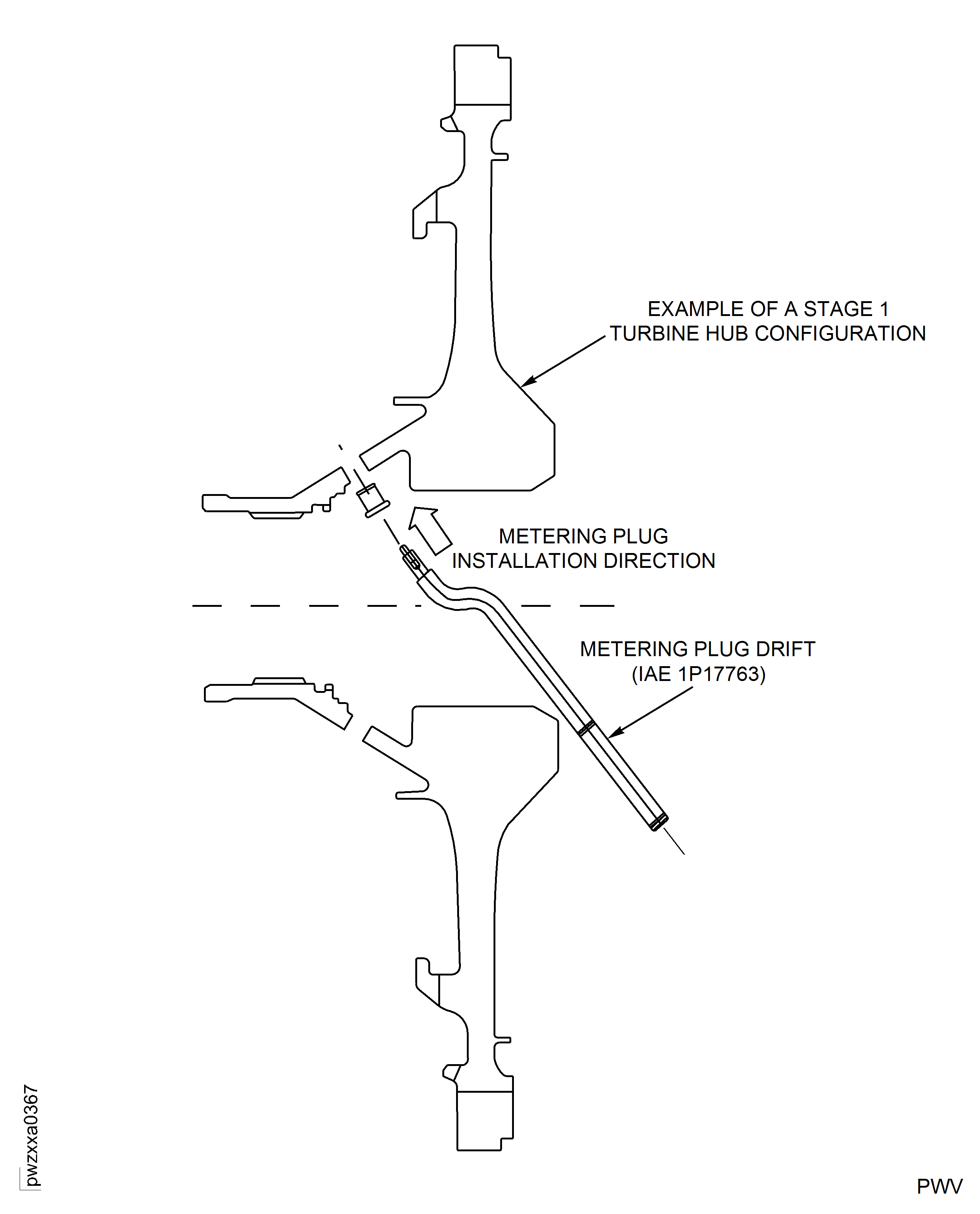

    Figure: Metering Plug Installation with Drift IAE 1P17763

    Metering Plug Installation with Drift IAE 1P17763

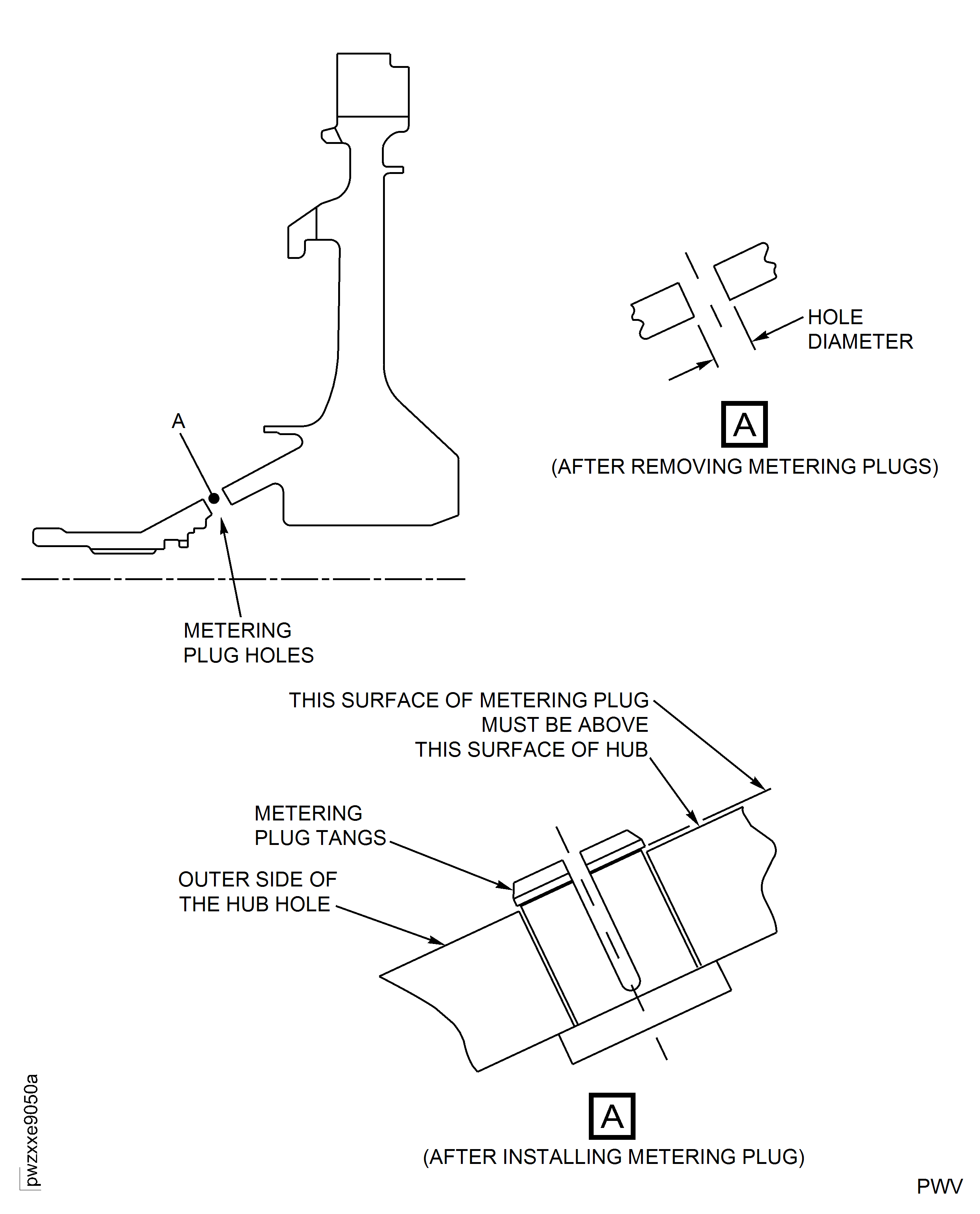

    Figure: Repair Details and Dimensions (PN 2A3182, 2A2201)

    Repair Details and Dimensions (PN 2A3182, 2A2201)

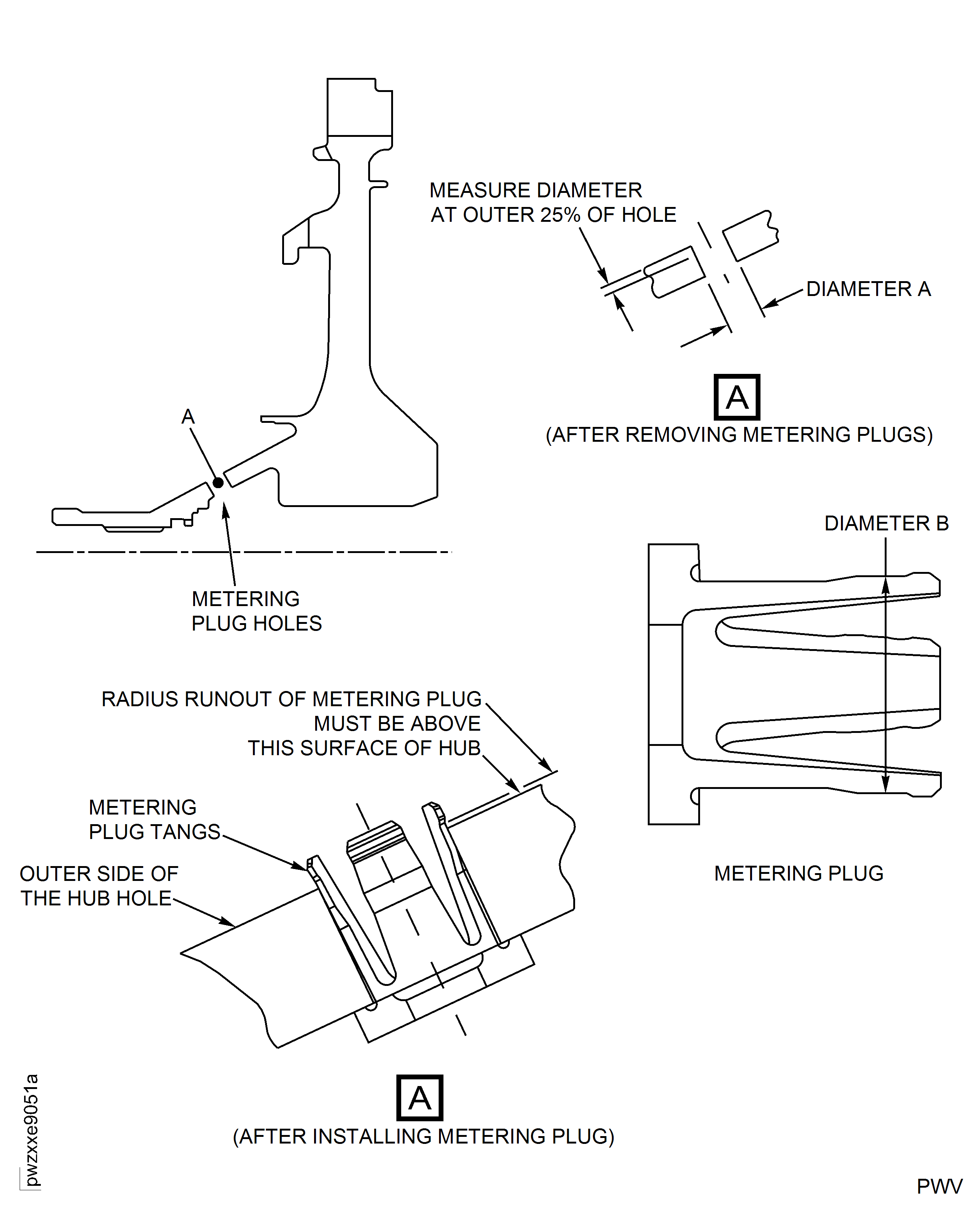

    Figure: Repair Details and Dimensions (PN 2A3847, 2A5001, 2A2801)

    Repair Details and Dimensions (PN 2A3847, 2A5001, 2A2801)

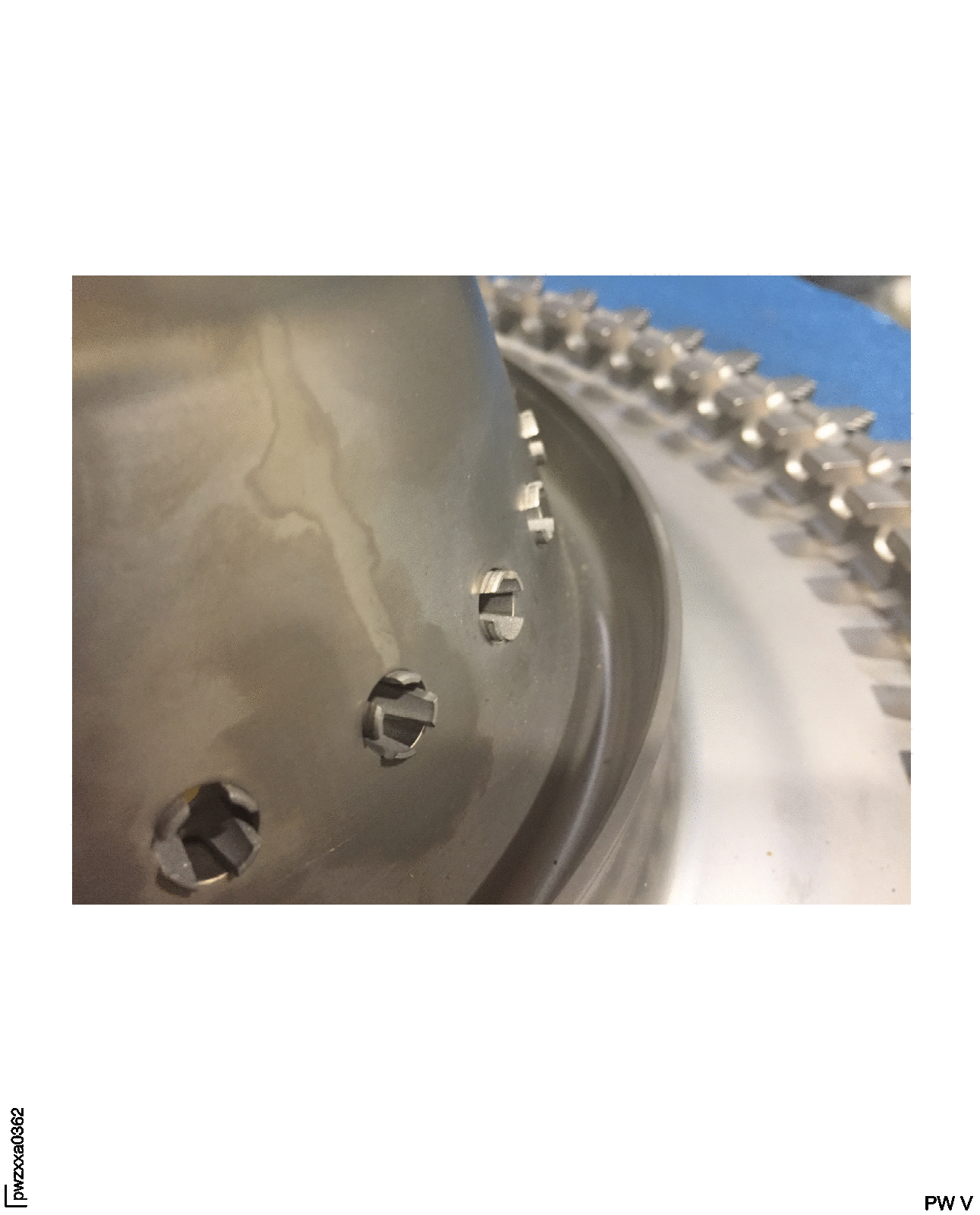

    Figure: Installation Inspection Details (PN 2A3847, 2A5001 and 2A2801)

    Installation Inspection Details (PN 2A3847, 2A5001 and 2A2801)
