TASK 72-45-21-840-001 HPT Case - Rework The Case And Case Bracket, Rework-001 - SBE 72-0002

DMC:V2500-A0-72-45-2101-00A-933A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-21-840-001 HPT Case - Rework The Case And Case Bracket, Rework-001 - SBE 72-0002

Effectivity

FIG/ITEM

PART NO.

01-010

2A0250

01-012

2A0200

01-040

2A0256

01-060

2A0286

General

The practices and procedures referred to in the procedure by the TASK number are in the SPM.

Refer to the indicated Service Bulletin for specific application requirements.

You must do the rework stage 1 HPT support assembly given in TASK 72-44-10-840-001, SBE 72-0002 - REWORK 001 and stage 2 HPT support assembly given in TASK 72-45-27-840-001, SBE 72-0002 - REWORK 001 at the same time you do the rework given in this procedure.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Rivet2

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-45-21-320-051 Machine the Turbine Case

      1. Set up and machine the flange bolt holes on the front flange of the turbine case.

      1. Refer to Figure.

      2. Set up and machine the location pin hole on the front flange of the turbine case.

      1. Refer to Figure.

      3. Set up and machine the flange bolt holes on the rear flange of the turbine case.

      1. Refer to Figure.

    2. SUBTASK 72-45-21-350-074 Identify the HP Turbine Case

      1. Mark the new part number adjacent to the part number that was there before.

      1. NUMBER BEFORE - 2A0200.

        NEW NUMBER - 2A1599.

        Refer to Figure requirements.

        Make a permanent mark by the procedures given in the SPM TASK 70-09-00-400-501.

        Use the vibration peen method.

    3. SUBTASK 72-45-21-350-075 Rework the Turbine Case Bracket

      1. Transfer drill through the holes in the turbine case to enlarge three holes in the turbine case bracket.

      1. Refer to Figure.

      2. Rivet the turbine case bracket to the turbine case.

      1. Refer to Figure and the SPM TASK 70-39-00-390-501.

    4. SUBTASK 72-45-21-350-076 Identify the Turbine Case Bracket

      1. Mark the new part number adjacent to the part number that was there before.

      1. NUMBER BEFORE - 2A0286.

        NEW NUMBER - 2A1595.

        Refer to Figure requirements.

        Make a permanent mark by the procedures given in the SPM TASK 70-09-00-400-501.

        Use the vibration peen method.

    5. SUBTASK 72-45-21-350-077 Rework the Turbine Case Assembly

      1. Install the 2A1596 shoulder pin (1 off) in the rear flange of the turbine case assembly.

      1. Refer to Figure.

    6. SUBTASK 72-45-21-350-078 Identify the Turbine Case Assembly

      1. Mark the new part number adjacent to the part number that was there before.

      1. NUMBER BEFORE - 2A0250.

        NEW NUMBER - 2A1600.

        Refer to Fig Figure requirements.

        Make a permanent mark by the procedures given in the SPM TASK 70-09-00-400-501.

        Use the vibration peen method.

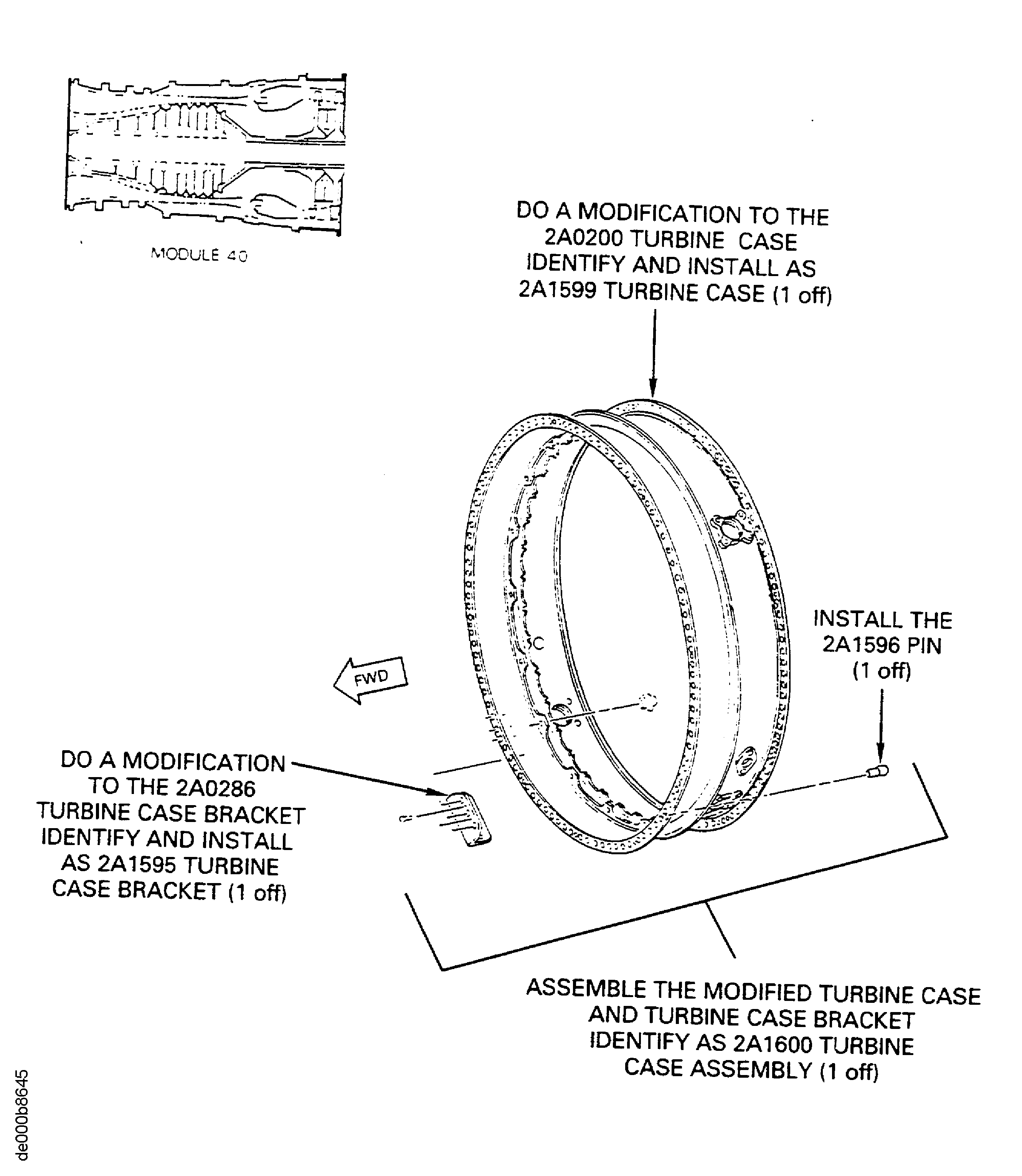

    7. Figure: Rework of the HP turbine case assembly

    Rework of the HP turbine case assembly

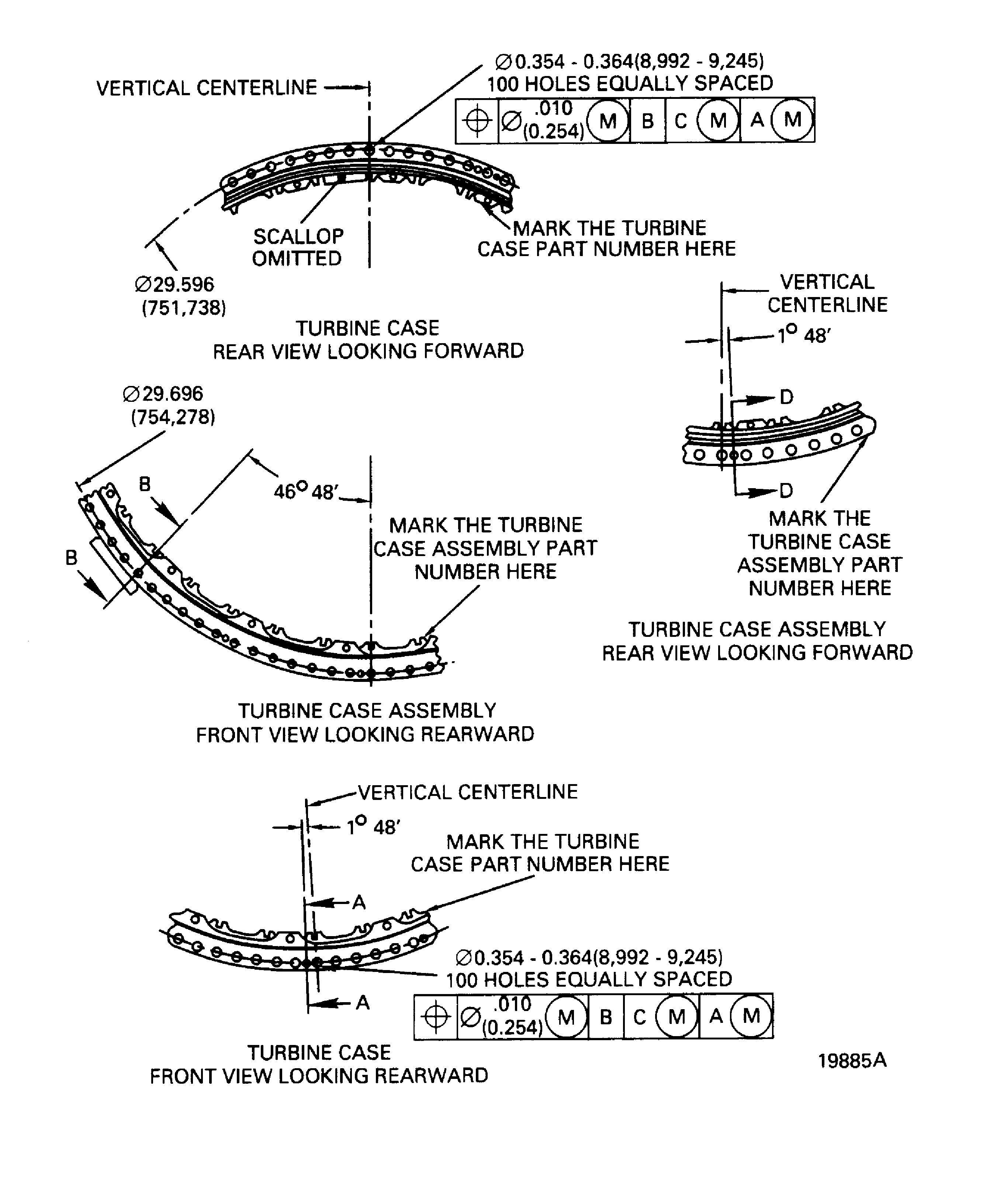

    Figure: Rework of the HP turbine case assembly

    Rework of the HP turbine case assembly

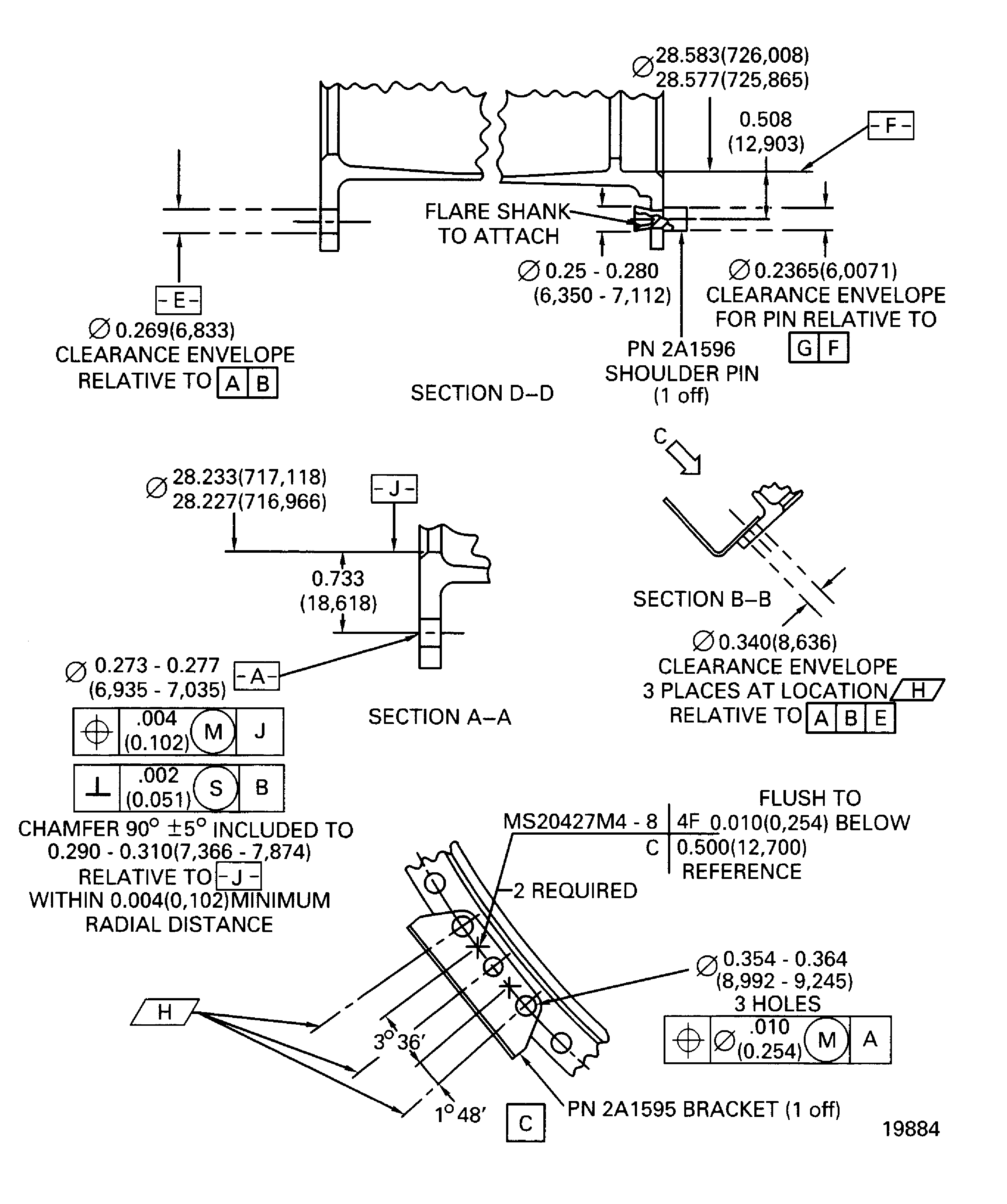

    Figure: Rework of the HP turbine case assembly

    Rework of the HP turbine case assembly

Requirements After Job Completion

Follow-On Conditions

NONE
