TASK 72-50-21-300-006 LPT Case - Plasma Spray The Stage 3 To 7 Rear Vane Hook Diameters, Repair-006 (VRS4009)

DMC:V2500-A0-72-50-2101-00A-609A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-21-300-006 LPT Case - Plasma Spray The Stage 3 To 7 Rear Vane Hook Diameters, Repair-006 (VRS4009)

Effectivity

FIG/ITEM

PART NO.

01-010

3A0807

01-010

3A0990

01-010

3A0991

01-010

3A2265

Material of component

DESCRIPTION

SYMBOL

MATERIAL

LP turbine case

Inconel 718

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

For equipment and materials necessary to do this repair refer to the SPM TASKS given below:
TASK 70-34-03-340-501
TASK 70-11-01-300-503
TASK 70-09-00-400-501
TASK 70-23-05-230-501
Equivalent equipment may be used.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Dial caliperLOCALDial caliper
Dry blast cabinetLOCALDry blast cabinet
Micrometer0AM53Micrometer
Illuminated magnifier (portable)LOCALIlluminated magnifier (portable)
Radius gage setLOCALRadius gage set
Roughness microtesterLOCALRoughness microtester
Vertical turning latheLOCALVertical turning lathe
IAE 3M14318 Turning fixture0AM53IAE 3M143181

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-047 TAPE, HEAT REFLECTIVE52152CoMat 02-047
CoMat 02-050 HIGH TEMPERATURE GLASS CLOTH TAPE76381CoMat 02-050
CoMat 03-080 METAL SPRAYING POWDER,Co BASE ALLOYIE426CoMat 03-080
CoMat 03-047 METAL SPRAYING POWDERLOCALCoMat 03-047
CoMat 05-046 ALUMINUM OXIDE GRIT62596CoMat 05-046
CoMat 05-047 DELETED0AM53CoMat 05-047

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-21-325-051 Machine the Diameter "Z"

      1. NOTE

        If the LP turbine case was plasma spray repaired before, remove old coating fully.

        Machine the diameter "Z".

      1. Use IAE 3M14318 Turning fixture 1 off and vertical turning lathe.

        Refer to Figure.

        Keep the material removal to the minimum required to allow subsequent repairs.

        Remove the old coating and damage fully.

    2. SUBTASK 72-50-21-220-148 Examine the Machined Surfaces

      1. Examine the machined surfaces dimensionally.

      1. For dimensions refer to Figure.

        Use radius gage set and dial caliper and micrometer.

    3. SUBTASK 72-50-21-230-097 Examine the Machined Surfaces for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use medium sensitivity level.

        No cracks permitted.

    4. SUBTASK 72-50-21-110-095 Clean the LP Turbine Case

      1. Aqueous degreas.

      1. Refer to the SPM TASK 70-11-03-300-503.

    5. SUBTASK 72-50-21-340-057 Prepare the Surfaces for the Plasma Spray Procedure

      1. Mask the areas A3.

      1. Make sure that all adjacent surfaces, have full protection.

        Refer to Figure.

      2. Grit blast the area A1.

      1. Use dry blast cabinet, CoMat 05-046 ALUMINUM OXIDE GRIT or CoMat 05-047 DELETED. The surface texture must be 120 to 200 microinch RMS (3.0 to 5.0 micrometer Ra).

        Blasting in area A2 is permitted, refer to Figure.

        Refer to the SPM TASK 70-34-03-340-501.

      3. Replace the masking if necessary.

      1. Replace the damaged masking.

        Do not touch or bring unwanted material on to the blasted areas.

    6. SUBTASK 72-50-21-340-058 Plasma Spray the Prepared Surfaces

      1. Plasma spray the area A1.

      1. Overspray in area A2 is permitted, if it was blasted before, refer to Figure.

        Make sure that there is sufficient material to do last machining.

        Refer to the SPM TASK 70-34-03-340-501.

        Use CoMat 03-080 METAL SPRAYING POWDER,Co BASE ALLOY and plasma spray equipment.

    7. SUBTASK 72-50-21-340-059 Remove the Protection from the Masked Areas

      1. Remove the masking.

      1. Remove all the tape.

    8. SUBTASK 72-50-21-325-052 Machine the Coated Areas

      1. Machine the coated areas.

      1. Use IAE 3M14318 Turning fixture 1 off and vertical turning lathe.

        For dimensions refer to Figure and the SPM TASK 70-34-03-340-501.

    9. SUBTASK 72-50-21-110-096 Clean the LP Turbine Case

      1. Aqueous degrease.

      1. Refer to the SPM TASK 70-11-03-300-503.

    10. SUBTASK 72-50-21-220-149 Do the Post repair Inspection

      1. Examine the repaired areas dimensionally.

      1. For actual dimensions refer to Figure.

        Use dial caliper, mirometer, roughness microtester and radius gage set.

      2. Examine the coating.

      1. Refer to the SPM TASK 70-34-03-340-501 and SPM TASK 70-34-03-340-501-002 for acceptance standards. Use illuminated magnifier.

    11. SUBTASK 72-50-21-380-053 Make a Mark to Identify the Repair

      1. Vibropeen VRS4009 and applicable beehive symbol adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501.

        Suffix for stage 3 to 7 areas as follows:

        Stage 3 rear hook diameter VRS4009A.

        Stage 4 rear hook diameter VRS4009B.

        Stage 5 rear hook diameter VRS4009C.

        Stage 6 rear hook diameter VRS4009D.

        Stage 7 rear hook diameter VRS4009E.

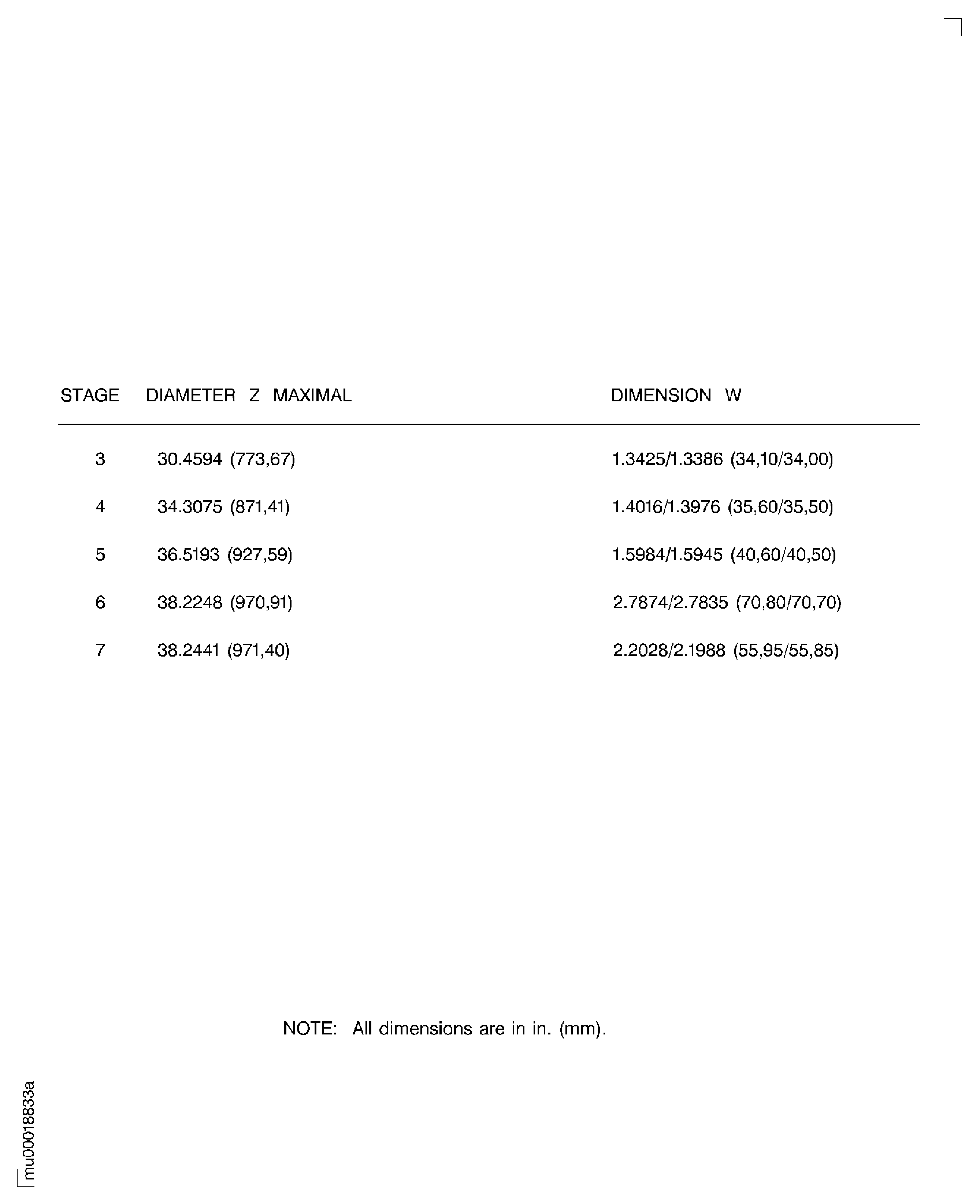

    12. Figure: LP turbine case rear vane hook diameters before plasma spraying

    LP turbine case rear vane hook diameters before plasma spraying

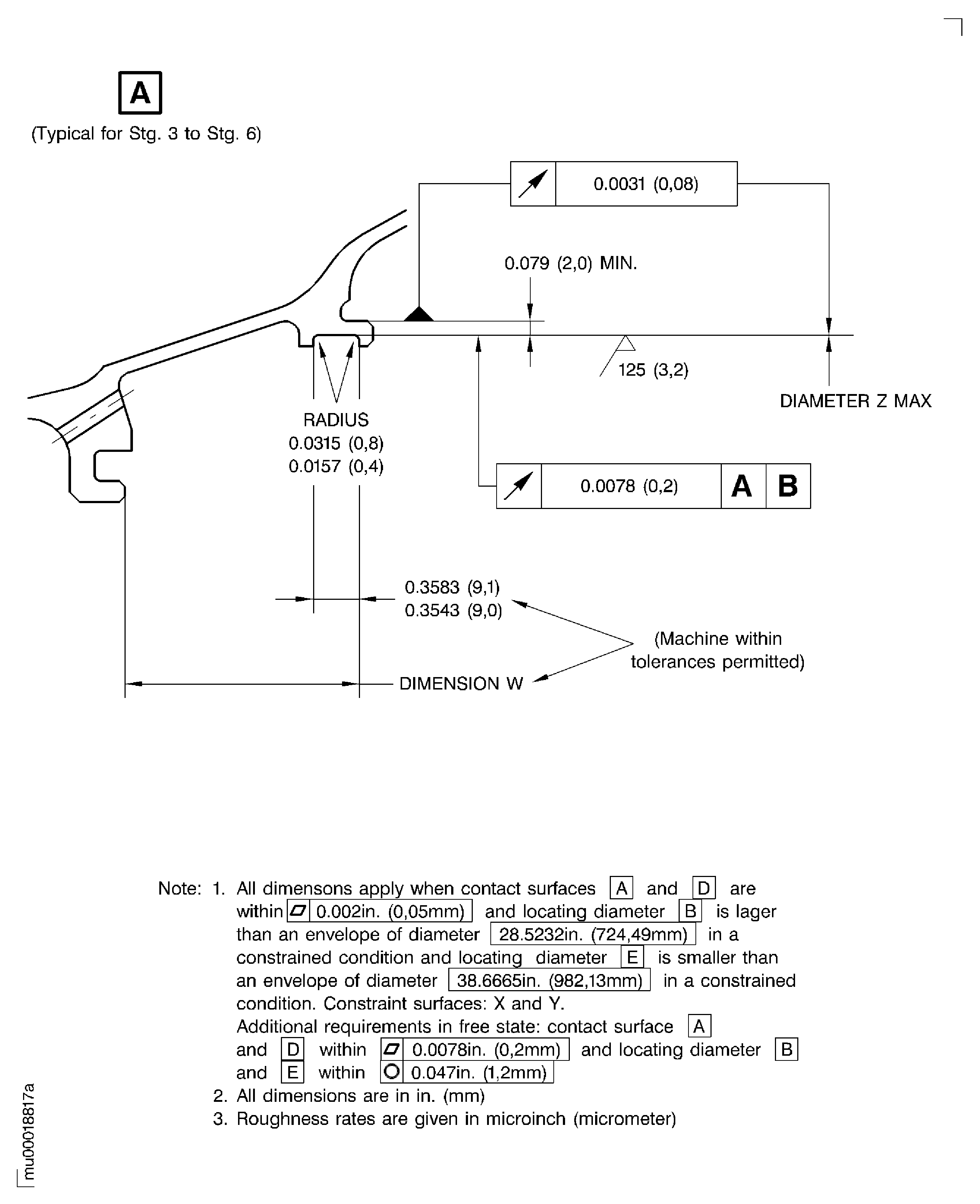

    Figure: LP turbine case rear vane hook diameters before plasma spraying

    LP turbine case rear vane hook diameters before plasma spraying

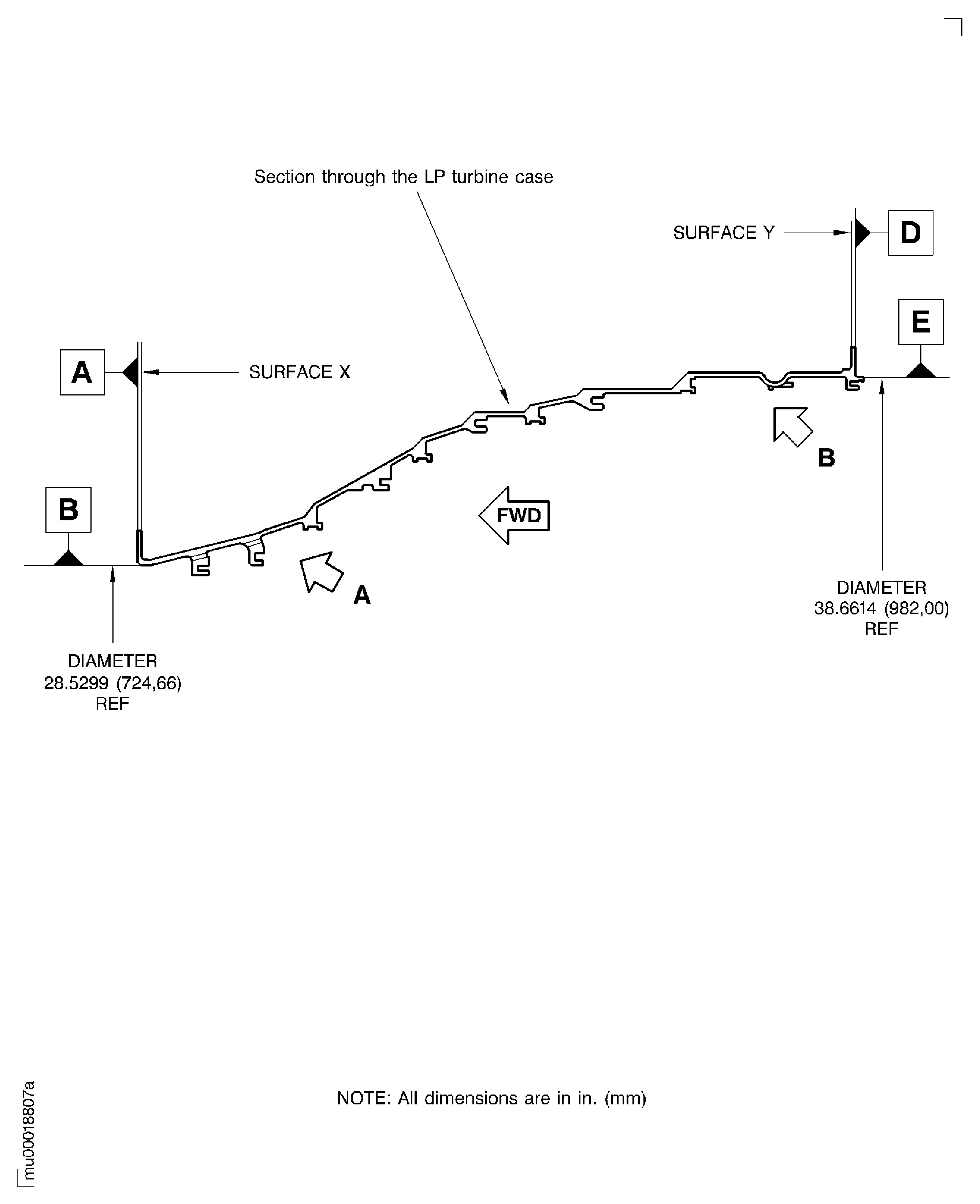

    Figure: LP turbine case rear vane hook diameters before plasma spraying

    LP turbine case rear vane hook diameters before plasma spraying

    Figure: LP turbine case rear vane hook diameters before plasma spraying

    LP turbine case rear vane hook diameters before plasma spraying

    Figure: LP turbine case rear vane hook diameters before plasma spraying

    LP turbine case rear vane hook diameters before plasma spraying

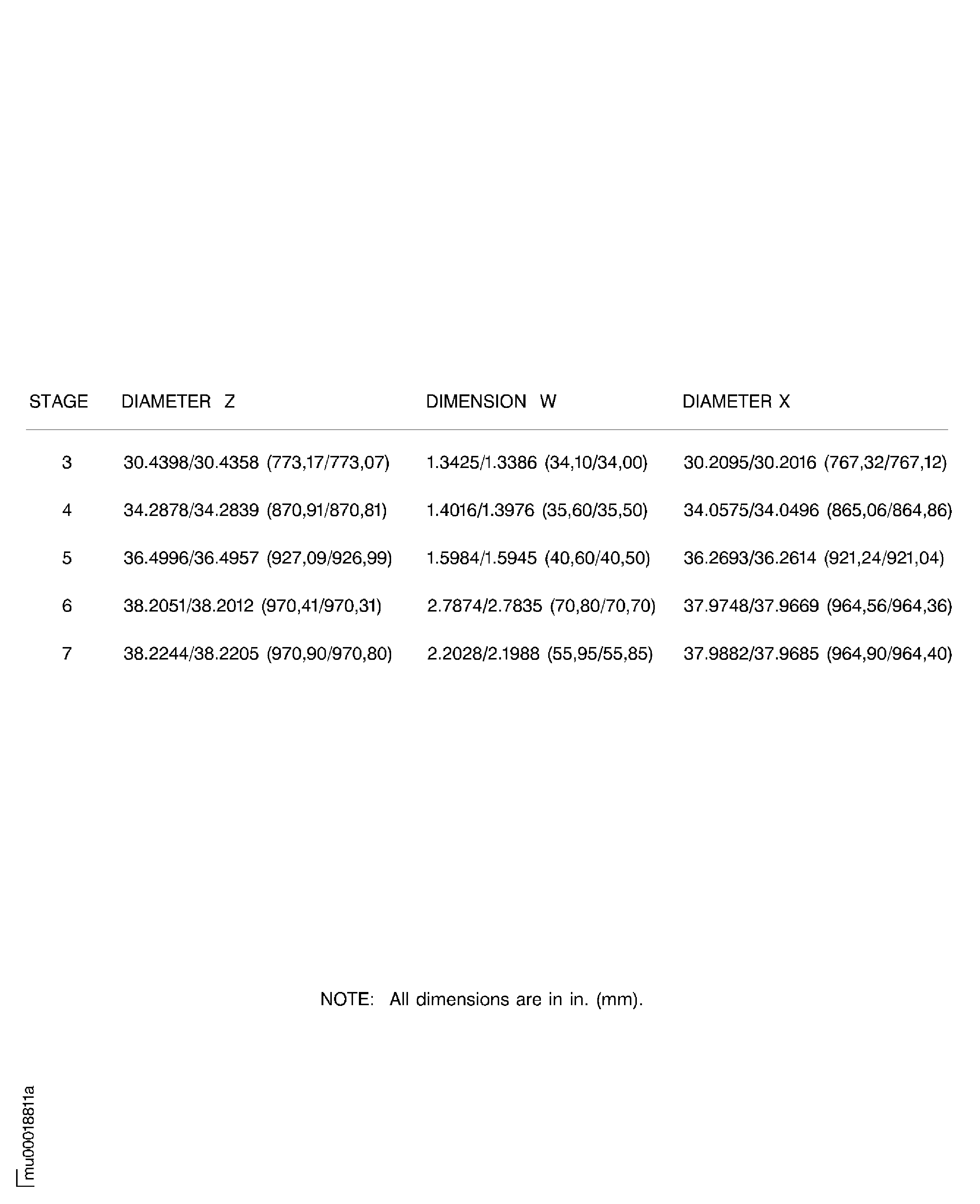

    Figure: LP turbine case rear vane hook diameters after plasma spraying

    LP turbine case rear vane hook diameters after plasma spraying

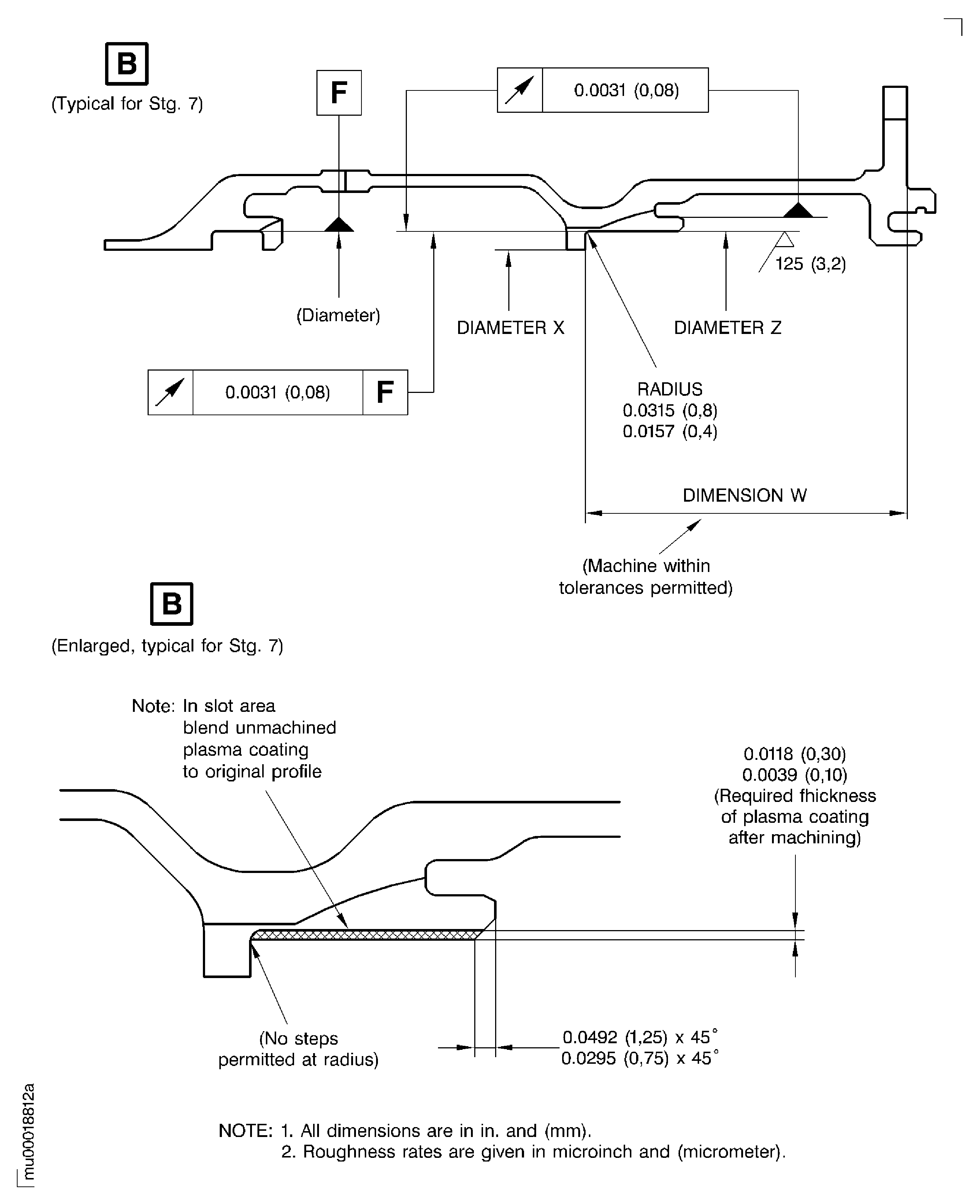

    Figure: LP turbine case rear vane hook diameters after plasma spraying

    LP turbine case rear vane hook diameters after plasma spraying

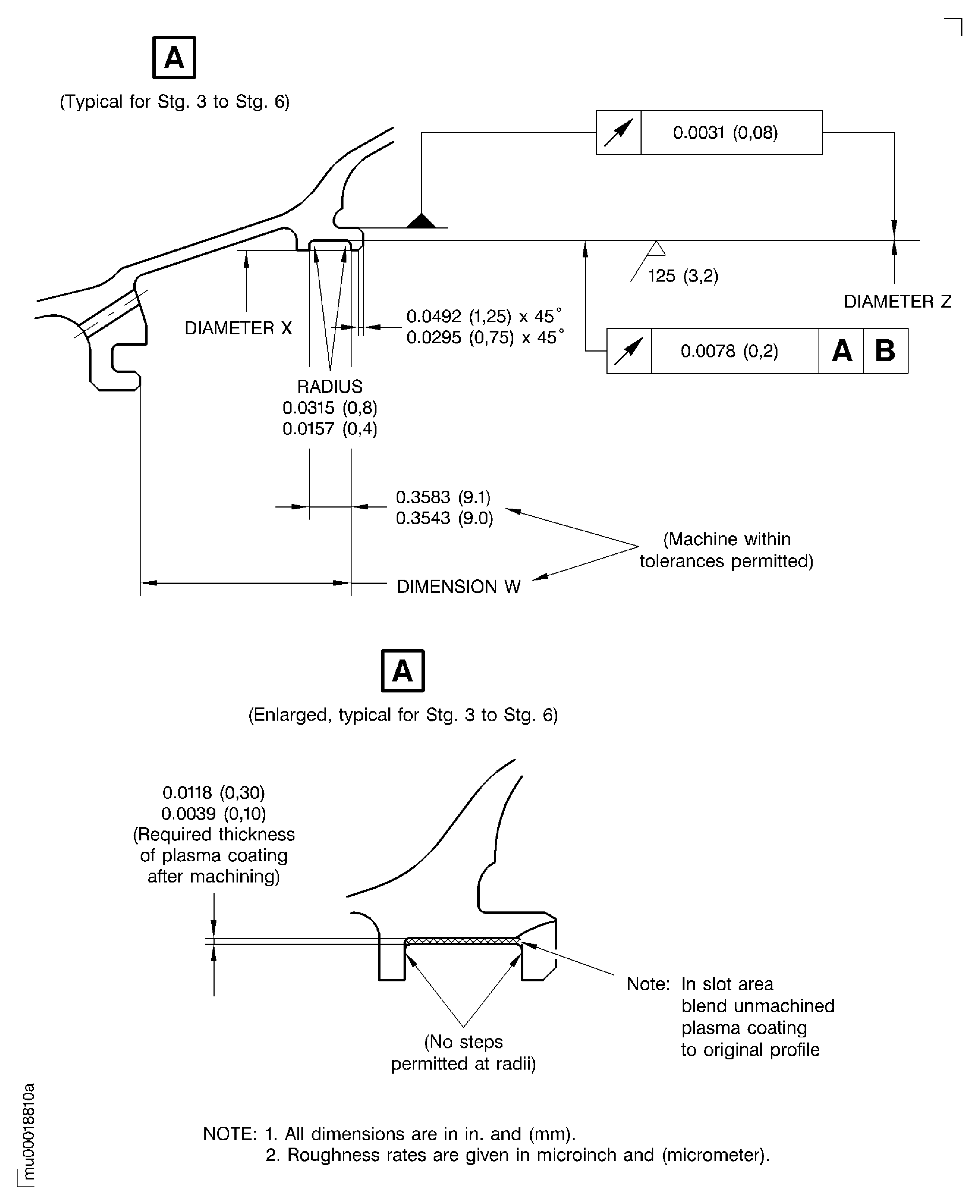

    Figure: LP turbine case rear vane hook diameters after plasma spraying

    LP turbine case rear vane hook diameters after plasma spraying

Requirements After Job Completion

Follow-On Conditions

NONE
