TASK 72-50-21-300-008 LPT Case - Plasma Spray The Rear Flange Snap Diameter, Repair-008 (VRS4011)

DMC:V2500-A0-72-50-2101-02A-609A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-21-300-008 LPT Case - Plasma Spray The Rear Flange Snap Diameter, Repair-008 (VRS4011)

Effectivity

FIG/ITEM

PART NO.

01-010

3A0807

01-010

3A0990

01-010

3A0991

01-010

3A1908

01-010

3A2183

01-010

3A2265

01-010

3A2447

01-010

3A2533

Material of component

DESCRIPTION

SYMBOL

MATERIAL

LP turbine case

Inconel 718

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

For equipment and materials necessary to do this repair refer to the SPM TASK 70-34-03-340-501, SPM TASK 70-11-03-300-503, SPM TASK 70-09-00-400-501 and SPM TASK 70-23-05-230-501.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Dial caliperLOCALDial caliper
Dry blast cabinetLOCALDry blast cabinet
Micrometer0AM53Micrometer
Illuminated magnifier (portable)LOCALIlluminated magnifier (portable)
Radius gage setLOCALRadius gage set
Roughness microtesterLOCALRoughness microtester
Vertical turning latheLOCALVertical turning lathe
IAE 3M14317 Base plate0AM53IAE 3M143171
IAE 3M14318 Turning fixture0AM53IAE 3M143181
IAE 3M14319 Masking fixture0AM53IAE 3M143191
IAE 3M14320 Masking fixture0AM53IAE 3M143201

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-047 TAPE, HEAT REFLECTIVE52152CoMat 02-047
CoMat 02-050 HIGH TEMPERATURE GLASS CLOTH TAPE76381CoMat 02-050
CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)00741CoMat 03-089
CoMat 03-090 METAL SPRAYING POWDER Ni/Al (95/5)0AM53CoMat 03-090
CoMat 05-046 ALUMINUM OXIDE GRIT62596CoMat 05-046

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-21-325-053 Machine the Diameter D1 of the LP Turbine Case Rear Flange

      NOTE

      If the LP turbine case rear flange snap diameter was plasma spray repaired before, remove the old coating fully.

      1. Machine the diameter D1.

      1. Use the IAE 3M14318 Turning fixture 1 off and vertical turning lathe.

        Refer to Figure.

        Keep material removal of diameter D1 to minimum to allow subsequent repairs.

        But old coating and damage must be removed fully.

    2. SUBTASK 72-50-21-220-081 Examine the Machined Surfaces

      1. Examine the machined surfaces dimensionally.

      1. For dimensions refer to Figure.

        Use radius gage set and dial caliper and micrometer.

    3. SUBTASK 72-50-21-230-063 Examine the Machined Surfaces for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use medium sensitivity level.

        No cracks are permitted.

    4. SUBTASK 72-50-21-110-064 Clean the LP Turbine Case

      1. Aqueous degrease.

      1. Refer to the SPM TASK 70-11-03-300-503.

    5. SUBTASK 72-50-21-340-054 Prepare the Surfaces for the Plasma Spray Procedures

      1. Mask the areas A3.

      2. Grit blast the area A1.

      1. Use dry blast cabinet, CoMat 05-046 ALUMINUM OXIDE GRIT.

        The surface texture must be 120 to 200 microinch RMS (3.0 to 5.0 micrometer Ra).

        Blasting in area A2 and in area A4 is permitted, Figure.

        Refer to the SPM TASK 70-34-03-340-501.

      3. Change the masking if necessary.

      1. Replace the damaged masking.

        Do not contaminate or touch the blasted areas.

    6. SUBTASK 72-50-21-340-055 Plasma Spray the Prepared Surfaces

      1. Plasma spray the area A1.

      1. Overspray in area A2 and area A4 is permitted, if it was blasted before, refer to Figure.

        Make sure that there is sufficient material to do last machining.

        Refer to the SPM TASK 70-34-03-340-501.

    7. SUBTASK 72-50-21-340-056 Remove the Protection from the Masked Areas

      1. Remove the masking.

      1. Remove the IAE 3M14319 Masking fixture 1 off, IAE 3M14320 Masking fixture 1 off and all the tape.

    8. SUBTASK 72-50-21-325-054 Machine the Coated Areas

      1. Machine the coated areas and the chamfer.

      1. Use the IAE 3M14318 Turning fixture 1 off and vertical turning lathe.

        For dimensions refer to Figure.

        Refer to the SPM TASK 70-34-03-340-501.

      2. Remove all the overspray from the radius at A4.

      1. Machine to remove the overspray.

        Refer to Figure.

    9. SUBTASK 72-50-21-110-066 Clean the LP Turbine Case

      1. Aqueous degrease.

      1. Refer to the SPM TASK 70-11-03-300-503.

    10. SUBTASK 72-50-21-220-082 Do the Post Repair Inspection

      1. Examine the repaired areas dimensionally.

      1. For actual dimensions refer to Figure.

        Use dial caliper, micrometer, roughness microtester and radius gage set.

      2. Examine the coating.

      1. Refer to the SPM TASK 70-34-03-340-501 and SPM TASK 70-34-03-340-501-002 for acceptance standards.

        Use illuminated magnifier.

    11. SUBTASK 72-50-21-380-052 Make a Mark to Identify the Repair

      1. Vibropeen VRS4011 and applicable beehive symbol adjacent to the part number.

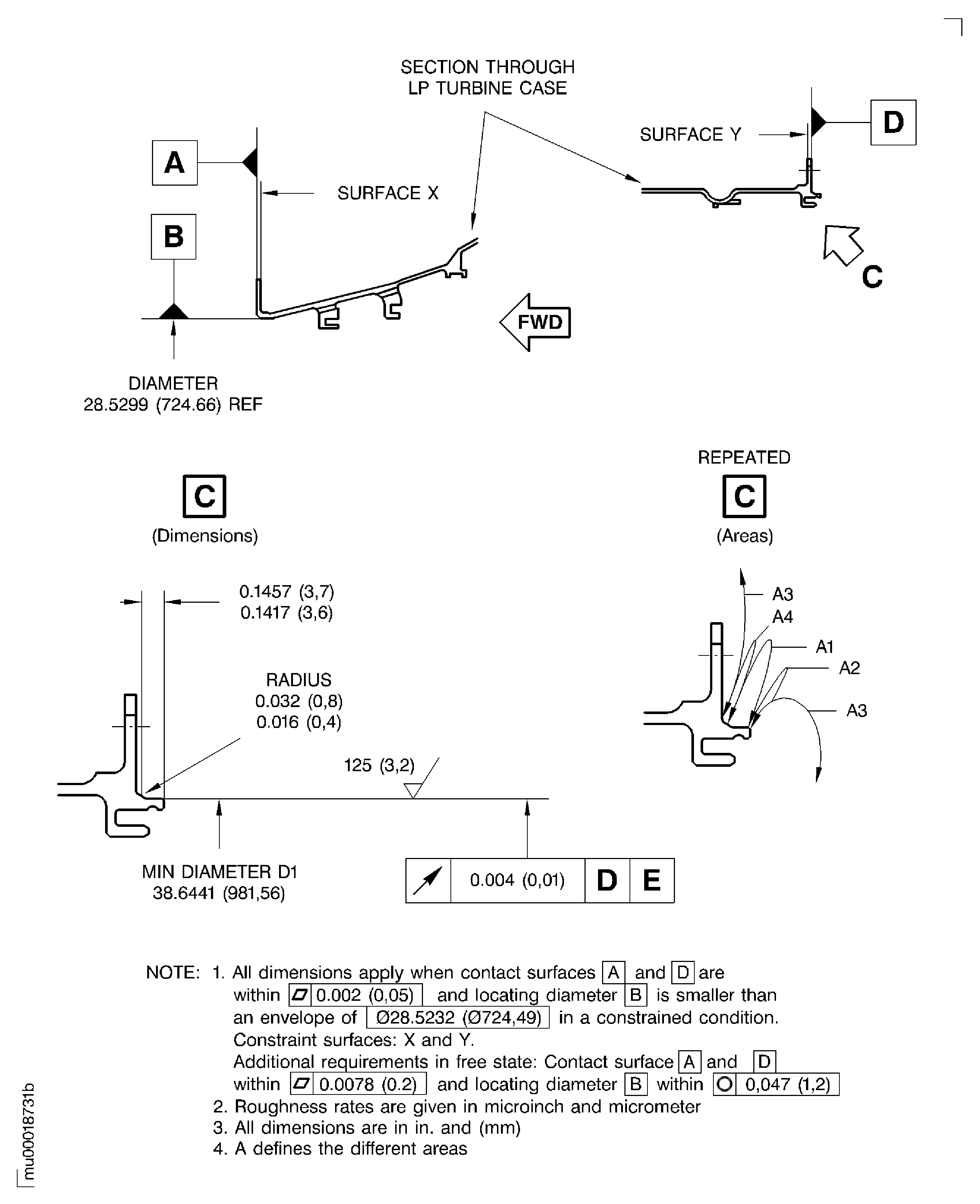

    12. Figure: Dimensions and areas for LP turbine case rear flange snap diameter repair

    Sheet 1

    Legend
    Dimensions and areas for LP turbine case rear flange snap diameter repair

    Sheet 1

    Close

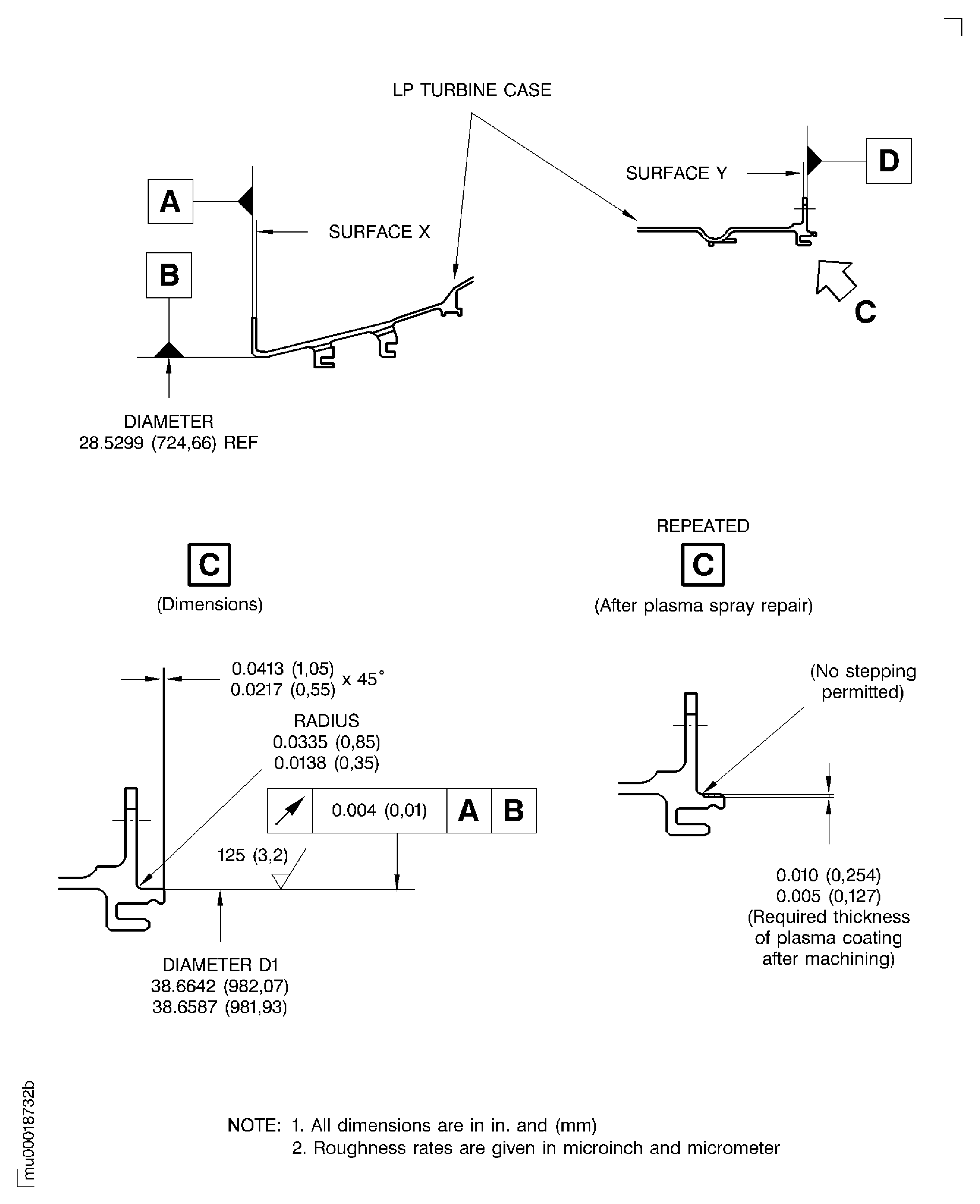

    Figure: Dimensions and areas for LP turbine case rear flange snap diameter repair

    Sheet 2

    Legend
    Dimensions and areas for LP turbine case rear flange snap diameter repair

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
