TASK 72-50-22-300-103 LPT Stage 3 Vane - Plasma Spray The Inner Buttress Front Flange, Repair-103 (VRS4475)

DMC:V2500-A0-72-50-2203-00A-609A-C|Issue No:002.00|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-22-300-103 LPT Stage 3 Vane - Plasma Spray The Inner Buttress Front Flange, Repair-103 (VRS4475)

Effectivity

FIG/ITEM

PART NO.

01-750

3A2412

01-750

3A2926

01-780

3A2415

01-780

3A2929

Material of component

PART IDENT

IAE

SYMBOL

MATERIAL

Stage 3 turbine vane assembly

MTS1323B (MAR-M-247 LC DS)

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

For more equipment and materials necessary to do this repair, refer to the SPM TASK 70-09-00-400-501, SPM TASK 70-11-03-300-503, SPM TASK 70-23-05-230-501 and SPM TASK 70-34-03-340-501.
Equivalent equipment may be used.

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 3M14513 Milling fixture0AM53IAE 3M145131
IAE 3M14516 Inspection fixture0AM53IAE 3M145161

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-047 TAPE, HEAT REFLECTIVE52152CoMat 02-047
CoMat 02-050 HIGH TEMPERATURE GLASS CLOTH TAPE76381CoMat 02-050
CoMat 03-066 METAL SPRAYING POWDER, 75 CHROMIUM CARBIDE/25 (80 NICKEL - 20 CHROMIUM ALLOY), FINEDK026CoMat 03-066
CoMat 05-046 ALUMINUM OXIDE GRIT62596CoMat 05-046

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-22-322-057 Machine the Inner Front Flange

      1. Machine dimension D1 to remove worn or damaged coating.

      1. Remove the old coating and damage fully.

        Keep material removal to a minimum to allow for future repairs.

        Refer to Figure.

    2. SUBTASK 72-50-22-230-190 Examine the Machined Surfaces

      1. Dimensionally examine.

      1. Refer to Figure and Figure.

    3. SUBTASK 72-50-22-230-191 Examine the Machined Areas for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use medium sensitivity level.

        No cracks are permitted.

    4. SUBTASK 72-50-22-110-278 Clean the Vane

      1. Clean the vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

    5. SUBTASK 72-50-22-340-034 Prepare the Surfaces for the Plasma Spray Procedure

      1. Mask the areas A1, A2 and A3.

      1. Make sure that the surfaces have full protection.

        Refer to Figure.

      2. Grit blast the area A4.

      1. The surface texture must be 120 to 200 microinch (3.0 to 5.0 micrometer ra).

        Refer to Figure and to the SPM TASK 70-34-03-340-501.

      3. Change the masking if necessary.

      1. Replace the damaged masking if required.

        Do not touch or bring unwanted material on the blasted surface.

    6. SUBTASK 72-50-22-340-035 Plasma Spray the Prepared Surface

      1. Plasma spray the area A4.

      1. Coating thickness must be 0.004 to 0.013 in. (0.11 to 0.32 mm) and must agree with the required flange thickness.

        Refer to Figure.

        Coating optional and must not be complete in areas A1, A2, A3 and A5.

        Refer to Figure and Figure.

    7. SUBTASK 72-50-22-340-036 Remove the Protection from the Masked Areas

      1. Remove all masking.

      1. No masking is permitted.

    8. SUBTASK 72-50-22-110-279 Clean the Vane

      1. Clean the vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

    9. SUBTASK 72-50-22-220-372 Do the Post Repair Inspection

      1. Dimensionally examine the coated area.

      2. Examine the coating.

      1. Refer to the SPM TASK 70-34-03-340-501-002 for acceptance standards.

    10. SUBTASK 72-50-22-380-090 Make a Mark to Identify the Repair

      1. Vibropeen VRS4475 and applicable beehive symbol adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501.

        Use a vibrating marking pencil.

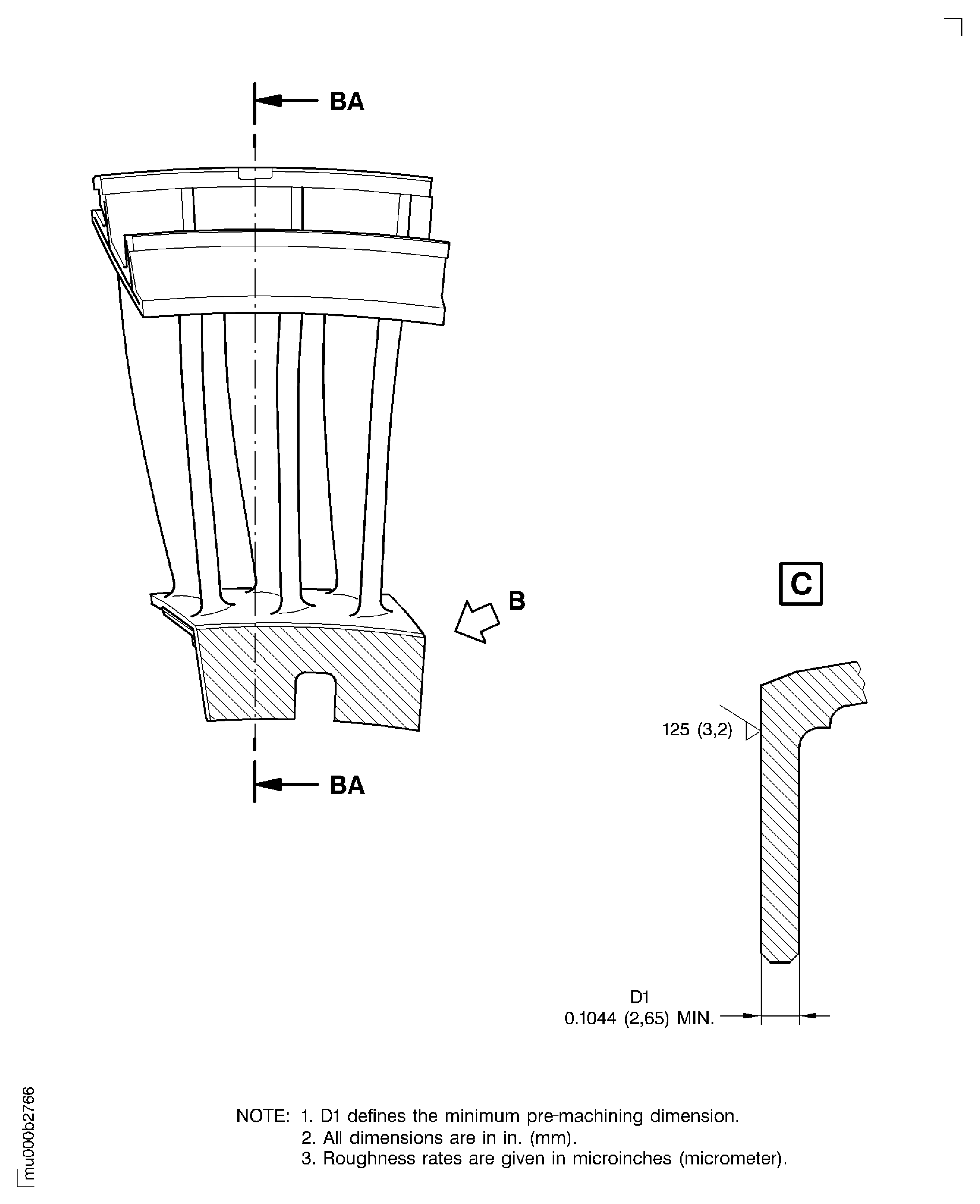

    11. Figure: Inner buttress front flange plasma spray repair area of the stage 3 turbine vane

    Inner buttress front flange plasma spray repair area of the stage 3 turbine vane

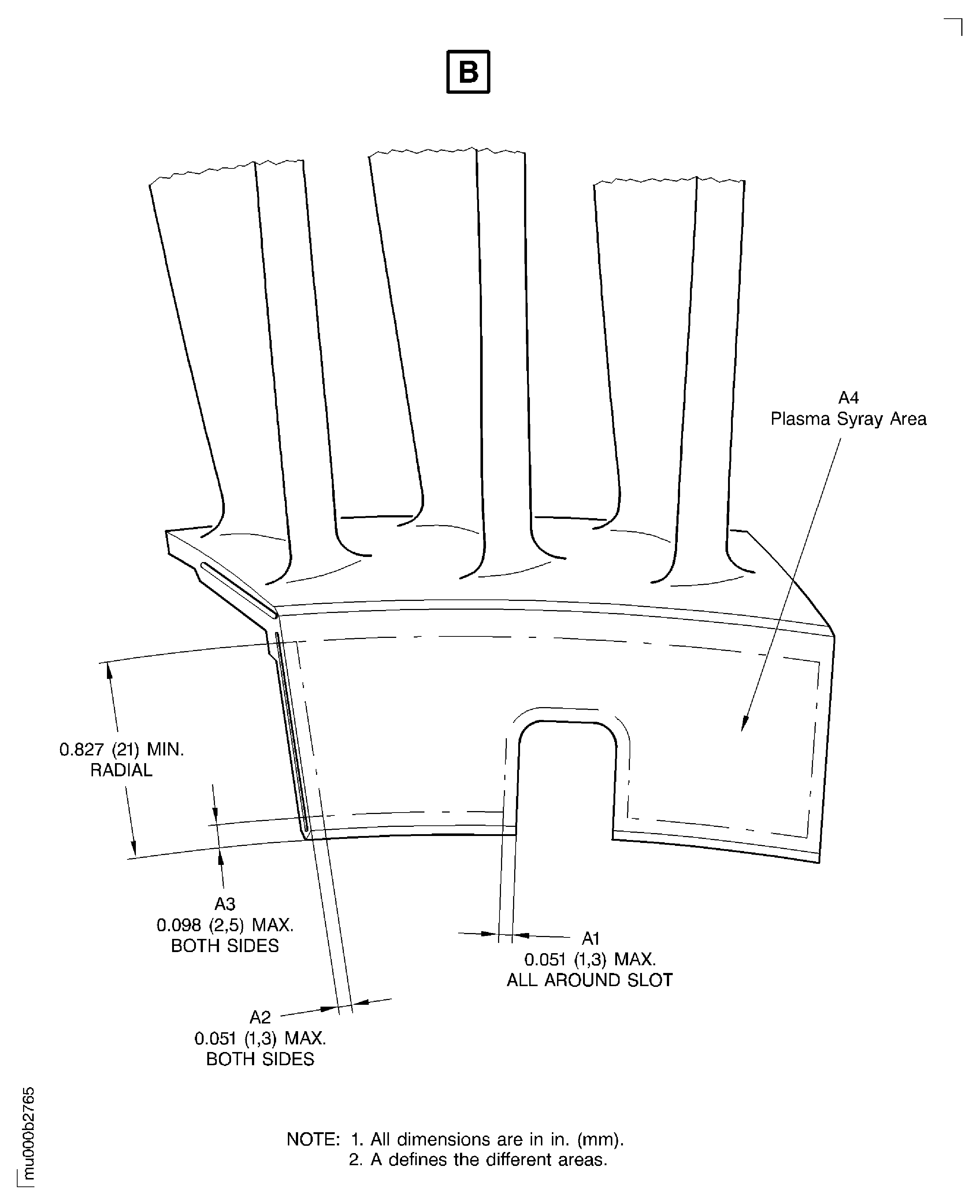

    Figure: Inner buttress front flange plasma spray repair area (masking) of the stage 3 turbine vane

    Inner buttress front flange plasma spray repair area (masking) of the stage 3 turbine vane

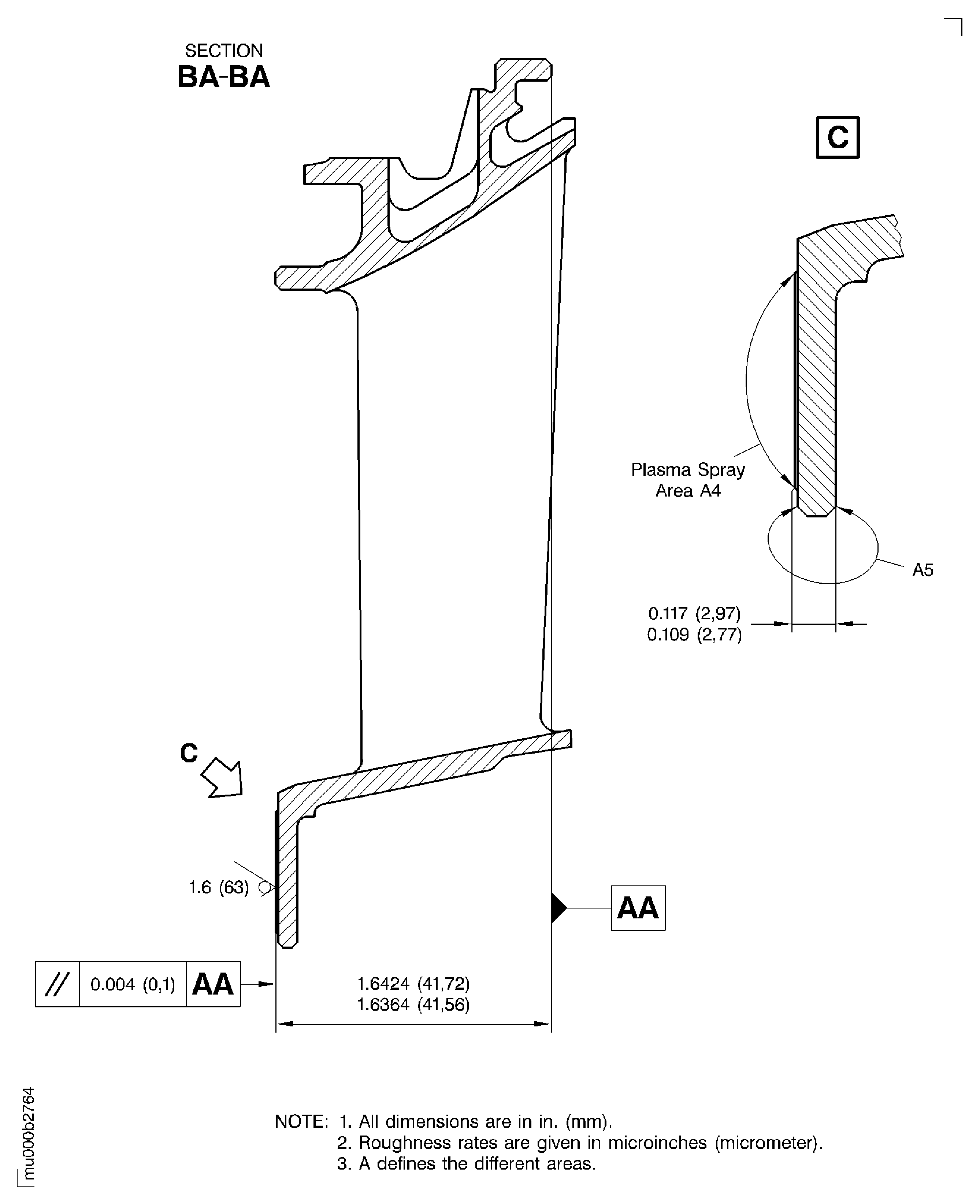

    Figure: Inner buttress front flange plasma spray repair (finish dimensions) of the stage 3 turbine vane

    Inner buttress front flange plasma spray repair (finish dimensions) of the stage 3 turbine vane

Requirements After Job Completion

Follow-On Conditions

NONE
