TASK 72-50-22-300-128 LPT Stage 5 Vane - Replace The Honeycomb Seal Segment, Repair-128 (VRS4579)

DMC:V2500-A0-72-50-2205-05A-920A-C|Issue No:001.00|Issue Date:2014-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-22-300-128 LPT Stage 5 Vane - Replace The Honeycomb Seal Segment, Repair-128 (VRS4579)

Effectivity

FIG/ITEM

PART NO.

01-350

3A3123

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

For more equipment and materials necessary to do this repair refer to SPM TASK 70-09-00-400-501, SPM TASK 70-11-03-300-503, SPM TASK 70-23-02-230-501 and SPM TASK 70-31-07-310-501.
Equivalent equipment may be used.
To identify the consumable materials refer to the OPCI.
Special tools are identified in the procedure by the tool primary number.

Material of Component

PART IDENT

IAE SYMBOL

MATERIAL

Stage 5 turbine vane

MAR-M247

Honeycomb seal segment

Hastelloy X

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Turning latheLOCALTurning lathe
Grinding MachineLOCALGrinding Machine
Belt grinderLOCALBelt grinder
Spot welding machineLOCALSpot welding machine
IAE 3M14203 Grinding/turningfixture0AM53IAE 3M142031 off
IAE 3M14206 Spot welding fixture0AM53IAE 3M142061 off
IAE 3M14220 Cross slide table0AM53IAE 3M142201 off
IAE 3M14221 Electrode guide0AM53IAE 3M142211 off
IAE 3M14222 Electrode holder0AM53IAE 3M142221 off
IAE 3M14223 Universal joint electrode0AM53IAE 3M142231 off

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-144 BONDING AGENTC7208CoMat 02-144
CoMat 03-148 BRAZING FILLER POWDERLOCALCoMat 03-148
CoMat 03-227 WHITE STOP OFFD3309CoMat 03-227
CoMat 03-249 BRAZING FILLER MATERIAL,Ni-BASELOCALCoMat 03-249

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
SEAL SEGMENT - HONEYCOMB0AM533A31241

FIG/ITEM - 01-371

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-22-320-001 Machine the Damaged Honeycomb Seal Segment

    1. Refer to Figure.

      2. Machine off the worn honeycomb seal segment.

      2. Keep material removal to a minimum.

      3. Remove the damaged 3A3124 SEAL SEGMENT - HONEYCOMB fully.

      4. Remaining braze thickness not more than 0.005 in. (0.13 mm) is permitted.

    2. SUBTASK 72-50-22-110-001 Clean the Stage 5 Turbine Vane

      1. Aqueous cleaning.

      1. Refer to SPM TASK 70-11-03-300-503.

    3. SUBTASK 72-50-22-230-001 Examine the Stage 5 Turbine Vane for Cracks

      1. Do the test for cracks.

      1. Refer to SPM TASK 70-23-02-230-501.

      2. No cracks are permitted.

    4. SUBTASK 72-50-22-310-001 Prepare the Honeycomb Seal Segment for Brazing

      1. Cut the new honeycomb seal segment to length.

      1. Replacement honeycomb is supplied longer than necessary.

    5. SUBTASK 72-50-22-110-002 Clean the Stage 5 Turbine Vane and the New Honeycomb Seal Segment

      1. Aqueous cleaning

      1. Refer to SPM TASK 70-11-03-300-503.

      2. Use clean gloves when you touch the clean parts.

    6. SUBTASK 72-50-22-310-002 Braze in the New Honeycomb Seal Segment

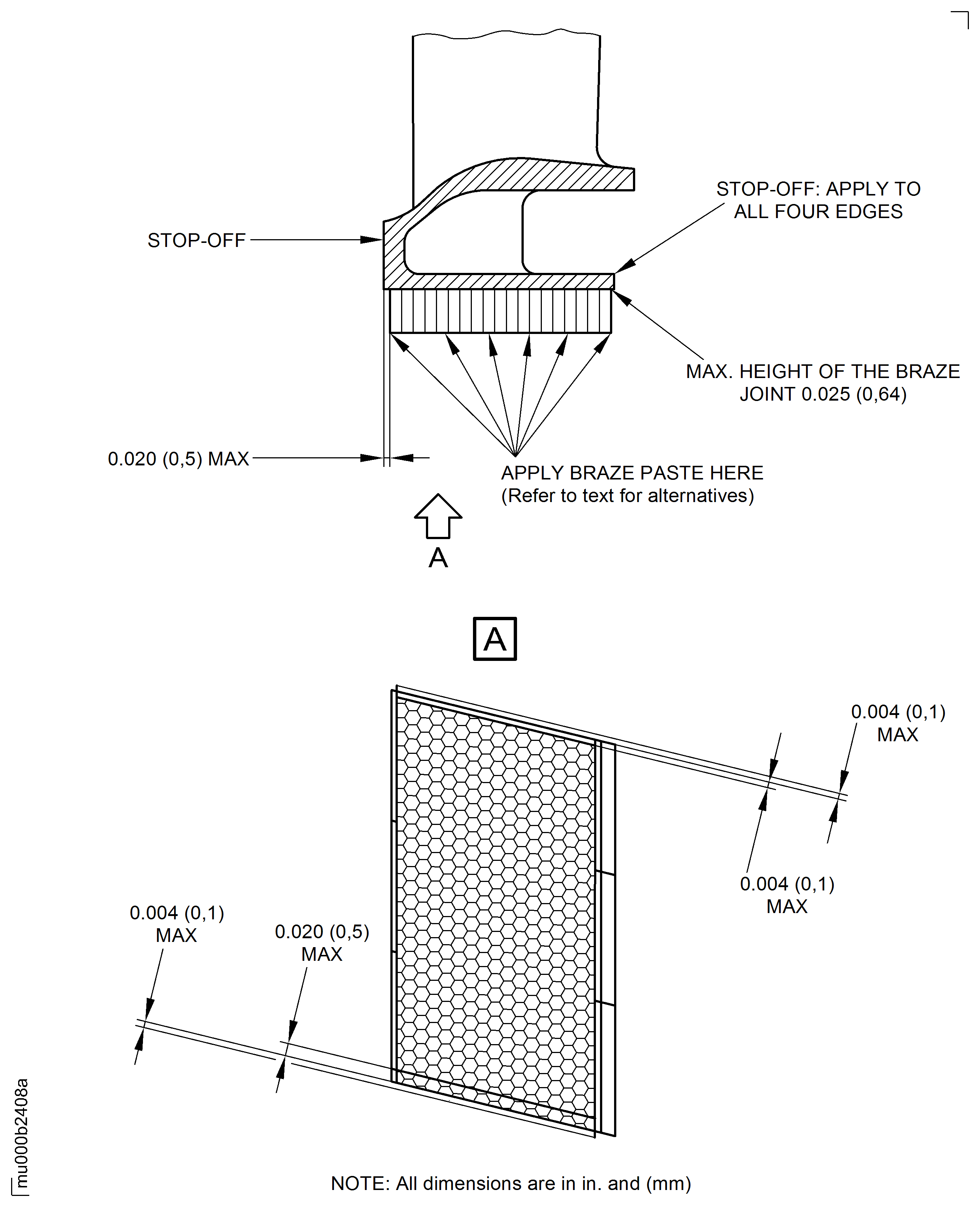

    1. Refer to Figure.

      NOTE

      If CoMat 03-249 BRAZING FILLER MATERIAL,Ni-BASE is used, do not perform Step and Step. If CoMat 03-148 BRAZING FILLER POWDER is used, do not perform Step.

      2. Install the cross slide table onto the spot welding machine

      3. Install the electrode holder onto the spot welding machine.

      4. Install the electrode swivel onto the electrode holder

      2. Make sure that the electrode insert with the mark "INNER" (part of the electrode swivel) is installed.

      5. Install the electrode guide onto the cross slide table.

      6. Install the spot welding fixture onto the electrode guide.

      7. Attach the Stage 5 turbine vane onto the spot welding fixture.

      1. Make sure that the Stage 5 turbine vane is installed correctly against the stop plates (parts of the spot welding fixture).

      8. Prepare the new honeycomb seal segment.

      2. Apply brazing filler tape to the turbine vane mating side of the honeycomb seal segment.

      3. Use a roller or equivalent, roll the tape into the honeycomb cells and remove the backing.

      9. Put the honeycomb seal segment onto the Stage 5 turbine vane

      10. Resistance weld the honeycomb seal segment

      1. Use a short time and low weld amperage to safety the 3A3124 SEAL SEGMENT - HONEYCOMB without damage.

      2. Start to weld in the middle and continue to the outer sides.

      11. Apply brazing filler powder to the honeycomb seal segment.

      2. Make sure that the brazing filler powder is applied equally around the honeycomb seal segment.

      12. Safety the brazing filler powder to the honeycomb cells.

      13. Apply white stop off around the edges of the Stage 5 turbine vane

      14. Vacuum braze

      1. Refer to SPM TASK 70-31-07-310-501.

      2. Use Process 2.

      3. Brazing time 30 minutes maximum.

      4. Cool at a rate not less than 35 deg F (19 deg C) per minute to 1100 deg F (593 deg C).

      5. Further cooling rate optional.

    7. SUBTASK 72-50-22-110-003 Clean the Stage 5 Turbine Vane

      1. Aqueous cleaning

      1. Refer to SPM TASK 70-11-03-300-503.

    8. SUBTASK 72-50-22-210-001 Examine the Brazed Honeycomb Seal Segment

      1. Do the gravity leak test

      1. Refer to SPM TASK 70-31-07-310-501.

      2. Acceptance limits

        1. Refer to SPM TASK 70-31-07-310-501 except the following limits:

        1. No unbrazed honeycomb cells around the edges of the 3A3124 SEAL SEGMENT - HONEYCOMB are permitted.

        2. The minimum space between the unbonded areas of more than 0.063 sq in. (40.65 sq-mm) should be 1.000 in. (25.40 mm).

        3. The honeycomb wall thickness must not be increased by more than 0.001 in. (0.03 mm) in the area above the braze fillet.

    9. SUBTASK 72-50-22-320-002 Machine the Honeycomb Seal Segment

    1. Refer to Figure.

      2. Grind the honeycomb seal segment

      3. Deburr the honeycomb seal segment

      1. Refer to SPM TASK 70-31-07-310-501.

    10. SUBTASK 72-50-22-110-004 Clean the Stage 5 Turbine Vane

      1. Aqueous cleaning

      1. Refer to SPM TASK 70-11-03-300-503.

    11. SUBTASK 72-50-22-370-001 Precipitation Heat Treatment of the Stage 5 Turbine Vane

      1. Precipitation heat treat the Stage 5 turbine vane

      1. Refer to SPM TASK 70-37-27-370-501, allow PWA1447.

      2. Optional precipitation heat treatment of 1575 deg F to 1625 deg F (857 deg C to 885 deg C) for 8 hours can be used.

    12. SUBTASK 72-50-22-220-001 Do the Post Repair Inspection

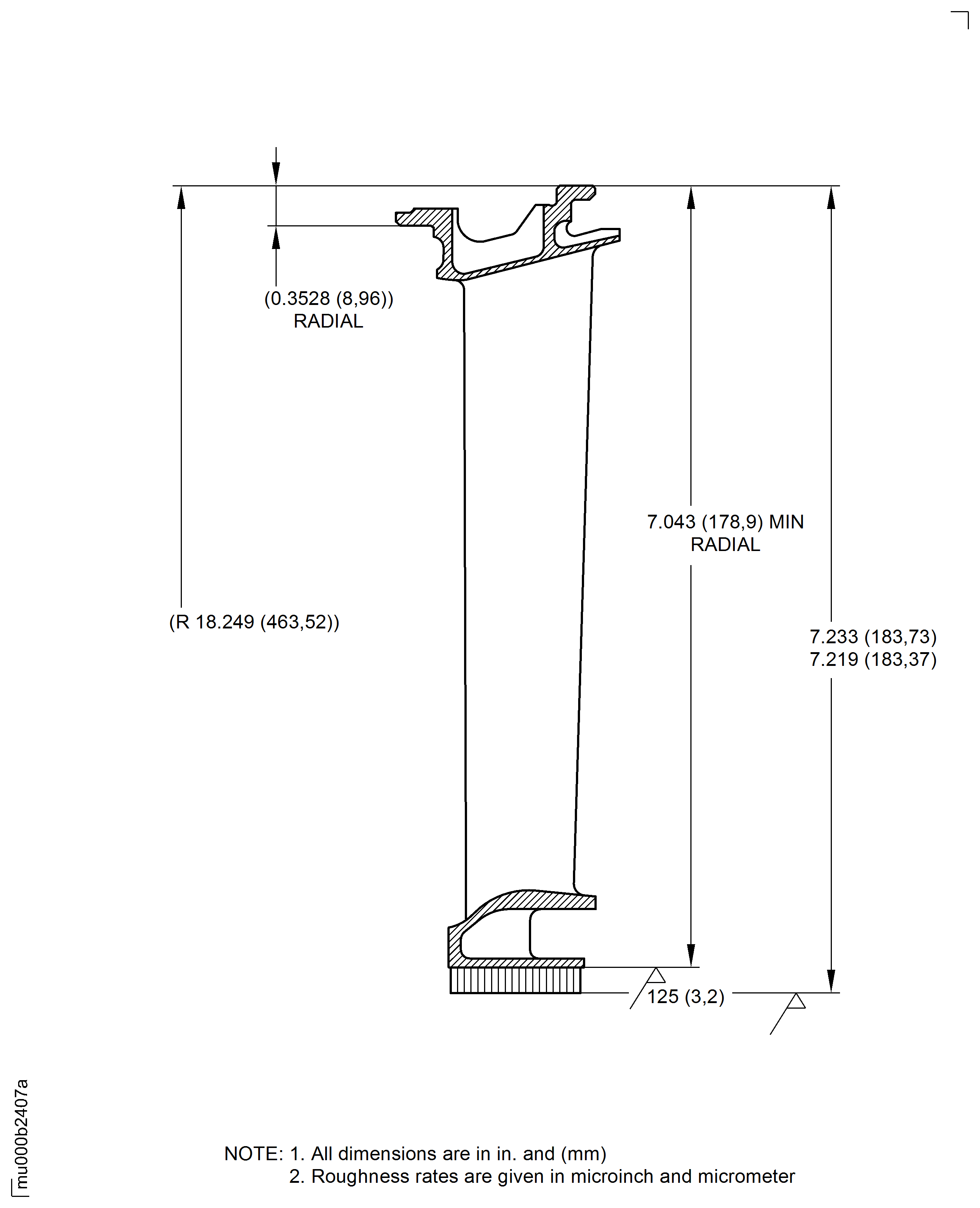

    1. Refer to Figure.

    2. Examine dimensionally.

      3. Examine visually.

      1. Refer to SPM TASK 70-31-07-310-501.

    13. SUBTASK 72-50-22-350-001 Make a Mark to Identify the Repair

    1. Electrolytically etch or vibropeen VRS4579 adjacent to the part number.

    2. Refer to SPM TASK 70-09-00-400-501.

    14. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added new repair. (EA12VM552A)
