TASK 72-50-24-300-024 LPT Inner Diffuser Duct Support Ring - Replace Spacer Key, Repair-024 (VRS4130)

DMC:V2500-A0-72-50-2403-00A-920A-C|Issue No:003.00|Issue Date:2021-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-24-300-024 LPT Inner Diffuser Duct Support Ring - Replace Spacer Key, Repair-024 (VRS4130)

Effectivity

FIG/ITEM

PART NO.

01-170

3A0113

01-170

3A2527

Material of component

PART IDENT

IAE SYMBOL

MATERIAL

Support ring assy

MTS1155B or WL2.4650.7 / C263

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

For more equipment and materials necessary to do this repair refer to the SPM TASK 70-11-34-300-503, SPM TASK 70-23-01-230-501, SPM TASK 70-23-02-230-501, SPM TASK 70-23-05-230-501, SPM TASK 70-31-06-310-501, SPM TASK 70-31-09-310-501, SPM TASK 70-31-13-310-501, SPM TASK 70-32-03-320-501 and SPM TASK 70-33-06-300-503.
Equivalent equipment can be used.

NOTE

To identify the consumable materials refer to the OPCI.

NOTE

For repair of the support ring use the quantity of repair parts as necessary.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Milling machineLOCALMilling machine
Grinding machineLOCALGrinding machine
Drilling machineLOCALDrilling machine

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-148 BRAZING FILLER POWDERLOCALCoMat 03-148
CoMat 03-227 WHITE STOP OFFD3309CoMat 03-227
CoMat 03-287 WELDING FILLER WIRELOCALCoMat 03-287
CoMat 03-184 WELDING FILLER WIRE, NICKELLOCALCoMat 03-184

optional

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
SPACER KEY3A011529

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-24-324-051 Remove the Worn Spacer Key

      1. Machine off the worn 3A0115 .

      1. Electrical discharge machine according to the SPM TASK 70-32-03-320-501 is permitted.

        Refer to Figure.

        Do not remove parent material.

        Remove traces of original braze filler before you braze in new 3A0115 .

    2. SUBTASK 72-50-24-110-066 Clean the Support Ring

      1. Aqueous degrease

      1. Refer to the SPM TASK 70-11-34-300-503.

    3. SUBTASK 72-50-24-230-063 Examine the Support Ring for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501, medium sensitivity.

        No cracks are permitted.

    4. SUBTASK 72-50-24-220-098 Examine the Machined Areas

      1. Examine dimensionally.

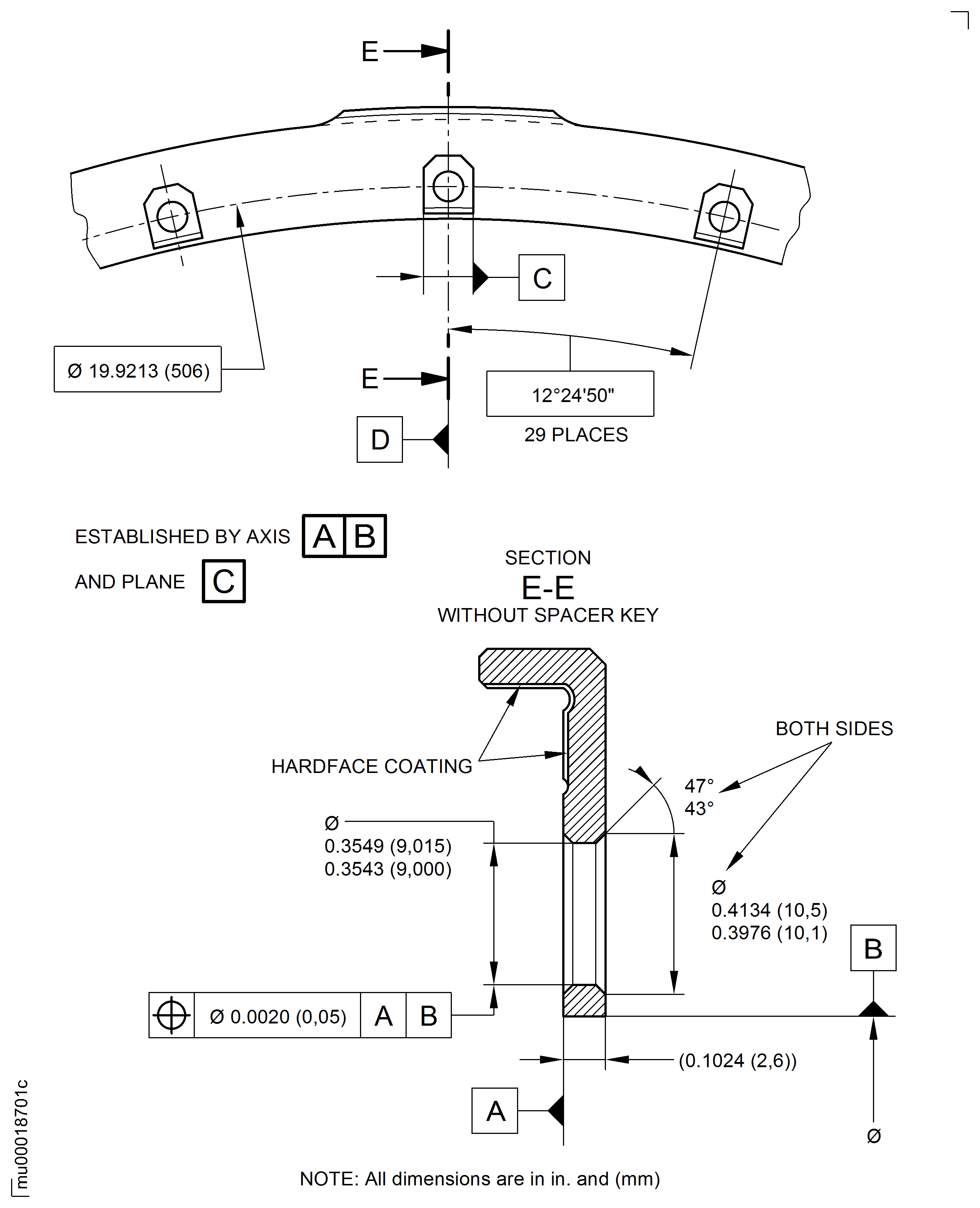

      1. Refer to Figure for dimensions.

    5. SUBTASK 72-50-24-310-053-001 Install the New Spacer Key

      1. Nickel plate the mating surfaces if necessary.

      1. Refer to the SPM TASK 70-33-06-300-503.

        Nickel plate is permitted to make the following braze cycle easier. Coating must be 0.0001 to 0.0003 in. (0.003 to 0.008 mm).

      2. Braze the 3A0115 in position.

      1. Clamp the 3A0115 to prevent movement.

        Refer to Figure.

        Refer to the SPM TASK 70-31-09-310-501 and SPM TASK 70-31-06-310-501 for braze cycle except steps 2E, 3A, 3B, 3C of the brazing procedure.

        Increase temperature of 1904 to 1940 deg. F (1040 to 1060 deg. C) and hold for 10 to 15 minutes.

        Cool at a minimum rate of 25 deg. F per minute (14 deg. C per minute) to 1750 deg. F (954 deg. C).

        Cool at a rate of 45 deg. F per minute (25 deg. C per minute) or faster to 1112 deg. F (600 deg C).

        Further cooling is optional.

      3. Precipitation heat treat the support ring.

      1. Put the support ring into a furnace at 1450 to 1500 deg. F (788 to 816 deg. C) for eight hours.

        Heating rate is not important.

        Cool in still or agitated air or inert gas.

        NOTE

        Cooling cycle of Step can be mixed with this precipitation heat treat cycle.

    6. SUBTASK 72-50-24-310-053-002 Install the New Spacer Key

      1. Weld the 3A0115 in position

      1. Refer to the SPM TASK 70-31-13-310-501. Use CoMat 03-184 WELDING FILLER WIRE, NICKEL or CoMat 03-287 WELDING FILLER WIRE. Refer to Figure. No head treatment required after weld repair

    7. SUBTASK 72-50-24-110-067 Clean the Support Ring

      1. Aqueous degrease

      1. Refer to the SPM TASK 70-11-34-300-503.

    8. SUBTASK 72-50-24-350-061 Machine the Support Ring after Brazing or Welding if Necessary

      1. Machine the support ring.

    9. SUBTASK 72-50-24-220-099 Examine the Installed Spacer Key

      1. Examine area for completeness of braze.

      1. Refer to the SPM TASK 70-31-09-310-501. No surplus braze material permitted.

      2. Examine dimensionally.

      1. Refer to Figure and Figure for dimensions.

    10. SUBTASK 72-50-24-230-064 Examine the Support Ring for Cracks

      1. Do the test for cracks.

      1. If 3A0115 have been welded only, SPM TASK 70-23-05-230-501, medium sensitivity is also acceptable.

        No cracks are permitted.

    11. SUBTASK 72-50-24-220-100 Examine the Hardface Coating for Damage

      NOTE

      Do this Inspection only if the support ring was originally hardface coated.

      1. Examine area for damaged or missing hardface coating.

      1. No damage permitted. Refer to Repair-053, VRS4466 TASK 72-50-24-300-053 for hardface coating replacement.

    12. SUBTASK 72-50-24-280-052 Examine the Support Ring for Hardness

      NOTE

      Hardness check is not required if 3A0115 have been welded. If hardness is less than the minimum specified, do a subsequent heat treat as given in Step.

      1. Examine the support ring for hardness.

      1. Hardness to be 22 HRC minimum or equivalent.

    13. SUBTASK 72-50-24-370-061 Heat Treat the Support Ring

      NOTE

      Heat treatment is only required if hardness is less than the minimum specified. Refer to Step.

      1. Precipitation heat treat the support ring.

      1. Put the support ring into a furnace at 1450 to 1500 deg F (788 to 816 deg C) for eight hours.

        Heating rate is not important.

        Cool in still or shaken air or inert gas.

      2. Recheck support ring hardness.

      1. Refer to Step.

        If minimum hardness is not obtained, repeat procedure in Step.

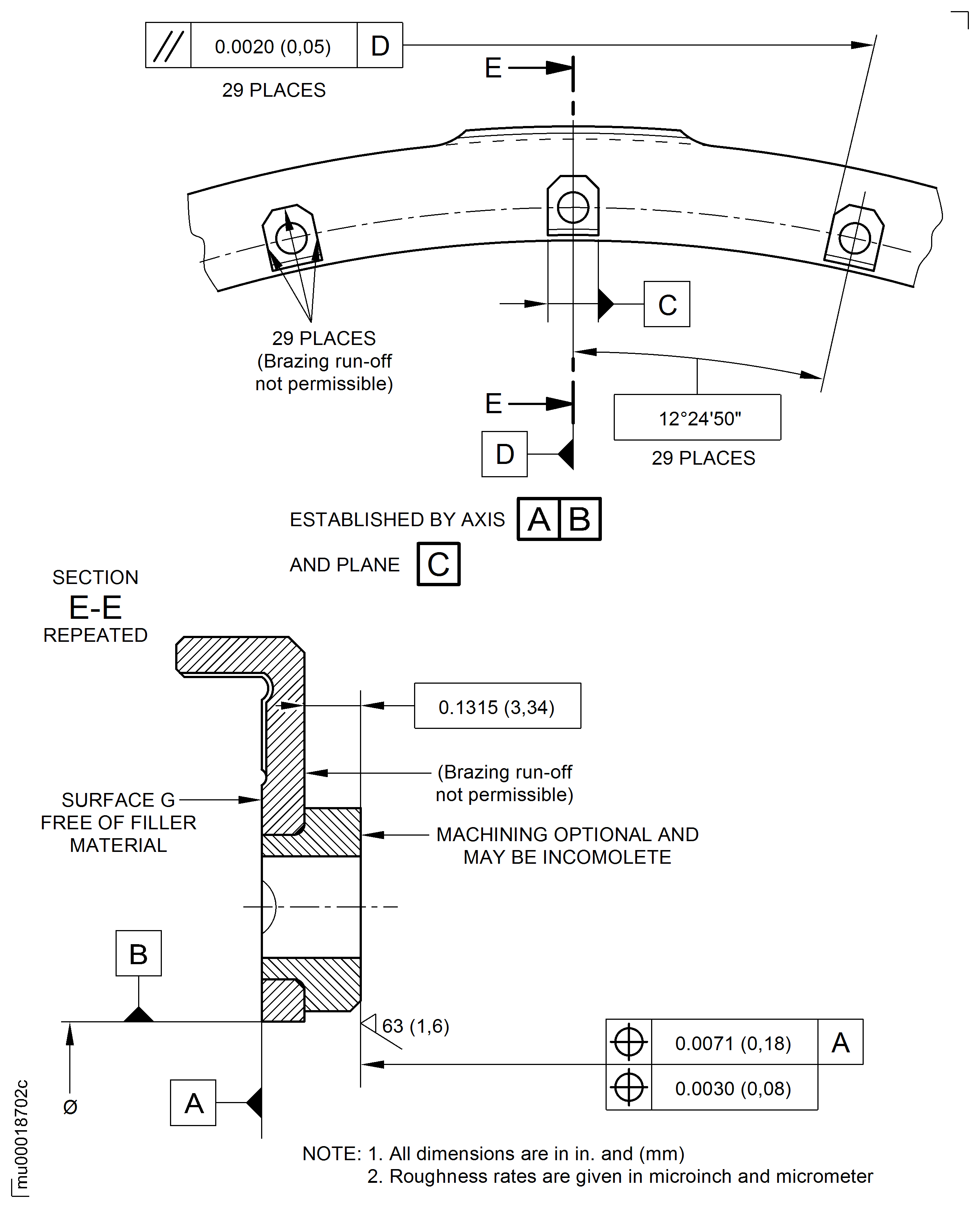

    14. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions

    Sheet 1

    Legend
    Repair Details and Dimensions

    Sheet 1

    Close

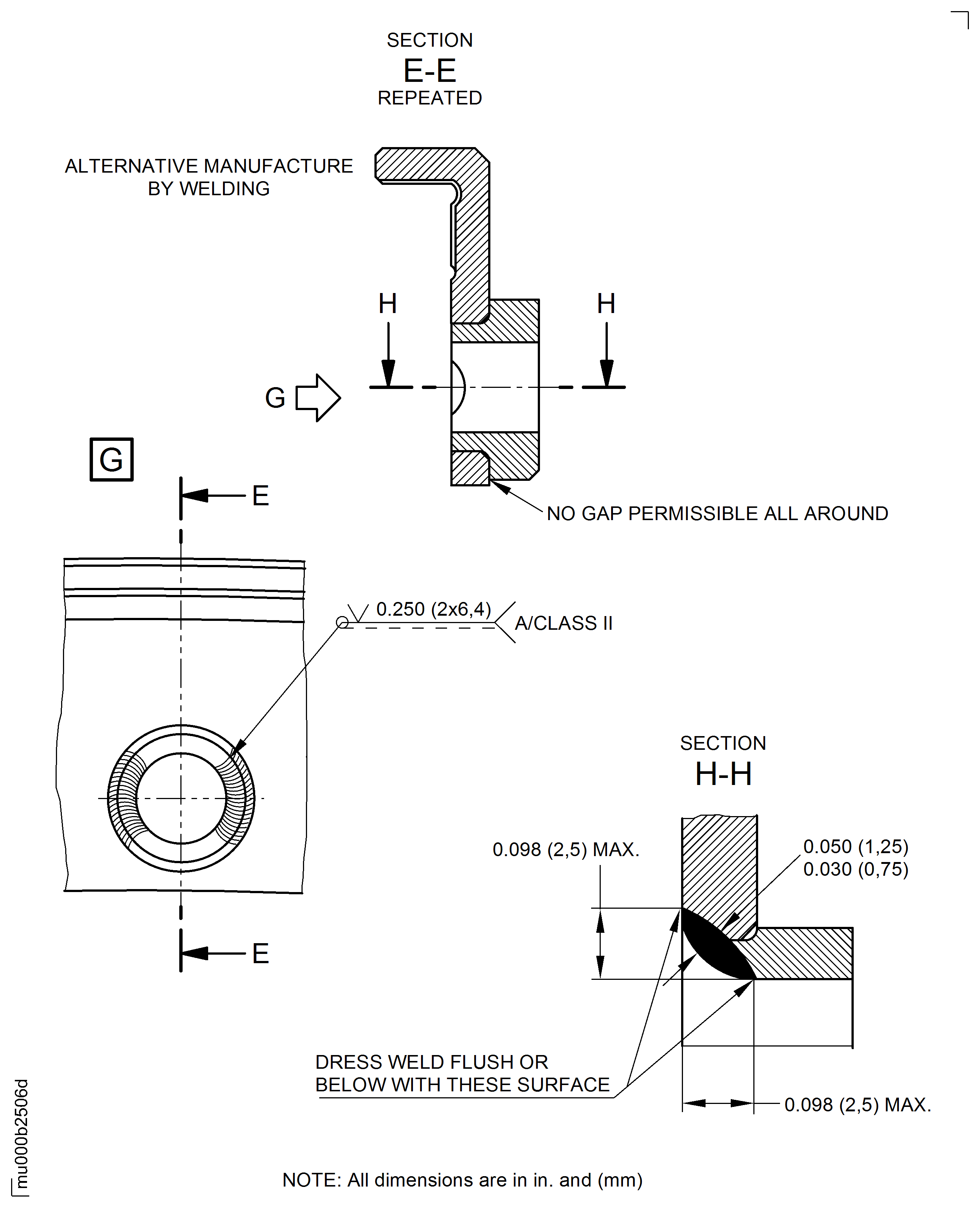

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close
