TASK 72-50-24-300-059 LPT Inner Diffuser Duct Support Ring - Weld Repair Front Faces, Repair-059 (VRS4454)

DMC:V2500-A0-72-50-2403-05A-627A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-24-300-059 LPT Inner Diffuser Duct Support Ring - Weld Repair Front Faces, Repair-059 (VRS4454)

Effectivity

FIG/ITEM

PART NO.

01-170

3A1560

Material of component

PART IDENT

SYMBOL

MATERIAL

Support ring assembly

C263

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

For equipment and materials necessary to do this repair, refer to the SPM TASK 70-11-34-300-503, SPM TASK 70-23-05-230-501, SPM TASK 70-31-13-310-501 and SPM TASK 70-37-00-370-501.
Equivalent equipment may be used.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Turning latheLOCALTurning lathe
Grinding machineLOCALGrinding machine

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-184 WELDING FILLER WIRE, NICKELLOCALCoMat 03-184

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-24-320-080 Remove the Coating

    1. Refer to Figure.

      NOTE

      If the locating diameter in area A2 was plasma sprayed before, remove the old coating fully. Refer to VRS4128 TASK 72-50-24-300-022 (REPAIR-022).

      2. Remove the wear protective coating in area A1.

      1. Remove the old coating fully.

        Refer to VRS4309, TASK 72-50-24-300-039 (REPAIR-039).

    2. SUBTASK 72-50-24-110-167 Clean the Worn Surfaces before Welding

      1. Clean the areas to be welded.

      1. Use silicon carbide rag or equivalent.

    3. SUBTASK 72-50-24-110-168 Clean the Support Ring Assembly

      1. Aqueous degrease.

      1. Refer to the SPM TASK 70-11-34-300-503.

    4. SUBTASK 72-50-24-310-076 Weld Repair the Support Ring Assembly

    1. Refer to Figure.

      2. Gas tungsten arc weld the front faces area A3.

      1. Refer to the SPM TASK 70-31-13-310-501.

        Use CoMat 03-184 WELDING FILLER WIRE, NICKEL. Make sure that there is sufficient material to do last machining. To prevent distortion, several weld passes must be made. Prevent too much temperature build-up.

    5. SUBTASK 72-50-24-320-081 Machine the Welded Areas

    1. Refer to Figure.

      2. Machine the welded areas.

      1. Use turning lathe or grinding machine.

    6. SUBTASK 72-50-24-370-071 Heat Treatment after Weld Repair

      1. Heat treat the support ring assembly.

      1. Refer to the SPM TASK 70-37-00-370-501.

        Put the part in an oven for eight hours at 1450 to 1500 deg F (788 to 816 deg C).

        Use argon or vacuum.

        Cooling rate equivalent to air cooling.

    7. SUBTASK 72-50-24-230-124 Examine the Welded Areas for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use medium sensitivity level.

        No cracks are permitted.

    8. SUBTASK 72-50-24-220-231 Examine the Machined Areas

    1. Refer to Figure.

    2. Examine dimensionally.

    9. SUBTASK 72-50-24-350-102 Do the Post Repair

      1. Restore the wear protective coating.

      1. Refer to VRS4309, TASK 72-50-24-300-039 (REPAIR-039).

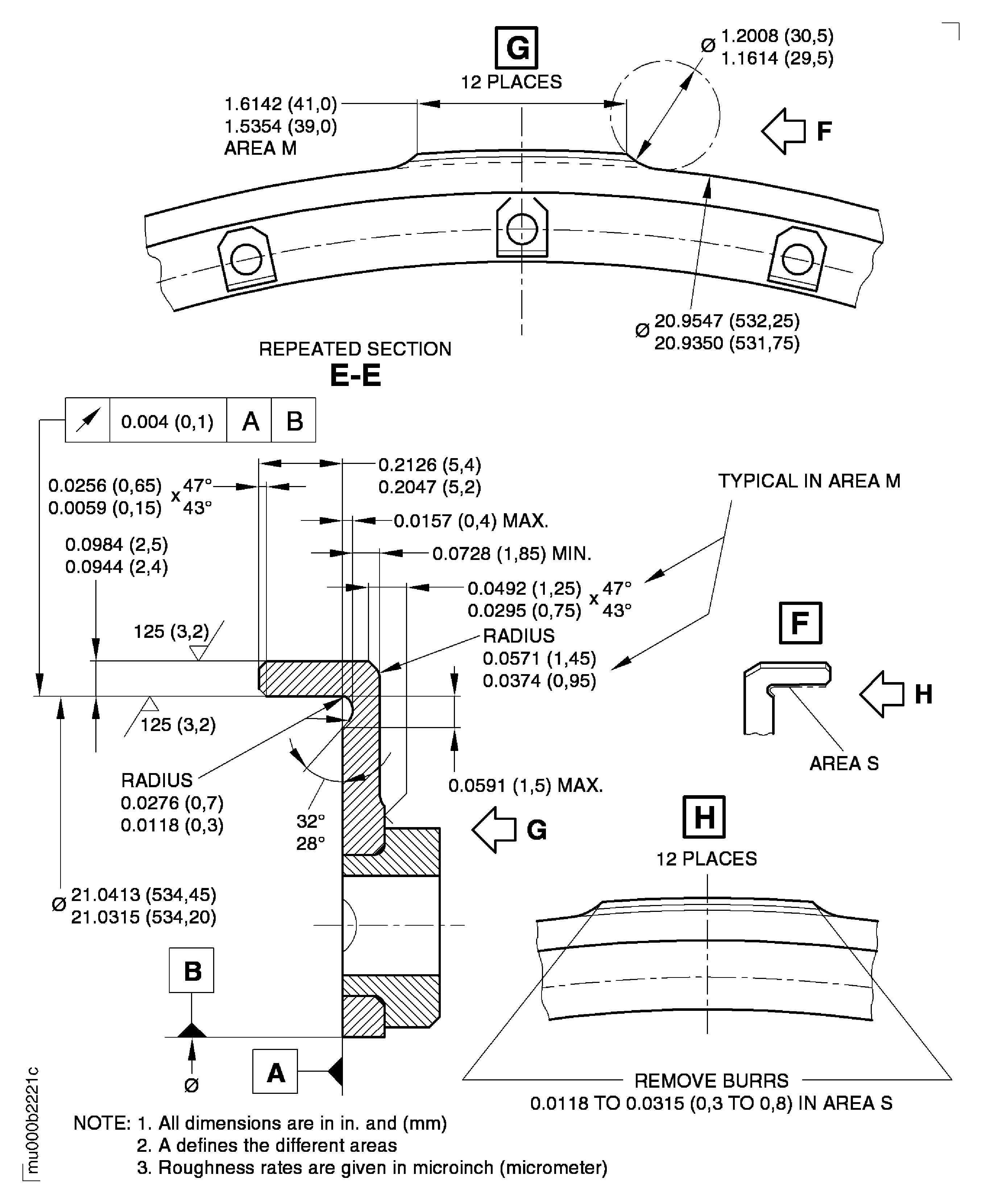

    10. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

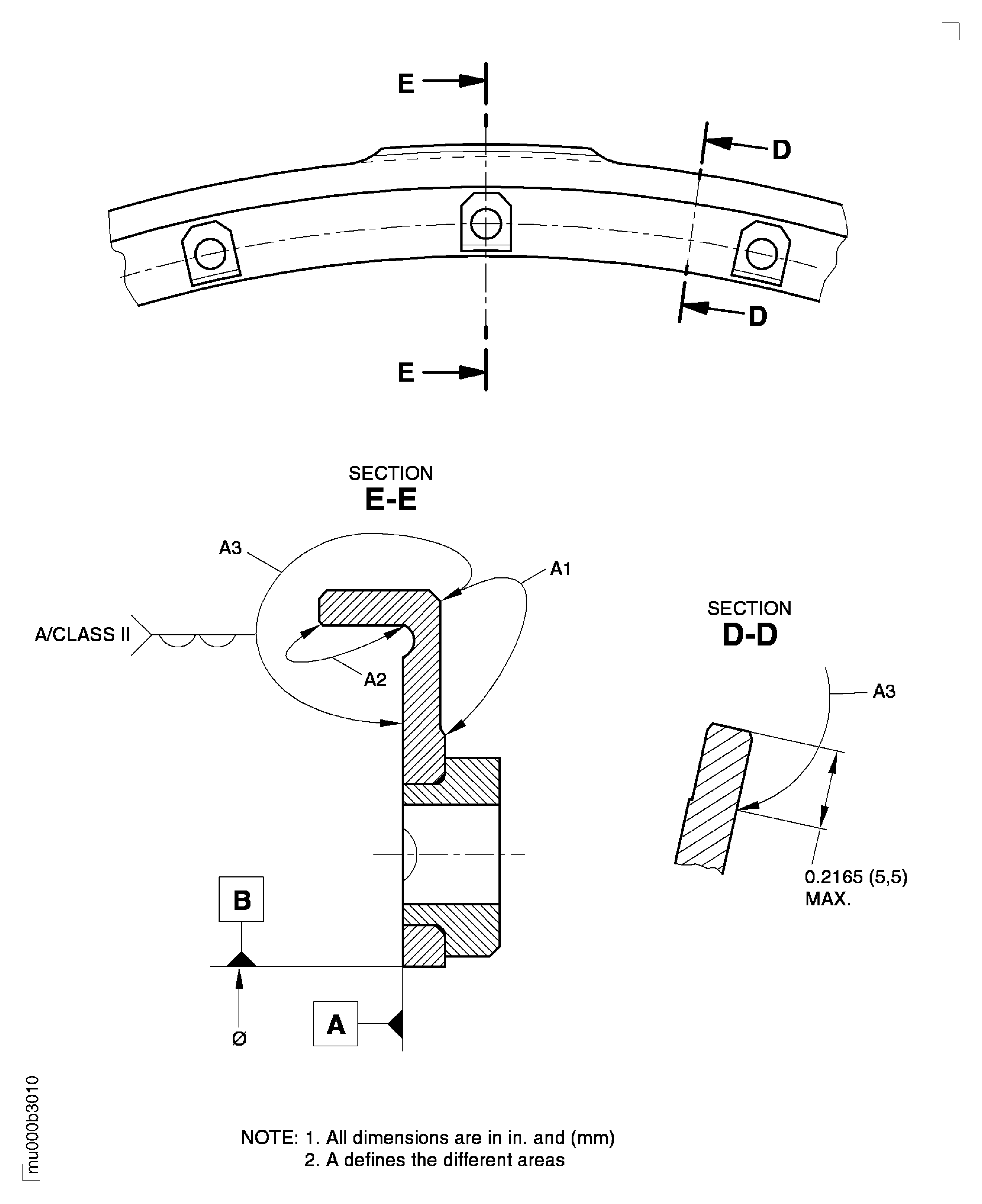

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
