TASK 72-50-32-300-036 LPT Stage 5 Blade - Weld Build Up Repair Of Outer Shroud Hardfacing, Repair-036 (VRS4286)

DMC:V2500-A0-72-50-3205-03A-627A-C|Issue No:003.00|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-32-300-036 LPT Stage 5 Blade - Weld Build Up Repair Of Outer Shroud Hardfacing, Repair-036 (VRS4286)

Effectivity

FIG/ITEM

PART NO.

01-100

3A1805

01-100

3A2475

Material of component

IAE

DESCRIPTION

SYMBOL

MATERIAL

Stage 5 turbine blade

INCONEL 713C

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

For more equipment and materials necessary to do this repair, refer to the SPM TASK 70-09-00-400-501, SPM TASK 70-11-03-300-503, SPM TASK 70-23-03-230-501, SPM TASK 70-23-08-230-501, SPM TASK 70-31-08-310-501, SPM TASK 70-37-00-370-501, SPM TASK 70-37-10-370-501 and SPM TASK 70-38-04-300-503.
Equivalent equipment may be used.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedures by the tool primary number.

NOTE

  1. If repair of pre-twist per VRS4304 TASK 72-50-32-300-037 (REPAIR-037) is also required, then do VRS4304 first, before start of this repair.

  2. Before start of repair, record the stage 5 turbine blade manufacturing code part number, heat code, blade life figure and serial number, if marked on the blade.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Cleaning facilityLOCALCleaning facility
Welding facilityLOCALWelding facility
Inspection facilityLOCALInspection facility
Machining facilityLOCALMachining facility
Heat treatment facilityLOCALHeat treatment facility
Crack inspection equipmentLOCALCrack inspection equipment
Blasting facilityLOCALBlasting facility
Marking facilityLOCALMarking facility
IAE 2M14190 Inspection gage0AM53IAE 2M141901
IAE 3M14403 Welding mounting block0AM53IAE 3M144031
IAE 3M14499 Welding fixture0AM53IAE 3M144991
IAE 3M14399 Grinding fixture (convex/concave side)0AM53IAE 3M143991

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 03-283 COATING ALLOY0CZB2CoMat 03-283
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-32-110-118 Clean the Stage 5 Turbine Blade

      1. Clean the blade.

      1. Refer to the SPM TASK 70-11-03-300-503.

    2. SUBTASK 72-50-32-310-069 Weld Build-Up Repair the Worn Surfaces

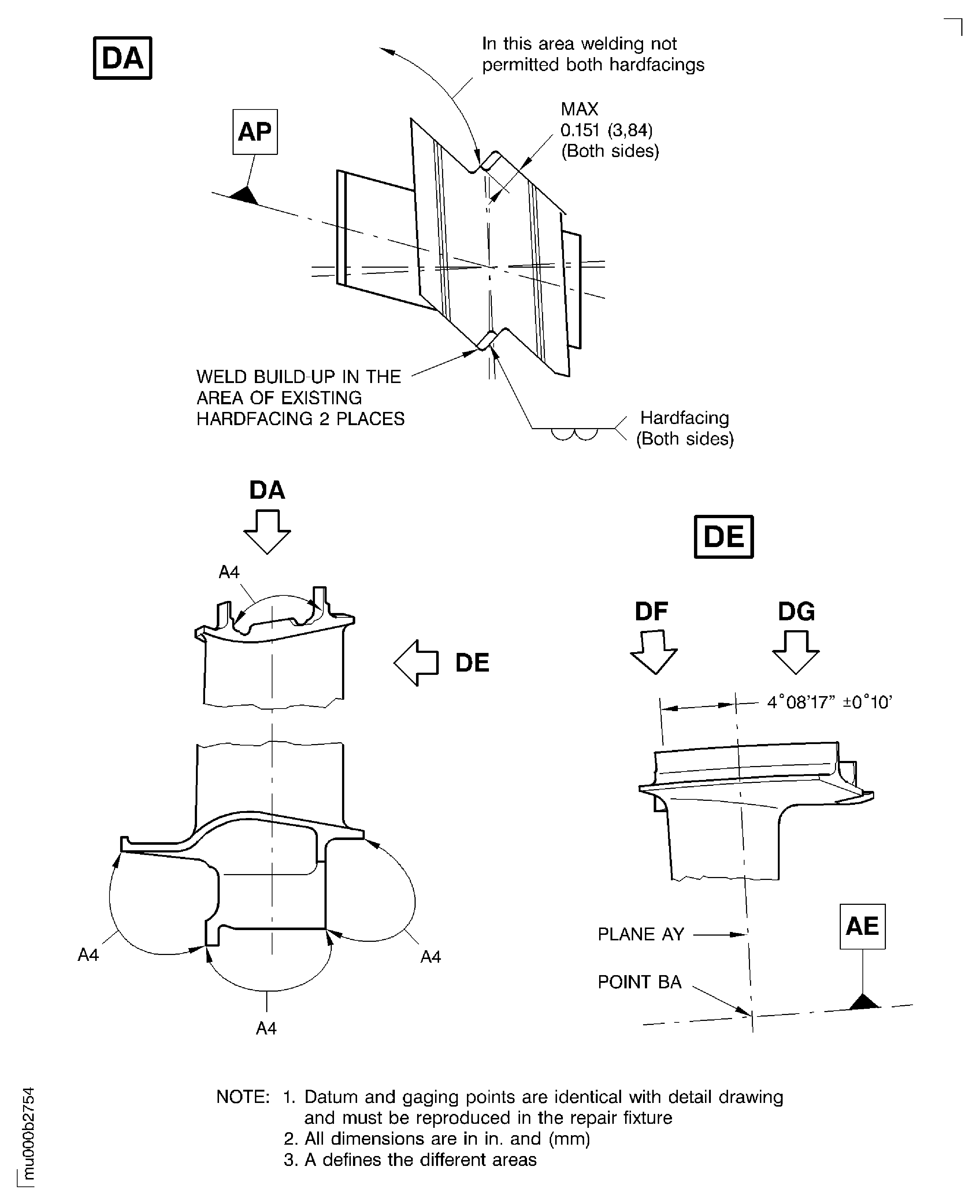

      1. Tungsten inert gas weld build-up the worn surfaces.

      1. Refer to Figure and the SPM TASK 70-31-08-310-501.

        Build up sufficient material to do last machining.

        Electrical contact is permitted in area A4.

        No burning, pitting or selective attack is permitted.

    3. SUBTASK 72-50-32-220-307 Examine the Welded Areas

      1. Examine the hardness of weld nugget.

      1. Rockwell 40 HRC minimum or equivalent is required.

      2. Visually examine.

      1. Refer to the SPM TASK 70-31-08-310-501 for weld acceptance limits.

    4. SUBTASK 72-50-32-320-084 Machine the Welded Areas

      1. Machine the welded areas.

      2. Remove the weld to the original contours on the inner and outer surfaces.

      1. Refer to Figure for dimensions.

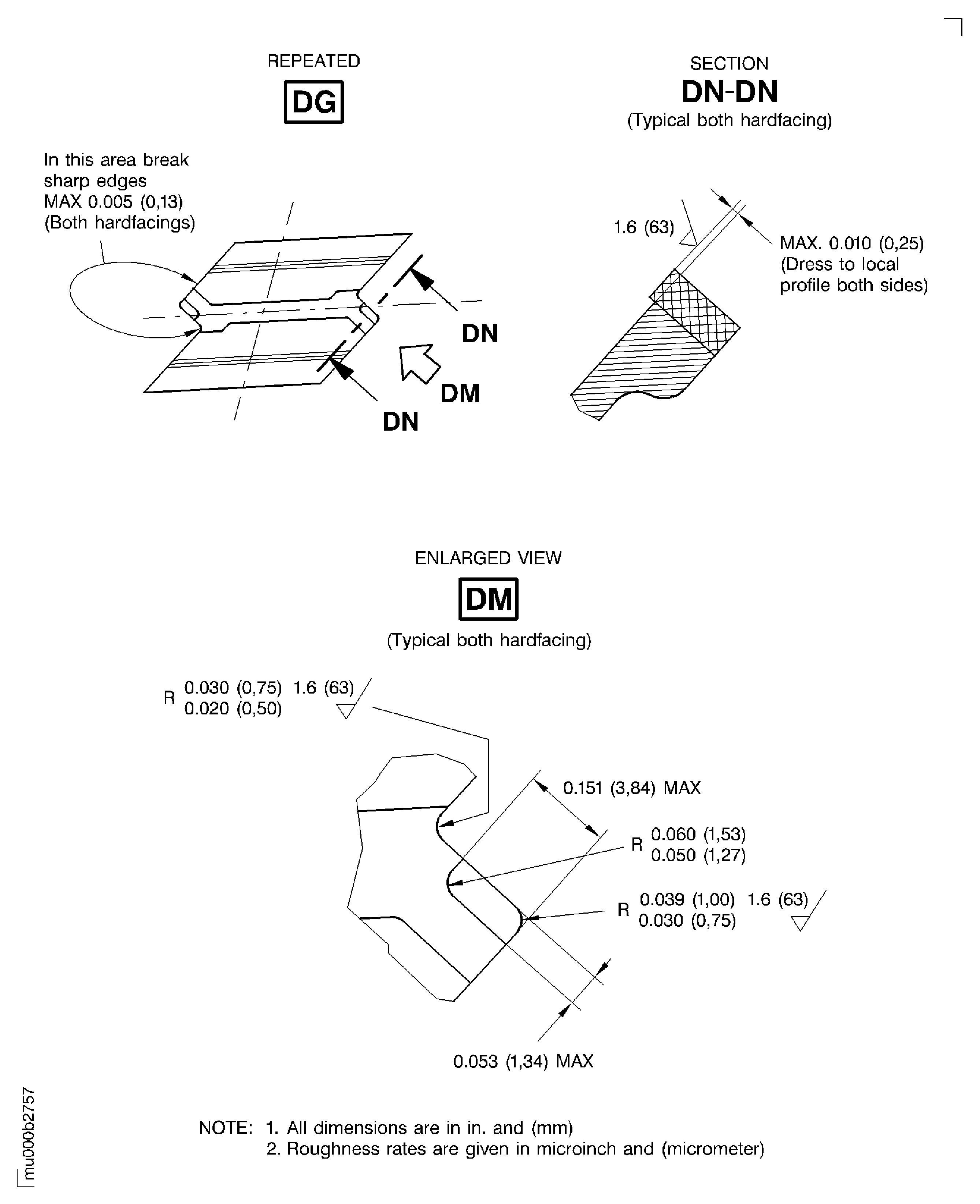

      3. Remove burrs and sharp edges.

      1. Refer to Figure for dimensions and the affected areas.

    5. SUBTASK 72-50-32-220-308 Examine the Repaired Outer Shroud Hardfacing

      1. Visually examine the hardfacing.

      1. The extension of linear discontinuites to any edge is not permitted.

      2. Dimensionally examine the hardfaced areas.

      1. Refer to Figure and Figure.

    6. SUBTASK 72-50-32-370-083 Heat Treat after Machining

      1. Heat treat the stage 5 turbine blade.

      1. Heating and cooling rate to be maximum 40 deg F (22 deg C) per minute.

    7. SUBTASK 72-50-32-230-135 Examine the Stage 5 Turbine Blade for Cracks after Heat Treatment

      1. Do the test for cracks.

      1. The maximum permitted length of discontinuities is 0.016 in. (0.4 mm) in the repaired areas.

    8. SUBTASK 72-50-32-110-119 Clean the Stage 5 Turbine Blade

      1. Clean the blade.

      1. Refer to the SPM TASK 70-11-03-300-503.

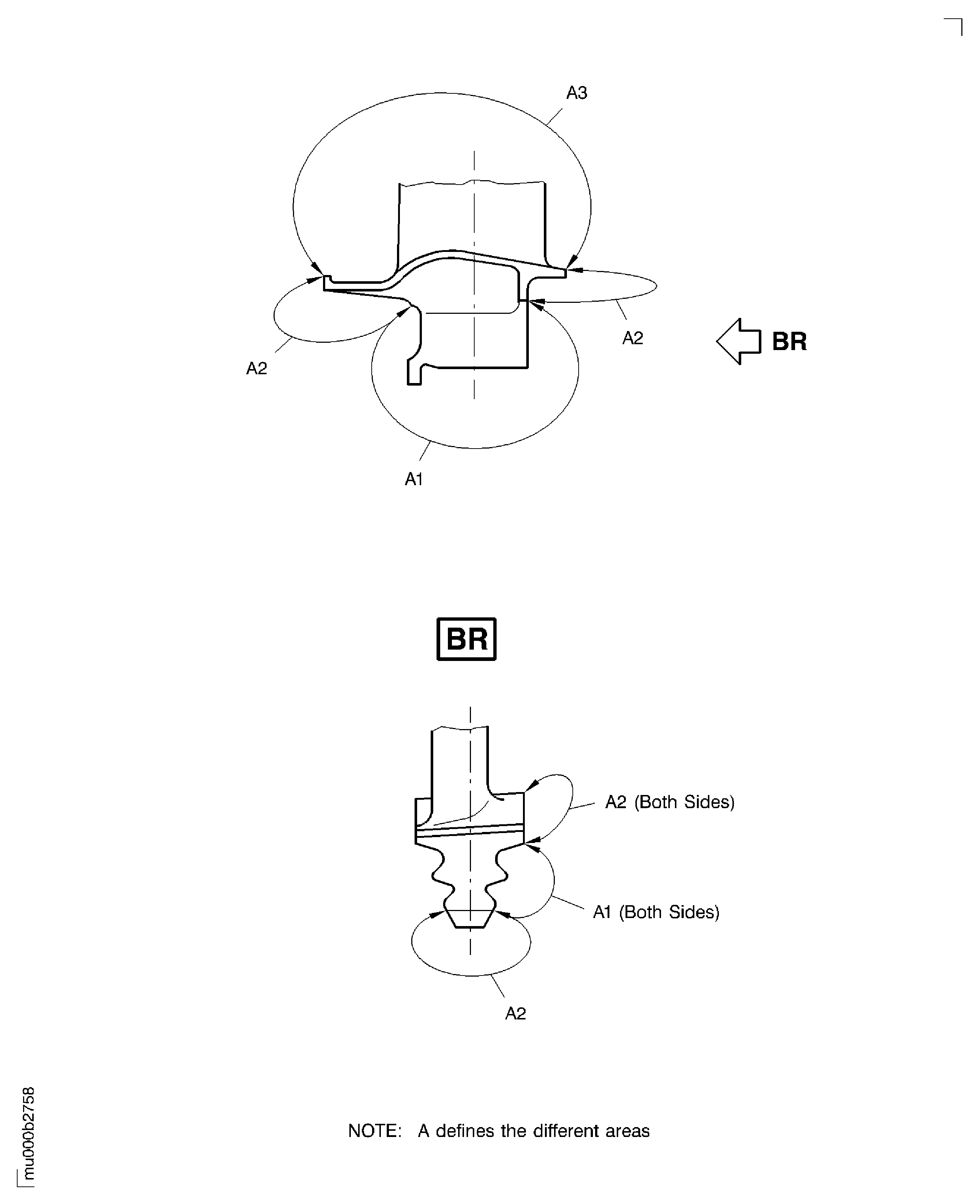

    9. SUBTASK 72-50-32-380-080 Shot-Peen the Surface A1 of the Stage 5 Turbine Blade

      1. Mask the turbine blade surface in area A3.

      2. Shot-peen area A1.

      1. Refer to the SPM TASK 70-38-04-300-503.

        Use CoMat 05-030 CAST STEEL SHOT DELETED to an intensity of 6A.

        Minimum shot-peening is permitted in area A2.

        Refer to Figure.

      3. Remove all masking.

      1. Remove all the tape.

    10. SUBTASK 72-50-32-220-309 Examine the Blade Markings

      1. Examine the markings of the stage 5 turbine blade manufacturing code, part number, heat code and serial number.

      1. If you cannot read any of these, make new marks.

        Use the roll stamp method.

        Refer to the SPM TASK 70-09-00-400-501.

      2. Examine the marking of the stage 5 turbine blade life.

      1. If you can not read this marking, make a new mark.

        Use the vibro-peen method.

        Refer to the SPM TASK 70-09-00-400-501.

    11. Figure: Weld build-up of outer shroud hardfacing of stage 5 turbine blade

    Weld build-up of outer shroud hardfacing of stage 5 turbine blade

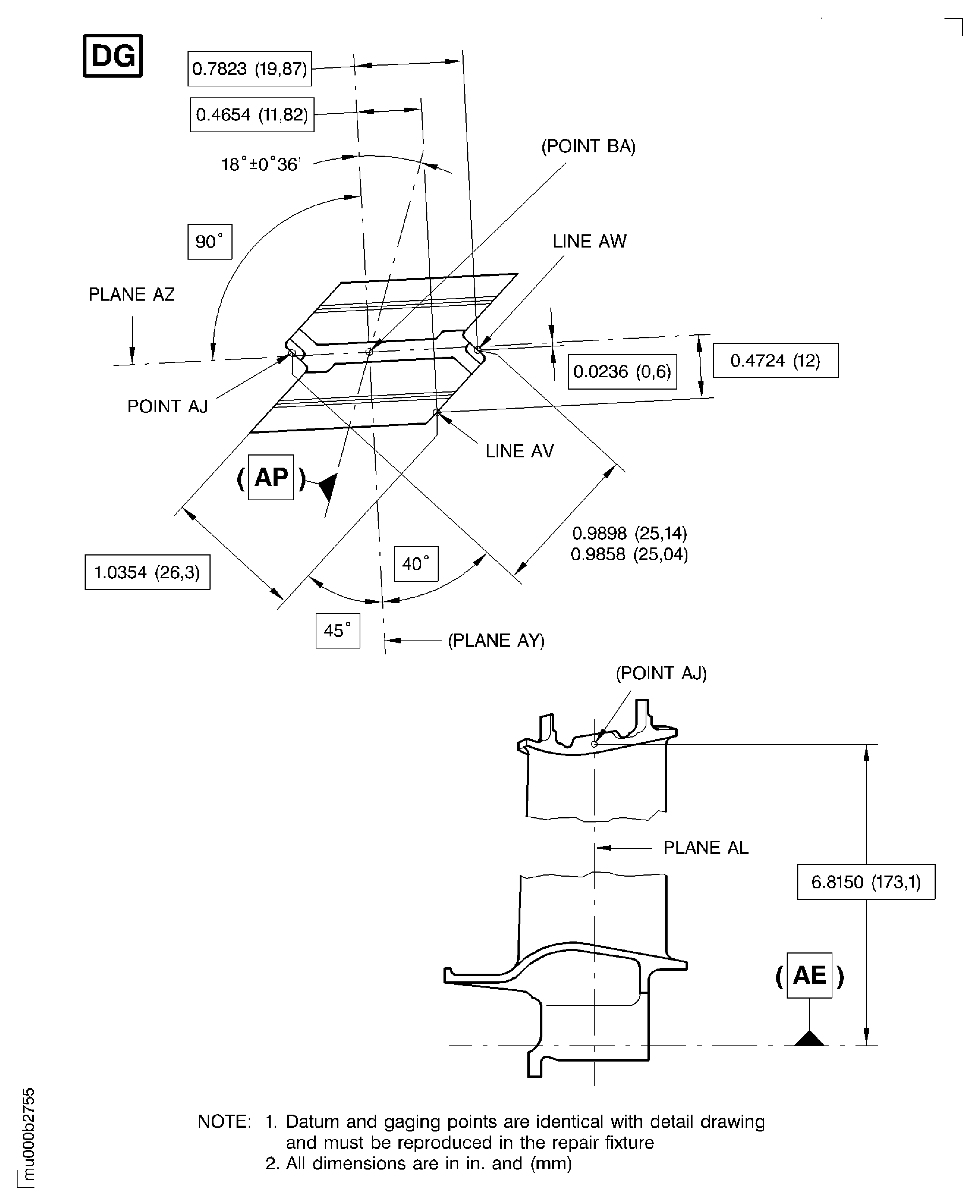

    Figure: Weld build-up of outer shroud hardfacing of stage 5 turbine blade

    Sheet 1

    Legend
    Weld build-up of outer shroud hardfacing of stage 5 turbine blade

    Sheet 1

    Close

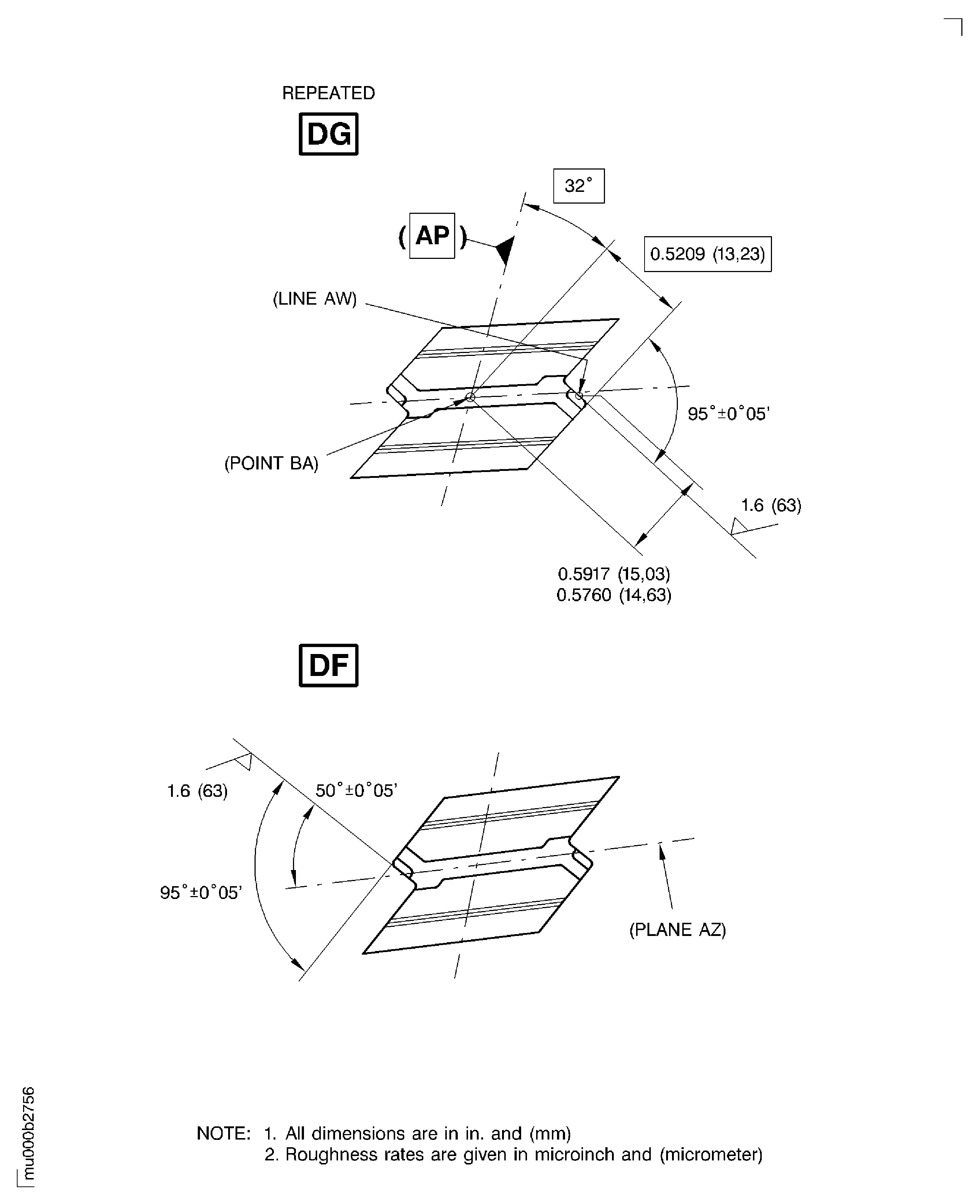

    Figure: Weld build-up of outer shroud hardfacing of stage 5 turbine blade

    Sheet 2

    Legend
    Weld build-up of outer shroud hardfacing of stage 5 turbine blade

    Sheet 2

    Close

    Figure: Weld build-up of outer shroud hardfacing of stage 5 turbine blade

    Weld build-up of outer shroud hardfacing of stage 5 turbine blade

    Figure: Weld build-up of outer shroud hardfacing of stage 5 turbine blade

    Weld build-up of outer shroud hardfacing of stage 5 turbine blade

Requirements After Job Completion

Follow-On Conditions

NONE
