TASK 72-50-32-300-072 LPT Stage 6 Blade - Weld Build Up Repair The Knife Edge Seals, Repair-072 (VRS4560)

DMC:V2500-A0-72-50-3206-04A-627A-C|Issue No:003.00|Issue Date:2019-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-32-300-072 LPT Stage 6 Blade - Weld Build Up Repair The Knife Edge Seals, Repair-072 (VRS4560)

Effectivity

FIG/ITEM

PART NO.

01-150

3A2704

Material of component

PART IDENT

SYMBOL

MATERIAL

Stage 6 turbine blade

Inconel 713

General

Price and availability - none

The practices and processes referred to in this procedure by the TASK number are in the SPM.

NOTE

For more equipment and materials necessary to do this repair refer to the SPM TASK 70-09-00-400-501, SPM TASK 70-11-03-300-501, SPM TASK 70-23-04-230-501, SPM TASK 70-23-05-230-501, SPM TASK 70-31-13-310-501, SPM TASK 70-37-10-370-501 and SPM TASK 70-38-13-380-501.
Equivalent equipment may be used.

NOTE

To identify the consumable materials refer to the OPCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

NOTE

  1. If repair of pre-twist is also required, then do VRS4303 TASK 72-50-32-300-054 (REPAIR-054) first, before start of this repair.

  2. Do not repair turbine blades that have cracks extending into the outer shroud.

  3. Before repair, write down the turbine blade part number and serial number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
External grinding machineLOCALExternal grinding machine
Tridimensional measuring unitLOCALTridimensional measuring unit
DELETED0AM53DELETED
IAE 3M14414 Welding fixture0AM53IAE 3M144141
IAE 3M14524 Grinding mounting block0AM53IAE 3M14524
IAE 3M14471 Grinding fixture0AM53IAE 3M14471
IAE 2M14184 Inspection mounting block0AM53IAE 2M14184
IAE 3M14466 Welding mounting block0AM53IAE 3M14466

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-245 WELDING FILLER WIRELOCALCoMat 03-245
CoMat 03-287 WELDING FILLER WIRELOCALCoMat 03-287
CoMat 05-029 CAST STEEL SHOT, S110LOCALCoMat 05-029
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030
CoMat 05-031 CAST STEEL SHOT DELETED0AM53CoMat 05-031
CoMat 05-138 SHOT, CAST STEEL, S11011851CoMat 05-138
CoMat 05-177 CUT WIRE SHOT,CW-14LOCALCoMat 05-177

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-32-324-063 Machine the Knife Edge Seals

    1. Refer to Figure.

      2. Grind the knife edge seals.

      1. Keep material removal to a minimum.

    2. SUBTASK 72-50-32-220-445 Examine the Machined Areas

    1. Refer to Figure.

    3. SUBTASK 72-50-32-230-193 Examine the Machined Areas for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use high sensitivity level.

        No cracks are permitted.

    4. SUBTASK 72-50-32-110-144 Clean the Stage 6 Turbine Blade

      1. Aqueous cleaning.

      1. Refer to the SPM TASK 70-11-03-300-501.

    5. SUBTASK 72-50-32-310-087 Weld Build-Up Repair the Knife Edge Seals

    1. Refer to Figure and Figure.

      2. Gas tungsten arc weld build-up seal fins.

      1. Make sure that there is sufficient material to do last machining.

        Refer to the SPM TASK 70-31-13-310-501.

        Decrease temperature of the turbine blades to reduce heat affected zone to a minimum.

    6. SUBTASK 72-50-32-370-101 Heat Treatment after Weld Repair

      NOTE

      Do the stress-relief after all weld operations.

      1. Stress-relieve the turbine blade.

      1. Refer to the SPM TASK 70-37-10-370-501, Stress-Relief Cycle 5.

    7. SUBTASK 72-50-32-230-194 Examine the Welded Areas for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-04-230-501.

        Cracks in knife edge welds can be repaired providing they do not extend into the outer shroud.

    8. SUBTASK 72-50-32-324-064 Machine the Welded Areas

    1. Refer to Figure and Fig 72-32-50-990-309-002.

    9. SUBTASK 72-50-32-230-195 Examine the Machined Areas for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use high sensitivity level.

        Cracks in knife edge welds can be repaired.

        For limits refer to VRS4186 TASK 72-50-32-300-008 (REPAIR-008).

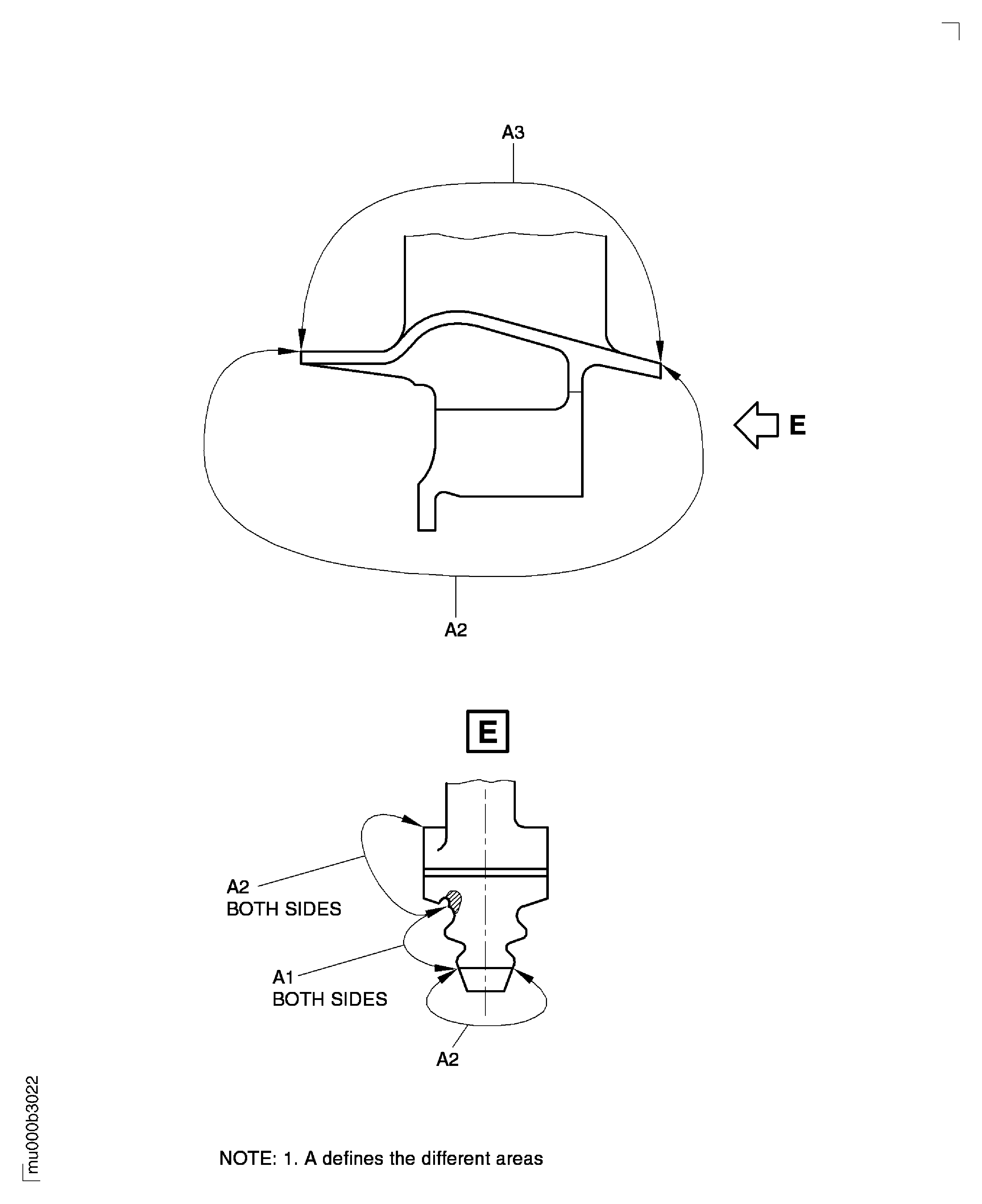

    10. SUBTASK 72-50-32-380-093 Shotpeen the Surface A1 of the Stage 6 Turbine Blade

    1. Refer to Figure.

      NOTE

      Do the shotpeening after all weld operations.

    2. Mask area A3.

      3. Shotpeen area A1.

      1. Shotpeen blade root flanks plus corner radii to end faces.

        Shotpeening is permitted in area A2.

      4. Remove the masking.

      1. Remove masking.

    11. SUBTASK 72-50-32-220-446 Examine the Stage 6 Turbine Blade Markings

      1. Examine the markings of part number and serial number.

      1. If you cannot read any of these, make new marks.

        Use the roll stamp method.

        Refer to the SPM TASK 70-09-00-400-501.

    12. SUBTASK 72-50-32-380-094 Make a Mark to Identify the Repair

      1. Vibropeen VRS4560 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501.

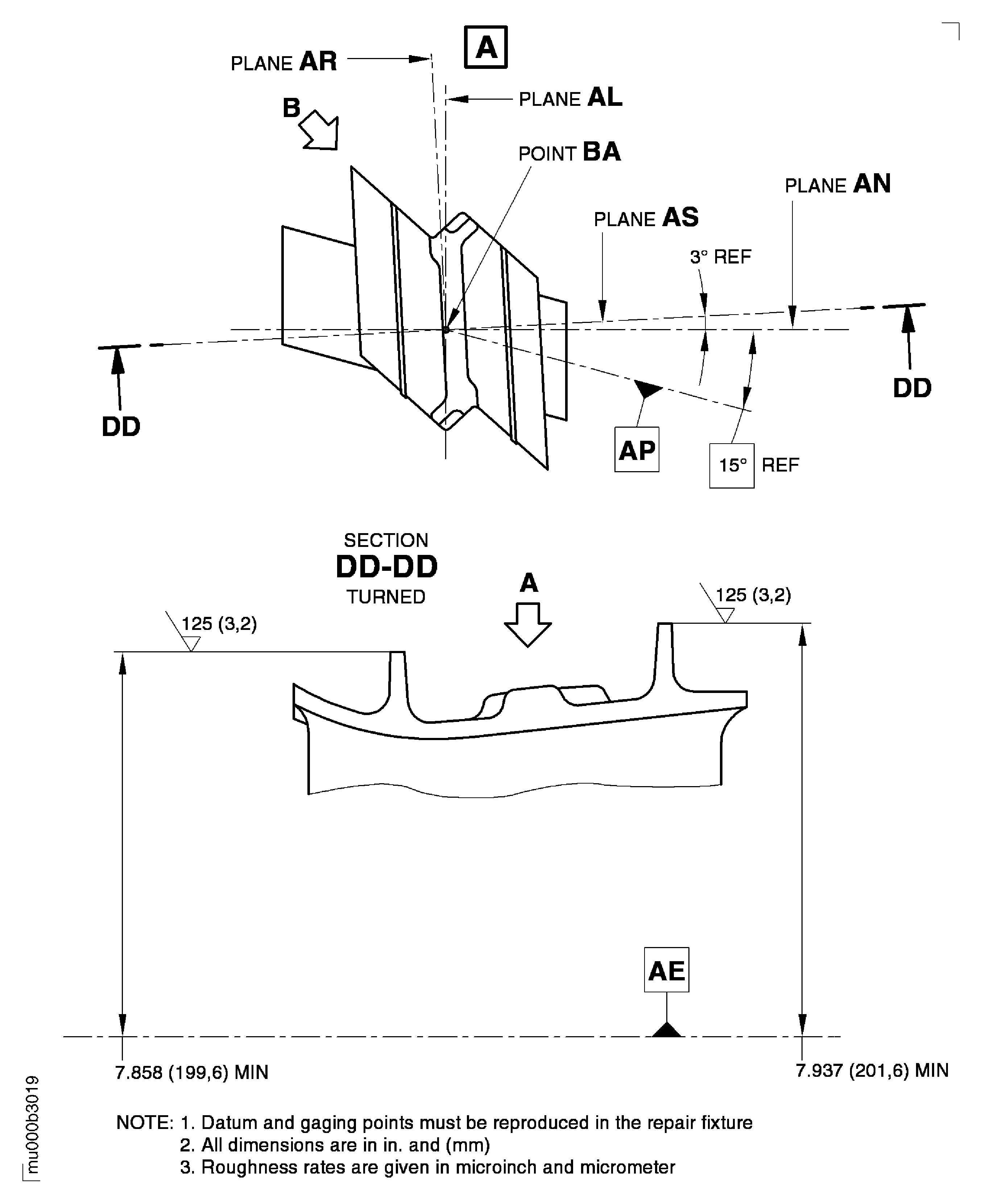

    13. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

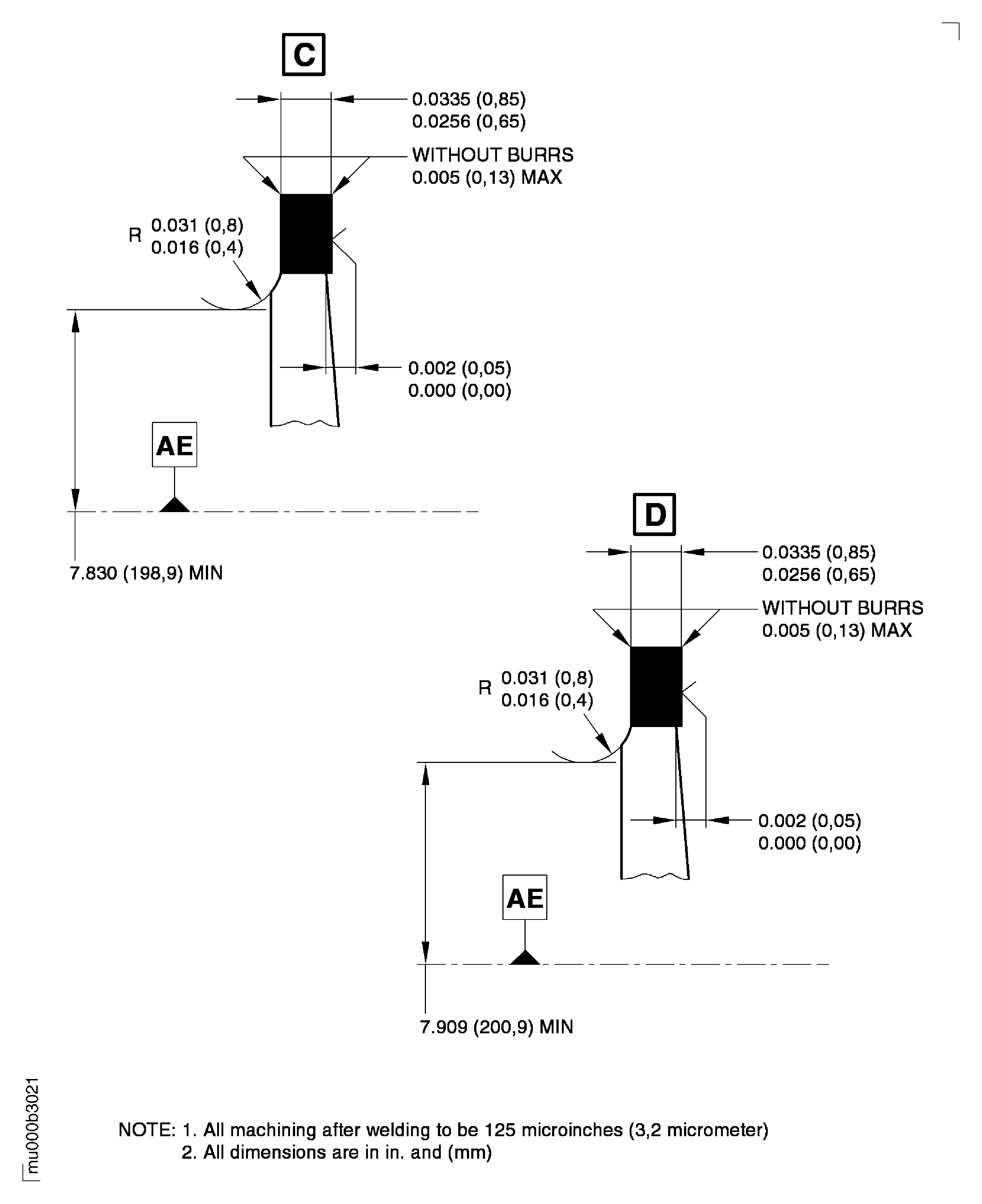

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

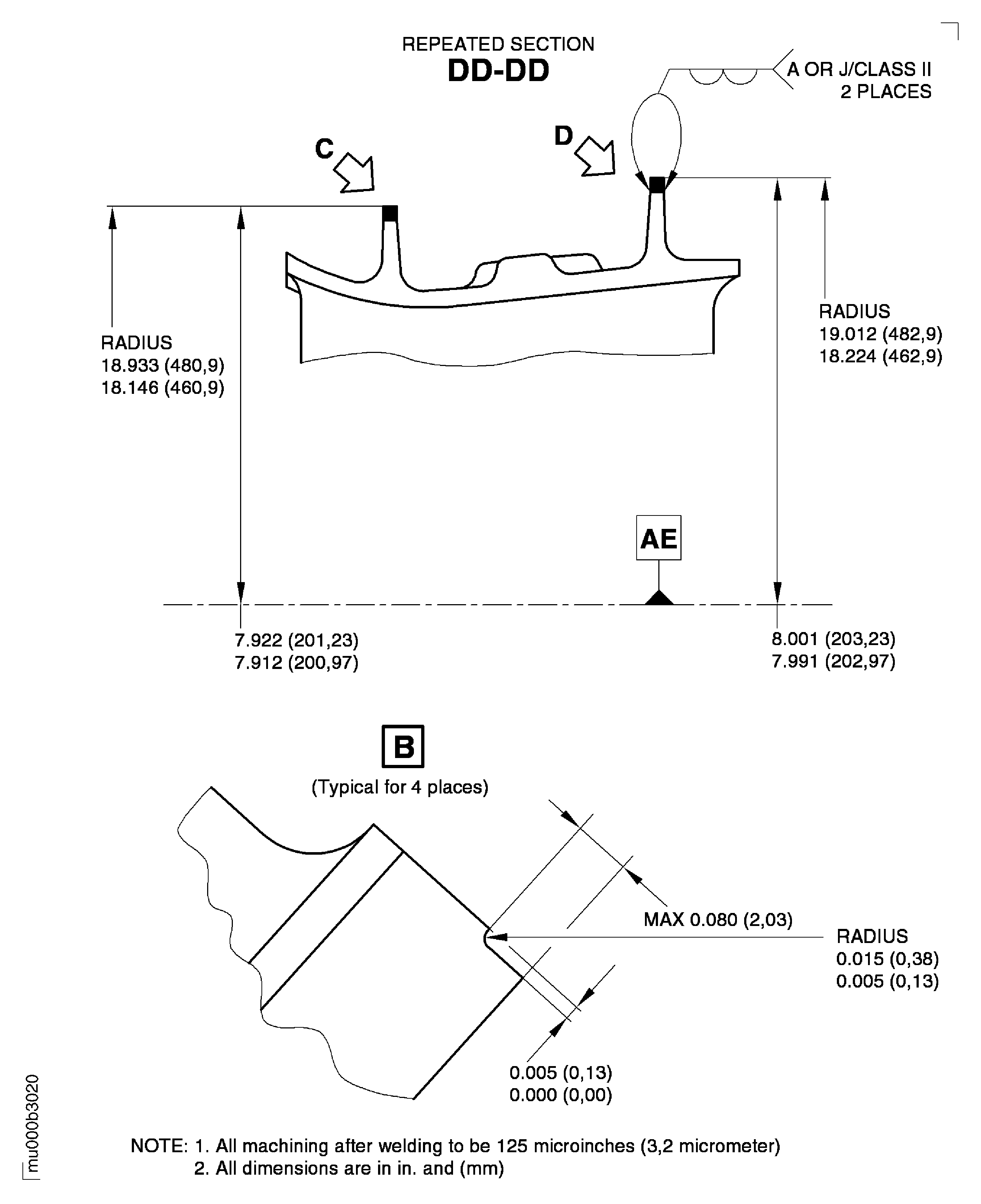

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
